Summary of Contents for Beka Hospitec AVERO Premium Plus
- Page 1 Plumbing – CSA B45.5 11/IAPMO 7124-2011 Electrical – CSA C22.2 No. 60601-1...
- Page 2 Dear Customer, We thank you for the confidence you have placed in us by purchasing this BEKA Hospitec Ltd. product. Our products are manufactured and tested under strict quality controls. Proper use of the unit is essential for safe operation. Therefore, thoroughly familiarize yourself with the contents of this user manual before operating the unit.
-
Page 3: Table Of Contents
4.1 Note before initial start-up ..................... 13 4.2 Electrical system ........................14 4.3 Adjusting the thermostat mixer (scald protection) ..............14 5. Operation of the AVERO Premium Plus Lifting Tub .............. 16 5.1 Operating elements ......................16 5.2 Disinfection ........................... 17 5.3 Tub interior .......................... - Page 4 7. Cleaning / Disinfection ......................27 7.1 Cleaning the AVERO Premium Plus Lifting Tub ..............27 7.2 Disinfecting the AVERO Premium Plus Lifting Tub (For Tubs Including Disinfection Systems) ................................ 27 7.3 Sterilization ........................... 29 8. Contact for Technical Service and Customer Service ............29 9.
-
Page 5: Preface
4. Electrical installations may only be carried out by specialist companies, according to the currently valid CSA regulations. 5. Maintenance and safety checks must be carried out by BEKA Hospitec or by specialist companies authorized by BEKA Hospitec. 6. Assembly, extensions, modifications or repairs must be performed by BEKA Hospitec or by specialist companies authorized by BEKA Hospitec. -
Page 6: Introduction
Prism Medical Ltd. V1-2015 2. Introduction WARNING:... -
Page 7: Safety Risk And Possible Device Damage
Prism Medical Ltd. V1-2015 WARNING: Please read the following safety instructions before starting the AVERO Premium Plus lifting tub. All instructions and warnings on the product and in this manual must be followed carefully. For any errors or damages caused by improper operation or handling, the BEKA Hospitec GmbH manufacturer accepts no liability. - Page 8 AVERO Premium Plus lifting tub. Repairs Repair of parts of the AVERO Premium Plus lifting tub may only be performed by trained personnel. Contact your service representative. Opening the device or accessories will invalidate the warranty and any and all liability.
- Page 9 Prism Medical Ltd. V1-2015 Accessories Operate the AVERO Premium Plus lifting tub only with original accessories. WARNING: Any unauthorized repairs, modifications and additions are not permitted for safety reasons and exclude any liability of the manufacturer for resulting damage.
-
Page 10: Signs And Symbols Used
Prism Medical Ltd. V1-2015 Consult enclosed documents / user manual Warning of potential danger Upgrades prohibited, Do not step on the frame of the tub. Application Part "Type B" according to DIN EN60601-1 No household waste Do not put the treatment system or the packaging materials in the household trash. -
Page 11: Unpacking And Assembly
Prism Medical Ltd. V1-2015 3. Unpacking and assembly Transport the lifting tub into the vicinity of the intended installation site. Use a pallet or similar for transporting. Arrange the tub, so that it is secure and cannot tip. To remove the packaging you need: Sharp- bladed cutter Cut the straps with the cutter and remove... -
Page 12: Tools Required
Prism Medical Ltd. V1-2015 AVERO Premium Plus The tub is mounted on the pallet through the foot by means of a screw Unscrew this screw using a cordless screwdriver and a matching bit, and put them aside with the washer. Repeat this on all 4 feet. -
Page 13: Installation
These checks are necessary for the safety of your patients and for your own safety. This device is not approved for operation in potentially explosive atmospheres. Maintenance of the unit must be carried out only by Beka Hospitec personnel or by a party expressly authorized by Beka, otherwise the warranty shall lapse. -
Page 14: Electrical System
Connection to the power supply network: When connecting the device to a power supply, the specific CSA standards must be observed. The connection of the AVERO Premium Plus is connected by means of a distribution box IP X4, 120V AC/60 Hz, 3x1.5 mm , RCD 30 mA, FI-safety switch 30 mA potential equalization according to DIN VDE 0107. - Page 15 Prism Medical Ltd. V1-2015 Check the provided water temperature: The mixers are supplied with a water temperature calibration setting of + 41° C supplied, with a hot water supply temperature of 60-65 ° C, and a cold water temperature of 10-15 ° C. If the water is too hot or too cold after installation a readjustment of the temperature controller is required.
-
Page 16: Operation Of The Avero Premium Plus Lifting Tub

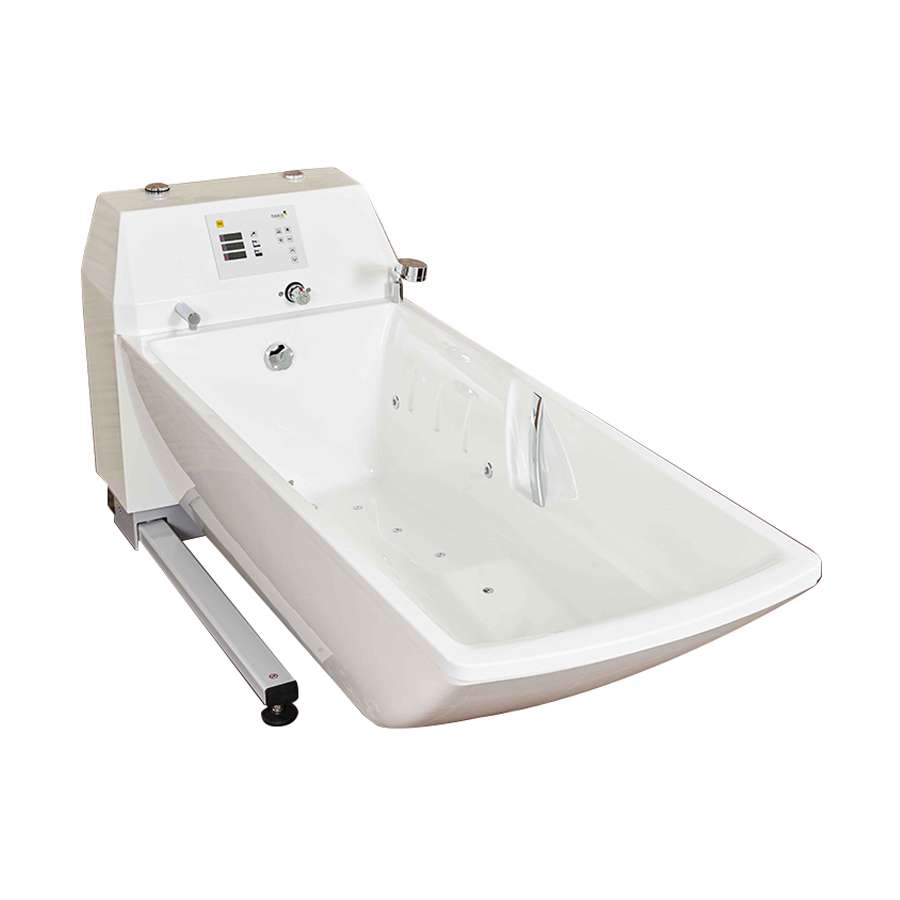

Prism Medical Ltd. V1-2015 5. Operation of the AVERO Premium Plus Lifting Tub The AVERO Premium Plus lifting tub is an ergonomic care tub made of GRP (Glass Reinforced Plastic or Fiberglass) material with a fully enclosed exterior finish. The lifting tub is free on three sides and requires little space. -
Page 17: Disinfection
Prism Medical Ltd. V1-2015 Handheld showerhead disinfection Picture 2 Type label Removable inspection cover for refilling the disinfectant... -
Page 18: Tub Interior
Prism Medical Ltd. V1-2015 Bath shortener Longitudinal grooves for inserting the tub shortener Picture 3 Figure shows the tub interior of the Avero Premium Plus Bath spout Thermostat Eccentric rotary operation Picture 4 Temperature sensor for the Eccentric stopper bath water temperature with tub drain Air nozzles Picture 5... -
Page 19: Button Control Panel
Prism Medical Ltd. V1-2015 Button disinfection Air spa system button Handheld showerhead temperature 9 + 11 Jet button +/- display Filling temperature display Color light therapy system button Bathwater temperature display 11 + 9 Jet button +/- Handheld showerhead button Height adjustment button UP Filling (filling height 1) button Height adjustment button DOWN... -
Page 20: Using The Avero Premium Plus Lifting Tub
Prism Medical Ltd. V1-2015 6. Using the AVERO Premium Plus Lifting Tub To fill the AVERO Premium Plus lifting tub press the key "6 or 7" on the control panel. Once the water has reached the desired level the filling stops automatically. -
Page 21: Advanced Lifting Tub Functions
Prism Medical Ltd. V1-2015 The disinfection key turns the disinfection device on or off. To activate disinfection, press this key. To turn off the disinfection you press the key again. The disinfection device can be turned on only when the tub is emptied and all other functions are turned off. -
Page 22: Handheld Showerhead Button (5)
Prism Medical Ltd. V1-2015 If the measured temperature is greater than 42 °C (scald protection), the display will show "HOT" alternating with the temperature. The temperature is displayed in a range from 2.5 °C (32.5 °F) to 64.0 °C (99.5 °F). If the temperature is less than 2.5 °C "TLO"... -
Page 23: Air Spa System Button (8)
Prism Medical Ltd. V1-2015 After reaching fill level 1 or 2 (depending on the selection), it is no longer possible to fill the tub automatically. In this case, you can fill the tub further manually by pressing the appropriate button (6) or (7). -
Page 24: Color Light Therapy Button
(10) again to start the color change again. To turn off the color light therapy, press the button (10) for min. 3 seconds. The power LED indicates the AVERO Premium Plus is ready for operation by flashing in 5 second intervals. -
Page 25: Music Sound System
Prism Medical Ltd. V1-2015 LED (green) lights up when the button is pressed AUX (Optional) for other inputs Radio function (Optional) MP3 tracks and/or radio station toggles Choose MP3 source, play and pause Mute Volume -/+ Treble -/+ Bass -/+ Power on / off (standby) The remote control is powered via 2 x 1.5V AA standard batteries. - Page 26 Prism Medical Ltd. V1-2015 Music Sound System LED lights when the button is pressed previous/next MP3 title and/or radio station Select, play and pause MP3 source Muting Volume -/+ Treble -/+ Bass -/+ Power switch on/off (standby) Power is supplied to the hand control via 2 x 1.5 V AA standard batteries.
-
Page 27: Cleaning / Disinfection
To disinfect the surface, use an isopropyl alcohol solution or an industry-standard disinfectant aerosol (spray). The tub body of the lifting tub AVERO Premium Plus consists of fiber glass, reinforced plastic and is to be disinfected with surface disinfectant (not aggressively). - Page 28 Removable Handheld accessed via the inspection cover on the back inspection cover for showerhead side of the AVERO Premium Plus lifting tub. refilling the disinfection When refilling and replacing the container disinfectant make sure that the hose reaches the bottom of (removable) the container.
-
Page 29: Sterilization
The metal parts and plastic and electronic components should be recycled or disposed of in accordance with local regulations. Consult BEKA-contractors at the end of the product life of your AVERO Premium Plus lifting tub to dispose according to local regulations and laws. -
Page 30: Preventative Maintenance
The checks may be carried out only by the manufacturer or by personnel authorized by the manufacturer. Attention: Electrical inspections (in accordance to local regulations) must be carried out with the AVERO Premium Plus tub once every year. Daily checks: Clean, disinfect. Weekly checks: Conduct a visual inspection of all components, as well as hoses, pipes and connections, and a function test. -
Page 31: Troubleshooting And Customer Service
Prism Medical Ltd. V1-2015 11. Troubleshooting and customer service Problem Solution... -
Page 32: Customer Service
Plus lifting tub does not work properly and you cannot rectify the fault with the remedies under Section 11.1. Prism Medical Ltd. BEKA Hospitec Ltd. 485 Millway Ave., Unit 2, Am Rübenmorgen 3 ● 35582 Wetzlar Concord, ON L4K 3V4 Phone: +49(0)641-9 22 20 - 0 Tel.: 1.800.265.0677... -
Page 33: Appendix
Prism Medical Ltd. V1-2015 12. Appendix Dimensions and Weights Length 190: 223.0 cm Width 190: 82.0 cm Length 170: 208.0 cm Width 170: 82.0 cm Internal width above 190/170: 72.0 cm Internal width below 190/170: 57.5 cm 96 – 136 cm Height 190/170: Lifting height min. - Page 34 -20° C to 70° C Relative humidity: 10% to 80%, non-condensing Atmospheric Pressure: 800 hPa Manufacturer: BEKA Hospitec Ltd. Am Rübenmorgen 3 ● 35582 Wetzlar Phone: +49(0)641-9 22 20 - 0 Fax: +49(0)641-9 22 20 - 20 info@beka-hospitec.de www.beka-hospitec.de Distributed by: ǀ...
-
Page 35: Dimensions Avero Premium Plus 190
Prism Medical Ltd. V1-2015... -
Page 36: Dimensions Avero Premium Plus 170
Prism Medical Ltd. V1-2015... -
Page 37: Declaration Of Conformity
Prism Medical Ltd. V1-2015... -
Page 38: Avero Premium Plus Accessories
K9100710 Electric motor for AVERO Premium Plus K0904010 Radio remote control for sound system Spare parts and consumables are available upon request from your BEKA Hospitec distributor or directly from the manufacturer. Please note: You cannot change all parts yourself. -
Page 39: Electromagnetic Compatibility
Guidelines and manufacturer declaration - electromagnetic immunity The AVERO Premium Plus is intended for use in the ELECTROMAGNETIC ENVIRONMENT specified below. The customer or user of the AVERO Premium Plus should ensure that it is used in such an environment. - Page 40 Guidelines and manufacturer declaration - electromagnetic immunity The AVERO Premium Plus is intended for use in the ELECTROMAGNETIC ENVIRONMENT specified below. The customer or user of AVERO Premium Plus should ensure that it is used in such an environment. Interference immunity...
- Page 41 To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic survey site is recommended. If the measured field strength in the environment in which the AVERO Premium Plus is to be used exceeds the applicable RF compliance level, particular attention must be paid to be able to ensure the normal operation of the AVERO Premium Plus.
- Page 42 Recommended distance between portable and mobile communications systems and the AVERO Premium Plus. The AVERO Premium Plus is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or user of the AVERO Premium Plus can prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the AVERO Premium Plus depending on the output of the communication device as indicated below.
-
Page 43: Inventory
BEKA Hospitec Ltd., Am Rübenmorgen 3, 35582 Wetzlar Serial Number: _____________________________________________ Purchase date: _____________________________________________ Location: _____________________________________________ Tests carried out during commissioning: Date:____________________________ ___________________________________________________________________________ Reference Values: ____________________________________________________________________________ Proof of instruction over the functions and applications of AVERO Premium Plus Instructor Instructed Name Date Name Signature... - Page 44 Prism Medical Ltd. V1-2015 Repeat examination, repair, DGUV-3, Technical Safety Check, etc. Type of Date Result Action Signature examination...
- Page 45 ____________________________________________________________________________________________________ ____________________________________________________________________________________________________ ____________________________________________________________________________________________________ ____________________________________________________________________________________________________ ____________________________________________________________________________________________________ ____________________________________________________________________________________________________ ____________________________________________________________________________________________________ ____________________________________________________________________________________________________ ____________________________________________________________________________________________________ ____________________________________________________________________________________________________ ____________________________________________________________________________________________________ BEKA Hospitec Ltd. Am Rübenmorgen 3 . D-35582 Wetzlar . Telephone +49 (0) 6 41 - 9 22 20-0 . Fax +49 (0) 6 41 - 9 22 20-20...
- Page 46 BEKA Hospitec Ltd. Am Rübenmorgen 3 . D-35582 Wetzlar . Telephone +49 (0) 6 41 - 9 22 20-0 . Fax +49 (0) 6 41 - 9 22 20-20...
