Atos BullSequana Edge Installation Manual
Hide thumbs
Also See for BullSequana Edge:
- Customer service manual (86 pages) ,
- Customer service manual (104 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Atos BullSequana Edge
Summary of Contents for Atos BullSequana Edge
- Page 1 BullSequana Edge Installation Guide 86 A1 67FR 06 - March 2020...
- Page 2 The following copyright notice protects this book under Copyright laws which prohibit such actions as, but not limited to, copying, distributing, modifying, and making derivative works. Copyright ©Bull SAS 2020 Printed in France Trademarks and Acknowledgements We acknowledge the right of proprietors of trademarks mentioned in this manual. All brand names and software and hardware product names are subject to trademark and/or patent protection.
-
Page 3: Table Of Contents
Table of Contents Preface ................p‐1 Intended Readers . -
Page 5: Preface
Preface This guide explains how to install the server. The Bull support web site for the most uptodate product information, documentation, firmware updates, software fixes and service offers: http://support.bull.com Intended Readers This guide is intended for use by qualified personnel in charge of installing the server. -
Page 7: Checking The Delivery Contents
Chapter 1. Checking the delivery contents Important ATTENTION: Please read carefully the safety instructions before you perform the procedures described in this manual. ATTENTION : Merci de lire attentivement les consignes de sécurité avant d'effectuer les procédures décrites dans ce manuel. -
Page 8: Unpacking The Server

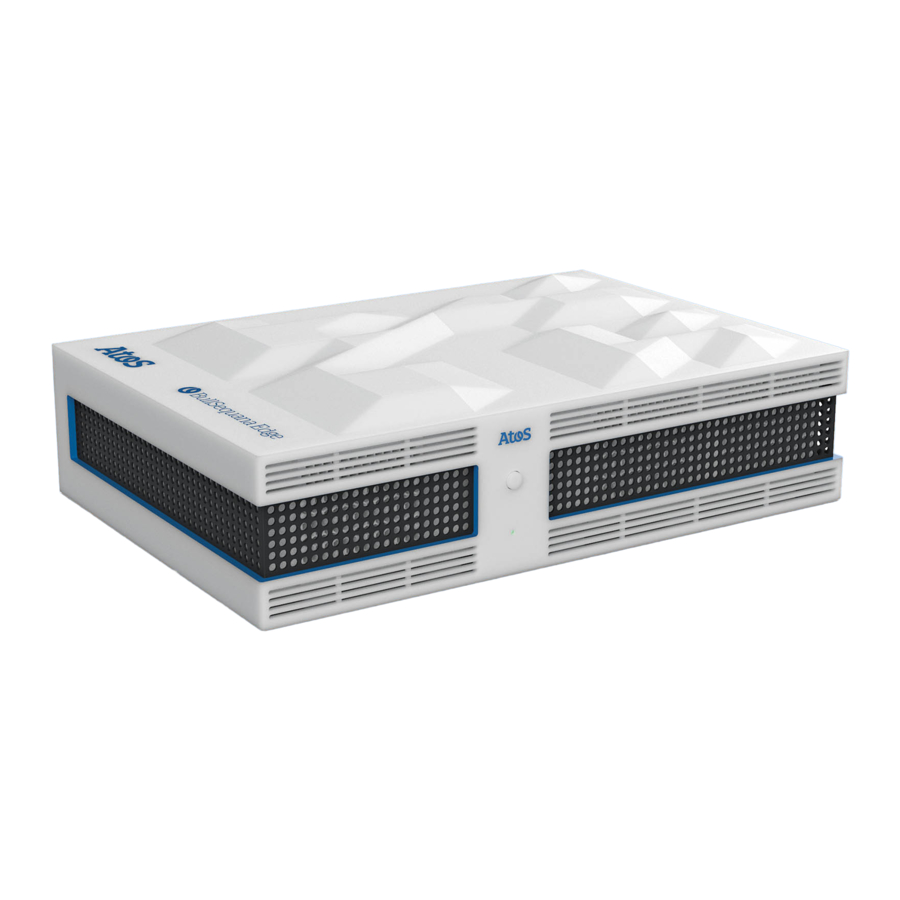

The server drawer must not be unpacked before it has reached the room temperature (24 hours in the computer room). According to the device configuration, the following items are included: • BullSequana Edge server with its front bezel or aesthetic covers • Antennas • Rack mount kit and brackets •... - Page 9 Server with aesthetic covers Chapter 1. Checking the delivery contents...
-
Page 10: Checking Labels
1.2. Checking labels Safety warning label, including safety notices and graphic symbols, are present on the server. Check that the electrical installation in place complies with the label details. 1.2.1. Identification and safety labels Localization The labels are underneath the server. Installation Guide... - Page 11 Identification and safety label Mark Description Product name: MIPSE Model number Serial Number Electrical characteristics Recycling Symbol: Indicates the mandatory obligation to reuse and recycle electronic and electrical equipment properly. CE certification W071 WARNING W071: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received including...
- Page 12 Marketing labels For marketing purpose only, the product name is BullSequana Edge (G). Hazard electrical symbol This label indicates risk of electric shock. C051 CAUTION C051: This unit has one internal power supply. Disconnect power supply cable from the unit before servicing.
-
Page 13: Mac Address Label
1.2.2. MAC address label Localization The label is on the right-hand of the server. MAC address label 1.2.3. Fan hazard safety label Localization The labels are on the fans, inside the server. Fan hazard safety label Chapter 1. Checking the delivery contents... -
Page 15: Installing The Server
Chapter 2. Installing the server C050 CAUTION C050: The device must be installed in a location where the transmitting antenna is at least 20 cm from any people in order to comply with radio frequency exposure regulatory requirements. W079 WARNING W079: Devices and antennas must not be operated with other antennas or transmitters. -
Page 16: Installing The Antennas
2.1. Installing the antennas Note The pictures in the following procedure show a server with a front bezel but the same procedure applies to a server with aesthetic covers. 1. Locate the antenna position Rear view Mark Description External antenna 2 : (Dual-band WiFi or LoRaWAN or LTE 3G/4G GSM External antenna 1 : Dual-band WiFi or LoRaWAN or LTE 3G/4G External antenna 0 : BMC WiFi... -
Page 17: Installing The Server In A Rack Cabinet
2.2. Installing the server in a rack cabinet Note A server with aesthetic covers cannot be installed in a rack cabinet. Required screws, nuts and washers Appendix A Screws and washers Required tools T25 Torx screwdriver T20 Torx screwdriver T10 Torx screwdriver 2.2.1. - Page 18 2. Adjust the length of each rail. 3. Tighten the four screws of each rail. Installation Guide...
- Page 19 2. From the front, install the left rail Chapter 2. Installing the server...
- Page 20 3. From the front, install the right rail Installation Guide...
-
Page 21: Installing The Brackets On The Server
2.2.2. Installing the brackets on the server 1. Position the brackets 2. Tighten the screws Chapter 2. Installing the server... -
Page 22: Installing The Server
2.2.3. Installing the server 1. Insert the server into the rack cabinet Installation Guide... - Page 23 2. Secure the server in place 1. Push the server until it stops 2. Tighten the screws and washers Chapter 2. Installing the server...
-
Page 24: Installing The Server On A Flat Surface
2.3. Installing the server on a flat surface Note The pictures in the following procedure show a server with a front bezel but the same procedure applies to a server with aesthetic covers. Stick the adhesive bump on under server before installing it on the flat surface. 2-10 Installation Guide... -
Page 25: Installing The Server On A Din Rail
2.4. Installing the server on a DIN rail Note The pictures in the following procedure show a server with a front bezel but the same procedure applies to a server with aesthetic covers. Required screws, nuts and washers Appendix A Screws and washers Required tools Phillips screwdriver T20 Torx screwdriver... - Page 26 2. Turn the BullSequana Edge to the upright position. 3. Attach the BullSequana Edge to the DIN rail by carefully tilting it. 2-12 Installation Guide...
-
Page 27: Installing The Server On A Vesa Holder
2.5. Installing the server on a VESA holder Note The pictures in the following procedure show a server with a front bezel but the same procedure applies to a server with aesthetic covers. Required screws, nuts and washers Appendix A Screws and washers Required tools Phillips screwdriver Hex screwdriver... - Page 28 2. Install the wall plate on a wall Case of solid wall 1. Drill two holes in the wall. 2. Fix the wall plate using two wall anchors and two lag bolts. Case of wooden wall 1. Drill two holes in the wall. 2.
- Page 29 3. Install the monitor plate on the server • Use S6 screws and W3 washers for a sever with a front bezel • Use S5 screws and W3 washers for a server with aesthetic covers 4. Install the server on the wall 1.
-
Page 31: Appendix A. Screws And Washers
Appendix A. Screws and washers This appendix describes all screws and washers included in the delivery. Screws Mark Head Body Diameter Length 5 mm 8 mm 5 mm 16 mm 3 mm 6 mm 4 mm 6 mm 4 mm 20 mm 4 mm 8 mm... - Page 32 Installation Guide...
- Page 34 Bull Cedoc 357 avenue Patton BP 20845 49008 Angers Cedex 01 FRANCE...
