Summary of Contents for Hyundai power products HYM510SPEZ

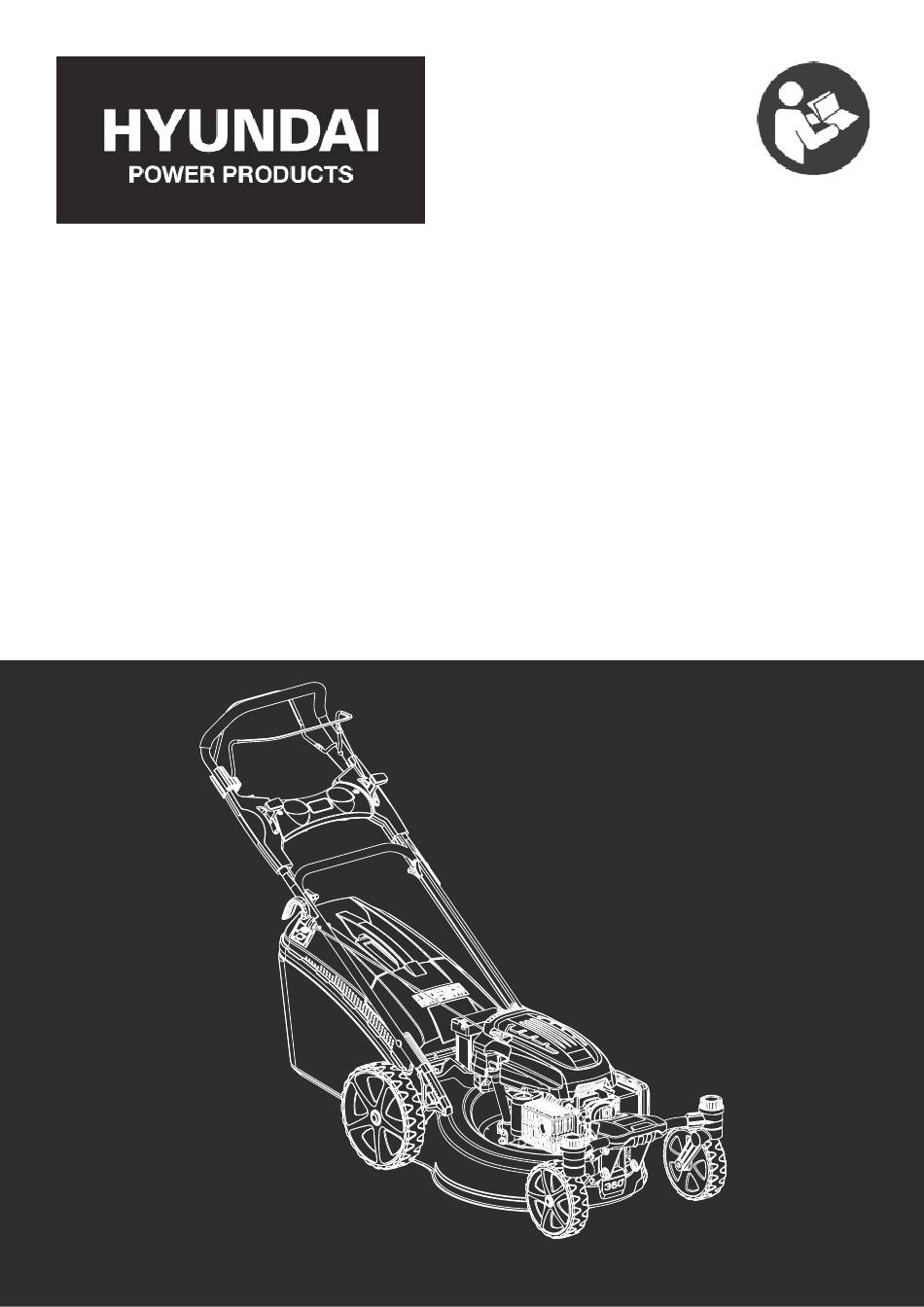

- Page 1 PETROL LAWNMOWER HYM510SPEZ Instruction Manual...
- Page 2 We would be delighted if you left us positive feedback! Thank you for purchasing this product. This manual has been produced by Hyundai Power Products and should be kept with the product. Please read and understand these instructions before you use your product. Failure to do this may result in personal injury or damage to the product.
-
Page 3: Table Of Contents
Contents Features.................4 Maintenance And Care..........28-40 Safety...............28 What’s In The Box............4 Maintenance Schedule........29 Symbols On The Machine..........5 Checking Your Machine........29 Checking Oil Level...........30 General Safety............6-15 Filling Fuel Tank..........30 Understand Your Machine........6 Changing Oil............30 Personal Safety..........6-7 Emptying Fuel Tank…………………………….31 Inspect Your Machine........7-8 Drain Carburettor Float Bowl......31 Engine Safety.............8 Spark Plug............32... -
Page 4: Features
Grass Collector Oil Filler / Dipstick Air Filter Central Cutting Height Adjuster Exhaust Spark Plug Front Wheel Lock What’s In The Box • HYM510SPEZ Lawnmower • Grass Collector • User Manual Imported/Distributed by Trade Tested Limited Licensed by Hyundai Corporation, Korea... -
Page 5: Symbols On The Machine
Symbols On The Machine We have provided safety messages in this manual and on the lawnmower. This information alerts you to potential hazards that could hurt you or others. Please read these messages carefully. However, we may not have listed all of the possible hazards, you must also use your own judgment. -
Page 6: General Safety
General Safety WARNING : READ THE INSTRUCTION BOOKLET THOROUGHLY BEFORE USING THE MACHINE. Keep for future reference and pass it on if the machine is loaned or sold to another user. Personal Safety Understand Your Machine • WARNING! You must read these •... -
Page 7: Inspect Your Machine
General Safety • Always keep hands and feet away from all Inspect Your Machine pinch points. • Check your machine before starting it. Keep • Do not touch parts that might be hot guards in place and in working order. Make from operation. -
Page 8: Engine Safety
General Safety • Before using, always visually inspect to see • Never leave the operating position when the that the tools are not worn out or damaged. engine is running. Replace worn out or damaged elements and • The engine parts get very hot when bolts in set to preserve balance. -
Page 9: Work Area
General Safety Work Area • Find and locate all fixed objects in the ground, such as sprinkler systems, poles, water valves, bases for washing lines etc • Make sure you thoroughly inspect the entire Make sure that you check for hidden work area and remove all objects and anything electrical cables or similar on the surface of that could be thrown by the machine or could... -
Page 10: During Use
General Safety During Use • The excessive speed of movement or the absence of maintenance have a significant • Always hold the unit with both hands when influence on noise emissions and vibrations. operating. Keep a firm grip on the handlebars. It is necessary to take preventive steps to Be aware that the machine may unexpectedly eliminate possible damage due to high levels... -
Page 11: Carbon Monoxide
General Safety Carbon Monoxide If you think you have or someone around you has been affected by carbon monoxide poisoning; Get them fresh air immediately, DANGER by leaving the affected area or by opening doors and windows. If safe and practical to do so make sure that the machine is turned off. -
Page 12: Fuel Safety
General Safety General Fuel Safety Spilled Fuel Spilled Fuel • If you have spilled fuel, make sure you do CAUTION! not attempt to ignite the engine but move the ALL FUELS ARE HIGHLY FLAMMABLE AND machine away from the area of spilled fuel and PETROL VAPOUR IS EXPLOSIVE. -
Page 13: Electrical Safety
General Safety • Always stop the engine and allow it to cool Electrical Safety (Where before filling the fuel tank. Never remove the cap of the fuel tank or add fuel while the Applicable) engine is running or when the engine is hot. DANGER! •... -
Page 14: Batteries
General Safety Batteries (Where Present) Vibrations (Where Applicable) Batteries present a risk if they become damaged by the possible leaking of • Prolonged use of hand held (operated) electrolyte. This electrolyte is an acid and can machines will cause the user to feel the effects cause serious burn injuries. -
Page 15: Personal Protective Equipment
General Safety Personal Protective Equipment Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when operating or repairing the machine. No protective equipment can ensure 100% protection. When selecting PPE, make sure it’s CE marked and it suits the user in terms of size, fit etc. If more than one item of PPE is worn at the same time, make sure they can be used together, eg wearing safety glasses may disturb the seal of a respirator, causing air leaks. -
Page 16: Getting Started
Any other usage not in keeping with the above mentioned ones may be hazardous and harm persons and/or damage things. Examples of The HYM510SPEZ is a petrol powered rear improper use may include, but are not limited wheel drive, self-propelled, electric push... -
Page 17: Assembly Safety
If any part is extreme care and in a well ventilated area. damaged or missing, you must not use the machine. Contact HYUNDAI Power Products NOTE - Images may vary depending on immediately. You must keep the packaging model. -
Page 18: Assembly
Assembly Handlebar Assembly STEP 4 STEP 1 Attach the centre control panel. Grass Collector Assembly Attach the base of the handle to the mower and tighten bolts securely. STEP 2 STEP 1 Indicator Attach the upper handle to the lower handle and tighten bolts securely. -
Page 19: Cable Attachment
Assembly Cable Attachment STEP 3 NOTE - If you are stood behind the lawnmower: OPC Cable: This attaches to the lever in front of the main handlebar and if followed, will attach to the engine. Drive Cable: This attaches to the lever behind the main handlebar and if followed, will enter the deck of the lawn mower behind the Insert the end of the cable in to the location... - Page 20 Assembly STEP 6 Check the cable lies flat and has not snagged on any other part of the lawnmower. NOTE - It is necessary as part of routine maintenance to adjust the OPC cable and drive cable tension to ensure the lawnmower will start and self-propel correctly.
-
Page 21: Preparing The Lawnmower
Preparation Adding Oil Adding Fuel Oil Type : SAE30 or 15w40 Fuel Type : Fresh straight unleaded petrol Oil Capacity : 600ml Fuel Capacity : 1L The lawnmower is delivered without petrol. The lawnmower is delivered without oil in the engine. -
Page 22: Using The Lawnmower
Using The Lawnmower Grass Collection Mulching Mode STEP 1 STEP 1 For mulching mode, lift the rear flap and Lift the rear cover. remove the grass box. STEP 2 STEP 2 Remove the mulch plug if fitted. Install the mulching plug. STEP 3 STEP 3 Attach the grass collecting bag. -
Page 23: Cut And Drop
Using The Lawnmower Cut And Drop Adjusting Cutting Height To adjust the cutting height, pull the STEP 1 adjustment lever outwards and select the required height. It must be set to maximum height before starting. The height is automatically adjusted for all wheels by a single lever. -
Page 24: Starting Procedure
Starting The Lawnmower Starting Procedure CAUTION - For OUTDOOR use ONLY. Petrol machines produce carbon monoxide – a poisonous, colourless and odourless gas STEP 1 that can cause serious injury or death. Petrol is highly flammable, always handle with extreme care and in a well ventilated area. NOTE - This machine is shipped without fuel and oil and MUST be filled before use. - Page 25 Starting The Lawnmower STEP 4 STEP 7 Pull back the Operator Presence Control Once running, pull the choke lever back one (OPC) lever towards the main handle. notch to run position and the engine will run smoothly. STEP 5 STEP 8 For recoil start, pull the starter handle swiftly –...
-
Page 26: Stopping Procedure
Stopping The Lawnmower Removable Start Button CAUTION - The engine and exhaust will remain hot for a while after use. Ensure the engine and exhaust has cooled before With the push button electric start, you have carrying out any maintenance, refuelling or the option to remove the start button to storage. -
Page 27: Troubleshooting
Troubleshooting NOTE - Where necessary, all corrective actions should be carried out by suitably qualified persons. If the starter rope becomes disconnected from the rope guide on handle, disconnect the spark plug cap. Pull the starter rope out from engine slowly and re-engage in guide. Re connect spark plug cap. Problem Possible Cause Possible Corrective Action... -
Page 28: Maintenance And Care
Maintenance & Care Safety CAUTION - DO NOT use a hose pipe or pressure washer to clean the engine. Water can damage the engine or contaminate the IMPORTANT - Routine and accurate fuel system. maintenance is essential for maintaining original machine safety and performance levels. -
Page 29: Maintenance Schedule
Maintenance & Care Maintenance Schedule Maintenance Before After Each Every 3 Every 6 Every Every Two Each Use Months Or Months Or Year Or Years Or 25 Hours 50 Hours 100 Hours 250 Hours Check Machine. See section below. Clean Machine. See page 37. -
Page 30: Checking Oil Level
Maintenance & Care Filling The Fuel Tank Checking Oil Level Oil Type : SAE30 or 15w40 Fuel Type : Fresh straight unleaded petrol Oil Capacity : 600ml Fuel Capacity : 1L CAUTION - ALL FUELS ARE FLAMMABLE 1. Remove the oil filler cap and wipe the dipstick clean. -
Page 31: Emptying Fuel Tank
Maintenance & Care Changing Oil Drain Carburetor Float Bowl CAUTION - ALL FUELS ARE FLAMMABLE To reduce fire hazards, check there is no oil and/or fuel leaks on a regular basis. ALWAYS fuel and defuel in a well ventilated It is highly recommended to change the area outside of buildings. -
Page 32: Spark Plug
Maintenance & Care The Spark Plug STEP 6 The spark plug gap should be 0.70mm to For good performance, the spark plug must 0.80mm. Check the gap by using a feeler be properly gapped and free of deposits. gauge. Adjust as necessary by carefully STEP 1 bending the side electrode to achieve the correct gap. -
Page 33: Air Filter
Maintenance & Care through it using an air gun not exceeding Air Filter 30psi. CAUTION - A dirty air filter will restrict the STEP 4 air flow to the carburetor, which will reduce engine efficiency. When using the lawnmower in very dusty areas you must clean or replace the air filter more often. -
Page 34: Opc Cable Adjustment
Maintenance & Care OPC Cable Adjustment STEP 3 NOTE - It is necessary as part of routine maintenance to adjust the OPC cable tension to ensure the lawnmower will start correctly. If there is more than 10mm movement in the OPC lever before the cable begins to move, then the OPC cable will require adjustment. -
Page 35: Drive Cable Adjustment
Maintenance & Care Drive Cable Adjustment NOTE - It is necessary as part of STEP 3 routine maintenance to adjust the drive cable tension to ensure the lawnmower will self-propel correctly. If there is more than 10mm movement in the drive lever before the cable begins to move, then the drive cable will require adjustment. -
Page 36: Blade Maintenance
Maintenance & Care Blade Maintenance Blade Inspection • Check the blade, in order to maintain a good You MUST wear gloves to protect your cut, the blade should always be sharp and well hands from being cut when working with the balanced. -
Page 37: Cleaning
Maintenance & Care Cleaning parts. Most plastics are susceptible to damage from various types of commercial CAUTION - DO NOT use a hose pipe or solvents and may be damaged by their use. pressure washer to clean the engine. Water can damage the engine or contaminate the •... -
Page 38: Storage
Maintenance & Care Storage STEP 7 Remove the spark plug and pour 1 NOTE - If storing the lawnmower for a period teaspoon of fresh engine oil down the cylinder of 30 days or more, you must follow proper bore. Cover the spark plug hole with a lint free storage and winterisation guidelines to avoid clean cloth, ensuring no dirt or debris falls into any possible issues with your lawnmower. -
Page 39: Transportation & Handling
Maintenance & Care Transportation And Handling 1. Whenever the machine is to be handled, lifted, transported or tilted you must: - Wear sturdy work gloves - Hold the machine at the points that offer a safe grip, taking into account the weight and relative distribution of the same - Use an appropriate number of people for the weight of the machine and the characteristics... -
Page 40: Recycling & Disposal
Maintenance & Care Recycling And Disposal This symbol means you should ‘Reduce - Reuse - Recycle’ We do not offer a takeback scheme for the recovery of We are a Member of the VALPAK Waste Electrical Electronic National Compliance Scheme and our Equipment (WEEE) &... -
Page 41: Specification
Specification Model HYM510SPEZ Engine Type HYUNDAI IC200VE 4-Stroke OHV Single Cylinder Engine Size 196cc Fuel Tank Capacity Fuel Type Straight Unleaded Petrol Oil Capacity 600ml Oil Type SAE30 or 15w40 Engine Oil Rated Speed 2800rpm Rated Power 4.2kW Drive Type... -
Page 42: Spare Parts
Spare Parts Only use original spare parts: The use of non-original and/or incorrectly fitted parts will jeopardize the safety of the machine, may cause accidents or personal injuries for which the Manufacturer is under no circumstance liable or responsible. Part Part Number Blade PAB000150... -
Page 43: Mowing Tips
Mowing Tips General Tips What Time Should I Mow? Early Morning (6am-8am) • Maintain a constant cutting height of 3-5cm. Grass could be wet and your Do not shorten the grass to less than half its lawnmower could leave tracks. original height. - Page 44 For Inquires, Please Contact: Trade Tested Limited PO Box 9117, Newmarket, Auckland 1149, New Zealand 0800 800 880 support@tradetested.co.nz www.tradetested.co.nz Imported/Distributed by Trade Tested Limited Licensed by Hyundai Corporation, Korea...
