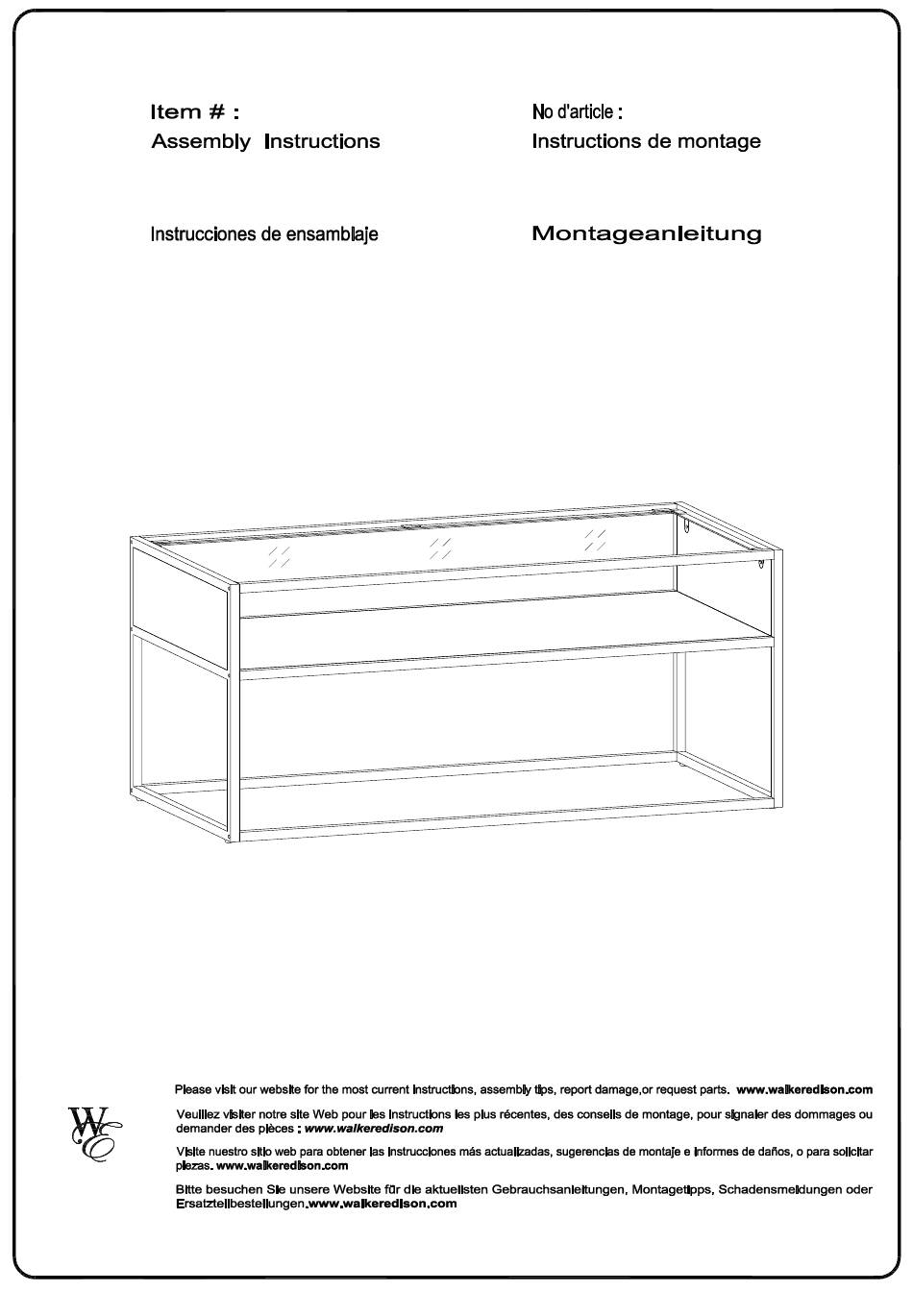

- Page 1 C40JERCT C40JERCT Ítem N.°: Artikel# : C40JERCT C40JERCT Walker Edison ® Revised 12/06/2019 (E) © Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved.
-
Page 2: General Assembly Guidelines
Die Haupthardware, die zum Zusammenbau dieses Produkts verwendet wird, sind: Schrauben und Muttern. Elektrowerkzeuge sollten nicht für die Montage dieses Produkts verwendet werden. Möglicherweise ist ein Bohrer zur Befestigung des Produkts an der Wand erforderlich. (DE) Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©... -
Page 3: Lista De Piezas
Lista de piezas Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©... -
Page 4: Liste Du Matériel
(no incluido) Für die Montage benötigen Sie einen Kreuzschlitzschraubenzieher (nicht enthalten) The hardware quantities listed above are required for proper assembly.Some extra hardware may also have been included. © Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. - Page 5 Step 1 (EN) Attach part (6) to part (2) using bolt (B) with hex key (F). (DE) Teil (6) mit Bolzen (B) und Innensechskantschlüssel (F) an Teil (2) befestigen. Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 6 Step 2 (EN) Attach part (6) to part (2) using bolt (B) with hex key (F). (DE) Teil (6) mit Bolzen (B) und Innensechskantschlüssel (F) an Teil (2) befestigen. Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 7 Step 3 (EN) Attach adjuster (D) to part (4). (DE) Einstellvorrichtung (D) an Teil (4) befestigen. Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 8 Step 4 (EN) Attach part (4) to part (3) using bolt (B) with hex key (F). (DE) Teil (4) mit Bolzen (B) und Innensechskantschlüssel (F) an Teil (3) befestigen. Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 9 Step 5 (EN) Attach part (4) to part (3) using screw (C) with screwdriver. (DE) Teil (4) mit Schraube (C) mit Schraubendreher an Teil (3) befestigen. Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
- Page 10 Attach part (4) to part (5,6,7) using bolt (A) with hex key (F). (DE) Teil (4) mit Bolzen (A) und Innensechskantschlüssel (F) an Teil (5, 6, 7) befestigen. Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. P.10 ©...
- Page 11 Attach part (4) to part (5,6,7) using bolt (A) with hex key (F). (DE) Teil (4) mit Bolzen (A) und Innensechskantschlüssel (F) an Teil (5, 6, 7) befestigen. Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. P.11 ©...
- Page 12 Step 8 (EN) Remove cover tape on glass pads (E), then stick it as diagram. (DE) Abdeckband am Glaspad (E) entfernen und wie abgebildet aufkleben. Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. P.12 ©...
- Page 13 Step 9 (EN) Place Glass (1) into frame carefully as per diagram. (DE) Glas (1) vorsichtig wie in der Abbildung in den Rahmen legen. Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. P.13 ©...
- Page 14 Step 10 Final Assembly Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. P.14 ©...
