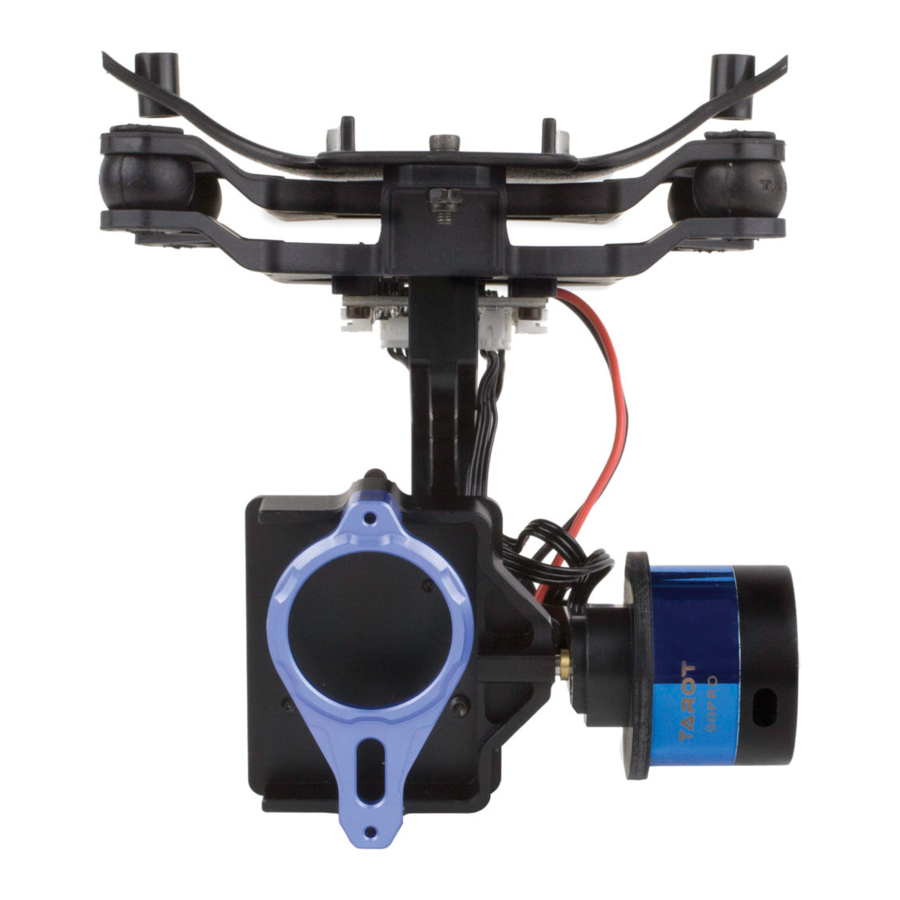

T-2D Brushless Gibmal Additional Remarks 2013-6-28

Controller interface and connection introdution：

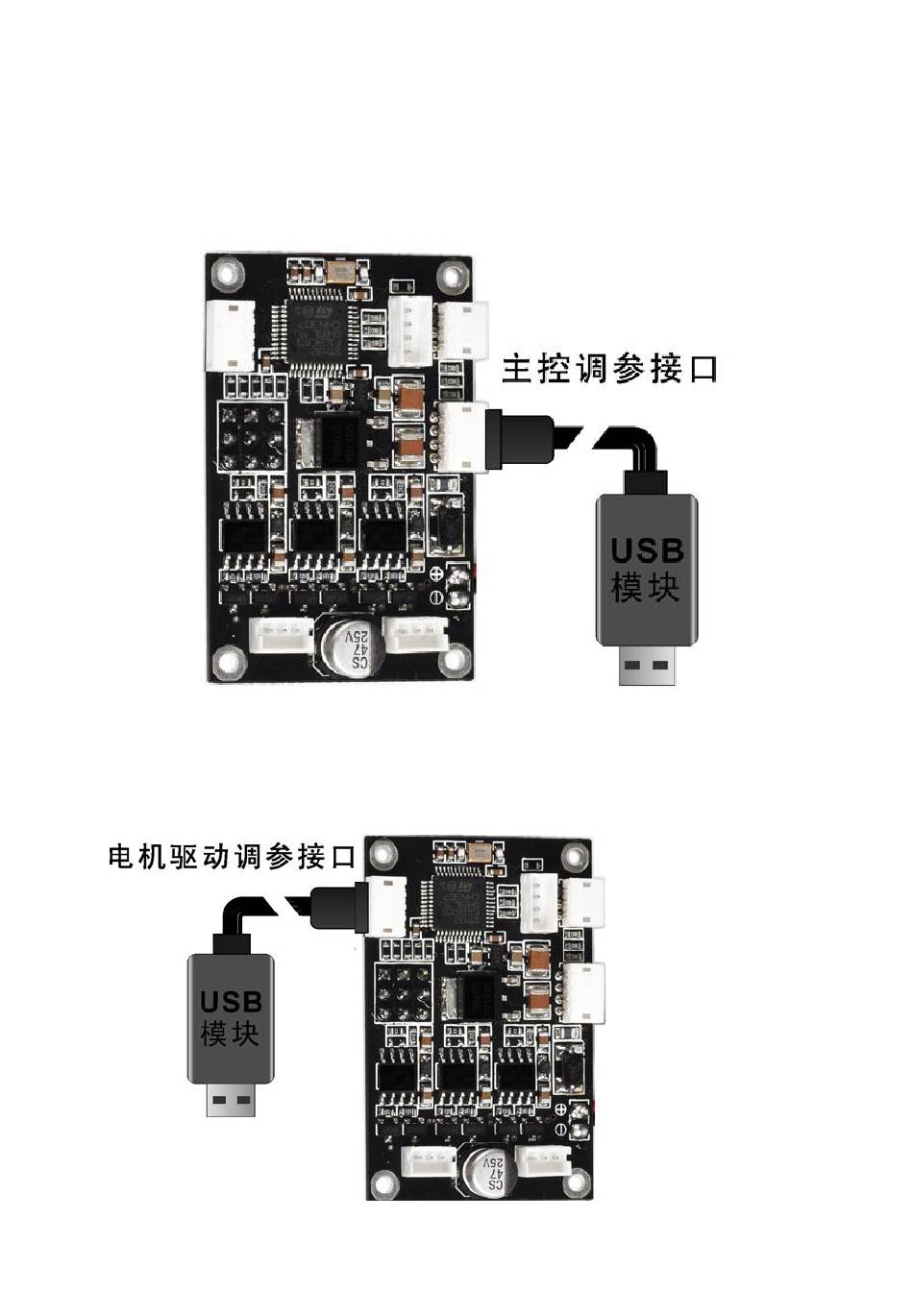

1.Gimbal controller connector： Via USB module connected to the computer. When you use this

USB Module at first time , please intall its dirver.

2.Motor driver connector: Via USB module connected to the computer for setting motor

parameters.

WWW.0577MX.COM

Table of Contents

Need help?

Do you have a question about the T-2D and is the answer not in the manual?

Page 1 T-2D Brushless Gibmal Additional Remarks 2013-6-28 Controller interface and connection introdution： 1.Gimbal controller connector： Via USB module connected to the computer. When you use this USB Module at first time , please intall its dirver. 2.Motor driver connector: Via USB module connected to the computer for setting motor parameters.
Page 2 3.Connected with independent conventional receiver: users can select Mode/Tilt/Roll input channel connect to conventional receiver, and make sure power ground connection rightly. 4.Connected with flight controller receiver: users can select Mode/Tilt/Roll input channel connect to conventional receiver, and make sure power ground connection rightly, but do not connect the 5V output wire.
Page 3 5.SBUS receiver: WWW.0577MX.COM...
Page 4 6.DSM2/DSMJ/DSMX receiver type： DSM2-1：Transmitter is DX7 etc. (binding by 6 or 7 channels receiver) DSM2-2：Transmitter is DX8, DSX9 etc. (binding by 6 or 7 channels receiver) DSM2-3：Transmitter is DX8, DSX9 etc. (binding by 9 channels receiver) DSM2-4：Transmitter is DM8, DM9 module. (binding by 6 or 7 channels receiver) DSMJ：...
Page 5 8. Connected with motors 2.Intial tilting angle introdution: The initial tilting angle of T-2D default factory setting is 0 degree. If you want to change the initial tilting angle when the gimbal restart, you could modify the init tilt angle parameter in PC software, and click’write setting to flash’.
