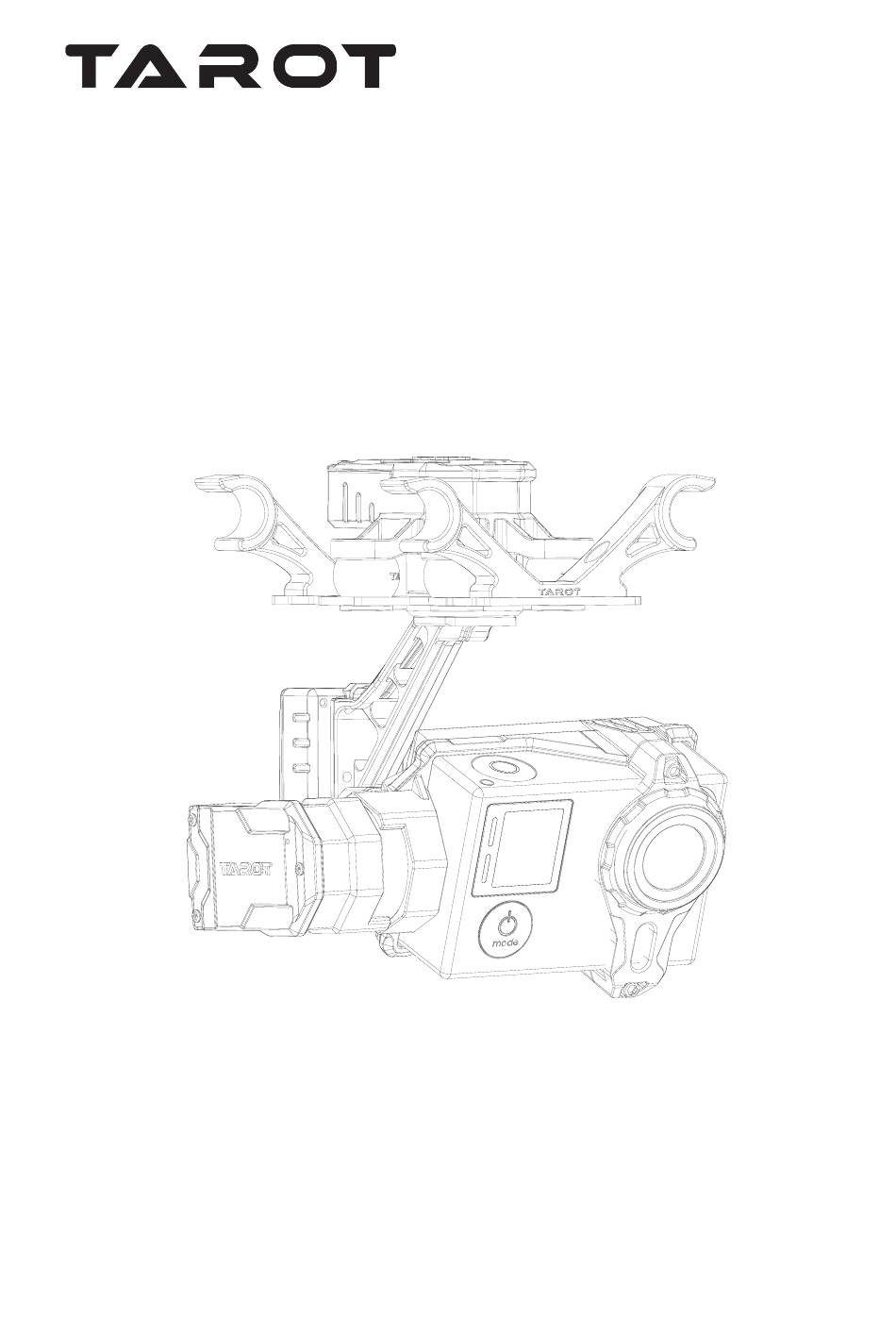

Thanks for your purchase of Tarot professional aerial photography products.
To ensure your success with this product， we would like to introduce the foll-
owing information and important notes ，hope it can be useful for you.
T4-3d
SPORTS GOPRO HERO 3
SPORTS GOPRO HERO 4
2015.7.1 User Manual
www.tarotrc.com
V1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T4-3D and is the answer not in the manual?

Questions and answers

Related Manuals for Tarot T4-3D

Summary of Contents for Tarot T4-3D

  • Page 1 2015.7.1 User Manual V1.00 Thanks for your purchase of Tarot professional aerial photography products. To ensure your success with this product， we would like to introduce the foll- owing information and important notes ，hope it can be useful for you.

  • Page 2: Table Of Contents

    ......... . . 1 1 VII LED Indicators The state intellectual property has been awarded the TAROT model.,ltd more patents. Any units orindividual Warning without the license holder manufacture 、copy 、use and sale the product will be patent lawsuit.

  • Page 3: Warning And Disclaimer

    T4-3D ONLY supports GoPro Hero 3 GoPro Hero 4 The state intellectual property has been awarded the TAROT model.,ltd more patents. Any units orindividual Warning without the license holder manufacture 、copy 、use and sale the product will be patent lawsuit.

  • Page 4: Product Introduction 、 Specifications

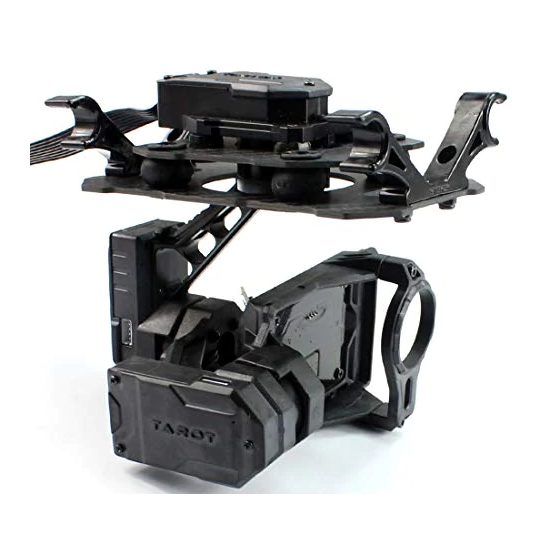

    ASSEMBLY SECTION Product Introduction T4-3D a great 3-axis gimbal for model aircraft enthusiasts, can be widely applied to various model aircraft activities and entertainments. With unique internal wiring design, built-in IMU gimbal control module, specialized servo drive module, this gimbal is able to support Pan Follow (PF) mode and First Person View (FPV) mode.

  • Page 5: Product List

    组装说明书 T4-3d ASSEMBLY SECTION 一. 产品清单 Product List Gimbal With unique internal wiring design, built-in IMU gimbal control module, specialized servo drive module, this gimbal is able to support Pan Follow (PF) mode and First Person View (FPV) mode. Main Components Pack Gimbal Main Controller Module*1 5V OUT &...

  • Page 6: Mounting & Configuration

    Flight Controller If you are pursuing a perfect performance, please connect the gimbal and Tarot ZYX-M Flight Control Module to the DATA/FC channel of gimbal controller through the special cable in main components pack.

  • Page 7: Gimbal Working Mode

    组装说明书 T4-3d ASSEMBLY SECTION 2. Gimbal Working Mode You should select a three-positioned or two-positioned switch in R/C for working mode. Please connect the corresponding port of the receiver to CH1/SBUS or CH2 of the gimbal controller. Also, set RC MAPPING in the assistant software. For different positions, use endpoint fine tune function to set.

  • Page 8: Flight Test

    1. After powering up the gimbal, it enters self-check procedure. When RED & BLUE lights flash twice at the same time, self-check finishes. 2. When self-check finishes, gimbal angles corresponds to INIT ANGLE in the assistant software. IV. T4-3D Assistant Software 1. Drive & PC Assistant Software Installation and Setup arotrc .com/ ①...

  • Page 9: Basic Setup

    组装说明书 T4-3d ASSEMBLY SECTION 3. Basic Setup Methods to Connect the Receiver: 1. Conventional Receiver: connect it to the CH1/SBUS and CH2 Channel in the gimbal main controller. 2. FUTABA SUBS or SBUS-2: connect it to CH1/SBUS channel in the gimbal 1.

  • Page 10: Channels

    组装说明书 T4-3d ASSEMBLY SECTION 4. Channels (1)RC Mapping Tilt Channel Push the stick, and observe the rotation direction of the gimbal and the moving direction of the cursor Mode Channel:This channel controls gimbal working mode. Choose a three-positioned or two-positioned switch to control the working mode of the gimbal.

  • Page 11: Troubleshooting

    组装说明书 T4-3d ASSEMBLY SECTION Update Procedures: ( 1)Please make sure the connection between gimbal control module and PC are correct, and check whether or not the module version can be seen. ( 2)Please connect the DATA/FC of module and PC through a USB cable ( 3)Click for upgrade.
  • Page 12 组装说明书 T4-3d ASSEMBLY SECTION VII. LED Indicators Gimbal Main Controller LED Indicators Status RED & BLUE lights blink twice. POST (Power On Self-Test) Status. POST (Power On Self-Test) fails. RED & BLUE lights are constantly on. BLUE light turns off.
