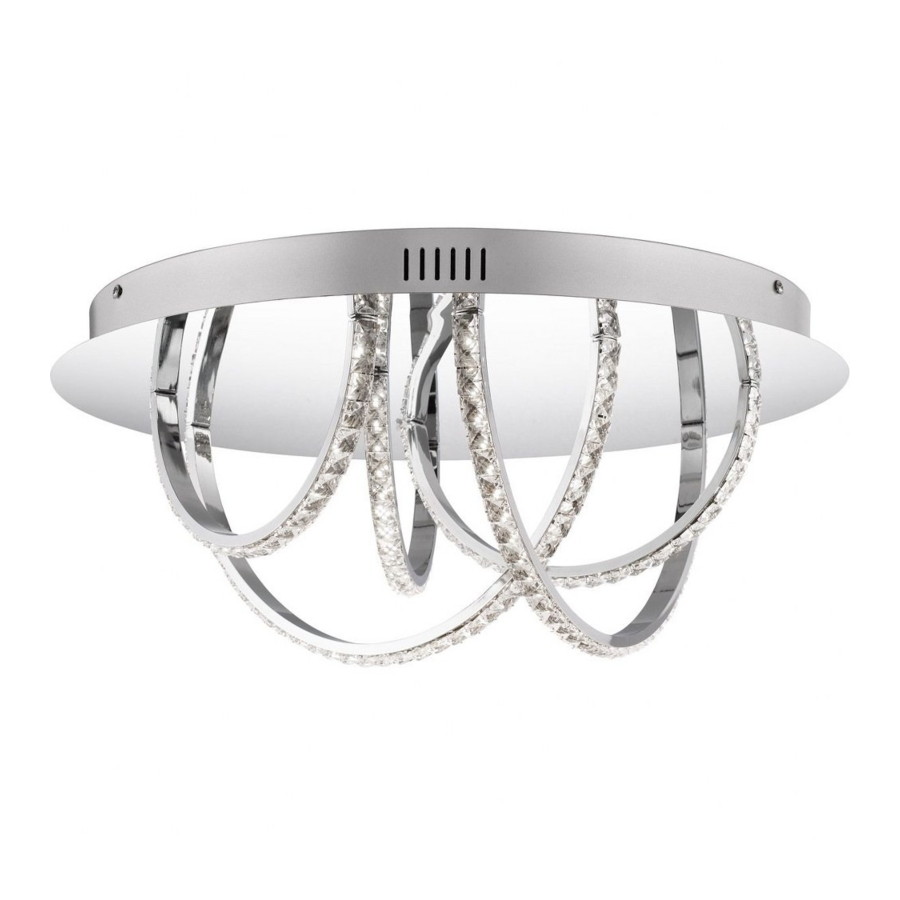

Quoizel PCDM1618C Assembly Instruction

Please go to www.quoizel.com

Tools Required:

Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.

Light Source:

LED 26W

Estimated Assembly Time:

20-30 minutes

Preparation:

Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.

Warnings and Cautions

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.

Package Contents

Inner Backplate
A
x 1
-

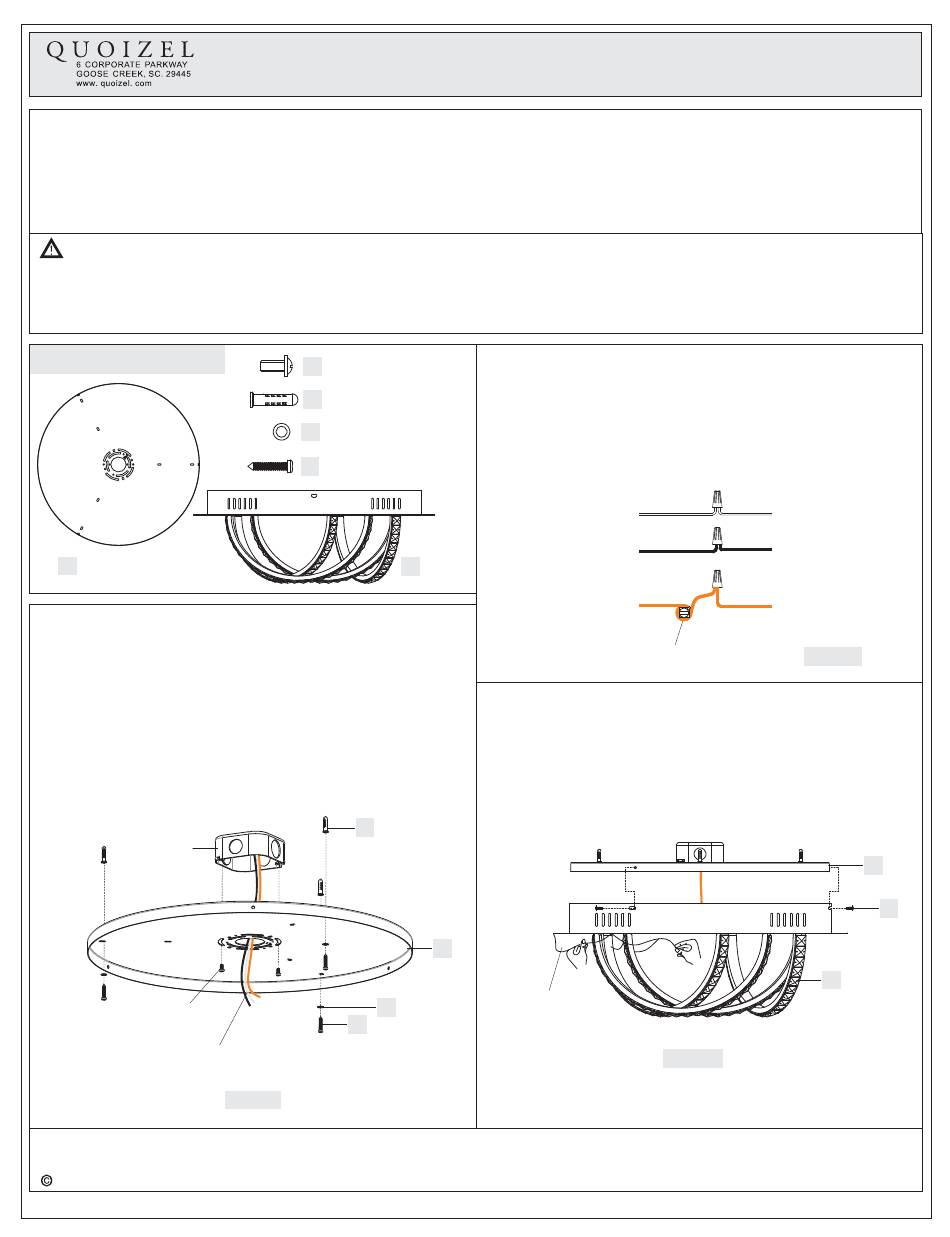

STEP 1 Attach Inner Backplate to Outlet Box
A. Attach the Inner Backplate (A) onto the outlet box. Align one set of
holes on the Inner Backplate (A) to mounting holes on the outlet box
and make two marks on the ceiling from keyholes on the flat strap of
the Inner Backplate (A).
B. Remove the Inner Backplate (A) and drill proper holes on the ceiling
from marks. Insert Wall Anchors (C) into the holes properly.
C. Attach the Inner Backplate (A) to outlet box. Secure by threading
outlet box screws (not supplied) into mounting holes on the outlet
box and threading Self-tapping Screws (E) with Washers (D) into
Wall Anchors (C). Hand tighten until snug.
Outlet Box
Outlet Box Screw
(not supplied)
Supply Wires and
Ground Wire
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
2018 QuoizelInc.
Assembly Instruction Sheet #IS-PCDM1618C
for product cleaning tips. Go to the
Mounting Screw
B
x 3
Wall Anchor
C
x 3
Washer
D
x 3
Self-tapping Screw
E
x 3
F
C
D
E
Figure 1
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
For Style PCDM1618C
Care + Maintenance selection.

STEP 2 - Wire Connections

A. Wrap bare or green ground wire around green ground screw on the
crossbar, no less than 2 inches from the end of the wire. Tighten the
green ground screw.
B. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
White wire
from outlet box
Black wire from
Fixture
outlet box (or Red)
Body
x 1
Bare, or Green
Ground wire
from outlet box

STEP 3 - Attach Fixture Body to Inner Backplate

A. Place the Fixture Body (F) to Inner Backplate (A) and secure with
Mounting Screws (B). Hand tighten Mounting Screws (B) until snug
with screwdrivers.
B. Remove rotective ilm from eiling anopy p
Your fixture is now assembled and ready to use. Enjoy!
A
Protective Film
1of2
White wire
from fixture
Black wire
from fixture
Ground wire
from Fixture
Green Ground Screw
on the Crossbar
f c c carefully
Figure 3
ReleasedDate:2018-03-13
Figure 2
.
A
B
F
