Quoizel TRE9009K Assembly Instruction Sheet

6 CORPORATE PARKWAY
, .
GOOSE CREEK SC 29445
. .
www quoizel com
Please go to www.quoizel.com
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses, marking pen, 1/16"
drill bit, center punch, hammer, drill and wrench.

Light Source:

(1) A21 Medium Base bulb 150W Maximum.

Estimated Assembly Time:

Preparation:

Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.

Warnings and Cautions

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.

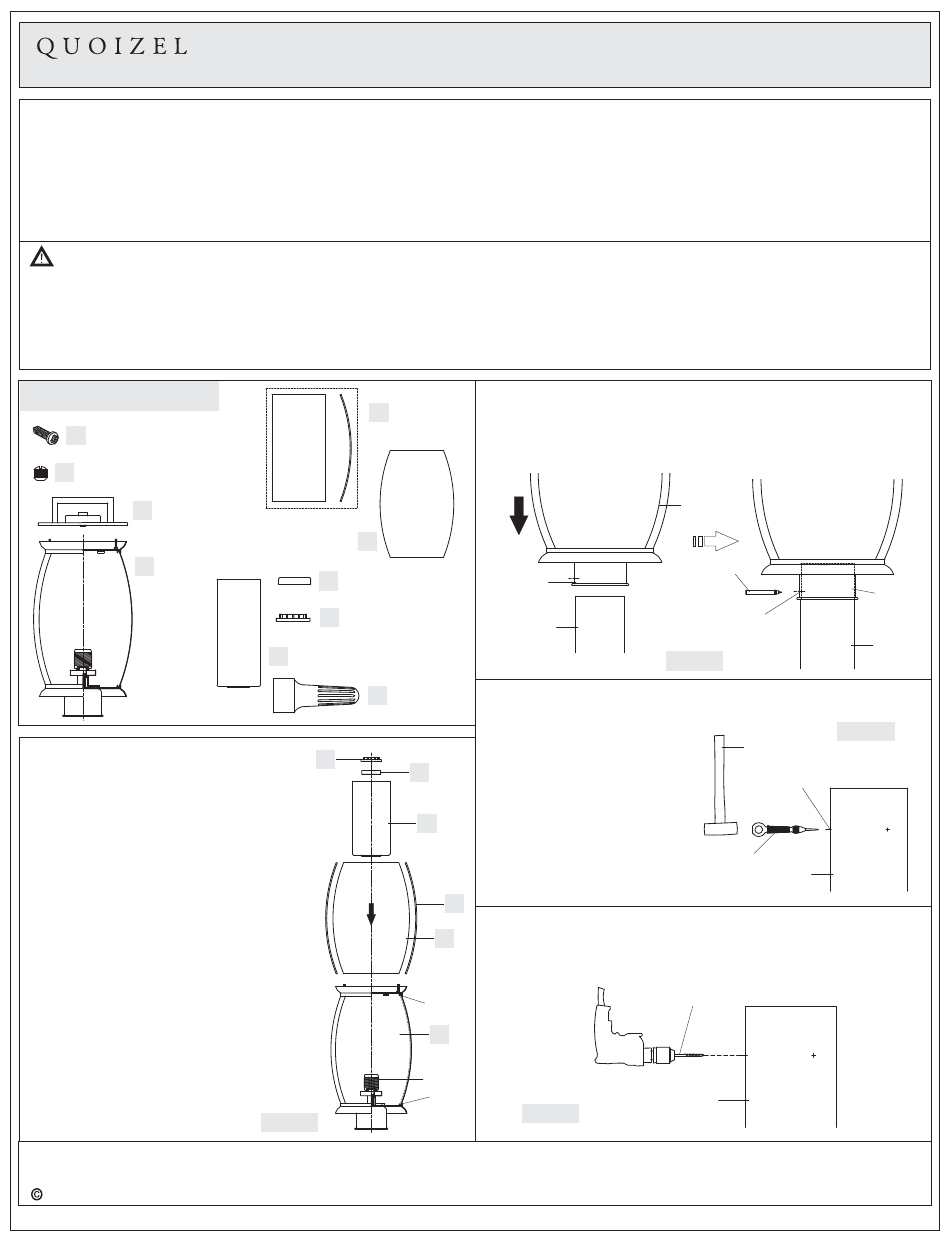

Package Contents

Mounting Screw
A
x 3
Lock Ball
B
x 2
Fixture Hood
C
x 1
Fixture
D Body
x 1
-
STEP 1 Attach the Glass Panels, Curve
Panels and Glass Shade to Fixture Body
A. Insert one Glass Panel (F) into the cage of
the Fixture Body (D) first. Attach the
bottom edge of the Glass Panel (F) to slot
in one of the rest sides. And fold the Tabs
in the top edge of the cage to secure the
top edge of the Glass Panel (F). Repeat
the same process to install another Glass
Panel (F) to the opposite side of the cage.
B. Insert one Curve Panel (E) into the cage
of the Fixture Body (D). Attach the bottom
edge of the Curve Panel (E) to slot on one
narrow side of the cage. And fold the Tabs
in the top edge of the cage to secure the
top edge of the Curve Panel (E). Repeat
the same process to install another Curve
Panel (E) to another narrow side of the
cage.
C. Place the Glass Shade (I) and the Steel
Collar (G) over the socket as shown. By
using the Socket Collar Tool (J), thread
the Socket Collar (H) onto the socket and
hand tighten until snug to secure the
Glass Shade (I).
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
2017 QuoizelInc.
Assembly Instruction Sheet #IS-TRE9009K
for product cleaning tips. Go to the
20-30 minutes
E
Glass Panel
F
x 2
Steel Collar
G
x 1
Socket Collar
H
x 1
Glass Shade
I
x 1
J
H
Figure 1
Thank you for purchasing a Quoizel product.
or visit us on-line at www.quoizel.com
For Style TRE9009K
Care + Maintenance selection.

STEP 2 - Mark the Location for the 3 Mounting Holes

Curve
Panel
A. Place the light fixture onto the post and mark the location of the 3
x 2
mounting holes on the fixture fitter onto the post with the marking
pen.
Fixture
Fitter
Post
Socket
-
STEP 3 M arking the
Collar Tool
E ach M ounting
x 1
A. Remove the light fixture. Using
the center punch and hammer
marking the center of each
G
mounting hole location that is
marked with the marking pen.
I
E
-
STEP 4 Drill Holes
F
A. Using the 1/16" bit and drill, drill a pilot hole completely through the
post at each (3) locations marked in step 5 above.
Tab
D
Socket
Slot
Figure 4
1of2
Post
Lighting
Marking Pen
Mounting
Hole
Figure 2
C enter of
H ole
Hammer
Marking
Center Punch
1/16" bit and drill
Post
Fixture
Fitter
Post
Figure 3
Post
ReleasedDate:2017-01-05
