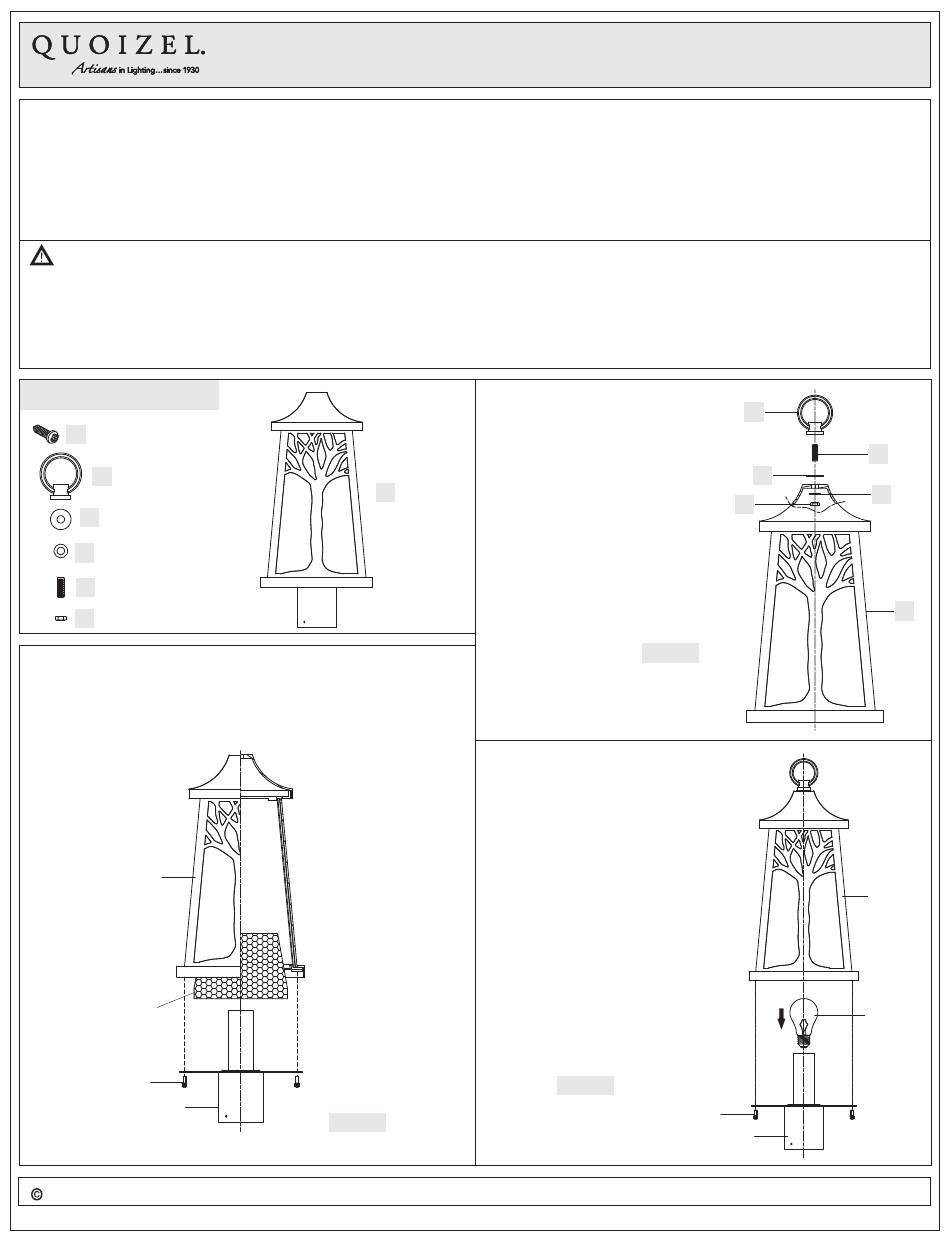

Quoizel WWD9009IB Installation Manual

Please go to www.quoizel.com
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses,
drill bit, center punch, hammer, drill and wrench.
Light Source: (1) A21 Medium Base bulb 150W Maximum, bulb not included.
Estimated Assembly Time:
Preparation: Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture.
purchase.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
Package Contents
Mounting Screw
A
x 3
Fixture Loop
B
x 1
Rubber Washer
C
x 1
Flat Washer
D
x 1
Nipple
E
x 1
Hex Nut
F
x 1
-
STEP 1 Remove Styrofoam inside of the Cage
A. Remove the cage from the Fixture Body (G) by loosening lock
screws on the bottom.
B. Remove Styrofoam inside of the cage.
Cage
Styrofoam
(Remove)
Lock Screw
Fixture Body
2018 QuoizelInc.
for product cleaning tips. Go to the
20-30 minutes
G
Figure 1
visit us on-line at www.quoizel.com
Installation Guide #IS-WWD9009IB
For Style WWD9009IB
Care + Maintenance selection.
-
STEP 2 Install the Fixture Loop
A. Screw the Nipple (E) onto the
Fixture Loop (B) and hand tighten
until snug.
B. Pass the Nipple (E) through the
Fixture
Rubber Washer (C), the hood of
Body
the Fixture Body (G) and the Flat
x 1
Washer (D) in turn. Secure them
together by threading the Hex Nut
(F) onto the Nipple (E). Hand
tighten until snug.
-
STEP 3 Install the Bulb and Cage
A. Insert the bulb onto
screw snugly into place.
B. Place the cage back onto the
Fixture Body (G) and secure with
previously removed lock screws.
Hand tighten until snug.
Figure 3
1of3
marking pen, 1/16"
Missing Parts? Contact your original place of
B
C
F
Figure 2
the socket and
Lock Screw
Fixture Body
ReleasedDate:2018-05-04
E
D
G
Cage
Bulb (not
included)
