- Page 1 AVS Control Panel Manual...
-
Page 2: Product Information

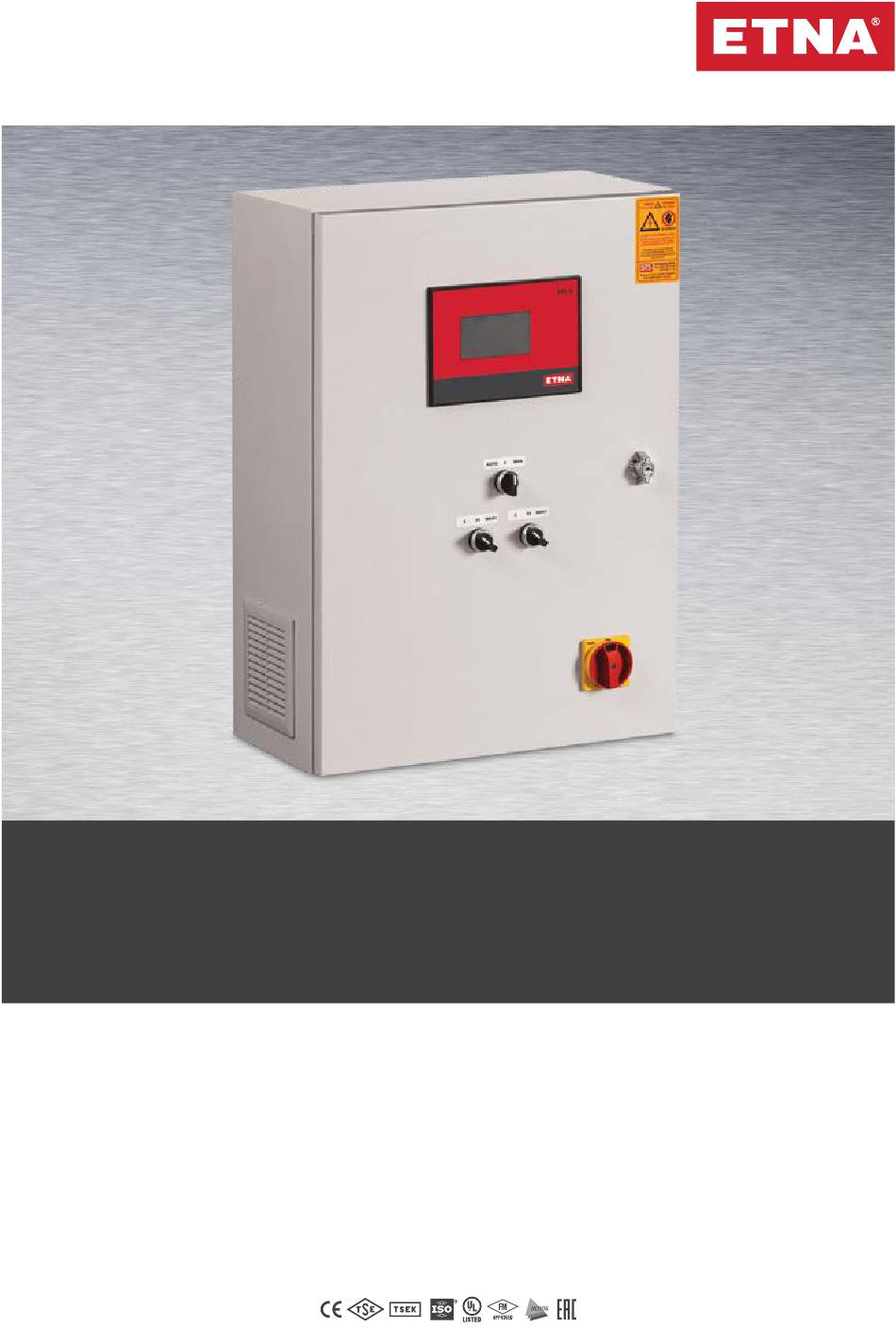

1. Product Information AVS is a pump control panel having 4.3“ TFT touch screen, uniquely designed high efficient variable speed control and relay board. The touch control panel is located on front casing while relay module is located inside. Other than these, Manual / Auto / Off Selection Button, Manual Control Buttons and Interlock Switch are available on front casing. - Page 3 Swichgear Control Panel Project Connectors Pocket Manual Operation EPLC-6 Control Motor Buttons Unit Connectors Interlock Switch Auto/Man Mod Selection Button * The inside image of the panel may differ from the picture above. Figure 2: AVS Panel Internal View www.etna.com.tr...
- Page 4 2. AVS Technical Specifications • Epoxy coated DKP steel body • Internal cooling with thermostatic control • IP 54 protection class • Manual / Autorun option • Phase absence / unbalance /sequence protection by phase protection relay • Thermal-magnetic motor protection •...
-
Page 5: Device Setting
When demand decreases -or as the current pressure value surpasses the set value- the pump with the driver slows down and attempts to match the reference pressure value. The pumps are deactivated if they are no longer needed. www.etna.com.tr... - Page 6 If in circulation mode, the EPLC-6 control unit first calculates the difference between two sets of data collected from the 4-20 mA pressure transmitters (transmitter1-transmitter2, where transmitter1 is the value gathered from the transmitter at the entrance of the fixture and transmitter2 is from the transmitter at the exit of the fixture) and then compares this to the set differential pressure value at which the device is desired to work.
-
Page 7: Pump Settings
In booster pump mode, wakeup pressure is the differential pressure value at which the wakeup (pump activation) period starts counting, which is identified to prevent the system from continuously activating and deactivating and which can be adjusted as needed. www.etna.com.tr... - Page 8 p : Wake-up pressure t1 : Pump start delay time t2 : Pump stop delay time P (bar) Wake up zone Set Pressure Wake-up pressure t (sn) Pump on demand t (sn) Graph 1: Pump ON / OFF vs. Wake-up Pressure on Constant Pressure Mode For example, if the set pressure is 8 bars and wakeup pressure is 0.5 bars, a standby pump will activate after the current system pressure drops below 7.5 bars and the wakeup period is complete.
-
Page 9: Sensor Settings
SENSOR 1 SEN2 CALIBRATION 1.00 made from the "Sensor Settings" menu. RESET 25 BAR SEN 1 SEN 2 NOTE: The sensor mentioned on SET PRESSURE AUTOMATIC the menu represents the pressure transmitter. SAVE BACK Figure 6: Sensor Settings Menu www.etna.com.tr... -
Page 10: Protection Settings
Set Pressure: Set pressure is the pressure value at which the system is expected to work. In booster pump mode, it is associated with the value read off of pressure transmitters. In circulation mode, it is associated with the difference between the values read off of transmitter1 and transmitter2. -
Page 11: Driver Settings
3 levels; In the 1st level, the reaction speed on the 1st level is slow and as the level is increased, the rotation speed in the reference speed relayed by EPLC-6 panel to the driver also increases. Therefore, the pump rotation speed that works with the driver also varies in proportion to the reaction speed. www.etna.com.tr... - Page 12 Sleeping Period: Sleeping period is the condition when, in booster pump mode, the system's current pressure is higher than the set pressure and when pumps stand by ready to work, without working. In systems with drivers, if the system pressure is above the set value and if the driver frequency is lower than the deactivation frequency value and remains that way throughout the sleeping period, the system enters sleep mode.
- Page 13 0-50: After must be set to 2 and press OK, all the parameters inside Keypad are transferred to the driver 0-50: if set to 3 and press OK, all the parameters except Motor power inside Keypad are transferred to the driver AI1 Com Relay Terminals; 01: COM 02: NO 03: NC 0-10 V. input www.etna.com.tr...
-
Page 14: Maintenance Period
4.6 Manual Pump Control: MANUAL PUMP CONTROL PUMP1 DRIVER PUMP1 LINE AUTOMATIC Manual pump control is used to PUMP2 DRIVER PUMP2 LINE control the rotational direction of PUMP3 DRIVER PUMP3 LINE pumps while starting them up. With selections being made through the PUMP4 DRIVER PUMP4 LINE pump-specific symbols on screen, the... -
Page 15: Language Select
DATE- TIME SETTINGS MONTH YEAR 2017 The real date and time belonging to the device can be calibrated in the Date and Time Settings menu as shown in HOUR MINUTE SECOND figure 16. SAVE BACK Figure 15: Date and Time Settings www.etna.com.tr... - Page 16 0 - 65535 Pump 6 total run time Low pressure fault. . If output is 1, low pressure fault exists; If 40.027 0 - 1 output is 0, low pressure fault does not exist. Table 2: AVS Panel Modbus Address Table...
-
Page 17: History Record
PUMP 3 times can be viewed from the General PUMP 4 Information menu. PUMP 5 PUMP 6 CPU SERIAL NUMBER BACK <1F002A - 34355110 - 34343530 > < SV 2.1.001> Figure 17: General Information Screen www.etna.com.tr... - Page 18 7. Dimensions H: Height W: Width L: Length Figure 18: AVS Panel Dimensions...
- Page 19 1000 1000 1000 1000 1000 1000 1000 1000 1000 1200 1000 1200 1200 1400 1000 1200 1200 1400 1200 1400 18,5 1000 1200 1200 1400 1200 1400 1000 1200 1200 1400 1400 1600 Table 3: AVS Panel Dimensions Table www.etna.com.tr...
-
Page 20: Maintenance
8. Maintenance General Information Danger High Voltage: WARNING: Please wait 5 minutes before any maintenance or after sales intervention to the capacitors be discharged. Check List: • Please be sure that there is no dust on cooling fun and ventilation system. •... - Page 21 No 24 V DC signal on • Check driver supply and fuse DRIVER FAULT EPLC-6 board terminal • Check the cable connection between driver fault terminal and EPLC number 10. 6 terminal number 10 Table 4. Panel Troubleshooting Table www.etna.com.tr...
-
Page 22: Quick Menu
Setup Number Value Numeric Display Parameter Number Unit Setup 1 Motor Direction Selected Status Quick Main Menu Menu Menu Menu Menu 50.0 Navigasyon Keys Warn Indicator Lights Alarm Hand Auto Reset 130BA605.10 Operation Keys and Leds Figure 20. FC 51 Driver Keypad Functions... - Page 23 INTERNAL the elctronic • Contact local Danfoss supplier. FAULT companents in the driver. Discharge from • Check motor power. GROUND FAULT output phases to • Check parameter 1-24 current value . ground. • Check driver ramp-up duration. www.etna.com.tr...
- Page 24 Dudullu Organize Sanayi Bölgesi 2. Cadde No: 14 34775 Ümraniye İstanbul / Turkey Tel : +90 216 561 47 74 (Pbx) • Fax : +90 216 561 47 50 www.etna.com.tr/en • info@etna.com.tr customer service...
