- Page 1 Hydropan Single Operation and Maintenance Manual...
-
Page 2: Product Information

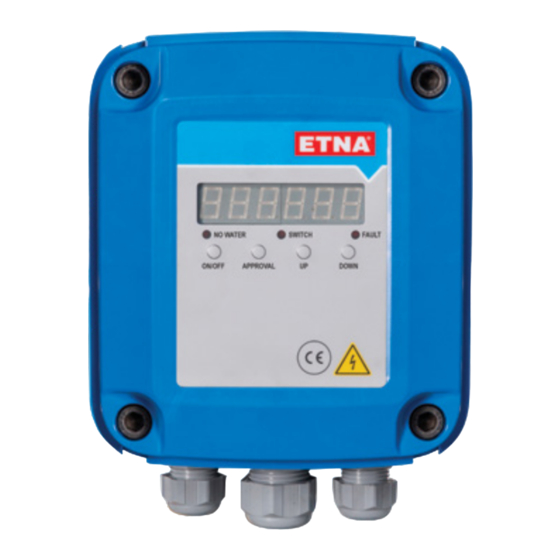

1. Product Information Hydropan-Single Control Panel is used to control , display modes and faults of single pump booster systems, has 7 segment display and uniquely designed electronic main board. In addition to the electronic board and 7 segment display, the panel also has No Water / Pressure Switch / Fault warning leds as well as Up / Down buttons used to surf in menus , Approval button to confirm parameter changes and ON / OFF button . - Page 3 7 Segment Display Current Transformers Connection Cable Power Relays Voltage Transformer Connectors Earth Connection Bar Cable Glands Figure 2. Hydropan Single Internal View www.etna.com.tr...
-
Page 4: Technical Specifications
2. Technical Specifications • Compatible with booster, deep well and waste water applications • User friendly interface • 8 bit microcontroller based design tabanlı tasarım • 7 Segment display • 3 phase voltage measurement and display on screen • High and low voltage protection setting •... -
Page 5: Password Menu
Figure 6. High Voltage Limit Setting Menu protection value is set with the "Up / Down" buttons. The limit value is set at the factory and changing this value is not recommended. www.etna.com.tr... - Page 6 c. Low Voltage Protection Setting Menu By pressing the "Up" button while in the menu, the Low Voltage Limit Setting Menu (dG) seen on the left is accessed. By pressing the "Confirm" button again, the menu is entered and the low voltage Figure 7.
-
Page 7: Fault History Menu
Please cut-off the power supply before any intervention • Check and make sure that there is no loosen connections on power supply and earth connection. • Check and make sure that there is no damage , hole or color change caused by overheating on cables. www.etna.com.tr... -
Page 8: Troubleshooting
6. Troubleshooting ERROR FAULT ACTION CODE htA YG HIGH • Check the mains input voltage, phase-neutral values for all phases. VOLTAGE • When the high voltage protection value defined with "YG" is exceeded, this error is FAULT given. Check the "YG" value. •... - Page 9 MOTOR POWER OUTPUT INPUT OUTPUT INPUT WELL HYDROPAN MONO - THREE PHASE HYDROPAN MONO - THREE PHASE FOR FOR DRAIN MODE SEWAGE AND DRAINAGE PUMPS Figure 15. Three-Phase Drainage System Figure 16. Three-Phase Discharge Mode Connection Diagram Connection Diagram www.etna.com.tr...
- Page 10 POWER POWER RELAY RELAY TRANSFORMER TRANSFORMER MONOFAZE POMPA İÇİN MONOFAZE PANO İÇİN MONOFAZE POMPA İÇİN MONOFAZE PANO İÇİN NOTR NOTR NOTR NOTR U V W U V W R S T R S T UF C AF UF C AF FLATOR FLATOR SALTER...
- Page 11 NOTES www.etna.com.tr...
- Page 12 Dudullu Organize Sanayi Bölgesi 2. Cadde No: 14 34775 Ümraniye İstanbul / Turkey Tel : +90 216 561 47 74 (Pbx) • Fax : +90 216 561 47 50 www.etna.com.tr/en • info@etna.com.tr customer service...
