INSTRUCTION MANUAL

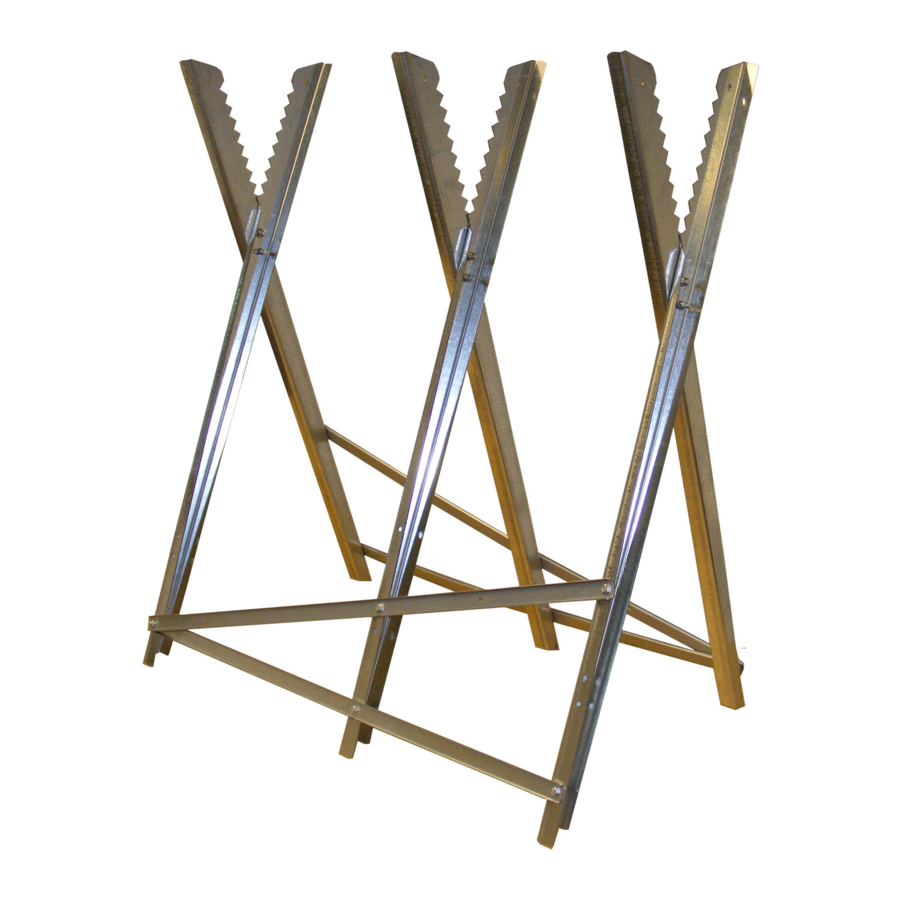

SAW HORSE
(Max. Weight Capacity 100kg)
Model No: THBSH -- Product No: 193833001
ASSEMBLY REQUIRED
SAVE THESE INSTRUCTIONS
SPARES & SUPPORT: 01793 333212
Please read & understand this manual, paying particular attention to the safety instructions, before
use.
The manufacturer reserves the right to change the product specification and livery according to
continued product improvements.
Images used are for illustration purposes only
23/03/2017
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for The Handy THBSH
Summary of Contents for The Handy THBSH
- Page 1 INSTRUCTION MANUAL SAW HORSE (Max. Weight Capacity 100kg) Model No: THBSH -- Product No: 193833001 ASSEMBLY REQUIRED SAVE THESE INSTRUCTIONS SPARES & SUPPORT: 01793 333212 Please read & understand this manual, paying particular attention to the safety instructions, before use.
- Page 2 23/03/2017...
-
Page 3: Table Of Contents
(MON – FRI 8.00AM TO 5.30PM EXCL. BANK HOLIDAYS) SPECIFICATION The manufacturer reserves the right to change the product specification and livery according to continued product improvements. Model Number THBSH Product Number 193833001 Working Dimensions H-795mm x W-800mm x L-815mm Max. -
Page 4: Important Information
IMPORTANT INFORMATION INTENDED USE The device is intended for to securely hold logs & wood to assist with the cutting, by chainsaw or handsaw. This product is not intended for commercial use. Generally acknowledged accident prevention regulations and enclosed safety instructions must be observed. - Page 5 STAY ALERT Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly. Do not use this machine when you are tired or distracted from the job at hand. Be aware of what you are doing at all times. Use common sense. AVOID DANGEROUS CONDITIONS Make sure there is adequate surrounding workspace.
-
Page 6: Assembly
ASSEMBLY DANGER It is recommended that safety gloves are used during the assembly of this item. HARDWARE INCLUDED M8 x 16 BOLT M6 x 25 BOLT M6 x 12 BOLT M8 NUT M8 WASHER M6 NUT M6 WASHER The package will also include, 6x serrated legs, 2x 80cm cross struts, 2x 84cm diagonal cross struts. IF YOU BELIEVE A COMPONENT IS MISSING OR DAMAGED, PLEASE CONTACT US FOR ASSISTANCE. - Page 7 You will require 2x 10mm and 2x 14mm spanners to assemble this product (Not Included) The Handy Saw Horse is supplied with Nylock Nuts. They are designed with a nylon collar, with a slightly smaller diameter to the bolt. The insert deforms elastically over the threads of the screw, but threads are not cut into the nylon.
- Page 8 Secure the shorter cross strut (80cm) to the left and middle leg assembly bottom fixing hole, using M6x12 bolt, M6 washer and M6 nut. Attach the longer diagonal cross strut (84cm) and the smaller (80cm) cross strut to the right leg assembly, using a M6x25 bolt & M6 nut.
- Page 9 Turn the stand over and follow the same procedure. Attach the diagonal strut is the opposite direction to the previous side. The diagonal strut should be fitted to the second hole of the middle leg on this occasion (see image). The finished product, should have a large and small section, to allow you to position different length logs for cutting.
-
Page 10: Operation
OPERATION DANGER The product must only be put into operation if no defects are found. It is crucial that any defective parts are replaced before the product is used again. The saw horse is designed for wood lengths of 1.8 metres (max.), diameter 25cm (max.), with a maximum permissible load of 100kg. - Page 11 GJ HANDY & CO LTD USER WARRANTY POLICY Users Statement of Warranty Each new machine is warranted against defective material or assembly of material under normal usage. The warranty applies to the original purchaser and covers faulty parts and the labour involved in replacing and repairing those parts, which are of original manufacture.
- Page 12 GJ HANDY & CO LTD USER WARRANTY POLICY Not covered by this warranty a) The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or corrosion, lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident.
- Page 13 NOTES _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________...
- Page 14 NOTES _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________ _____________________________________________...
-
Page 16: Email: Customerservice@Handydistribution.co.uk
For spares or support of your handy product, please contact us: Tel: 01793 333212 Email: customerservice@handydistribution.co.uk (Mon – Fri 8.00am to 5.30pm excl. Bank Holidays) To see our range of garden machinery & equipment visit: To see our range of garden machinery & equipment visit: To see our range of garden machinery &...
