The Handy THMT26 Instruction Manual

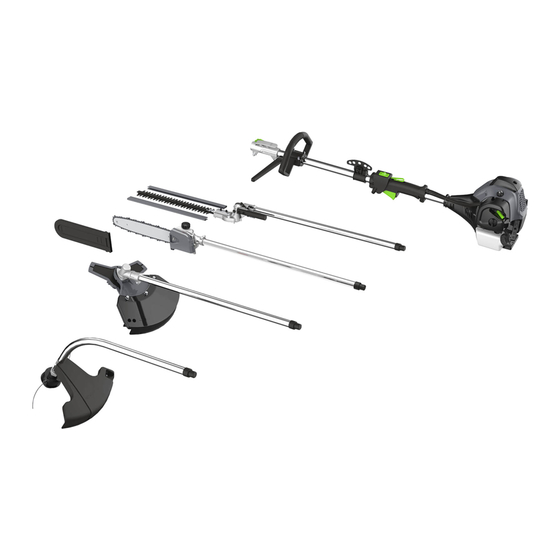

26cc petrol 4 in 1 multi-tool
Hide thumbs
Table of Contents

Advertisement

Quick Links

INSTRUCTION MANUAL
26cc PETROL
4 in 1 MULTI-TOOL
Model No: THMT26 -- Product No: 1938176001
ASSEMBLY REQUIRED
SAVE THESE INSTRUCTIONS
SPARES & SUPPORT: 01793 333212
Please read & understand this manual, paying attention to the safety instructions, before use.
The manufacturer reserves the right to change the product specification and livery according to
continued product improvements.
Images used are for illustration purposes only
24/11/2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THMT26 and is the answer not in the manual?

Questions and answers

Related Manuals for The Handy THMT26

Summary of Contents for The Handy THMT26

  • Page 1 INSTRUCTION MANUAL 26cc PETROL 4 in 1 MULTI-TOOL Model No: THMT26 -- Product No: 1938176001 ASSEMBLY REQUIRED SAVE THESE INSTRUCTIONS SPARES & SUPPORT: 01793 333212 Please read & understand this manual, paying attention to the safety instructions, before use. The manufacturer reserves the right to change the product specification and livery according to continued product improvements.

  • Page 3: Table Of Contents

    CONTENTS SPECIFICATION IMPORTANT INFORMATION GENERAL SAFETY INSTRUCTIONS GET TO KNOW YOUR MACHINE ASSEMBLY FUELING OPERATION MAINTENANCE STORAGE TROUBLE SHOOTING PARTS DIAGRAM & LIST EC DECLARATION OF CONFORMITY WARRANTY NOTES ASSEMBLY IS REQUIRED This product requires assembly before use. See the “Assembly” section for instructions. Please check that all parts required for the assembly of this machine are included.

  • Page 4: Specification

    SPECIFICATION The manufacturer reserves the right to change the product specification and livery according to continued product improvements. Model THMT26 Product Number 1938176001 Engine 2-stroke, Air-cooled Bore & Stroke 32 & 28mm Number of cylinder Engine Displacement 25.4cm Rated speed...

  • Page 5: Important Information

    IMPORTANT INFORMATION INTENDED USE The Multi-Tool is designed solely for domestic gardens, with annual use below 50 hours. This product is not intended for commercial use. Generally acknowledged accident prevention regulations and enclosed safety instructions must be observed. Only perform work described in these instructions for use, any other use is incorrect.

  • Page 6: Safety Symbols

    BLOCKAGES Do not attempt to remove a blockage from a jammed machine before first switching the engine off. KICKBACK The Pruner attachment is supplied with a low KICKBACK chain, however sometimes kick back can occur, so always hold the unit firmly in two hands. The Kickback danger zone on your Pruner is the upper part of the nose of the guide bar.

  • Page 7: Get To Know Your Machine

    GET TO KNOW YOUR MACHINE HARNESS ON/OFF HANGER SWITCH PETROL SAFETY POWER LEVER UNIT PRIMER BULB QUICK JOINT P-HANDLE THROTTLE TRIGGER AIR FILTER HOUSING CHOKE LEVER DOUBLE BLADE FUEL TANK BLADE COVERS FUEL TANK GUIDE BAR & CHAIN CHAIN GUARD CHAIN OIL TANK &...

  • Page 8: Assembly

    ASSEMBLY LINE TRIMMER ATTACHMENT GUARD Place the guard onto the bent shaft of the Line Trimmer Attachment. The bracket is placed on the top of the shaft and the guard sits underneath. They are secured with two 4mm Allen Key Bolts. Tighten until secure. (Fig 1) NYLON HEAD The Nylon Head is secured to the shaft, by rotating clockwise.
  • Page 9 Sit the Cup Washer onto the Clamp Washer (Fig 8). Thread the Blade Nut onto the shaft. Please note this is a Left-Hand threaded nut and should be rotated anti-clockwise, to secure (Fig 9). Fig 8 Fig 9 Align the locking hole within the Metal Guard and Stepped Washer (Fig 10). Insert an Allen Key to stop the shaft rotating (Fig 11) and firmly tighten the Blade Nut with a Spanner (Fig 12).
  • Page 10 Check the Chain has a smooth rotation and correct tension with your hand (Always where safety gloves). If necessary, adjust. The tensioner arm should be located into the lower hole (1) of the guide bar to allow full adjustment. Fig 14 Adjust the chain tension by turning the tensioner screw.
  • Page 11 While holding the machine securely with your left hand, pull the red tab (1) and the Shoulder Strap will release from the machine. (Fig 17) Fig 16 Fig 15 Fig 17 P-HANDLE Mount the handle onto the Handle Seat (Fig 18) Insert and tighten the bolts supplied to secure the handle to the shaft in the desired position.

  • Page 12: Fueling

    FUELING Fuel & its vapors are very flammable. Do not use or fuel the machine near a flame, sparks or while smoking. Allow the engine to cool for more than 3 minutes, before re-fueling. Never fuel the machine with the engine running.

  • Page 13: Operation

    OPERATION DANGER The DANGER ZONE on the output of the machine must be respected, to avoid serious injury. Do not allow anyone to enter the operating DANGER ZONE with you. The danger zone is an area 15 metres in radius. Insist that persons in the RISK ZONE beyond the danger zone wear eye protection from thrown objects.
  • Page 14 STARTING A WARM ENGINE Place the Power Unit onto the floor, with the fuel tank at its lowest. We recommend you use a concrete or similar surface to avoid slippage. Move the ON/OFF switch to the ‘I’ position. Ensure the Choke Lever is to the right in the Open position. Pull the Recoil Starter again, with a smooth rapid pull.
  • Page 15 Pay special attention to hedges which are positioned along wire fencing. If the cutting blades contact the fence, damage may occur. If the blade meets a stone, wire or other foreign object, stop immediately and check for any damage to the blades immediately. Do not attempt to remove any twigs or branches jammed in the blades, without first turning the engine off.
  • Page 16 LINE TRIMMER WARNING Always wear safety goggles or glasses to protect your eyes. Never lean over the rotating head. Stones or other debris could be thrown towards your face and cause serious personal injury. Always ensure the guard is in place. Always keep a firm grip with both hands during operation.
  • Page 17 PRUNER WARNING The Pruner is supplied with a low KICKBACK chain, however sometimes kick back can occur, so always hold the unit firmly in two hands. The Kickback danger zone on your Pruner is the upper part of the nose of the guide bar. Never saw using this part of the guide bar, which poses a significant risk for kickback.

  • Page 18: Maintenance

    ADJUSTING THE OIL FLOW RATE WARNING Never fill the oil reservoir or adjust the oiler with the engine running. The guide bar and chain are automatically lubricated by a pump that operates when the chain is in motion. The pump is set at the factory to deliver a minimum flow rate, but it can be adjusted. A temporary increase in oil flow is often desirable when cutting hard wood.
  • Page 19 AIR FILTER Accumulated dust in the air filter will reduce engine efficiency, increase fuel consumption and allow abrasive particles to pass in the engine. Remove & clean the air filter regularly to ensure optimum performance. Remove the air filter cover, by releasing the securing winged screw from the front of the cover. Lift off the cover.
  • Page 20 If waste gets stuck and causes blockages around the air intake cooling vent (1), it may cause the engine to overheat and that in turn may cause mechanical failure. BRUSHCUTTER GEAR HEAD LUBRICATION The gearhead is filled with multi-purpose lithium grease. Regularly check the quantity and fill where necessary. Remove the grease-nipple from the gearhead and fill appropriately.
  • Page 21 4. Ensure the spring is located correctly in the centre of the spool housing. 5. Once the spool has been fitted keep approx. 5 inches of the line for each side of the spool. Use the two line securing lugs to secure either side of the trimmer line. This will help stop the line from coming off the spool while you thread the line through the housing.
  • Page 22 OILING PORT Remove the chain cover, guide bar and chain and check the oiling port (1) for clogging. Clean if necessary. GUIDE BAR Remove sawdust in the groove of the guide bar and the oiling port. (1) Groove, (2) Oiling Port. Guide bars do wear.

  • Page 23: Storage

    • While holding the screw in position with a screwdriver, tighten the locknut with a spanner. • Check to make sure, flat washer (C) is loose enough to be turned by your finger. Tightening the screw too tightly may make it impossible for the blades to move. Conversely, not tightening the screw sufficiently may make the blades feel dull and cause leaves and branches to become caught in the blades.

  • Page 24: Trouble Shooting

    TROUBLE SHOOTING Failures such as a difficulty in starting the engine, irregularity in functions and abnormality in performance can normally be prevented if careful attention is paid to all operating instructions & maintenance procedures. FAILURE TO START Correctly follow the starting procedure, not setting the choke or priming the engine can cause it not to start. Ensure that fuel is fresh and clean.

  • Page 25: Parts Diagram & List

    PARTS DIAGRAM & LIST POWER UNIT Item No Part No Description Qty Item No Part No Description TH243-PUB1 Coupler Assembly TH243-PUB14 Bearing 6000 TH243-PUB2 Washer 6x12x1.5 TH243-PUB15 Shaft Joint TH243-PUB3 Handwheel TH243-PUB16 Snap Ring 26 TH243-PUB4 Coupler Body Nut M5 TH243-PUB5 Bolt M4x16 Lower P Handle...
  • Page 26 ENGINE NOTE: Parts Lists are supplied for information purposes only, not all parts are stocked individually & we recommend you contact our Spares Team on 01793 333212 for expert advice.
  • Page 28 PRUNER Item No Part No Description Qty Item No Part No Description TH239-PRUG1 M6 Nut TH239-PRUG20 Bearing 627 TH239-PRUG2 Chain Cover TH239-PRUG21 Gear Case TH239-PRUG3 Bolt M6x14 TH239-PRUG22 Screw M5x12 TH239-PRUG4 Washer 5 TH239-PRUG23 Oil Pipe TH239-PRUG5 Sprocket TH239-PRUG24 Valve TH239-PRUG6 Bearing Gasket TH239-PRUG25...
  • Page 29 BRUSHCUTTER NOTE: Parts Lists are supplied for information purposes only, not all parts are stocked individually & we recommend you contact our Spares Team on 01793 333212 for expert advice. Item No Part No Description Qty Item No Part No Description Gearcase Assembly TH241-BCD3...
  • Page 30 LINE TRIMMER Item No Part No Description TH240-LTC1 Nylon Head Square Locknut Bushing Shaft Bearing Output Shaft TH240-LTC6 Shaft Assembly Flexible Inner Collar Driveshaft Bolt M5x6 TH240-LTC8 Bolt M5x16 TH240-LTC9 Guard Bracket TH240-LTC10 M5 Locknut TH240-LTC11 Guard Knife TH240-LTC12 Guard TH239-STOPPER Stopper NOTE: Parts Lists are supplied for information purposes only, not all parts are stocked individually &...
  • Page 31 HEDGECUTTER Item No Part No Description Qty Item No Part No Description Qty Item No Part No Description TH242-HTJ1 Snap Ring 24 TH242-HTJ20 Blade Cover TH242-HTJ39 Gasket TH242-HTJ2 Ring 9 TH242-HTJ21 Screw M6 TH242-HTJ40 Washer TH242-HTJ3 Bearing 609 TH242-HTJ22 Angle Adjuster TH242-HTJ41 Blade Gear TH242-HTJ4...

  • Page 32: Ec Declaration Of Conformity

    EC DECLARATION OF CONFORMITY We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product: Designation: Petrol 4 in 1 Multi-Tool Model(s): THMT26 Product Number: 1938176001 Type/Serial No: As per rating label on machine Engine Displacement: 25.4cm Max Engine Power: 7500rpm Rated Engine Power: 0.75kW...

  • Page 36: Tel: 01793 333212

    For spares or support of your handy product, please contact us: Tel: 01793 333212 Email: customerservice@handydistribution.co.uk (Mon – Fri 8.00am to 5.30pm excl. Bank Holidays) To see our range of garden machinery & equipment visit: www.thehandy.co.uk Making gardening easier & affordable since 1938 Distributed by Handy Distribution, Murdock Road, Dorcan, Swindon, SN3 5HY...
