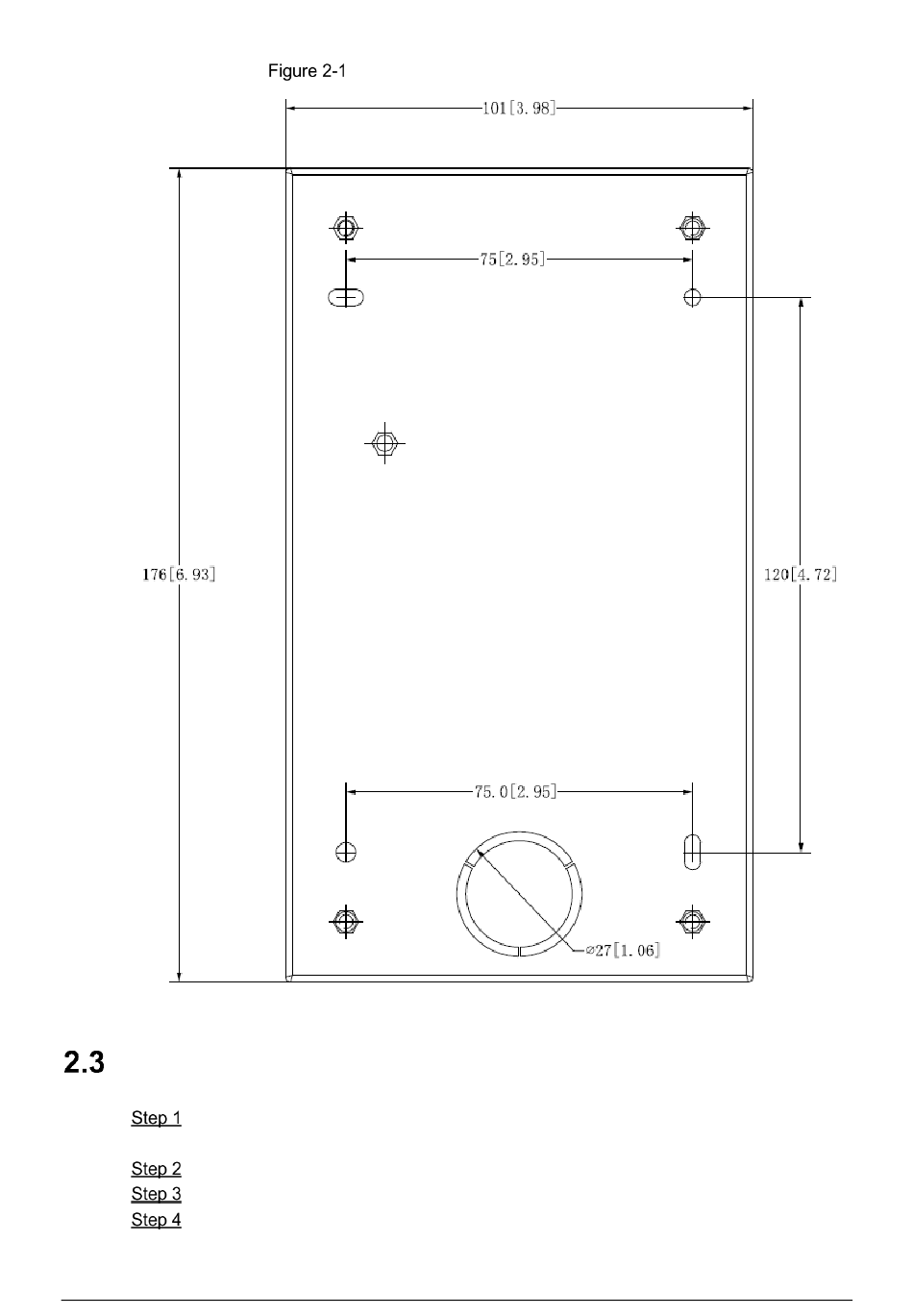

Mounting plate dimensions (mm [inch])
Procedure
Drill 4 holes on the wall according to the screw holes on the mounting plate, and put the
expansion bolts into the holes.
Fix the mounting plate on the wall with the ST3×18 self-tapping screws.
Apply sealant between the mounting plate and the wall, and to cover the cable outlets.
Fix the Terminal to the mounting plate with M3X8 hexalobular socket screws.
