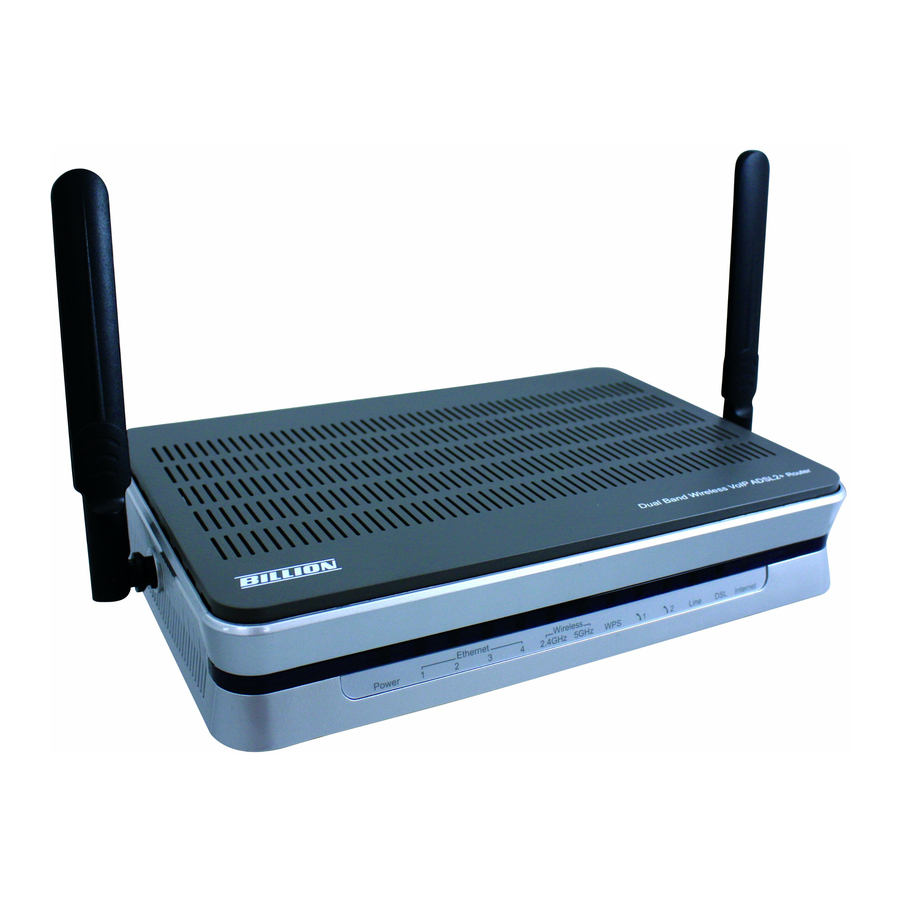

Billion BiPAC 7404VGOX Quick Start Manual
3g/ voip/ (802.11g) adsl2+ (vpn) firewall router
Hide thumbs
Also See for BiPAC 7404VGOX:
- User manual (168 pages) ,
- Quick start manual (9 pages) ,
- Product manual (20 pages)
Subscribe to Our Youtube Channel
Related Manuals for Billion BiPAC 7404VGOX
Summary of Contents for Billion BiPAC 7404VGOX
- Page 1 BiPAC 7404V(G)OX BiPAC 7404V(G)PX 3G/ VoIP/ (802.11g) ADSL2+ (VPN) Firewall Router Quick Start Guide...
-
Page 3: Package Contents
Billion BiPAC 7404V(G)OX/7404V(G)PX 3G/VoIP/(802.11g)ADSL2+ (VPN) Firewall Router PLEASE READ THE QUICK START GUIDE AND FOLLOW THE STEPS CAREFULLY. THIS QUICK START GUIDE WILL HELP YOU INSTALL THE DEVICE PROPERLY AND AVOID IMPROPER USAGE. IF YOU NEED MORE INFORMATION ON THIS SOFTWARE CONFIGURATION, PLEASE REFER TO THE USER’S MANUAL ON... -
Page 4: Hardware Overview
Quick Start Guide Hardware Overview The Front LEDs Lit when power is ON Lit when connected to an Ethernet device. Lit green when the Green for 100Mbps; wireless connection is Orange for 10Mbps. established. Blinking when data is Flashes when sending / Transmitted / Received receiving data The Rear Ports... -
Page 5: Hardware Connection
Billion BiPAC 7404V(G)OX/7404V(G)PX 3G/VoIP/(802.11g)ADSL2+ (VPN) Firewall Router Hardware Connection Hardware Installation Power Connection Plug the supplied power adapter to the wall jack and the other side to the router. Please note that the plug type may differ according to different countries. - Page 6 Quick Start Guide 3. USB Connection The USB 2.0 port supports 3G/HSDPA modem connectivity: users can conveniently access Internet via 3G, eliminating the limitations of the wired network. This solution also employs an auto fail-over feature to ensure always-on connectivity for SOHO users. 4.
- Page 7 Billion BiPAC 7404V(G)OX/7404V(G)PX 3G/VoIP/(802.11g)ADSL2+ (VPN) Firewall Router 6. Splitter/ Micro-filter Connection The Splitter / Micro-filter are important for ADSL installation, they help direct high-frequency signals to the ADSL modem & low frequency signals to the telephone or other analogue device to prevent inter-modulation distortion & get good speed/stable ADSL sync rate.
-
Page 8: Troubleshooting
Contact Billion WORLDWIDE http://www.billion.com Billion Product Registration Billion is committed to before and after sales customer services. You will get the most out of your Billion's products after registration. Please register online at www.billion.com/register to receive valuable services and support from...
