2 TWN4 MultiTech 3 BLE PCB

2.2 Dimensions

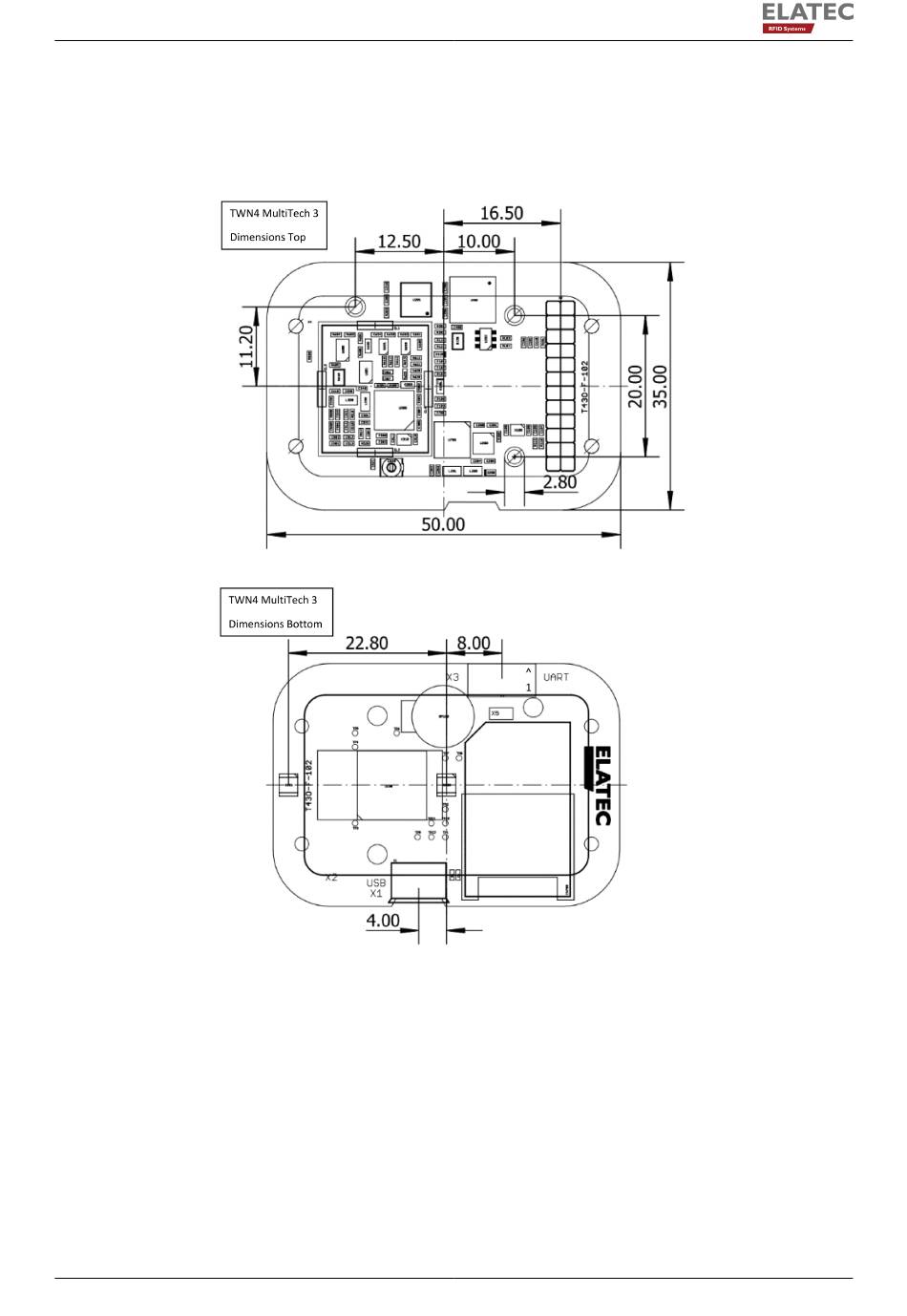

Figure 2.2 provides the physical dimensions of the TWN4 MultiTech 3 BLE. All dimensions in mm unless
otherwise stated.
Figure 2.2: PCB Dimensions
Page 5 of 13
