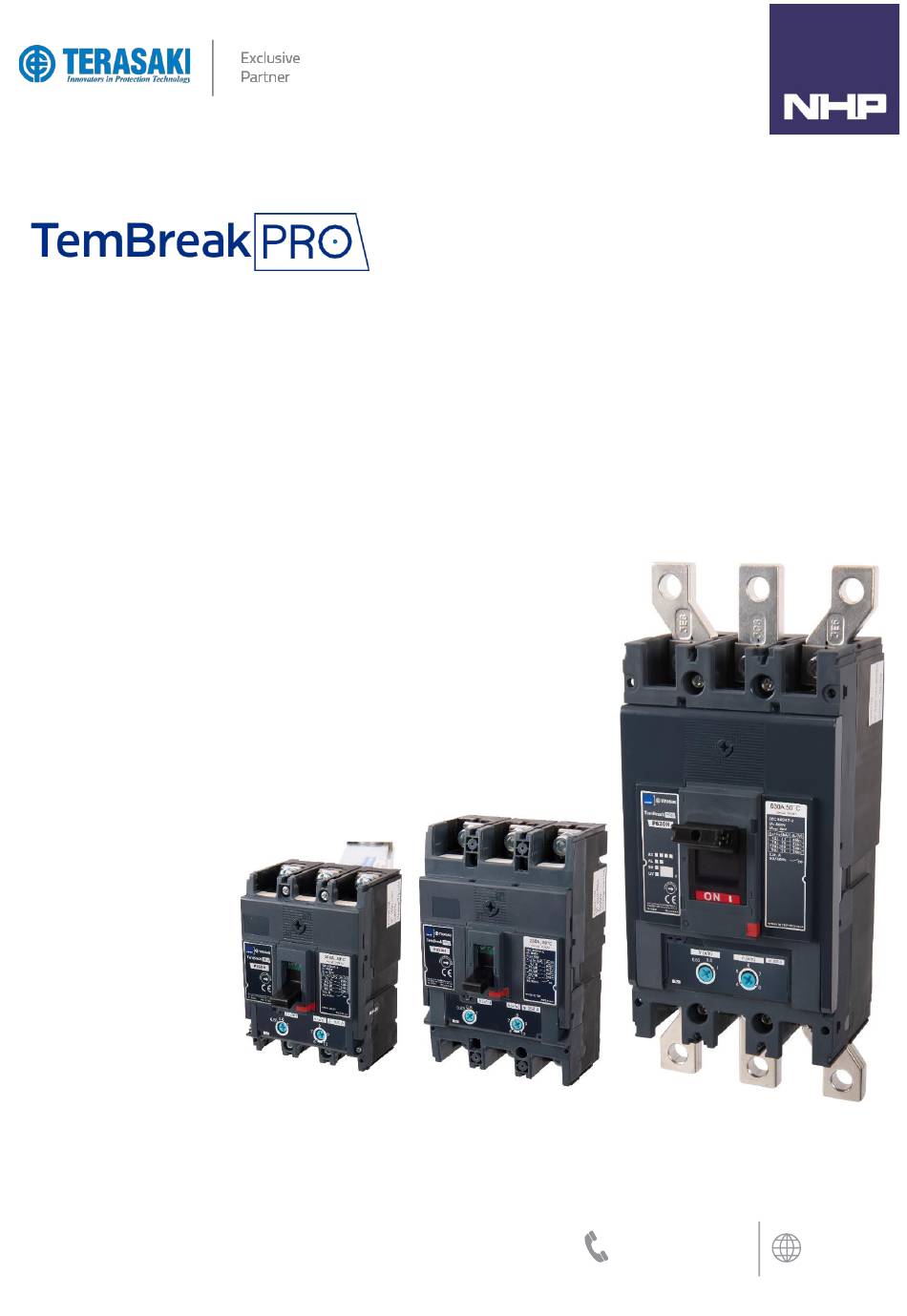

- Page 1 P Model Moulded Case Circuit Breaker Thermal Magnetic Trip Unit from 160A up to 630A USER MANUAL Version 1.3.0 1300 NHP NHP nhp.com.au NHP Electrical Engineering Products 0800 NHP NHP nhp-nz.com...
-
Page 2: Using This Manual
Appropriate use of NHP / Terasaki products NHP / Terasaki products are intended to be used only for the applications described in the catalogue and technical documentation, which is dedicated to them. If products and components from other manufacturers are used, they must be recommended or approved by NHP or Terasaki. -
Page 3: Summary Of Changes
Summary of Changes This section highlights the details of changes made since the previous issue of this document. The versioning convention used to track changes in this document follows the structure Vx.y.z where: x: Major revision, where extensive changes are made which is generally incompatible with the previous version. Such changes may include new products and/or features, or removal of information which is no longer relevant or applicable to the previous version y: Minor revision, where changes made do not change the overall scope of the previous version, but may include additional information which complements or corrects the previous version, or provides additional clarity on an existing topic. -
Page 4: Table Of Contents
Table of Contents Using this manual Annex A – Dimensions Safety Precautions P160 Dimensions Summary of Changes P250 Dimensions Table of Contents P400 Dimensions Introduction P630 Dimensions Who Should Use This Manual? Annex B – Trip Curves Additional resources P160F / N / H Terminology and Abbreviations P250F / N / H Product Information... -
Page 5: Introduction
This manual aims to provide users, electricians, panel builders and maintenance personnel, with the technical information required for commissioning and operation of the NHP / Terasaki TemBreak PRO P_TM MCCB. Users of this document must have at minimum a basic understanding of electrical circuit protection topics including (but not limited to):... -
Page 6: Terminology And Abbreviations
Introduction Terminology and Abbreviations Abbreviation Description Abbreviation Description Maintenance Interface Port: Plug for temporary Auxiliary Communications port: Plug for Smart auxiliary / connection to OCR testing, servicing, and maintenance alarm contact block tools Alarm: An auxiliary contact indicating trip status Neutral ASCII American Standard Code for Information Interchange... -
Page 7: Product Information
Product Information The TemBreak PRO P model Thermal Magnetic MCCB with trip unit type P_TM and P_FF offers protection against overloads and short circuits. The TM type features adjustable protection settings via preset rotary switches, providing adjustable thermal and magnetic tripping curves. This allows for improved selectivity combinations between MCCBs or other circuit breaker types. -
Page 8: Part Number Break Down
36 kA 25 kA Switch Notice: Not all combinations are possible. Confirm part number combination with NHP for availability. 160AF only For P_SE versions these features are standard and therefore are not added to the end of the part number. -
Page 9: Available Mccbs In The Tembreak Pro Range
Product Information Available MCCBs in the TemBreak PRO range: Rating Frame Size Short Circuit Break Capacity 1000 1250 1600 2000 2500 3200 (kA) A160E – TF A160E – FF A250E – TM P400E-TM P630E – TM B160E – FF A160F – TF A250F –... -
Page 10: P160_Tm Information
Models P, B Ampere Frame 160 – 1000 Certifications Identifies the additional localised certifications of the product, in addition to the international product standard, IEC 60947-2 / AS/NZS IEC 60947-2. For additional certifications please contact NHP. TemBreak P_TM-UM-001-EN – V1.3.0... - Page 11 Product Information P160_TM Information Frame / Model Attribute Unit Condition P160F_FF P160F_TM P160N_TM P160H_TM Number of Poles 3, 4 3, 4 3, 4 Nominal current ratings 50°C 15, 20, 20, 32, 20, 32, 20, 32, Trip unit ratings Calibration 30, 40, 50, 50, 63, 50, 63, 50, 63,...
-
Page 12: P250_Tm Information
Product Information P250_TM Information Frame / Model Attribute Unit Condition P250F_TM P250N_TM P250H_TM Number of Poles 3, 4 3, 4 3, 4 Nominal current ratings 50°C 50, 63 50, 63 50, 63 Trip unit ratings Calibration 100. 125 100. 125 100, 125 160, 250 160, 250... -
Page 13: P400_Tm Information
Product Information P400_TM Information Frame / Model Attribute Unit Condition P400E_TM P400F_TM P400N_TM P400H_TM P400S_TM Number of Poles 3, 4 3, 4 3, 4 3, 4 3, 4 Nominal current ratings 50°C Trip unit ratings Calibration Electrical characteristics Rated maximum operational voltage AC 50/60 Hz Rated insulation voltage Rated impulse withstand voltage... -
Page 14: P630_Tm Information
Product Information P630_TM Information Frame / Model Attribute Unit Condition P630E_TM P630F_TM P630N_TM P630H_TM P630S_TM Number of Poles 3, 4 3, 4 3, 4 3, 4 3, 4 Nominal current ratings 30°C Trip unit ratings Calibration Electrical characteristics Rated maximum operational voltage AC 50/60 Hz Rated insulation voltage Rated impulse withstand voltage... -
Page 15: Internal Accessories
Internal Accessories Internal accessories include Auxiliary and Alarm contacts, Shunt Trip and Undervoltage Trip (UVT) modules, which may be installed under the front cover of the MCCB in various combinations to provide additional functionality and connection with external control circuits. Auxiliary &... -
Page 16: Shunt Trip
Internal Accessories Shunt Trip A shunt (normally de-energized) can be installed to trip the MCCB by applying voltage to the shunt coil. Part Number Rated voltage Connection Type AC (V) DC (V) T2SH00LA10T ─ Terminal T2SH00LA20T 230…240 ─ Terminal T2SH00LA40T 400…415 ─... -
Page 17: Installation
Installation Precautions WARNING: To prevent electrical shock and damage to equipment, disconnect and isolate power source upstream of the MCCB before installing or servicing the MCCB including its connected accessories. Notice: To ensure correct performance, and integrity of equipment, the installation instructions and recommendations provided herein shall be respected. -
Page 18: Clearances
Installation Clearances WARNING: Exposed conductors including terminals at attached busbars must be insulated to avoid possible short-circuit or earth faults due any foreign matter coming into contact with the conductors. Phase to Phase and Earth Interruption of large currents during fault or normal switching operation produces ionised gases and arcing materials which expelled from the vents at the top of the MCCB. - Page 19 Installation Insulating Distance When earth metal is installed within proximity of the breakers, the correct insulating distance must be maintained, (refer to Minimum Clearance). This distance is necessary to allow the exhausted arc gases to disperse. This could include the mounting plate or side panel within a switchboard. Minimum Clearance Below illustrates the minimum clearance that must be maintained.
-
Page 20: Internal Accessory Mounting Locations
Installation Internal Accessory Mounting Locations P160, P250 and P400/630 frame sizes have different internal mounting locations for auxiliary contacts, alarm contacts, shunts and, UVTs. Left-side and right-side mounting locations are independent and accept unique combinations. For example, shunts and UVTs may only be mounted on the right side, whereas auxiliary and alarm contacts may be mounted on either left or right side. -
Page 21: P250 Internal Accessories Combination
Installation P250 internal accessories combination Legend TemBreak P_TM-UM-001-EN – V1.3.0... -
Page 22: P400/630 Internal Accessories Combination
Installation P400/630 internal accessories combination Legend Notice: Only 2 internal accessories can be mounted on the right-hand side of a P400 and P630 MCCB. Under no circumstances can 3 or more be installed. Examples: 2 AUX 1 Alarm and 1 AUX 1 Shunt and 1 AUX 1 UVT and 1 AUX TemBreak... -
Page 23: Alarm, Shunt & Uvt Installation
Installation Alarm, Shunt & UVT Installation The alarm, shunt and UVT have a trip bar that needs to interact with the MCCBs trip mechanism. As such they must be installed in a specific way. Refer to the supplied Installation Instructions for the respective accessories for further detail. Standard Alarm &... -
Page 24: Shunt & Uvt Installation
Shunt & UVT installation Action Note Switch the Smart MCCB to the Tripped Position. Open the front cover of the MCCB. Locate the shunt or UVT’s trip bar into the MCCB trip mechanism slot. The shunt or UVT will need to be rolled into place, follow the images to the right. -
Page 25: Protection Settings
Protection Settings Trip Curve The TemBreak PRO P_TM thermal magnetic trip unit protects against overcurrent and short circuit faults for many types of electrical distribution systems. The P_TM OCR has protective characteristics according to the requirements of the standard AS/NZS IEC 60947-2. The P_TM OCR consists of a standard 2 dial type (blue coloured dials) which features thermal adjustment and magnetic adjustment. -
Page 26: Thermal Protection
Protection Settings Thermal protection The thermal protection is designed to protect against current overloads or surges in power distribution or motor control applications. Thermal protection is an inverse-time protection, labeled as I TM – Adjusting I (Current) The thermal protection trip range is: 0.63 – 1.0 x I according to standard AS / NZS / IEC 60947-2. -
Page 27: Ff - Fixed I
Protection Settings Thermal protection FF – Fixed I (Current) The thermal protection of the FF type OCR is fixed to the rated current of the MCCB (I ). The options for the various MCCB rated currents and the associated thermal trip threshold currents are as follows: Thermal Protection Settings (I Rated (I Thermal trip threshold (I... -
Page 28: Magnetic Protection
Protection Settings Magnetic Protection The magnetic protection is designed to protect against fast high current faults such as short circuits, labeled as I P_TM MCCBs are available in magnetic only for instantaneous trip exclusively. has incremental adjustments dependent on frame size and I TM –... -
Page 29: Ff - Fixed I
Protection Settings Magnetic Protection FF – Fixed I (Current) The magnetic protection of the FF type OCR is fixed to a multiple the rated current of the MCCB (I ) where I = 12 x I . The options for the various MCCB rated currents and the associated magnetic trip threshold currents are as follows: Magnetic Protection Settings (I Rated (I... - Page 30 Protection Settings Magnetic Protection Adjusting I (Current) Multiple increments shown on the label differ depending on the MCCB frame size and OCR rating. The below tables provide the available increments which may be set per MCCB and OCR combination, and the resulting I current threshold.
-
Page 31: Neutral Protection
Protection Settings Neutral Protection Neutral protection is available with 4P P_TM MCCBs as standard. It is particularly useful when the cross-section of the neutral conductor is reduced in relation to the phase conductors. When enabled via the provided selector switch, neutral protection provides both thermal and magnetic protection of the Neutral pole, which follows the parameters I and I as adjusted for the main phases. -
Page 32: Temperature Ratings
Protection Settings Temperature Ratings The P_TM MCCB is fitted with a thermomagnetic trip unit which has its thermal element set for a specific calibration temperature. The P_TM MCCBs have been calibrated for operation at 50 C for all frame sizes except for the P630_TM which is calibrated to 30 °... -
Page 33: Commissioning
Commissioning Thermal Setting (I WARNING: Risk of nuisance tripping. Only qualified personnel are to set the protection levels. Failure to respect these instructions may cause death, serious injuries or equipment damage. Action Note / Illustration Switch the MCCB to the OFF Position. Open the transparent flap in order to access the max l adjustment dial. -
Page 34: Magnetic Setting
Commissioning Magnetic Setting (I WARNING: Risk of nuisance tripping. Only qualified personnel are to set the protection levels. Failure to respect these instructions may cause death, serious injuries or equipment damage. Action Note / Illustration Switch the MCCB to the OFF Position. Open the transparent flap in order to access the max l adjustment dial... -
Page 35: Neutral Protection Setting (N)
Commissioning Neutral Protection Setting (N) WARNING: Risk of nuisance tripping. Only qualified personnel are to set the protection levels. Failure to respect these instructions may cause death, serious injuries or equipment damage. Action Note / Illustration Switch the MCCB to the OFF Position. Open the transparent flap in order to access the 4 Pole Neutral adjustment dial. -
Page 36: Troubleshooting
Troubleshooting In the event of a problem when using the TemBreak PRO system, this section provides advice on how to resolve issues. Problem description Possible cause Remedial advice Abnormal voltage on load side Excessive wear of contacts Replace MCCB. Foreign matter interfering with contacts or contact surfaces Failure in ON position Reset operation not conducted... -
Page 37: Annex A - Dimensions
Annex A – Dimensions P160 Dimensions TemBreak P_TM-UM-001-EN – V1.3.0... -
Page 38: P250 Dimensions
Annex A – Dimensions P250 Dimensions TemBreak P_TM-UM-001-EN – V1.3.0... -
Page 39: P400 Dimensions
Annex A – Dimensions P400 Dimensions TemBreak P_TM-UM-001-EN – V1.3.0... -
Page 40: P630 Dimensions
Annex A – Dimensions P630 Dimensions TemBreak P_TM-UM-001-EN – V1.3.0... -
Page 41: Annex B - Trip Curves
Annex B – Trip Curves P160F / N / H TemBreak P_TM-UM-001-EN – V1.3.0... -
Page 42: P250F / N / H
Annex B – Trip Curves P250F / N / H TemBreak P_TM-UM-001-EN – V1.3.0... -
Page 43: P400E / F / N / H / S
Annex B – Trip Curves P400E / F / N / H / S TemBreak P_TM-UM-001-EN – V1.3.0... -
Page 44: P630E / F / N / H / S
Annex B – Trip Curves P630E / F / N / H / S TemBreak P_TM-UM-001-EN – V1.3.0... -
Page 45: Annex C - I 2 T Let Through Curves
Annex C – I t Let Through Curves P160F / N / H TemBreak P_TM-UM-001-EN – V1.3.0... -
Page 46: P250F / N / H
Annex C – I t Let Through Curves P250F / N / H TemBreak P_TM-UM-001-EN – V1.3.0... -
Page 47: P400E / F / N / H / S
Annex C – I t Let Through Curves P400E / F / N / H / S TemBreak P_TM-UM-001-EN – V1.3.0... -
Page 48: P630E / F / N / H / S
Annex C – I t Let Through Curves P630E / F / N / H / S TemBreak P_TM-UM-001-EN – V1.3.0... -
Page 49: Annex D - Peak Let Through Curves
Annex D – Peak Let Through Curves P160F / N / H TemBreak P_TM-UM-001-EN – V1.3.0... -
Page 50: P250F / N / H
Annex D – Peak Let Through Curves P250F / N / H TemBreak P_TM-UM-001-EN – V1.3.0... -
Page 51: P400E / F / N / H / S
Annex D – Peak Let Through Curves P400E / F / N / H / S P630E / F / N / H / S TemBreak P_TM-UM-001-EN – V1.3.0... -
Page 52: Annex E - Watts Loss
Annex E – Watts Loss Impedance Watts Loss Front Connection Ampere frame Rating Impedance per pole Watts Loss per pole Pole numbers Watts Loss per product Based from Impedance Based from Impedance In (A) Z (mΩ) Power (W) Power (W) 15 A 14.80 20 A... -
Page 53: Annex F - Temperature Calibration Tables
Annex F – Temperature Derating Front & Rear Connect Calibration Temperature: 45°C Rated Current (A) Connection Rated MCCB Type type 45°C 50°C 55°C 60℃ 65℃ 70℃ Front Conn. P160F_FF Rear Conn. 100A 125A Calibration Temperature: 50℃ Rated Current (A) Connection Rated MCCB Type type... -
Page 54: Plug-In Connect
Annex F – Temperature Derating Plug-in Connect Calibration Temperature: 50 ° Rated Current (A) Connection MCCB Type Rated I type ° ° ° ° ° P160_TM 100A 125A 160A Not Available in Plug-in Plug-in Conn. 100A P250_TM 125A 160A 200A 250A 250A P400_TM... - Page 55 This page is intentionally left blank TemBreak P_TM-UM-001-EN – V1.3.0...
- Page 56 P_TM-UM-001-EN Version 1.3.0 Published 28th May 2021 1300 NHP NHP nhp.com.au NHP Electrical Engineering Products 0800 NHP NHP nhp-nz.com...
