  • Page 3: Limited Warranty

    LIMITED WARRANTY This Limited Warranty is given exclusively to: Name Address Telephone No. by Unique Concepts Ltd. (“Unique Concepts”) in respect of the following product(s) manufactured by it (the “Products”): Subject to the conditions and restrictions contained in this Limited Warranty, Unique Concepts warrants to the Customer that the Products are free from defects in materials and workmanship under normal use and service for a period of twelve (12) months from the date the Products are purchased by the Customer, in new and unused condition, from Unique Concepts or its agent (the “Warranty Period”).
  • Page 4 The Customer will incur all risk of loss, theft or damage to the Products during shipment to Unique Concepts and during their subsequent return to the Customer. Without limiting the foregoing, the common carrier chosen by Unique Concepts to return the Products to the Customer will be deemed to be an agent of the Customer.
  • Page 5 ACKNOWLEDGEMENT THE CUSTOMER ACKNOWLEDGES THAT HE/SHE HAS READ THIS LIMITED WARRANTY, UNDERSTANDS IT, AND AGREES TO BE BOUND BY ITS TERMS AND CONDITIONS. THE CUSTOMER FURTHER AGREES THAT THIS LIMITED WARRANTY CONTAINS THE COMPLETE AND EXCLUSIVE STATEMENT OF AGREEMENT BETWEEN THE PARTIES, AND SUPERSEDES ALL PROPOSALS OR PRIOR AGREEMENTS ORAL AND WRITTEN, AND ANY OTHER COMMUNICATIONS BETWEEN THE PARTIES, RELATING TO THE SUBJECT MATTER OF THIS LIMITED WARRANTY.
  • Page 7 UNIQUE CONCEPTS CONFINED SPACE ENTRY/RETRIEVAL TANK POD SYSTEM WARRANTY REGISTRATION FORM & INSPECTION REPORT WARRANTY REGISTRATION (please print) This form must be filled out by the dealer and signed by both the dealer and the customer at the time of delivery.

  • Page 9: Serial Number Location

    SERIAL NUMBER LOCATION Always give your dealer or distributor the serial number of your UCL Tank Pod System Pt #13700 when ordering parts or requesting service or other information. The serial number plate is located where indicated. Please mark the number in the space provided for easy reference.
  • Page 11 INTRODUCTION Congratulations on your choice of a UCL Tank Pod System for your entry/retrieval operation. This equipment has been designed and manufactured to meet the needs of a discriminating operator for the efficient entry/or retrieval of people from a confined space.

  • Page 12: Safety Alert Symbol

    SAFETY SAFETY ALERT SYMBOL This Safety Alert symbol means The Safety Alert symbol identifies important safety messages on your UCL Equipment and ATTENTION! BECOME ALERT! YOUR SAFETY IS INVOLVED! in the manual. When you see this symbol, be alert to the possibility of personal injury of death.

  • Page 13: General Safety

    SAFETY GENERAL SAFETY 1. Read, understand and follow the User YOU are responsible of the SAFE operation, Manual and all safety signs before using, maintenance and inspection of your UCL Tank maintaining or inspecting the equipment. Pod System. YOU must ensure that you and anyone else who is going to operate, maintain, 2.
  • Page 14 13. Do not use the equipment around physical OPERATING SAFETY or environmental hazards. This list includes but is not limited to: a. Corrosion that may affect the structural 1. Read, understand and follow the User integrity of the life line or other Manual and signs on the equipment before components .
  • Page 15 OPERATING, NEW OPERATOR OR OWNERS It is the responsibility of the owner’s The UCL Tank Pod System is designed to organization or operator to read this manual attach to a person (entrant) and allow them to and to train all other operators before they enter a confined space and assist in exiting if start working with the equipment.

  • Page 16: Operating Safety

    OPERATING SAFETY 1. Read, understand and follow the User Manual and signs on the equipment before 12. Establish a regular training program for using, maintaining or inspecting the new and experienced workers. equipment. 13. Establish a detailed inspection program for 2.

  • Page 17: Winch Operation

    WINCH OPERATION Integral to the UCL Tank Pod System is the UCL Digital Man-Rated Winch. The winch is available in a variety of lifeline capacities, and lifelines are available in a variety of lengths and materials. Proper operation and maintenance of the winch are critical to the safe usage of your UCL Tank Pod System.

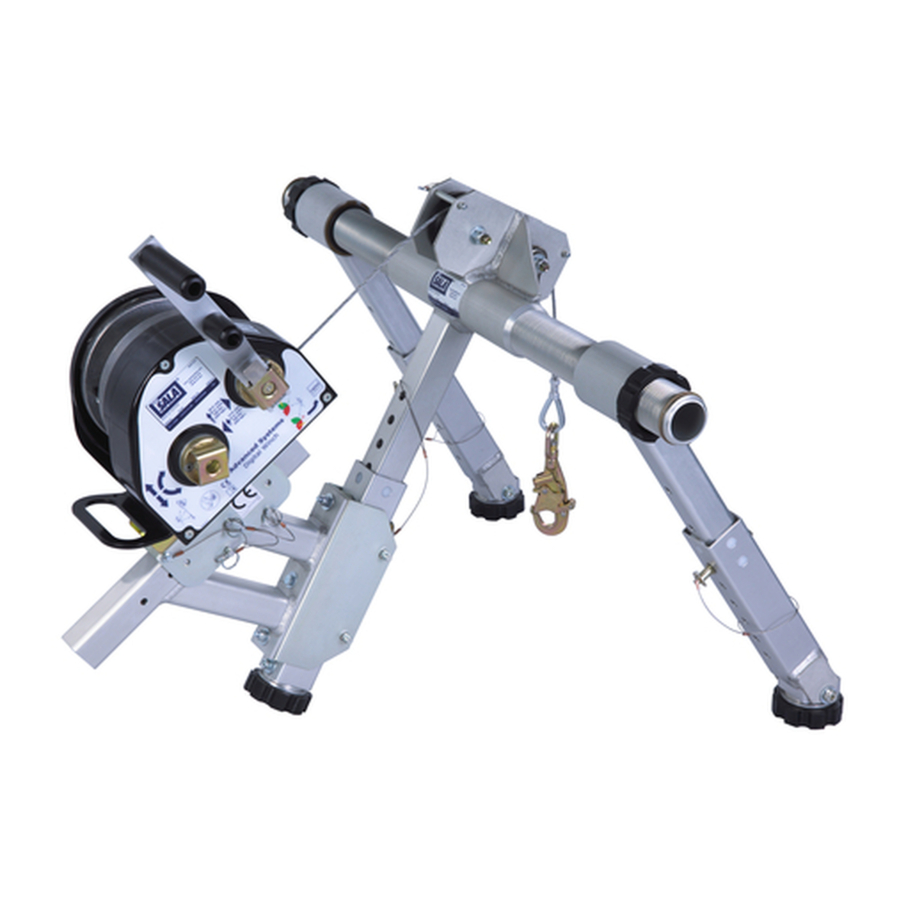

  • Page 18 Tank Pod Instructional Manual Introduction to the tank pod The UCL tank pod assembly is designed to be used in areas a conventional tripod or davit system may not set-up due to the configuration of the manway on a tank or overhead obstructions.
  • Page 19 5. Once the desired height is selected and the tank pod secured on top of the hatchway, turn the two adjustment knobs (A) on the main body toward the center section. This will stabilize the unit during use. Note: It is not always possible that you will not be able to achieve the desired height when position is a factor as well.
  • Page 20 SPECIFICATIONS PAGE 2 OF 2 Model#: 8513700 Capital Safety USA: 800.328.6146 • Canada: 800.387.7484 • Asia: + 65 6558 7758 • ISO 9001 Australia/New Zealand: 800 245 002 • Europe, Middle East, Africa: +33 (0) 497 10 00 10 •...
  • Page 21 TANK POD INSTALLATION ON ADJUSTABLE WELD-ON STUDS Capital Safety USA: 800.328.6146 • Canada: 800.387.7484 • Asia: + 65 6558 7758 • ISO 9001 Australia/New Zealand: 800 245 002 • Europe, Middle East, Africa: +33 (0) 497 10 00 10 •...
  • Page 22 Portable Tank Pod Stud Clamp Top View of Clamp Clamp Screws and Wrenches Example of Vertical Flange Front View of Clamp Stud for Tank Pod Screw Pad Page 22...
  • Page 23 3.4 STORAGE Prior to storage, the UCL Tank Pod System should be thoroughly inspected and maintained. Return for repair or replacement of any worn or damaged components to prevent any unnecessary down time at the next use. Follow this procedure: 1.

  • Page 24: Maintenance And Inspection

    Maintenance Intervals Daily Annually 1. Visual Inspection 1. Clean Tank Pod System Perform a complete visual inspection. Refer Use a damp cloth and mild soap to clean to Section 4.2.1.Remove from service if a the body components and labels of dirt and defect is found.
  • Page 25 INSPECTION 4.2.1 Visual Inspection A complete visual inspection should be performed on the application of Davit System you are using prior to the operation. The following items should be checked; and the results recorded on the “Inspection Log” sheet (see Section 4.3). 1.
  • Page 26 “Inspection Log” sheet (Section 4.3). 1. System Operation and Adjustments The UCL Tank Pod System contains operational parts that may include pulleys and /or rollers. These parts must be carefully checked for chips, cracks, or worn areas that can cause malfunction during operation of the system.
  • Page 27 Page 27...
  • Page 28 Page 28...

  • Page 29: Specification Sheets

    6 SPECIFICATION SHEETS 6.1 General These specification sheets contain information necessary for the proper installation and use of the equipment mentioned in this manual. These specifications contain application specific ratings and mounting requirements determined through design and testing. Please read and follow these specification sheets carefully to ensure the proper installation of each item.
  • Page 30 8513700 8511647 8510224 Capital Safety USA: 800.328.6146 • Canada: 800.387.7484 • Asia: + 65 6558 7758 • ISO 9001 Australia/New Zealand: 800 245 002 • Europe, Middle East, Africa: +33 (0) 497 10 00 10 • Northern Europe: +44 (0) 1928 571324 REGISTERED www.capitalsafety.com •...
  • Page 31 SPECIFICATIONS PAGE 2 OF 2 Model#: 8513700 Capital Safety USA: 800.328.6146 • Canada: 800.387.7484 • Asia: + 65 6558 7758 • ISO 9001 Australia/New Zealand: 800 245 002 • Europe, Middle East, Africa: +33 (0) 497 10 00 10 •...

  • Page 32: Replacement Parts

    7 REPLACEMENT PARTS 7.1 General These drawings are to provide you with an easy reference to order replacement labels and parts when required. Please follow each of the drawings to locate the part numbers required to order from UCL by either referencing the bill of materials on the right hand side of the drawing and then locating the balloon pointing out the replacement part for verification or visa versa.
  • Page 36 Capital Safety USA: 800.328.6146 • Canada: 800.387.7484 • Asia: + 65 6558 7758 • Australia/New Zealand: 800 245 002 • Europe, Middle East, Africa: +33 (0) 497 10 00 10 • Northern Europe: +44 (0) 1928 571324 www.capitalsafety.com • info@capitalsafety.com...
