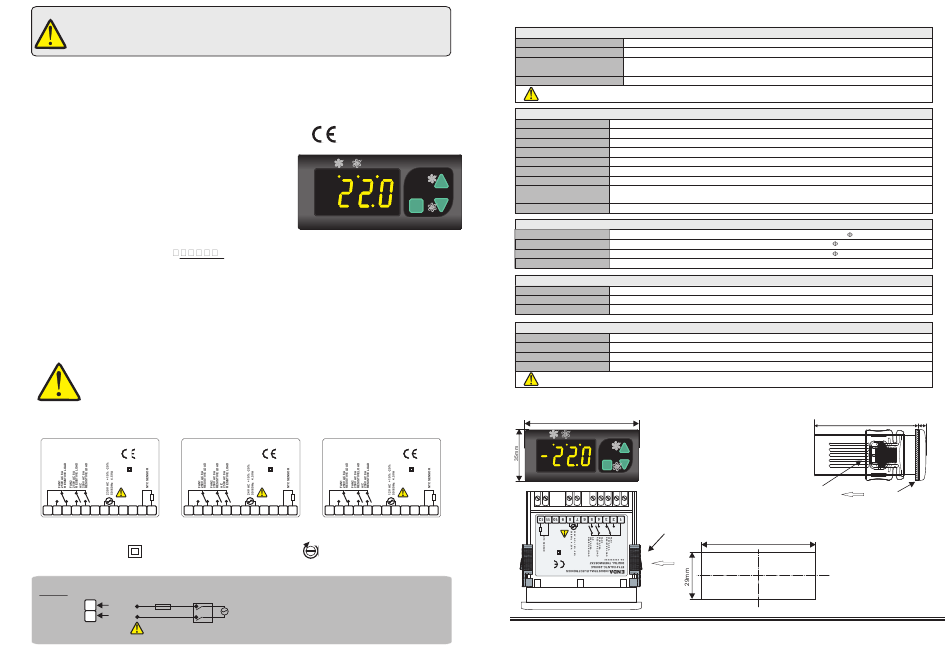

ENDA ET1413A Manual

Please read this document carefully before using this product. The guarantee will be
invalidated if the device is damaged by not following instructions detailed in the
manual. The company shall not be responsible for any damage or losses however
caused, which may be experienced as a result of the installation or use of this product.

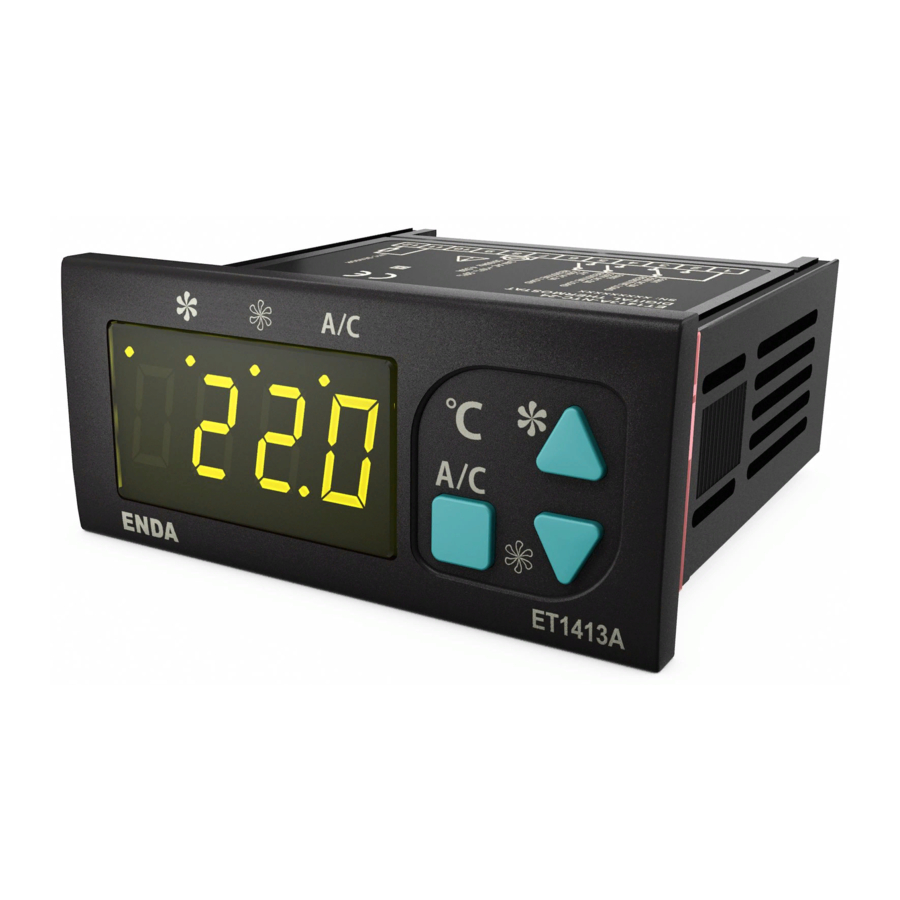

ENDA ET1413A NTC FAN CONTROL THERMOSTAT
Thank you for choosing ENDA ET1413A temperature controller
* 35 x 77mm sized.
* 4 digits display.
* Decimal display feature.
* 3 contact outputs for the fan and air condition control.
* For air-condition,on-off cooling control.
* Fan and air-condition is done manually on the front
panel keys.
* CE marked according to European Norms.
Order Code : ET1413A-NTC-
Supply Voltage
230VAC...230V AC
24............24V AC/DC
12............12V AC/DC

Connection Diagram

ENDA ET1413A is intended for installation in control panels. Make sure that the device is used
only for intended purpose. The electrical connections must be carried out by a qualified staff
and must be according to the relevant locally applicable regulations. During an installation, all of
the cables that are connected to the device must be free of electrical power. The device must be
protected against inadmissible humidity, vibrations, severe soiling and make sure that the
operation temperature is not exceeded. The cables should not be close to the power cables or
components.
ENDA ENDA
INDUSTRIAL ELECTRONICS
ET1413A-NTC-230VAC ET1413A-NTC-24
DIGITAL THERMOSTAT DIGITAL THERMOSTAT
SN: XXXXXXXXX SN: XXXXXXXXX
1 2 3 4 5 6 7 8 9 10 11 12 1
Equipment is protected throughout
by DOUBLE INSULATION
NOTE:
Fuse
SUPPLY: F 100 mA
Switch
250V AC
7 Line
184-253V AC
50/60Hz 4,5VA
8
Neutral
Fuse should
Cable size: 1,5mm²
be connected
A/C
ENDA
1
ENDA
INDUSTRIAL ELECTRONICS INDUSTRIAL ELECTRONICS
ET1413A-NTC-12
DIGITAL THERMOSTAT
SN: XXXXXXXXX
2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 6
Holding screw
0.4-0.5Nm.
Note:
1) Mains supply cords shall meet the requirements of
IEC 60227 or IEC 60245.
230V AC
2) In accordance with the safety regulations, the power
Supply
supply switch shall bring the identification of the
relevant instrument and it should be easily
accessible by the operator.

Technical Specifications

ENVIRONMENTAL CONDITIONS

Ambient/storage temperature
Max. relative humidity
Protection class
Height
Do not use the device in locations subject to corrosive and flammable gasses.
ELECTRICAL CHARACTERISTICS
Supply voltage
Power consumption
Connection
Scale
Sensitivity/Accuracy
Indicator
°C
EMC
SET SET
Safety requirements
ET1413A
OUTPUTS
A/C (Air-condition output)
Fan 1
Fan 2
Life expectancy for relay

CONTROL

Control type
Control algorithm
Hysteresis

HOUSING

Housing type
Dimensions
Weight
Enclosure material
While cleaning the device, solvents (thinner, benzine, acid etc.) or corrosive materials must not be used.
Dimensions
ENDA
7 8 9 10 11 12
SÝSEL MÜHENDÝSLÝK ELEKTRONÝK SAN. VE TÝC. A.Þ.
Yukarý Dudullu Barbaros Cad. Kutup Sok. No:20 34775 - ÜMRANÝYE/ÝSTANBUL/TÜRKÝYE
Tel : +90 216 499 46 64 Pbx.
1/2
url : www.enda.com.tr
0 ... +50°C/-25 ... 70°C (with no icing)
80%, up to 31°C decreasing linearly 50% at 40°C
According to EN 60529
Front panel : IP65
Rare panel : IP20
Max. 2000m
230V AC +%10 -%20, 50/60Hz or 24V AC/DC ±%10,
Max. 4.5VA
2.5mm²screw-terminal connections
-50 ... +110°C
0.1°C / ±1 °C
4 digits, 12.5mm, 7 segment yellow LED
EN 61326-1: 1997, A1: 1998, A2: 2001 (Performance criterion B is satisfied for EMC tests.
The device is designed to operate in controlled electromagnetic environment)
EN 61010-1: 2001 (Pollution degree 2, overvoltage category II)
Relay: 250V AC, 8A (for resistive load), NO+NC; 1/2 HP 240V AC
Relay: 250V AC, 8A (for resistive load), NO; 1/2 HP 240V AC
Relay: 250V AC, 8A (for resistive load), NO; 1/2 HP 240V AC
Without load 30.000.000 switching; 250V AC, 8A resistive load 100.000 switching.
Single-setpoint control
On-Off control
0.5 °C.
Suitable for flush-panel mounting.
W77xH35xD71mm
Approx.223g (After packing)
Self extinguishing plastics
77mm
For removing mounting clamps:
A/C
Push the flush-mounting
°C clamp in direction 1 as shown
in the figure below. Then, pull
SET SET
out the clamp in direction 2.
ET1413A
Flush mounting
clamp
Panel cut-out
71mm
1
Fax : +90 216 365 74 01
50/60Hz or 12V AC/DC ±%10, 50/60Hz
Cos = 0.4 )
(for inductive load
Cos = 0.4 ( )
for inductive load
Cos = 0.4
(for inductive load)
Depth
71mm 5mm
2
Flush mounting
Panel
clamp
Note:
1) Panel thickness
should be maximum
7 mm.
2) If there is no 60mm
free space at the back
side of the device, it
would be difficult to
remove it from the
panel.
ET1413A-E-01
