ENDA EDT2411A Manual

Please read this document carefully before using this product. The guaranteewill be in validated if the
device is damaged by not following instructions detailed in the manual. The company shall not be
responsible for any damage or l o sses however caused, which may be experienced as a result of the
install a tion or use of this product.

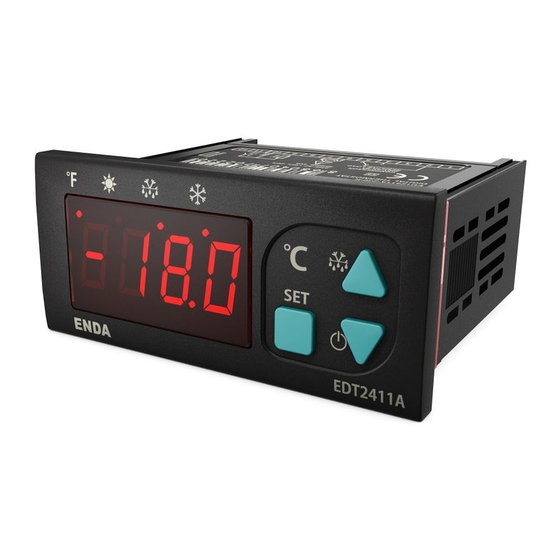

ENDA EDT 411 2 A DIGITAL THERMOSTAT
ENDA EDT2411A
Thank you for choosing
35x77mm.
On-Off control.
Relay output for cooling or heating control.
Single NTC probe input.
Offset value can be entered for NTC input.
Compressor protection parameters can be entered.
In case of probe failure, output status can be set to
ON, OFF or periodic.
Upper and Lower setpoint value limits can be adjust
Selectable "Smart Defrost" feature.
Defrosting duration and intervals can be adjusted.
6 Different warning tone selections.
Lower and upper alarm limit can be adjusted to depending
on set value.
Temperature unit can be selected C or F. ° °
Digital input ;
- xternal alarm
E
I - nitiate defrost
Transfer device parameter settings with ENDAKEY
- o power-up required. N
RS485 ModBus protocol communication feature (optional).
CE marked according to European Norms.

CONNECTION DIAGRAM

ENDA EDT2411A is intended for installation in control panels. Make sure that the device is used
only for intended purpose. The electrical connections must be carried out by a qualified staff
and must be according to the relevant locally applicable regulations. During an installation, all of the cables
that are connected to the device must be free of electrical power. The device must be protected against
inadmissible humidity, vibrations, severe soiling and make sure that the operation temperature is not
exceeded. The cables should not be close to the power cables or components.
ENDA
SN: XXXXXXXXX
INDUSTRIAL ELECTRONICS
Made in TURKEY
EDT2411A-230-R
DIGITAL THERMOSTAT
8 680407 705597
COMPRESSOR
250V 8A~
1 2 3 4 5 6 7 8 9 10 11 12
Equipment is protected throughout
by DOUBLE INSULATION.
NOTE:
Fuse
SUPPLY: F 100 mA
Switch
250V AC
1
Line
184-253V AC
2
50/60Hz 4VA
Neutral
Fuse should
Cable size: 1,5mm²
be connected
temperature controller .
ed.
Order Code : EDT2411A -
1 - Supply Voltage
230..... 230V AC ...
24........24V AC/DC
12........12V AC/DC
SM........9-30VDC / 7-24V AC
24V.......12V / 24V DC
2-Output
R......... 8A Relay output
P......... 20A Relay output
3 - Mod us b
RS..... ... RS-485 Modb us Available
(Optional / Specify at order)
Blank .... N/A
ENDA
INDUSTRIALELECTRONICS
EDT2411A-230-P-RS
DIGITAL THERMOSTAT
COMPRESSOR
277V 20A~
Holding screw
0.4-0.5Nm
Note:
1) Mains supply cords shall meet the requirements of
IEC 60227 or IEC 60245.
230V AC 2) In accordance with the safety regulations, the power
Supply
supply switch shall bring the identification of the
relevant instrument and it should be easily
accessible by the operator.
english

ENVIRONMENTAL CONDITIONS

Ambient / torage emperature S
Relative umidity H
Protection Class
Height
Do not use the device in locations subject to corrosive and flammable gasses.

ELECTRICAL CHARACTERISTICS

Supply oltage V
Power onsumption C
Connection
Scale
Sensitivity
Accuracy
Time ccuracy A
Display
EMC
Safety Requirements
EDT2411A
OUTPUTS
- -
Relay Output
1 2 3
Life xpectancy for elay E
CONTROL
Control ype T
Control lgorithm A
Hysteresis
HOUSING
Housing ype T

Dimensions

Weight
Enclosure M
While cleaning the device,solvents (thinner,benzine,acid etc.) or corrosive materials must not be used.
DIMENSIONS
Made in TURKEY
A B COM
SURAN
Industrieelektronik
Dettinger Str. 9
D-72160 Horb a.N.
1 / 4 .
T
0 ... +50°C/-40 ... 85°C (without icing)
Max. humidity 80% for temperatures up to 31°C decreasing linearly to
50% relative humidity at 40°C.
According to EN60529; Front panel : IP65, Rear panel : IP20
Max. 2000m
230V AC +%10 -%20, 50/60Hz ; 12V AC/DC ± %10 or 24V AC/DC ±%10
Max. 5VA
2.5mm² screw-terminal connections
-60.0 ... +150.0°C (-76.0 ... +302.0°F)
0.1°C (Can be selected as 0.1
±1°C
±1%
4 digits, 12.5mm, 7 segment LED (V2 Code : Blue Display)
EN 61326-1: 2013
EN 61010-1: 2010 (Pollution degree 2, overvoltage category II)
For EDT2411A-X-R ; Relay : NO+NC 250V AC,8A (resistive load),
1/2HP,
For EDT2411A-X-P ; Relay : NO 277V AC,20A
1/2HP,
For EDT2411A-X-R ; Without load 30.000.000 mechanical;
250V AC, 8A resistive load 100.000 electrical operation.
R
For EDT2411A-X-P ; Without load 10.000.000 switching;
277V AC,20A (for resistive load) 100.000 electrical operation.
Single set-point control
On-Off control
Adjustable between 1 ... 20.0°C.
Suitable for flush -panel mounting
W77xH35xD61mm
Approx. 190g (After packing)
aterial
Self extinguishing plastics.
77mm
For removing mounting clamps:
- Push the flush-mounting
1
clamp in direction as shown
in the figure below.Then,pull
out the clamp in direction
EDT2411A
Flush mounting
Panel cut-out
clamp
71,5mm
1
Tel.: +49 (0)7451 / 625 617
Fax: +49 (0)7451 / 625 0650
ºC or 1ºC .)
0.37KW 240V AC (inductive load)
(resistive load),
0.37KW 250V AC (inductive load)
Depth
61mm 5mm
2
.
2
Flush mounting
Rubber
clamp Panel
packing
Note:
1) Panel thickness should
be maximum 7mm.
2) If there is no 60mm free
space at the back side of
the device,it would be
difficult to remove it from
the panel.
E-mail : info@suran-elektronik.de
Internet : www.suran-elektronik.de
EDT2411A-EN-10052019
