- Page 1 User Manual Milli-Q EQ 7000 ®...
-
Page 2: Table Of Contents
Table of contents INTRODUCTION System overview LEDs overview QUICK START Exit screensaver Dispense ultrapure water Water Quality values Dispense archiving View & manage Alerts and Alarms Navigate the screen interface CONSUMABLE MENU SETTINGS MENU Manager access & password System configuration HMI configuration Accessories Alarm set points... -
Page 3: Introduction
This user manual is a guide for use during the normal operation and maintenance of a Milli-Q EQ 7000 water purification system. It is highly recommended to fully read this manual ® and understand its content before handling the water purification system. -
Page 4: System Overview

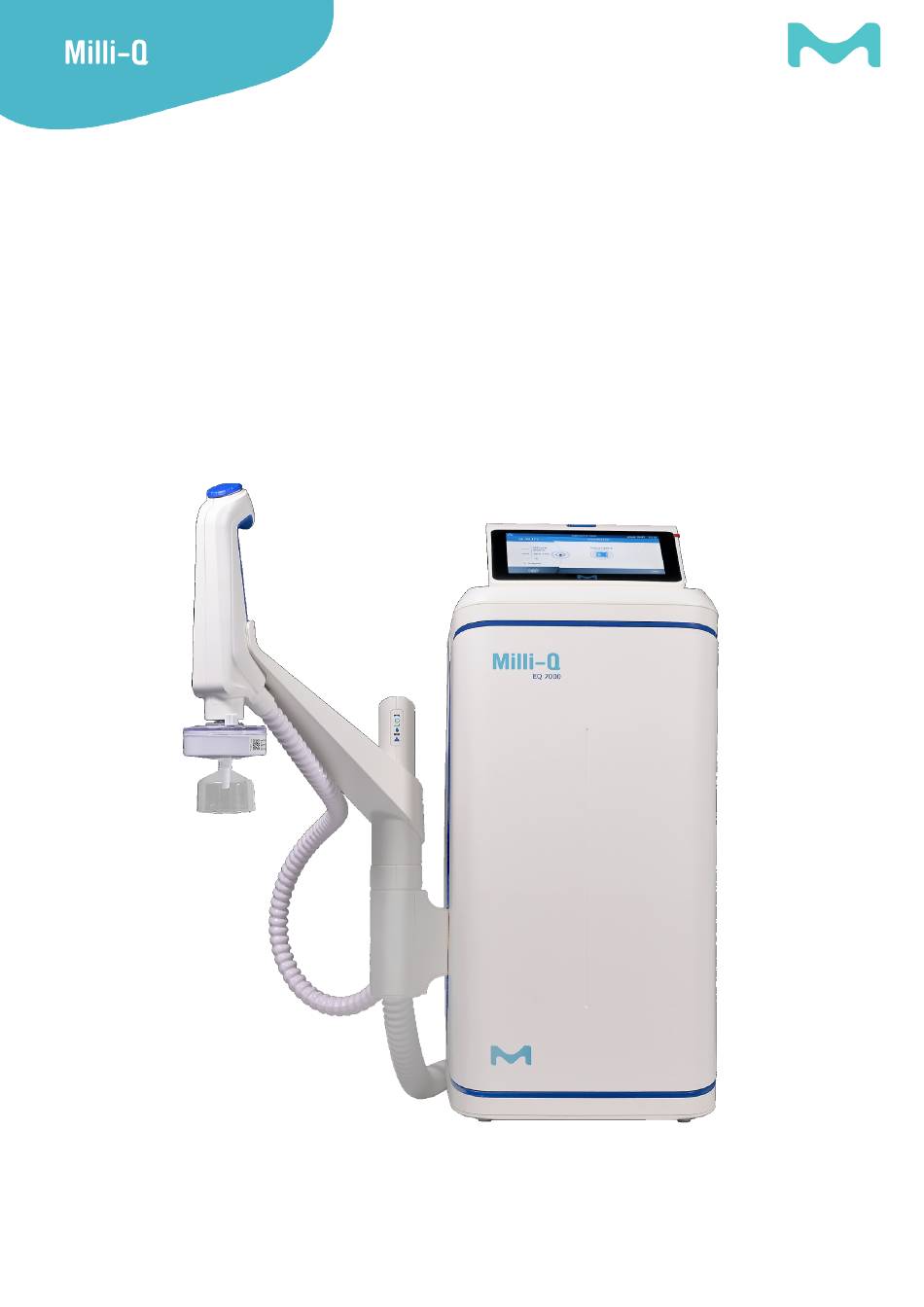

Wall-mounted solution Description of the system The Milli-Q EQ 7000 manages the production and the distribution of ultrapure water from a ® purified water source such as a tank or a pressurized loop. It consists of three main units: • The water purification unit manages the production of ultrapure water. - Page 5 The Q-POD dispenser is detachable from its support. Its dispensing ‘wheel’ delivers water at 3 different flows: Low - Medium - High, up 2 L/min. At the outlet of the dispenser, the final purification is performed by the application-specific POD- Pak.
-
Page 6: Leds Overview
LEDs overview On the Q-POD unit, 3 LEDs indicate the different states of the system: ® LED on the Q-POD arm Water Quality LED System Power LED System Alarm / Alert LED LEDs description Meaning The system is powered on STEADY: The water quality fits the requirements (water quality values are below alarm setpoints) BREATHING: The system is in recirculation mode... -
Page 7: Quick Start
QUICK START (after installation performed by a qualified Field Service Representative) Exit screensaver If the setting is active and there has been a certain time of user inactivity, the screensaver will be displayed on the HMI touchscreen. Screensaver Tap anywhere on the screen or initiate a manual dispense by pressing the dispenser wheel to exit the screensaver. -
Page 8: Water Quality Values
Volumetric Dispensing (100mL to 10L) Enables a user to auto dispense a pre-selected volume. Note: When connected to a storage tank, always make sure there is enough water present before dispensing. This information is always displayed in the status bar: Select the volume to dispense, press ok to validate. -
Page 9: View & Manage Alerts And Alarms
View & manage Alerts and Alarms Alerts give you advanced warning when maintenance is required and Alarms notify you when the system has encountered a technical issue. Yellow LED is displayed when an alert is raised. Red LED is displayed when an alarm is raised. Press on the alert or the alarm icon... -
Page 10: Navigate The Screen Interface
Navigate the screen interface The HMI 7” touchscreen allows the user to control and monitor the water system. All sub-menus and applications can easily be reached in a few clicks or swipes, similar to a smartphone. HOME SCREEN Home - Water quality information - Dispensing function - Alerts &... - Page 11 Apps When there are multiple lines, a scroll bar is present to swipe up & down ••• Indicates how many screens are present and where you are. Swipe left & right anywhere on screen to switch between screens. Pops-up When you click in a zone of text, the keypad will automatically appear.
-
Page 12: Consumable Menu
CONSUMABLE MENU Viewing Consumables Status Color icons and color LEDs allow to instantly view the status of all installed consumables. LEDs Green: no action required Yellow: notice for a maintenance action Red: maintenance required! ••• Press on the icon to get the consumable ID, ordering information and a description of the purification technology. -
Page 13: Settings Menu
SETTINGS MENU Different settings are available to customize the water purification system operation. Depending on the user profile (end-user operator / system manager) some of the settings will have either read-only or read & write access System Settings End-user Manager System Lab close configuration... -
Page 14: Manager Access & Password
Available apps: System Date, Time & Password Configuration Configuration Language ° C/° F Alarm Configuration Units Connectivity Note: Dispensing while in this menu is not available. Manager access & password Login as a Manager 1. Press on the menu button from the Home page. -
Page 15: System Configuration
System configuration Lab close When leaving the lab for long periods of inactivity, this mode can be activated to save energy and reduce wear of system components. Recirculation is reduced to once a day. When it is 24 hours prior to resuming lab activity, the system automatically resumes a recirculation every hour, ensuring it is ready for use. -
Page 16: Accessories
Accessories Water sensor A water sensor can be connected to the system unit to stop the system from producing water in case of water spillage. Foot pedal The pedal is connected to the system. In the HMI configuration app, activate the foot pedal via the slider button. -
Page 17: Alarm Set Points
Alarm set points Adjust the alarm set points by either clicking on the arrows or alternatively, click in the box to access the keypad and directly type-in the value. Water quality • Product resistivity/conductivity • Product TOC Inlet strainer clean This is only applicable when set-up in Loop configuration. -
Page 18: Date Time & Language
2. Select the appropriate city. If you have not found a city, make sure you are in the right time zone. The Milli-Q system is now configured to display current local time and automatically updates ®... -
Page 19: Units
Units Units can be formatted to local needs: Resistivity / Conductivity MΩ.cm µS/cm Temperature °C °F Storage tank level Pressure Bar / kPa / psi Select and press on the unit of interest. The selected unit will appear in blue. Press “OK” to confirm selection and exit the pop-up. -
Page 20: Information Menu
INFORMATION MENU This menu contains useful system information and provides a system status. Dispensing is available while in this menu. Available apps: System History Troubleshooting Contacts Flow schematic System Find system details Select System ID to find the information on the water system model and installation details. -
Page 21: Flow Schematic
Flow schematic This is a graphic representation of the hydraulic components of the water purification system. Components change color depending on the state and system status. Grey - inactive Blue - active Yellow - maintenance alert - technical issue alarm Troubleshooting Access a diagnostic summary. -
Page 22: Maintenance Menu
MAINTENANCE MENU The maintenance of the system is easy thanks to the step-by-step instructions contained in the wizards. In addition, a new cartridge design means that pack removal and installation in the system unit is quick and effortless. Available apps: Install consumables Depressurization Care/cleaning... - Page 23 Note: If the Milli-Q feed is from a storage tank, before starting, ensure there is at least 30L of water present. If there is not enough water present, the wizard will finish but the cartridges may not be fully rinsed.
-
Page 24: Cleaning & Sanitization
This setting is only available when in a pressurized loop feed configuration. The purpose of the inlet strainer is to prevent large particles from entering the Milli-Q system. If the inlet strainer becomes clogged, then feed water does not flow freely to the system. -
Page 25: Self Help Guide
SELF HELP GUIDE Depressurize system Depressurize system in case of water leak to temporarily stop production and all water processes. Go to page 19 Maintenance > Depressurization. Identify the source of the leak. Once fixed, to exit this mode, a user will need to go back to the home screen on which the initial depressurization took place and select Exit maintenance for dispensing to become available again on the Q-POD. -
Page 26: Low Flowrate
POD-Pak air vent to see if there is any trapped air. Close the vent once the air has been released. • One possible reason for a decrease in Milli-Q Water flowrate is a clogged POD-Pak. The POD-Pak should be replaced when it appears to be clogged. •... - Page 27 ICONS Icon Meaning/Function Icon Meaning/Function Recirculation Dispensing Volumetric dispensing System manager logged in Start dispense Stop dispense Alarm with number of active Alert alarm(s) Home Menu Storage tank Back Mass storage USB connected Ethernet - LAN status connected Slider ON Slider OFF Password viewer Calendar entry...
-
Page 28: Requirements And Specifications
(with Biopak filter) ® Flow rate up to 2 L/min The Milli-Q EQ 7000 system is intended to produce ultrapure water that meets or exceeds requirements as described by the organizations below: Organization Water quality / grade European Pharmacopeia Purified Water in bulk U.S. -
Page 29: System Specifications
170 VA 100 – 240 Vac ± 10% ZEQ7000TR Environmental Specific environmental conditions have to be respected to ensure normal operation of the Milli-Q system. Location indoor use only Ambient operating temperature room temperature ranges from 4°C to 40°C maximum relative humidity of 80% for a Relative humidity temperature up to 31°C, decreasing linearly to a... -
Page 30: Dimensions And Weight
Communication The HMI has a large HD capacitive 7” touch screen (Resolution: 800*480) that allows control and monitoring of the system. The HMI has a built-in USB port that offers the possibility to export the system data and/or history. The Host interface is compliant with the USB 2.0 Highspeed standard. USB keys only work when formatted FAT32. -
Page 31: Recycling
System Type Dry weight Shipping weight Operating weight Water purification unit 14.0 kg (30.9 lb) 15,6 kg (34.4 lb) 18,0 kg (39.7 lb) (on a bench) Water purification unit 12.0 kg (26.5 lb) 15,6 kg (34.4 lb) 16,7 kg (36.8 lb) (wall-mounted) Q-POD dispenser 1.2 kg (2.7 lb) -
Page 32: Ordering Information
Ordering Information Accessories Name Catalog Number Wall-mounting kits solution WMEQ0RKT + WMEQ0DKT System wall mounting bracket SYSTFIXA1 Water sensor ZWATSENA1 Foot pedal ZEQ7FTPDL Internal Pressure Regulator + Feed conductivity ZEQ7C0NDC cell Internal Pressure Regulator ZF3000810 e-Sure dispenser tip ZFDISTPA1 Alarm relay cable ZMQ0ALCA1 Consumables –... -
Page 33: Legal Information & Warranty
US and Canada. Safety information: Please refer to Safety Addendum Your Milli-Q system should be operated according to the instructions in this user manual. In particular, the hydraulic and electrical specifications should be followed and met. It is important to use this equipment as specified in this manual;... - Page 34 Attention components on the electronic board(s). The Milli-Q EQ 7000 has been tested by an independent and accredited company for compliance with EU directives related to safety and electromagnetic compatibility. The declaration of conformity is available upon request. The system has been manufactured using components and practices recommended by UL and has been cULus marked.
