Operator's Manual
FORAGE HARVESTER
Manual no. F6918E004E
v1.5

Advertisement

Table of Contents
loading

Related Manuals for Dion Scorpion 350

Summary of Contents for Dion Scorpion 350

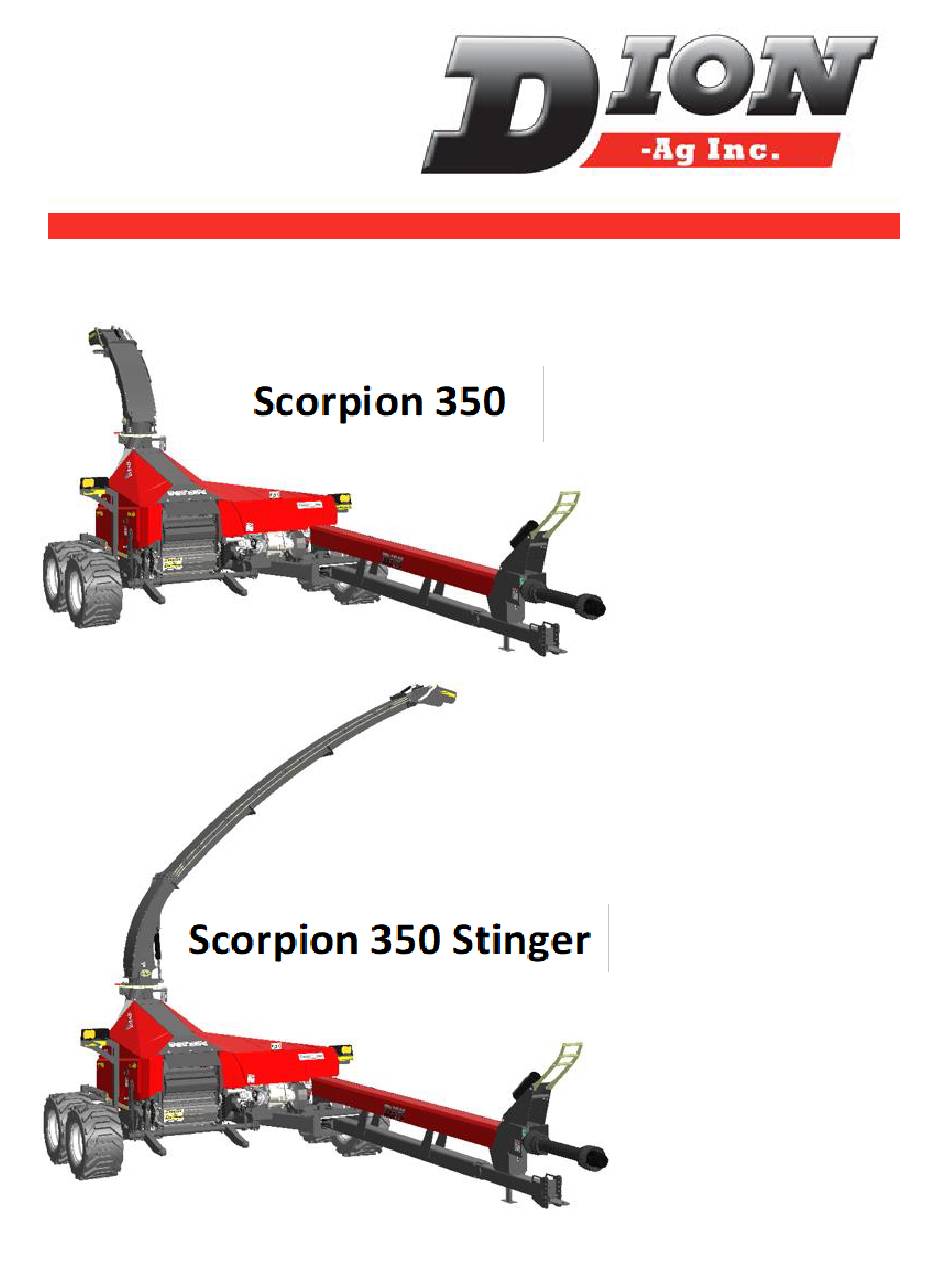

  • Page 1 Operator’s Manual FORAGE HARVESTER Manual no. F6918E004E v1.5...

  • Page 3: Foreword

    FOREWORD We thank you for your confidence towards DION-Ag Inc. agricultural equipment. We have prepared this manual with care and attention and have designed it as an essential tool that will allow you to use and maintain your machine adequately and safely.

  • Page 4: Dion-Ag Inc. Limited Warranty

    DION-Ag Inc. for the purpose of inspection. Right to Make Design Changes – DION-Ag Inc. reserves the right to make changes in the design and other changes in its products at any time and from time to time without notice and without incurring any obligation of its part to modify, improve or add to products previously ordered from DION-Ag Inc.

  • Page 6: Table Of Contents

    TABLE OF CONTENTS FOREWORD ........................................ 3 SAFETY ........................................3 WARRANTY INFORMATION ..................................3 DION-AG INC. LIMITED WARRANTY ................................4 SPECIFICATIONS ......................................9 DIMENSIONS ......................................9 WEIGHT ......................................... 9 ANGLE DRIVE ......................................9 FEED ROLL DRIVE ....................................9 HEADER DRIVE ....................................... 9 CUTTER HEAD ......................................
  • Page 7 DISABLING THE METAL DETECTOR ............................... 61 DRIVE FAILURE DETECTOR ................................... 62 FAILSAFE MODE ....................................63 LIMP MODE ......................................63 THROUGHPUT DETECTION CALIBRATION ............................64 LIQUID INCORPORATION SYSTEM................................ 65 PRESSURE ADJUSTEMENT ................................65 FLOW CALIBRATION PROCEDURE .............................. 66 automatiC AND manuel MODES ..............................67 TRANSPORT LIGHTS .....................................
  • Page 8 FEED ROLL SPRING TENSION ................................113 HARVESTING UNDER SPECIAL CONDITIONS............................113 FEED ROLLS CHAIN TENSION ................................114 ACCELERATOR BELT TENSION ................................115 PROCESSOR BELTS TENSION ................................115 HEADER LIFT CYLINDER ADJUSTMENT ............................... 116 STONE CARRIAGE ADJUSTMENT ................................ 116 SHARPENING STONE REPLACEMENT ..............................117 SHARPENER FRAME ADJUSTMENT ..............................

  • Page 9: Specifications

    SPECIFICATIONS Specification and design are subject to change without notice and responsibility from the manufacturer. DIMENSIONS OVERALL width (narrow axle position)  With tires 31x13.50 - 15 Terra Rib ………………………………………....3.30 m (142”)  With tires 31x15.50 - 15 Terra Grip ………………………………………………….. 3.50 m (150”) LENGTH (Spout in transport position) ............

  • Page 10: Tires And Wheels

    SPECIFICATIONS TIRES AND WHEELS TANDEM  31, 13.5-15 Terra Rib  31 x 15.5 Terra Trac FEATURES STANDARD  ISOBUS controls  Fully electro-hydraulic load-sensing functions driven through Power Beyond ports  Cutter head with 8 tungsten carbide knives – 1033 rpm ...

  • Page 11: Serial Number Location

    SPECIFICATIONS SERIAL NUMBER LOCATION For your convenience, write down the full model and serial number of your machine in this manual, as shown on the name plate illustrated below. Always mention both the model and the serial number when ordering parts or regarding any other correspondence with your machine.

  • Page 12: Safety Rules

    SAFETY RULES A WORD TO THE OPERATOR It is the responsibility of the OWNER to read and fully understand the safety section in this manual before operating your tractor. You must follow these safety instructions that will assist you step by step throughout your workday. After reading this section, you will note that illustrations have been used to highlight certain situations.

  • Page 13: General Safety Rules

    SAFETY RULES GENERAL SAFETY RULES CAUTION: In some of the illustrations used in this Operator’s Manual, panels or guards may have been removed for clarity. Never operate the machine without these components in place. CAUTION: An operator should not be under the influence of alcohol or drugs which can alter alertness or coordination.

  • Page 14: Preparation And Operation

    SAFETY RULES PREPARATION AND OPERATION  Before starting the tractor engine, make sure all guards, shields, and doors are in place and properly secured and check the machine thoroughly for possible loose parts or bolts. Make any necessary adjustments.  Use a lift system with a minimum lifting capacity of 2500 lbs (1150 kg) to install a header on the forage harvester.

  • Page 15: Inspection, Maintenance And Adjustments

    SAFETY RULES INSPECTION, MAINTENANCE AND ADJUSTMENTS WARNING: Hydraulic fluid under pressure can penetrate the skin or eyes and cause serious personal injury, blindness or death. Fluid leaks, under pressure, may not be visible. Use a piece of cardboard or wood to find leaks.

  • Page 16: Guards And Shields

    SAFETY RULES GUARDS AND SHIELDS The Forage Harvester is equipped with guards and shields wherever accidents can occur. These guards and shields do not affect the performance of the machine. Refer to Figure 3 to identify these guards and their location to make sure they remain in place for a safe operation.

  • Page 17: Safey Sign Location

    SAFETY RULES SAFEY SIGN LOCATION Several decals located around the hazard areas indicate the potential dangers. IMPORTANT: Decals must be kept clean to allow for visibility at all times. Figure 4 Safety Decals Figure 5 Safety Decals...
  • Page 18 SAFETY RULES Figure 6 Safety Decals Figure 7 Safety Decals...
  • Page 19 SAFETY RULES Figure 8 Safety Decals...
  • Page 20 SAFETY RULES Figure 9 Safety Decals...
  • Page 21 SAFETY RULES Figure 10 Safety Decals...

  • Page 22: Setup

    SETUP BOLT TORQUE SPECIFICATIONS The table below gives the correct torque values for bolts used on the machine. Check tightness of bolts periodically. Table 1 Bolt torque specifications NOTE: Replace hardware with the same grade bolt. SAE 2 SAE 5 SAE 8 10.9 Figure 11 Bolt grades...

  • Page 23: Manual Jack

    Figure 12 Manual jack ISOBUS CONNECTION The Scorpion 350 harvester requires at least a VT3 (Virtual Terminal, otherwise called ISOBUS 2.0) compatible tractor to operate, or it is required to use a compatible aftermarket terminal. With the ignition of the tractor OFF, connect the ISOBUS implement connector to the breakaway connector of the tractor.

  • Page 24: Hydraulic Connection

    HYDRAULIC CONNECTION FIGURE 13 The Scorpion 350 requires four (4) hydraulic connections to the tractor. The harvester is connected through Power Beyond ports providing hydraulic power directly from the tractor load-sensing pump. Coupler size and type vary between tractor models and brand. Refer to the tractor manufacturer for information on the Power Beyond ports or contact your dealer for support.

  • Page 25: Connecting The Harvester To The Tractor

    To increase the turning angle and eliminate vibration, position the tractor drawbar to a length “B” between 50 cm (20”) and 60 cm (24”). If the drawbar can’t achieve this setting, purchase a drawbar extension available at your DION-Ag Inc. dealer.

  • Page 26: Draw Bar Extension

    SETUP Figure 15 Tractor drawbar length adjustment CAUTION: To prevent the rotation of the PTO shields, fastening chains (item 6, ) are provided and must be attached on both ends. Figure 15 FIGURE 16) CAUTION: Attach a safety chain (item 7, with a minimum capacity of 9071 kg (20 000 lbs) for transport.
  • Page 27 SETUP 8. Install the safety chain (item 16) between the tractor frame and the Forage Harvester. Refer to Figure 16 : Safety chain on page Figure 16 for more information on how to install the safety chain. : Safety chain Figure 17 Cat.
  • Page 28 SETUP 5. Install nuts (item 12) on bolts (item 11) and then install bolts (item 11) on both sides of extension (item 3) as shown below. 6. Center the extension (item 3) on the draw bar (item 4). To center side to side, use the bolts (item 11). Once centered, lock the bolts in place using the nuts (item 12).

  • Page 29: Configuring For Corn Harvest Setup

    SETUP CONFIGURING FOR CORN HARVEST SETUP To harvest corn, the PROCESSOR top roll must be re-installed. Follow the instructions below: STEP 1 - FIGURE 19 Open the main guard. Pull the release lever and swing the hydraulic valve manifold to free space around the accelerator belt tensioner.
  • Page 30 SETUP STEP 3 - FIGURE 21 Use the knife guide bar stored on the machine (item 1) to unlatch the accelerator tensioner. Unhook the spring (item 2) from the front bracket to completely lower the tensioner assembly. Remove the belt to access the roller opening in the frame.
  • Page 31 SETUP STEP 5 - FIGURE 23 Support the processor roll unit and loosen the processor roll fastening bolts at the rear (left and right) (item 1). Lower the processor roll unit carefully to gain access to the roller assembly. Remove the stainless cover plate (item 2) on the bottom roll (item 3) as shown and store the pieces.
  • Page 32 SETUP STEP 7 - FIGURE 25 Install the processor bearing plates on both sides (items 1 & 2). Each bearing plate must be fastened with using: 2ea - 1/2” dia. X 1” long flange bolts. Figure 25 Bearing supports STEP 8 - FIGURE 26 Ensure the tension on the pulley tensioning spring (item 3) is released by unscrewing the right-hand rod at the rear of the harvester (item 2) using the provided square head tool (item 4).
  • Page 33 SETUP STEP 9 - FIGURE 27 When the belts are installed, set the tension on the binding pulley (item 4) by resetting the tension on the pulley tensioning spring (item 3). Tighten (clockwise) the right-hand rod at the rear of the harvester (item 2) to stretch the spring (item 3) with the provided square headed tool (item 1).
  • Page 34 SETUP STEP 11 - FIGURE 28 Reinstall the accelerator belt and hook the spring back on (item 2). Use the knife guide bar (item 1) to reset the tension in the belts. (Reverse from Step 3 – Figure 21 Accelerator ). Figure 28 Accelerator tensioner STEP 12 - FIGURE 29 Install the cylinder lock lever (item 2) and insert the locking pin (item 1).
  • Page 35 SETUP STEP 13 - FIGURE 30 Install the front grain pan (item 4) with the three - 3/8’ dia. x 3/4” Long carriage bolts (item 1) and three - 3/8’’ flanged nuts (item 3) on the front of the pan (item 2). Ensure the nuts are installed on the outside as shown below. Figure 30 Front grain pan STEP 14 - FIGURE 31 Swing the hydraulic valve manifold back in place.

  • Page 36: Configuring The Harvester For Windrow (Hay) Harvesting

    SETUP CONFIGURING THE HARVESTER FOR WINDROW (HAY) HARVESTING For hay harvesting or any other crop not requiring processor rolls, the top roll must be removed. Follow the instructions below: STEP 1 - FIGURE 32 Open the main guard. Pull the release lever and swing the hydraulic valve manifold to free space around the accelerator belt tensioner.
  • Page 37 SETUP STEP 3 - FIGURE 34 Use the knife guide bar stored on the machine (item 1) to unlatch the accelerator tensioner. Unhook the spring (item 2) from the front bracket to completely lower the tensioner assembly. Remove the belt to access the roller opening in the frame.
  • Page 38 SETUP STEP 5 - FIGURE 36 The drive pulley (item 2) has 6 slots for 6 belts. If you consider the pulley slot closest to the machine body #6 and furthest from the machine body #1, remove the six belts, one belt at a time, in the following order: Start on the drive pulley side furthest from the machine body always rotating clockwise as shown in Figure 36 Removing the belts.
  • Page 39 SETUP STEP 7 - FIGURE 38 Remove the top roll assembly (item 3) and slide it onto the plastic guides. Grease the roller splines to prevent rust formation. Align one of the fastening holes with the stud (item 4) to prevent it from sliding laterally. Install the rubber cover (item 2) on the roll and clamp it down in place with the holding strap (item 1).
  • Page 40 SETUP STEP 9 - FIGURE 40 Support the processor roll unit and loosen the processor roll fastening bolts at the rear (left and right) (item 1). Lower the processor roll unit carefully to gain access to the roller assembly. Clean the channel pans and the bottom roll (item 3) and grease the bottom roller splines to prevent rust formation.
  • Page 41 SETUP STEP 11 - FIGURE 42 Reinstall the accelerator belt and hook the spring back on (item 2). Use the knife guide bar (item 1) to reset the FIGURE 34 ACCELERATOR tension in the belts. (Reverse from Step 3 – Figure 42 Accelerator belt tensioner STEP 12 - FIGURE 43 Install the cylinder lock lever (item 2) and insert the locking pin (item 1).
  • Page 42 SETUP STEP 13 - FIGURE 44 Swing the hydraulic valve manifold back in place. Figure 44 Valve manifold STEP 14 - FIGURE 45 Remove the front grain pan (item 4) with the three 3/8’ dia. x 3/4” Long carriage bolts (item 1) and three 3/8’’ flanged nuts (item 3) on the front pan (item 2).

  • Page 43: Spout Extension Removal

    SETUP SPOUT EXTENSION REMOVAL FIGURE 46 For harvesters equipped with a Stinger spout extension it is possible, at any time, to change the drop configuration by removing or adding the "Stinger" extension to switch from side loading to rear loading or vice versa. NOTE: For the first installation of the chute extension, see the installation manual provided with the purchase.

  • Page 44: Header Installation

    SETUP Figure 47 : Stinger spout conversion HEADER INSTALLATION Ensure the harvester and header rest on a flat and level surface. The headers are equipped with a single point lift (item 1, Figure 48 Header lift point) allowing the use of a lift chain (1350kg -3000lbs min capacity) and hook for easy maneuvering.
  • Page 45 SETUP Figure 49 Stroke limit pin and header lifting mechanism STEP 2 - FIGURE 50 Move the harvester towards the header slowly while ensuring the pivots receptacles (item 12) are aligned with the header brackets (item 13, Figure 50 Header attach points). Figure 50 Header attach points STEP 3 - FIGURE 51 Align and adjust the 2 feed roll throat guards (items 14) to fit between the harvester throat sides and feed rolls.
  • Page 46 SETUP Figure 51 Feed roll guards CAUTION: If the throat sides (item 14) of Hay or Corn crop attachments are bent or damaged, it is necessary to repair them so they will not come in contact with the feed rolls. STEP 4 - FIGURE 52 When the header is installed on the harvester, install the square locking pins in place (item 10) and the safety locks clips (item 11) on both sides.

  • Page 47: Header Suspension

    SETUP STEP 6 - FIGURE 53 Connect the header PTO (item 1) to the harvester shaft. Ensure the PTO is properly locked on the shaft (item 2). Figure 53 Header PTO shaft connection HEADER SUSPENSION STEP 1 - FIGURE 54 The suspension springs (item 1, Figure 54 Header lift springs) function is to control the header ground pressure.

  • Page 48: Header Height Adjustment

    SETUP STEP 2 - FIGURE 55 Select the appropriate spring arm position based on the header that is being installed. Figure 55 Suspension spring position STEP 3 - FIGURE 54 Adjust the tension on the springs by evenly tightening the 2 spring tensioning rods (items 2) with the provided square head handle (item 3).

  • Page 49: Starting Up And Break-In

     The DION shear bar contains two notches on each side. Specially designed bolts (items 2) sit in these notches and are used only to initially adjust the shear bar parallel to the knife drum. ...

  • Page 50: Knife Sharpening

    SETUP Figure 57 Shear bar adjustment WARNING: Stop the PTO and turn off the tractor engine before servicing the harvester. KNIFE SHARPENING DANGER: To prevent serious injury or death, the operator should be the only person to perform the knife grinding operation. DANGER: The feed rolls must in the NEUTRAL position.
  • Page 51 SETUP 4. To lower the stone, pull the sharpening carriage completely to the end of the stroke, towards the operator. The zinc plated gear needs to make contact with the zinc plated bar in order for the adjustment to function. The stone will lower slightly for every engagement between the gear and bar. 5.

  • Page 52: Daily Shear Bar Adjustement

    SETUP DAILY SHEAR BAR ADJUSTEMENT To adjust the shear bar (Figure 59): 1. After knife grinding, with the PTO engaged, lower the tractor engine speed to the minimum. 2. Loosen the shear bar locking bolt (item 1) completely. Both sides loosen at the same time. WARNING: Always fully loosen the shear bar clamping bolts before attempting to adjust clearance.

  • Page 53: Isobus Controls

    SETUP ISOBUS CONTROLS MAIN PAGE - FIGURE 60 All the harvester electrical and hydraulic functions are controlled through the ISOBUS interface. The tractor must be equipped with a VT3 compatible terminal to control the implement or use a compatible external terminal. The main page gives access to the main harvesting functions as well as displaying the machine status.
  • Page 54 HARVESTER MODES – ITEM 10, FIGURE 60 Displays the current mode of operation of the harvester. WARNING ALARMS (YELLOW) – ITEM 9, FIGURE 60 Displays a non-critical alarm that requires attention or is intermittent but does not prevent machine operation. ...
  • Page 55 SOFTKEYS – ITEM 7, FIGURE 60 ISOBUS soft keys are function buttons. They can be assigned to AUX-N joysticks or armrest switches if compatible or operated directly from the VT. The Scorpion 350 uses 10 soft keys.  Reverse / Emergency stop while in Forward (item 12).

  • Page 56: Setting The Lentgh Of Cut

    SETUP SETTING THE LENTGH OF CUT FIGURE 61 AND FIGURE 62 The achievable range, of the length of cut (LOC), depends on the hydraulic flow available from the tractor and number of knives on the cutter head. The chart below shows an example of an available LOC range. These charts have built-in buffers and safety margins for other tractor functions and pump wear.

  • Page 57: Metal Detector General Information

    SETUP METAL DETECTOR GENERAL INFORMATION NOTE: Warranty coverage will not extend to consequential damages. The metal detector is used for stopping the feed rolls when ferrous material is detected between them. The metal detector antenna is mounted inside the lower front feed roll. When the system is working properly, the following or similar objects will be detected with approximately 95% accuracy: ...

  • Page 58: Daily Checks On The Metal Detector

    SETUP The metal detector can be set to 10 different sensitivity levels for best performance. It uses a variable threshold that adjusts itself to the harvest conditions (length of cut, vibrations, impacts, etc.) to maximize the detection power. In certain cases, the sensitivity can be reduced to minimize the risks of false detections in more difficult conditions (Heavy wear of the feed rolls for example).
  • Page 59 SETUP FIGURE 64 9. Follow the instructions on the screen ( ) and pass a piece of ferrous metal (wrench, steel wire, etc.) between the front feed rolls in a quick ‘in & out’ motion when prompted. Figure 64 Metal detector test DANGER: Always turn off and disconnect the tractor PTO when performing this test.

  • Page 60: Metal Detector Sensitivity Adjustment

    SETUP METAL DETECTOR SENSITIVITY ADJUSTMENT FIGURE 66 The sensitivity adjustment can be modified at any time on the SETTINGS page of the harvester interface ( 1. Access the SETTINGS page at any moment with the VT terminal turned ON. Figure 66 Metal Detector Sensitivity Adjustment 2.

  • Page 61: Disabling The Metal Detector

    SETUP DISABLING THE METAL DETECTOR NOTE: Warranty coverage does not apply to damage or failures caused by the malfunction of or disabling of the metal detector. When the metal detector fails to operate, it can be useful to by-pass the system in order to complete a full harvest day. However, when doing so, it must be taken into consideration that this is an emergency and exceptional situation.

  • Page 62: Drive Failure Detector

    SETUP DRIVE FAILURE DETECTOR FIGURE 68 FIGURE 69) One of the speed sensors measures the speed of the cutter head ( and is required by different functions of the harvesters. The drive failure detector compares the speed of the cutter head with the speed of the tractor PTO. If the shear bolt on the cutter head shaft breaks (or optional friction clutch slips), its speed will quickly decrease with respect to PTO speed and the controller will detect it.

  • Page 63: Failsafe Mode

    SETUP FAILSAFE MODE FIGURE 70 In the event of a feed roll sensor failure, the controller does not obtain the feed roll motor speed feedback required to operate the harvester at constant length of cut. The FAILSAFE mode (item 1 and 2) enables a manual override of the controller logic to allow the operation of the harvester without downtime until the sensor issue can be resolved.

  • Page 64: Throughput Detection Calibration

    SETUP THROUGHPUT DETECTION CALIBRATION FIGURE 71 With the machine all set to harvest and turning empty, it is required to calibrate the pressure in the feed rolls motor and the opening sensor, so the automatic functions work properly. Follow the procedures in the VT to get the system functional.

  • Page 65: Liquid Incorporation System

    SETUP LIQUID INCORPORATION SYSTEM The system can be used to add preservative to the silage or to lubricate the crop channel and spout to maintain the throwing capacity of the harvester in gummy conditions. The harvester is pre-wired for a liquid/inoculant incorporation system.

  • Page 66: Flow Calibration Procedure

    This harness and the standard harvester wiring can be used for other Tier liquid incorporation systems as long as it drives through the DION-Ag relay harness. These parts are available through DION-Ag parts department: Relay Cable (part# 30896) and Extension Cable (#31511).

  • Page 67: Automatic And Manuel Modes

    SETUP AUTOMATIC AND MANUEL MODES FIGURE 75 The inoculant applicator can be used in 2 modes: 1. Manual Mode: When this mode is selected in the settings page (item 3), the pump is activated manually through the main page icon (item 2). 2.

  • Page 68: Transport Lights

    SETUP TRANSPORT LIGHTS FIGURE 76 The transport lights on the right-hand side can be raised to reduce the harvester overall width when storing the machine or circulating in narrow spaces. To raise, remove the pin (item 1 configuration 2), then raise the light assembly and reinstall the locking pin (item 1 configuration 3).

  • Page 69: Set Track Width

    SETUP SET TRACK WIDTH FIGURE 77 The right-hand side of the machine is equipped with a 3-hole, adjustable axle which purpose is to better distribute the weight or track with crop rows. The hole closest to the wheels is #1 and furthest from the wheels is #3. Hole #1 and #2 - Transport and operating position Hole #3 - Position is reserved for maintenance and for installing or removing the processor roll.

  • Page 70: Operation Practical Advice

    OPERATION OPERATION PRACTICAL ADVICE WARNING: A forage harvester can pose a severe health risk if not used properly. Make sure the safety rules are followed by everyone operating the machine or in its vicinity. Refer to page SAFETY RULES the SAFETY RULES. NOTE: With safety in mind, we suggest to perform a general inspection and adjustment verification before starting the harvester.
  • Page 71 OPERATION 2. Push the handle in towards the harvester to unlock the header lift cylinder (Figure 81). Figure 81 Unlocking the header lift cylinder 3. Unlock the drawbar by removing the transport locking pin (item 1). Store the pin in the toolbox. Figure 82 Unlocking the drawbar 4.

  • Page 72: Initializing The Harvester And Metal Detector

    ). To allow the machine to operate and initialize the FerroDtec metal detector: 1. Turn ON the tractor and the Scorpion 350 app on the VT. 2. The harvester will be in LOCK mode (item 1). 3. To enter FIELD mode, press and hold the REVERSE softkey (item 2).

  • Page 73: F-N-R Shifting

    OPERATION F-N-R SHIFTING LOCK MODE - FIGURE 83  In this mode, REVERSE is possible to enter FIELD mode. The FORWARD softkey is disabled.  FORWARD: Disabled (item 5).  REVERSE: Press and hold the REVERSE softkey (item 2). The feed rolls will start reversing only after the header starts reversing.

  • Page 74: Transport Mode

    OPERATION TRANSPORT MODE FIGURE 86 TRANSPORT mode locks every function on the harvester while on the road, for safety reasons. Only return to LOCK mode is available.  REVERSE: Disabled.  FORWARD: Disabled. Figure 86 TRANSPORT mode STARTING UP Before harvesting a crop through the forage harvester, the power-takeoff (PTO) should run at the required speed e.g. 540 or 1000 rpm, as the case may be.

  • Page 75: Metal Detection Procedure

    OPERATION METAL DETECTION PROCEDURE FIGURE 87 When a ferrous object is detected, the alarm is activated, the feed rolls are stopped within milliseconds and the header is shifted to NEUTRAL automatically. The quick stop valve, located on the feed roll motor manifold, quickly shuts off the motor outlet and absorbs the motor inertia through a relief valve.

  • Page 76: Processor Roll Pressure And Spacing

    OPERATION PROCESSOR ROLL PRESSURE AND SPACING The operator can select the silage condition by varying the pressure and clearance of the upper processor roll (item 1). Refer to FIGURE 88. 1. Adjust the pressure using the square headed handle (item 3). 2.

  • Page 77: Header Or Feed Roll Overload

    OPERATION Figure 89 Processor roll clearance decal HEADER OR FEED ROLL OVERLOAD In case of plugging or jamming of the header or the feed rolls, the feed rolls will stop and a feed roll speed error will appear on the VT. Similarly, a blockage in the header will make its overload clutch (friction or radial ball clutch) slip and cut the power transmission.

  • Page 78: Friction Clutch (Optional)

    OPERATION 4. Replace the broken shear bolt. 5. Clear the feed rolls or header if any crop remains. NOTE: Clean the processor rolls if needed (see on page 79). 6. Start the tractor, engage the PTO at low speed with the harvester in NEUTRAL, and accelerate the engine speed quickly to clear the harvester.

  • Page 79: Cleaning The Processor Rolls

    OPERATION CLEANING THE PROCESSOR ROLLS FIGURE 91 If a safety shear bolt is broken or the PTO has been accidentally stopped while operating, material accumulated between the processor rolls and the cutter head must be removed. Follow this cleaning procedure: 1.
  • Page 80 OPERATION Figure 92 LOCK mode and TRANSPORT mode button location 5. Make sure there is enough room for the spout to rotate to the transport position (fully forward), then press , FIGURE 92 and hold the TRANSPORT mode button (item 2 ).
  • Page 81 OPERATION Figure 94 Spout in locked position Figure 95 Transport on public roads CAUTION: When a trailer is pulled behind the harvester and the latter is equipped with the hydraulic remote FIGURE 95 trailer disconnect (option) or other disconnect system (item 1, ), the safety pin (item 2) must be set in place before driving on public roads or hilly terrain.

  • Page 82: Hydraulic Circuits

    MAINTENANCE & AJUSTEMENTS DANGER: Never lubricate or service the machine when the PTO is operating and/or the tractor engine is running. WARNING: Never open guards/shields/doors or make adjustments while the machine or tractor engine is running. WARNING: Make sure all guards, shields and doors are in place and properly secured before starting the tractor engine.

  • Page 83: Service Reminders

    SERVICE REMINDERS FIGURE 96 The Scorpion 350 harvester is equipped with automatic service reminders that indicate when to perform certain service tasks to ensure best performance and durability of the harvester. To access the service reminder, touch the Service button or softkey from the main page or settings page.

  • Page 84: Lubrication Chart

    The gearbox oil level must be checked and adjusted after the first ten (10) hours of operation, at the beginning of every season and at least every 100h of operation. Synthetic 80W140 oil is recommended (available in 1l containers from DION-Ag Inc. - Parts Department - # 30671) for both gearboxes.
  • Page 85 MAINTENANCE & AJUSTEMENTS Figure 97 Universal joint and drawbar bearings Figure 98 Front PTO Figure 99 Angle drive gearbox...
  • Page 86 MAINTENANCE & AJUSTEMENTS Figure 100 Spout rotation and hydraulic trailer disconnect...
  • Page 87 MAINTENANCE & AJUSTEMENTS Figure 101 Knifes grinder and suspension springs...
  • Page 88 MAINTENANCE & AJUSTEMENTS Figure 102 Cutter head and blower bearings (each side – 4 points) Figure 103 Feed roll slider, shear bar spring plunger (each side – 4 points)
  • Page 89 MAINTENANCE & AJUSTEMENTS Figure 104 Feed rolls linkage, bearings and chains...

  • Page 90: Processor Roll Lubrication

    MAINTENANCE & AJUSTEMENTS Figure 105 Feed rolls linkage, bearings and chains Figure 106 Header lift arms and cylinder PROCESSOR ROLL LUBRICATION In wet conditions, harvesting silage may produce large amounts of fluid when passing through the processor rolls. This fluid may contaminate the roller bearings. It is highly recommended to increase the greasing frequency of the grease chambers behind the bearing (item 1) every 4 hours of operation.
  • Page 91 MAINTENANCE & AJUSTEMENTS Figure 107 Sealed grease chamber behind the roller bearings Figure 108 Processor rolls lubrication...
  • Page 92 MAINTENANCE & AJUSTEMENTS Figure 109 Processor rolls lubrication...

  • Page 93: Smooth Feed Roll Scraper Adjustment

    MAINTENANCE & AJUSTEMENTS SMOOTH FEED ROLL SCRAPER ADJUSTMENT FIGURE 110 The scraper (item 1) should always be installed as close as possible to the smooth feed roll (item 4). To adjust, loosen bolts (item 2) and nuts (item 3). To make the adjustment easier, remove the cutter head cover and the guard used as support for the cutter head cover (items 10 and 11 in Figure 200).

  • Page 94: Knife Adjustment

    MAINTENANCE & AJUSTEMENTS KNIFE ADJUSTMENT FIGURE 111 WARNING: Always disconnect the harvester from the tractor for the knife adjustment operation. WARNING: Always proceed with the knife adjustment with great precautions. WARNING: Be careful when working inside the cutting chamber. A piece of wood should block the cutting head in order to prevent any sudden rotating motions from the latter.

  • Page 95: Knife Replacement

    MAINTENANCE & AJUSTEMENTS 5. The 2 adjusting screws (item 1) on the back side of each knife will be used for adjusting the knives. They should be adjusted to where the knives just start to touch the guide bar along its full length. 6.
  • Page 96 MAINTENANCE & AJUSTEMENTS To replace the shear bar, proceed as follows: 1. Open the shear bar cover (item 1 to access and clean the shear bar area (item 2). NOTE: On the earlier models, the shear bar must be removed towards the inside of the harvester. On later models, the adjustment module is removable to allow the bar to be pushed out towards the right-hand side of the harvester.
  • Page 97 MAINTENANCE & AJUSTEMENTS 3. Remove the shear bar adjuster module (item 8, see note above for serial# 8XXXXX1.) by removing bolts (item 7). 4. Remove the shear bar (Figure 116 Removing the shear bar), clean it, and verify the condition of the cutting edge. a.

  • Page 98: Shear Bar Initial Adjustment

    MAINTENANCE & AJUSTEMENTS SHEAR BAR INITIAL ADJUSTMENT To make the initial adjustment of the shear bar, do the following: NOTE: Ensure the tungsten faces upwards. NOTE: This adjustment must always be performed after sharpening the knives. 1. Position the bar while ensuring the pointers (item 1) are properly inserted in the bar notches. 2.
  • Page 99 MAINTENANCE & AJUSTEMENTS 6. DAILY SHEAR BAR ADJUSTEMENT, page 52), check parallelism. Figure 117 Shear bar initial adjustment NOTE: All bolts used for the shear bar adjustment are special bolts, never use standard bolts. NOTE: It may be useful to remove the guards over the cutterhead for better access and clean up of the shear bar for easier access to do the adjustment.

  • Page 100: Shear Bar Clamping Adjustment

    MAINTENANCE & AJUSTEMENTS SHEAR BAR CLAMPING ADJUSTMENT FIGURE 118 TO FIGURE 121 NOTE: Inspect and verify the clamping adjustment approximately every 100 hours of operation or at the start of each season. NOTE: Do this only after checking that the initial shear bar adjustment is adequate. See SHEAR BAR INITIAL ADJUSTMENT.
  • Page 101 MAINTENANCE & AJUSTEMENTS 4. Place the rack (item 3 - 118) so that it protrudes by 65mm (2.5'') from the rack support (see Figure 123 Processor plates adjustment). Figure 119 Positioning the rack and pinion 5. Insert the gear on the left side hex rod (item 5) so that it sits in place with the rack (item 3). If the gear teeth do not align with the rack teeth, lift the gear off of the hex rod and try a different orientation by rotating the gear.
  • Page 102 MAINTENANCE & AJUSTEMENTS 7. Using a wrench (item 8), maintain a tightening torque on the left rod while inserting the gear on the right side (item 4). Ideally the gear should be installed so that there is very little or no slack between the gear teeth and the rack teeth.

  • Page 103: Cutterhead Liner Replacement

    MAINTENANCE & AJUSTEMENTS CUTTERHEAD LINER REPLACEMENT FIGURE 122 The bottom plate under the cutter head can be replaced by sliding it backwards. 1. Unbolt the bottom plate by removing the support (item 1), the two 3/8” X 3” lg carriage bolts (item 6) and 3/8” lock nuts (item 7).

  • Page 104: Processor Liner Adjustment

    MAINTENANCE & AJUSTEMENTS PROCESSOR LINER ADJUSTMENT FIGURE 123 Adjust the front half bottom plate (item 1): Loosen all 8 bolts (item 6) and leave a lengthwise clearance of 1/16” to 1/8” (1.5 to 3) between the front half bottom plate and the lower roll (item 3) as shown below. NOTE: The front half bottom plate (item 1) must always be bolted under the cutter head bottom plate (item 4).
  • Page 105 MAINTENANCE & AJUSTEMENTS 1. Hand tighten the two bolts on each side (item 1). 2. Insert a 1/32” spacer (item 3) at each end of the roll, between the roll and the half bottom (item 2). 3. Using a vise grip clamp (item 5 - Figure 125 Processor roll adjustment), lock the half bottom and roll together. Tighten the two bolts on each side properly (item 1 - Figure 124 Processor roll adjustment) 4.

  • Page 106: Processor Minimum Gap Adjustment

    MAINTENANCE & AJUSTEMENTS PROCESSOR MINIMUM GAP ADJUSTMENT FIGURE 126 1. Loosen bolts on the levelling plate (item 7). 2. Use a 1/16” (1.5) gauge between the 6” top roll and 10” bottom roll. 3. There are 2 adjustment bolts. One on each side of the processor rolls. The head of these bolts (item 2) rest against the underneath of the support flanges (item 3).

  • Page 107: Accelerator Liner Replacement

    MAINTENANCE & AJUSTEMENTS ACCELERATOR LINER REPLACEMENT FIGURE 127, FIGURE 128, FIGURE 129 1. Remove the rear guards. 2. Remove the 6” upper processor roll (if installed) from the forage harvester (see CONFIGURING FOR CORN HARVEST SETUP). 3. Remove the lower half bottom plate of the processor roll (9 bolts). 4.

  • Page 108: Accelerator Adjustment

    MAINTENANCE & AJUSTEMENTS 8. Remove the 2 bottom bolts (item 6) from both of the bearing assemblies, on both sides. Leave the two top bolts on each side (in the top holes of the bearings) in order to keep the accelerator assembly in the raised position. 9.

  • Page 109: Accelerator Paddle Replacement And Balancing

    MAINTENANCE & AJUSTEMENTS NOTE: Because of particular operating conditions and the power of the tractor, the accelerator on the forage harvester may become noisy. Inspect all the surfaces throughout the accelerator chamber for dried material or defective surfaces. If the noise continues, progressively increase the clearance at 6H (6 o’clock) in 0.015” (0.4) increments until noise is no longer noticeable.

  • Page 110: Spout Rotation Motor And Gear Adjustment

    MAINTENANCE & AJUSTEMENTS SPOUT ROTATION MOTOR AND GEAR ADJUSTMENT FIGURE 131, FIGURE 132 To ensure optimal durability of the motor and the chute rotation gear, adjust as necessary. 1. Rotate spout to the left-hand side of the machine. 2. Remove top shield (item 1) to access spout motor gear. 3.

  • Page 111: Spout Cylinder Travel Sensor Adjustment

    MAINTENANCE & AJUSTEMENTS SPOUT CYLINDER TRAVEL SENSOR ADJUSTMENT FIGURE 133 Adjusting the cylinder sensor to maintain travel on the drop cylinder is essential to ensuring proper suspension operation, especially with the Stinger chute extension, during transport mode (item 4). IMPORTANT: Operating the chute with the Stinger configuration without proper cylinder clearance can damage the structure of the forage harvester or the chute itself.

  • Page 112: Spout Liner Replacement

    MAINTENANCE & AJUSTEMENTS SPOUT LINER REPLACEMENT FIGURE 134 When the main wear strip (item 1) or that of the "Stinger" extension is worn or punctured: 1. Lower the chute completely. 2. Unbolt the wear plate (item 3), the hoses while leaving the support remain in place. 3.

  • Page 113: Feed Roll Spring Tension

    MAINTENANCE & AJUSTEMENTS FEED ROLL SPRING TENSION FIGURE 135 Both upper feed rolls are under tension and maintain the ability to open and close to a controlled extent. Their vertical motion is limited by four springs (item 1). The vertical displacement of these rolls is interdependent and controlled by stabilizing bars (item 2).

  • Page 114: Feed Rolls Chain Tension

    MAINTENANCE & AJUSTEMENTS FEED ROLLS CHAIN TENSION FIGURE 137 - FIGURE 138 To adjust the tension of the top feed roll chain (item 1), loosen the bolts (item 2) completely and add/remove spacers (item 3) as needed from beneath the tensioner plate (item 4) to obtain the required tension. Make sure the tensioner is centered with the chain rollers (item 5).

  • Page 115: Accelerator Belt Tension

    MAINTENANCE & AJUSTEMENTS ACCELERATOR BELT TENSION FIGURE 139 The 4-banded belt (item 1) of the accelerator is driven by the pulley on the cutter head shaft. Its tension is adjusted with the spring (item 2): WARNING: Always make sure all rotating components have stopped before servicing the harvester. 1.

  • Page 116: Header Lift Cylinder Adjustment

    MAINTENANCE & AJUSTEMENTS HEADER LIFT CYLINDER ADJUSTMENT FIGURE 141 When the header is lifted to the maximum, it should not make contact with the forage harvester. If there is contact, adjust the length of the cylinder by adjusting the position of the attachment link. NOTE: Always position the cylinder locking pin (item 5) upwards.

  • Page 117: Sharpening Stone Replacement

    MAINTENANCE & AJUSTEMENTS 3. Holding the nut (item 2) in place, tighten the elastic jam nut to lock the wheel securely in place. Repeat for any wheel requiring adjustment. 4. Close guard (item 11). 5. Adjust the height of the stone (item 4) by pulling or pushing on the carriage (item 11) until the gear make firm contact with the spring-loaded flat bar (item 14).

  • Page 118: Sharpener Frame Adjustment

    MAINTENANCE & AJUSTEMENTS SHARPENER FRAME ADJUSTMENT FIGURE 143 The proper frame adjustment must be checked once a year to ensure a precise sharpening. to adjust: 1. Loosen the 5/8” nut (item 1). 2. Tighten the 5/8” X 2” lg flat stove bolt (item 2). 3.
  • Page 119 MAINTENANCE & AJUSTEMENTS Figure 144 Ajustement des capteurs de vitesse To adjust the feed roll motor sensor: 1. At reset, with tractor engine shut down, loosen the sensor locking nut. 2. Turn the sensor clockwise until it gently touches the speed disk inside. 3.

  • Page 120: Electronic Control Unit & Connector Cleanliness

    MAINTENANCE & AJUSTEMENTS ELECTRONIC CONTROL UNIT & CONNECTOR CLEANLINESS Electrical and electronic problems can cause intermittent or one-time problems that are difficult to diagnose. To ensure long term durability and proper operation, follow these recommendations: 1. Never wash connectors or controllers. Clean with an air jet or cloth only. 2.

  • Page 121: Storage Procedure

    MAINTENANCE & AJUSTEMENTS STORAGE PROCEDURE NOTE: Never pressure wash the electronic controls, bearings, solenoid valves, hydraulic valve manifolds or other component containing seals (Figure 146). Figure 146 Pressure washing STEP 1 To prevent any accumulation of dirt, soil, material, excess of grease, or any other substance which could absorb water and cause moisture and rust, clean the forage harvester thoroughly.
  • Page 122 MAINTENANCE & AJUSTEMENTS STEP 8 Check condition of guards and safety decals. Replace them if necessary. STEP 9 - FIGURE 147 At the end of the season, drain the liquid incorporation system using antifreeze. Figure 147 Liquid incorporation system NOTE: After cleaning and complete lubrication, run the forage harvester for a few minutes to spread the grease evenly within the bearings and on the roller chains.

  • Page 123: Diagnostics & Troubleshooting

    DIAGNOSTICS & TROUBLESHOOTING TRANSMISSION AND METAL DETECTOR PROBLEM/ALARM PROBABLE CAUSES EXPLANATION/SOLUTIONS The machine starts in lock mode and prevents forward rotation of the feed rolls. The operator must go to reverse to initialize the system. System Start-up Lock State System not initialized When initialized, the system is in field mode, ready to go to forward and the detector is enabled.
  • Page 124 DIAGNOSTIC & TROUBLESHOOTING Top feed roll plastic stop worn out or Check the condition of the red plastic feed roll stop. If worn out, there will be a direct absent metal-metal contact that may cause severe vibrations. Inspect the antenna cable over its whole length and on every angle. Measure the resistance between each of the 3 antenna wires.
  • Page 125 DIAGNOSTIC & TROUBLESHOOTING Electrical resistance between the colored wires is less than 800Ω or higher than 1kΩ signaling that antenna coil wire are damaged or short. Or, there is a short circuit Antenna internal damage between the signal wires and the ground. Replace the antenna inside the detector roll.

  • Page 126: Ejection

    DIAGNOSTIC & TROUBLESHOOTING EJECTION PROBLEM PROBABLE CAUSES SOLUTIONS The accelerator is gummed Use liquid incorporation system to lubricate the crop channel Knocking sound coming from the fan. Accelerator misadjusted Adjust according to specifications – See service manual PTO speed is too low Maintain recommended PTO speed with throttle or reduce forward speed The accelerator or drum contour is Clean the crop channel by harvesting wet crop over a short distance or washing.

  • Page 127: Feeding

    DIAGNOSTIC & TROUBLESHOOTING FEEDING PROBLEM PROBABLE CAUSES SOLUTIONS Very dry or short hay or straw Loosen the feed roll spring tension. Check the smooth roll cleaner adjustment. Front grain pan is installed when FIGURE 30 Remove the front pan (item 4, on page 35) windrow harvesting Feed roll stops worn out...

  • Page 128: Cutting

    DIAGNOSTIC & TROUBLESHOOTING CUTTING PROBLEMS PROBABLE CAUSES SOLUTIONS Shear bar is not adjusted in straight Adjust and correct the shear bar alignment line and too far away from knives Insufficient crop flow Increase forward speed or windrow size Silage fraying and uneven Knives cutting edge worn out Sharpen the knives edge lengths...

  • Page 129: Drive

    DIAGNOSTIC & TROUBLESHOOTING DRIVE PROBLEMS PROBABLE CAUSES SOLUTIONS Excessive spacing between knives Adjust shear bar and shear bar. Length of cut unnecessarily too short Increase/modify the length of cut The crop channel is gummed Use liquid incorporation system to avoid gumming Excessive power requirement Smooth roll cleaner is not adjusted...

  • Page 130: Processor Rolls

    DIAGNOSTIC & TROUBLESHOOTING PROCESSOR ROLLS PROBLEMS PROBABLE CAUSES SOLUTIONS Side deflectors in front of top rolls Replace the deflectors are worn Incorrect adjustment of the rear Adjust clearance to 0.5mm (1/64”) Loss of corn silage under channel pan The processor rolls. Hay crop residue stuck on edge of When reconfiguring from hay to corn silage, always clean the channel plates and pans rear channel pan...
  • Page 131 HYDRAULIC CIRCUIT...
  • Page 132 ELECTRICAL CIRCUITS...
  • Page 133 ELECTRICAL CIRCUITS...
  • Page 134 ELECTRICAL CIRCUITS...
  • Page 135 ELECTRICAL CIRCUITS...
  • Page 136 ELECTRICAL CIRCUITS...
  • Page 137 ELECTRICAL CIRCUITS...

  • Page 138: Checklist

    CHECKLIST PRE-SEASON CHECKLIST Check condition of knives and shear bar. Check that knives and shear bar are set at “zero” clearance. Check tension of belts and chains. Make sure sheaves and sprockets are correctly aligned. Check all adjustable components for correct setting. Make sure adjustments are correct (accelerator, etc.) Check tire pressure.

This manual is also suitable for:

Scorpion 350 stinger

Table of Contents
