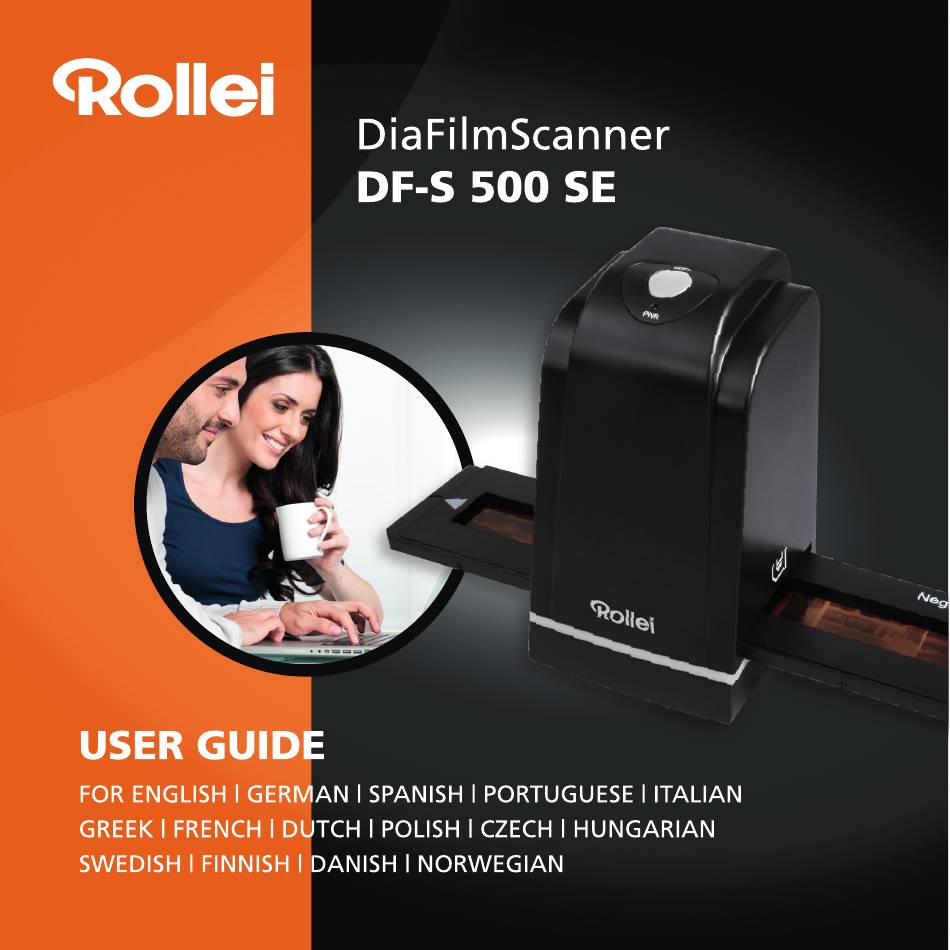

Rollei DF-S 500 SE User Manual
  1. Manuals
  2. Brands
  3. Rollei Manuals
  4. Scanner
  5. DF-S 500 SE
  6. User manual
Rollei DF-S 500 SE User Manual

Rollei DF-S 500 SE User Manual

Diafilm scanner
Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DF-S 500 SE and is the answer not in the manual?

Questions and answers

Related Manuals for Rollei DF-S 500 SE

Summary of Contents for Rollei DF-S 500 SE

  • Page 3: Table Of Contents

    Index Unpack Device………………………………………………….. 2 II. Install Film into Holder ………………………………………... 3 III. Connect Device………………………………………………….. 7 IV. Install Bundled Software ………………..….………………….. 8 V. Use Device ……………………………………………………… 14 VI. Introduce User Interface ……………………………………... 19 VII. Specifications …………..……………………………………… 26 VIII. Appendix. Clean Device …………..…………………………. 27 IX.

  • Page 4: Unpack Device

    Unpack Device Film Scanner Nega ve Film Holder Rapid Slide Feeder CD-ROM Quick Start Guide USB cable Clean brush We strongly suggest using a clean, dry, non-alcohol co on swab to insert into the lm scanner slot and clean the glass surface periodically to produce a clear image.

  • Page 5: Install Film Into Holder

    II. Install the Rapid Slide Feeder: 1. Take out the Rapid Slide Feeder from package 2. Put slides into slide slot, use 3. Insert the Slide Feeder into the unit Level bar to eject slide...
  • Page 6 Install the negative film into holder: Open the film holder as illustrated Install film into negative film slot 3. Close the film holder...
  • Page 7  To avoid mirror image, follow the serial numbers (from left to right) on top of film when install negative film into holder. Figure 1 If the image is upside down [see fig. 2] , the image can be corrected by ...
  • Page 8 Figure 3...

  • Page 9: Connect Device

    III. Device Copy button Power status LED USB Cable Film Slot Plug in USB cable to computer without installing any necessary driver. When the status icon on the left button corner shows information “Your device is ready to use”. The scanner is now ready to use. Note: although the scanner is driverless, you still have to install the CD ROM so you can use the “Launch Image Scan Tool”...

  • Page 10: Install Bundled Software

    IV. Install bundled software The package bundled with a friendly and easy to use PC and Mac so ware that has for capture, save, delete, mirror, rotate and exposure and color control. Please follow the steps to complete the applic on insta n for PC and Mac.
  • Page 13 After completing the installation, the film-scanner is ready to use with “Image scanTool”under program files. Remark: If you are using Win XP 64 or Vista 32/64, you may also need to run "Launch vcredist_x86.exe" as the Microsoft Visual C++ 2010 Redistributable Package is necessary for this installation.
  • Page 14 Mac: 01. Turn on Mac computer. 02. Insert the installation CD into the CD/DVD drive. 03. Copy “ImageScanTool.mpkg” into hard disk and double-click it.

  • Page 16: Use Device

    Device Put Film into film holder Insert the holder into device Make sure USB cable is connected to the device and PC/Mac...
  • Page 17 To launch the software: PC: on Desktop, double-click on “Launch Image Scan Tool” icon. Mac: click on “Applications” folder at the Dock, double-click on “Image Scan Tool.app”.
  • Page 18 Enter operation interface as below: Mac:...
  • Page 19 Press “Copy” hard button to capture the image to store in thumbnail. Click on function of mirror, rotate, color and brightness control to make image to prefer state.
  • Page 20 Press Save to store captured images to hard disk. The images stored in thumbnail bar is cleared after save. Retrieve saved images from the hard disk to further review and edit.

  • Page 21: Introduce User Interface

    VI. Introduce user interface First step is always to select the correct Film Type. Negative Slide B&W...
  • Page 22 User can either click on “Snapshot” icon or press the hard key “Copy” touch button to capture images. Captured images will be first stored in the thumbnail bar. Total of 12 thumbnail images are able to store in the bar. The image control, mirror, rotate, color and brightness in Image Scan Tool is preview instantly in Snap Shot window.
  • Page 23 Press the “Mirror” icon to flip the Live View image to preview on the Snap Shot window. Or apply the Rotate function by pressing “Rotate” icon. The image will be rotating in 90 degrees clockwise on one single click, continue until the prefer position is set.
  • Page 24 To manually adjust the image brightness and color level, click on “Color/Brightness Adjustment” icon. A pop up window containing Brightness bar and Color R, G, B bar will show up on screen and pulling the level bar to make adjustment.
  • Page 25 To delete a image, select the thumbnail image wish to delete and click on “Delete” icon. The stored images in thumbnail bar need to be saved to hard disk. The default directory is shown as below:...
  • Page 26 Or user can save to a prefer hard disk location by pressing the directory icon. Another pop up window will show up to select the directory for saving images. Press “Save” icon to save images to hard disk. The thumbnail bar is cleared after save.
  • Page 27 When completed the capture, user can press “Exit” button to quit this Image Scan Tool. Then, review captured images or process more fancy modification with bundle software for...

  • Page 28: Specifications

    VII. Speci�ications Image Sensor 5 mega CMOS sensor Precision TM glass element Focus Range Fixed focus Exposure Control Automatic, manual adjustment for enhancement Color Balance Automatic, manual adjustment for enhancement Scan Quality 1,800/3,600 dpi (SW Interpolation) Data Conversion 10 bits per color channel Scan Method Single pass Light Source...

  • Page 29: Appendix. Clean Device

    Appendix. Clean Device When viewing without the film holder on the film slot if found any dust dot on live view window, user is able to clean it by using the bundled clean brush to wipe the dust.  We strongly suggest using a clean, dry, non-alcohol cotton swab to clean the glass surface periodically to produce a clear image during operation.

  • Page 30: Conformity

    Conformity The Manufacturer hereby declares that the CE marking was applied to the Rollei DF-S 500 SE in accordance with the basic requirements and other relevant provisions of the following CE Directives: 2004/108/EC Low Voltage Directive 2006/95/EEC LVD Directive The EC Declaration of Conformity can be requested from the address specified on the Warranty...
  • Page 31 Version 2.06 PC & Mac...
