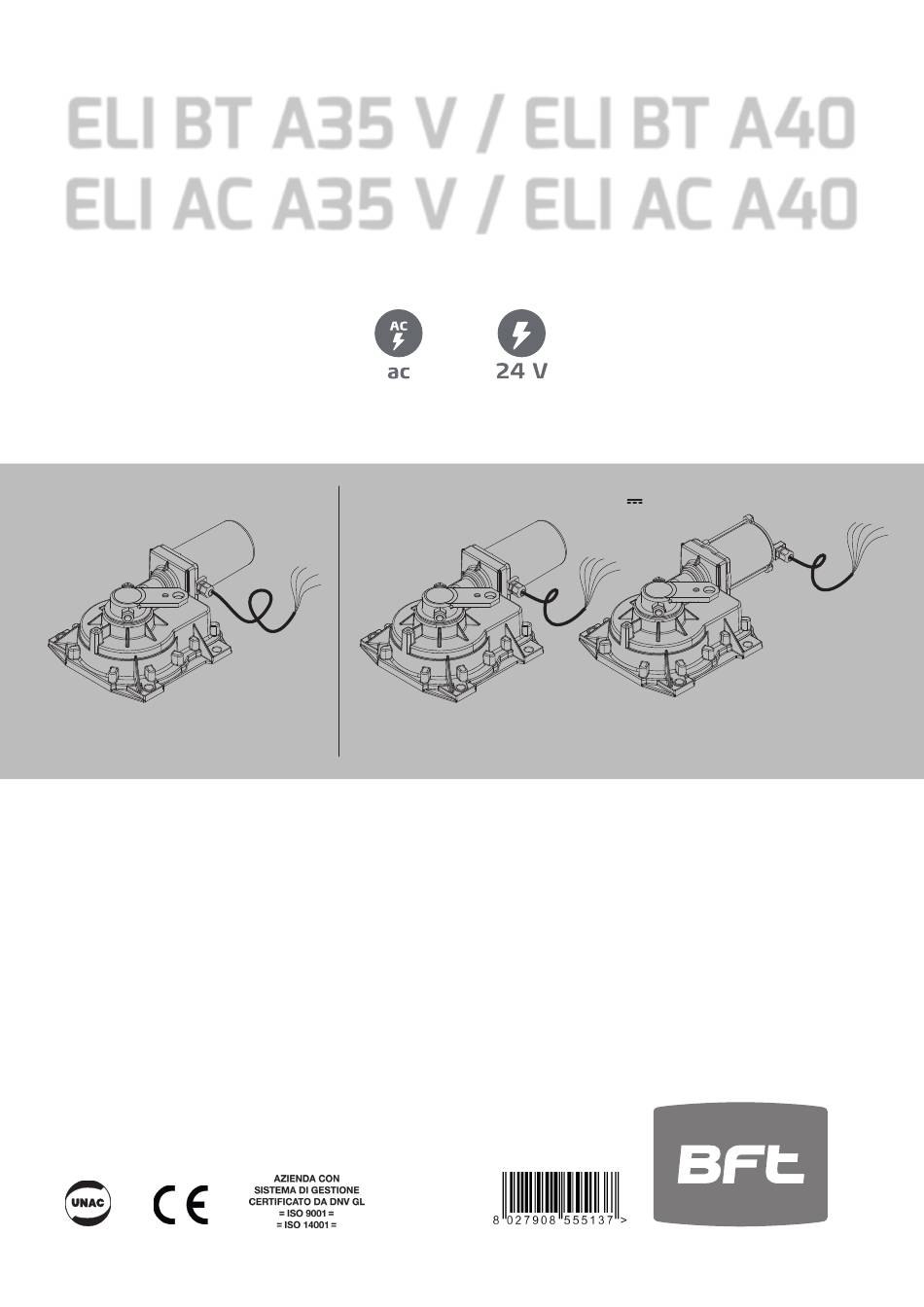

INSTALLATION AND USER'S MANUAL
ELECTROMECHANIC AUTOMATIONS FOR SWING GATES
Caution! Read "Warnings" inside carefully!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELI BT A35 V and is the answer not in the manual?

Questions and answers

Summary of Contents for BFT ELI BT A35 V

  • Page 1 ELI BT A35 V / ELI BT A40 ELI AC A35 V / ELI AC A40 220-230V ~ ELI AC A35 V ELI BT A35 V ELI BT A40 ELI AC A40 D814057 0AA96_01 24-06-20 INSTALLATION AND USER’S MANUAL ELECTROMECHANIC AUTOMATIONS FOR SWING GATES...
  • Page 2: General Safety

    (professional installer) at regular intervals according to the instructions issued by the installer or manufacturer of the door. - When cleaning the outside, always cut off mains D811767_10 ELI BT A35 V / AC A40 - ELI AC A35 V / AC A40 -...
  • Page 3: Installer Warnings

    D811766_18 ELI BT A35 V / AC A40 - ELI AC A35 V / AC A40 -...
  • Page 4 GENERAL INFO The electromechanical actuator ELI BT A35 V - ELI BT A40 - ELI AC A35 V - ELI AC A40 is the ideal solution for sub-hinge underfloor applications. The actuator is made with a single, watertight mono-block reducer. The sub-hinge position maintains the gate’s aesthetics intact and makes the automation practically invisible.
  • Page 5: Package Contents

    Achtung! Bitte lesen Sie aufmerksam die „Hinweise“ im Inneren! ¡Atención¡ Leer atentamente las “Advertencias”en el interior! Atenção! Ler atentamente as “Instruções “ que se encontram no interior! M10x60 EQUIPMENT NECESSARY oder INSTALLATION ALTERNATIVE OPTIONS LEFT RIGHT ELI BT A35 V / AC A40 - ELI AC A35 V / AC A40 -...
  • Page 6: Installation

    INSTALLATION example RIGHT DOOR example LEFT DOOR Provided in allocation with foundation casing 16 - ELI BT A35 V / AC A40 - ELI AC A35 V / AC A40...
  • Page 7 90° posizione grano per apertura anta a 90° posizione grano per apertura anta a 90° posizione grano per apertura anta a 90° ELI BT A35 V / AC A40 - ELI AC A35 V / AC A40 -...
  • Page 8 Floor end-stops for closure Floor end-stops for opening - right door Floor end-stops for opening - left door INTEGRATED END-STOP LEFT DOOR INTEGRATED END-STOP RIGHT DOOR 18 - ELI BT A35 V / AC A40 - ELI AC A35 V / AC A40...
  • Page 9 EXAMPLE INSTALLATION OF INTEGRATED END-STOPS RIGHT DOOR position of grub screw for 90° opening of the door position of grub screw for closing of the door example LEFT DOOR ELI BT A35 V / AC A40 - ELI AC A35 V / AC A40 -...
  • Page 10 Adjustment of grub screw for opening of right door <90° >90° 120° <90° >90° 90° Adjustment of grub screw for closing of right door 0° FASTENING OF INTEGRATED END-STOPS 20 - ELI BT A35 V / AC A40 - ELI AC A35 V / AC A40...
  • Page 11 Adjustment of grub screw for opening of left door >90° < 90° 120° <90° >90° 90° Adjustment of grub screw for closing of left door 0° FASTENING OF INTEGRATED END-STOPS ELI BT A35 V / AC A40 - ELI AC A35 V / AC A40 -...
  • Page 12 Junction box Junction box H>300mm H>300mm order comply with regulatory obligations and to preserve the integrity of the installation, we recommend using slowdowns. 22 - ELI BT A35 V / AC A40 - ELI AC A35 V / AC A40...
  • Page 13: Manual Manoeuvre

    MANUAL MANOEUVRE BOX CLOSURE SCC / SCP Max 90° Provided in allocation with foundation casing ELI BT A35 V / AC A40 - ELI AC A35 V / AC A40 -...
  • Page 14: Kit Composition

    LIMIT SWITCH ACCESSORY EQUIPMENT KIT COMPOSITION 2.9x13 M4x8 For ELI BT A disconnect encoder from control unit 24 - ELI BT A35 V / AC A40 - ELI AC A35 V / AC A40...
  • Page 15: Technical Data

    +40°C +55°C +20°C +40°C +55°C Cycle of use ciclo continuo 50 cycles/h (the cycles refer to 90° travel) cycles/h cycles/h cycles/h cycles/h cycles/h cycles/h ELI BT A35 V / AC A40 - ELI AC A35 V / AC A40 -...
  • Page 16 ELI AC A35 V / ELI BT A35 V larghezza anta (m) - door width (m) - largeur du vantail (m) Breite des Torflügels (m) - ancho hoja (m) - largura da folha (m) ELI AC A40 / ELI BT A40 larghezza anta (m) - door width (m) - largeur du vantail (m) Breite des Torflügels (m) - ancho hoja (m) - largura da folha (m)
