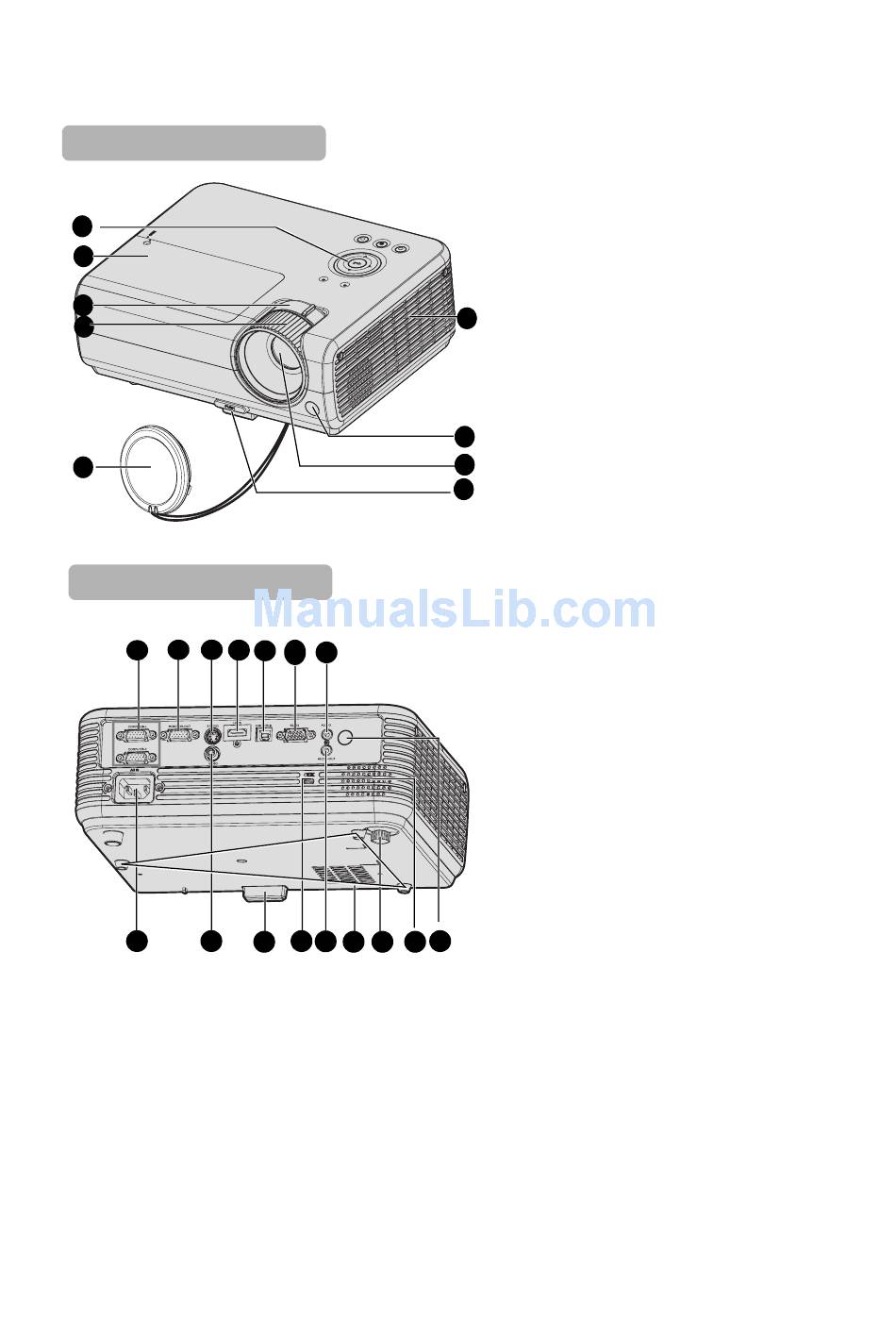

Projector exterior view

Front/upper side
1
2
3
4
5
Rear/lower side
10 11 12
17 18
13
14 15
16
19 20
9 21 22
1. External control panel
(See
details.)
2. Lamp cover
3. Zoom ring
4. Focus ring
5. Lens cover
6. Vent (heated air exhaust)
6
7. Front IR remote sensor
8. Projection lens
9. Quick-release button
10. RGB (PC)/Component video
(YPbPr/ YCbCr) signal input jack
7
11. RGB signal output jack
8
12. S-Video input jack
9
13. HDMI input jack
14. USB input jack
15. RS-232 control port
16. Audio input jack
17. AC power cord inlet
18. Video input jack
19. Kensington anti-theft lock slot
20. Audio output jack
21. Ceiling mount holes
22. Rear adjuster foot
23. Speaker
24. Rear IR remote sensor
24
23
