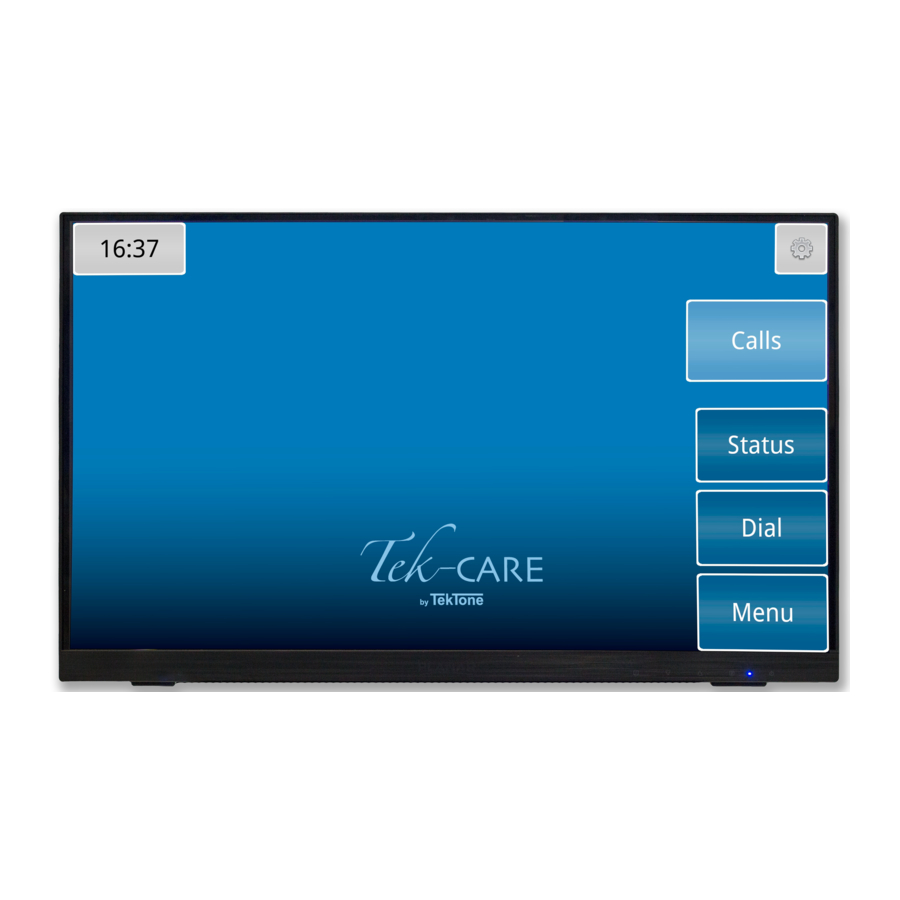

- Page 1 IL1052 Rev. 2 - 4/2021 NC403TS Monitor NC404TS Master Station Installation and Operation Manual www.tektone.com Phone: 828.524.9967 Toll-Free: 800.327.8466 Sales: Option 2 Tech Support: Option 3 324 Industrial Park Rd Franklin, NC 28734 tektone@tektone.com Fax: 828.524.9968...
- Page 2 Sound & Signal Mfg., Inc. The content of this manual is furnished for informational use only, is sub- ject to change without notice, and should not be construed as a commitment by TekTone. TekTone Sound & Signal Mfg., Inc. assumes no responsibility or liability for any errors or inaccuracies that may appear in this documentation.
-
Page 3: Table Of Contents
Table of Contents Introduction Installing the NC403TS Monitor and NC404TS Master Station Configuring the NC403TS Monitor and NC404TS Master Station Calls Screen Answering and Placing Calls on Master Stations Password Protection Time Screen Changing the Time Settings Screen Changing the Volume... -
Page 4: Introduction
A CL234 wall-mount bracket may be purchased separately for the wall-mounted option for the NC403TS Monitor. The CL234/CL231 is used in conjunction with a TV/Monitor wall-mount bracket which must be a VESA mount design. A minimum clearance of 1.2" behind the monitor is required to accommodate the PM593. -
Page 5: Installing The Nc403Ts Monitor And Nc404Ts Master Station
CL234 wall-mount bracket, screw the bracket to the NC318 monitor and to the NC403NOTS with the additional screws provided as shown below.) On the back of the NC403TS Monitor, connect the following: 1. Connect the PK307 plug-in transformer to the DC Power Input of the NC403NOTS. - Page 6 7. Assign a unique address for each NC404TS Master Station using the DIP switch at the rear of the NC404L sidecar. 8. Connect the monitor's power cord to an AC outlet and then to the NC318 monitor. Refer to the NC403TS Interconnection Diagram on the previous page for the various connections to the device. ©...
- Page 7 NC475 Tek-CARE Appliance Server will reboot and return to the home screen. Power up the device. Once the NC403TS Monitor or NC404TS Master Station is turned on for the first time, enter the IP address as noted above in the Connection Settings screen and choose a unique Device ID between 1 - 254.
-
Page 8: Configuring The Nc403Ts Monitor And Nc404Ts Master Station
Refer to the LS450 Config Tool Installation and Operating Instruction Manual, IL855, for more inform- ation on how to set up the Config Tool. The NC403TS Monitor and NC404TS Master Station settings can be found in the Masters and Monitors pages of the Config Tool. Go to the Masters page first and enable the NC404TS Master Station and confirm the type. - Page 9 Configuring the NC403TS Monitor and NC404TS Master Station The List and Icon view will give an icon layout. Click Edit next to Icon Layout. Under the appropriate tab, select the station or master and click Add at the bottom right. Once all of the appropriate icons show on the grid, drag and drop the icons to con- figure the layout.
- Page 10 Configuring the NC403TS Monitor and NC404TS Master Station List and Map view will show a map view on the NC404TS Master Station. To upload a map of the facility, go to Locations>Proximity Maps. Acceptable file formats for proximity maps are .bmp, .gif, .jpeg, and .png.
-
Page 11: Calls Screen
The icon can also be used for direct dialing and placing other visual indicators such as nurse requests. © IL1052 NC403TS and NC404TS Installation Manual Copyright TekTone Sound and Signal Mfg., Inc. All Rights Reserved... - Page 12 — blue for code blue shown below. These icons can also be used to direct dial a station. © 12|IL1052 NC403TS and NC404TS Installation Manual Copyright TekTone Sound and Signal Mfg., Inc. All Rights Reserved...
-
Page 13: Answering And Placing Calls On Master Stations
Enter the password on the keyboard screen and press the key next to the password. Once the password is entered correctly, the background of the key will turn yellow. © IL1052 NC403TS and NC404TS Installation Manual Copyright TekTone Sound and Signal Mfg., Inc. All Rights Reserved... -
Page 14: Time Screen
YYYY-MM-DD HH:MM 24-hour format. Select Apply (Green check mark) once the time is set. © 14|IL1052 NC403TS and NC404TS Installation Manual Copyright TekTone Sound and Signal Mfg., Inc. All Rights Reserved... -
Page 15: Settings Screen
Changing the Volume To change the Tone Volume or Voice Volume for the handset, select Low, Medium, or High. The NC403TS Monitor will only display the Tone Volume. Tone Volume and Voice Volume are both set to Medium in the example below. -
Page 16: Status Screen
Status button. Touch the background or the Calls button to return to the home screen. © 16|IL1052 NC403TS and NC404TS Installation Manual Copyright TekTone Sound and Signal Mfg., Inc. All Rights Reserved... -
Page 17: Dial Screen
Touch Settings to edit the settings for that station. © IL1052 NC403TS and NC404TS Installation Manual Copyright TekTone Sound and Signal Mfg., Inc. All Rights Reserved... - Page 18 Speaker Volume will change the volume of the speaker. Mic Gain will adjust the input volume on the station. © 18|IL1052 NC403TS and NC404TS Installation Manual Copyright TekTone Sound and Signal Mfg., Inc. All Rights Reserved...
- Page 19 Reset. Touch the blue arrow next to Check-In to add the station to zones and select the appropriate call types for that station. © IL1052 NC403TS and NC404TS Installation Manual Copyright TekTone Sound and Signal Mfg., Inc. All Rights Reserved...
-
Page 20: Menu Screen
The Faults button displays all current faults that are present on the Tek-CARE system. The Repair and Redetect options are also available from the Faults screen. © 20|IL1052 NC403TS and NC404TS Installation Manual Copyright TekTone Sound and Signal Mfg., Inc. All Rights Reserved... -
Page 21: Using The Nc404L Sidecar Master
Other call types have to be reset at the station where the call is placed. Select Faults to view any faults present on the system. © IL1052 NC403TS and NC404TS Installation Manual Copyright TekTone Sound and Signal Mfg., Inc. All Rights Reserved...
