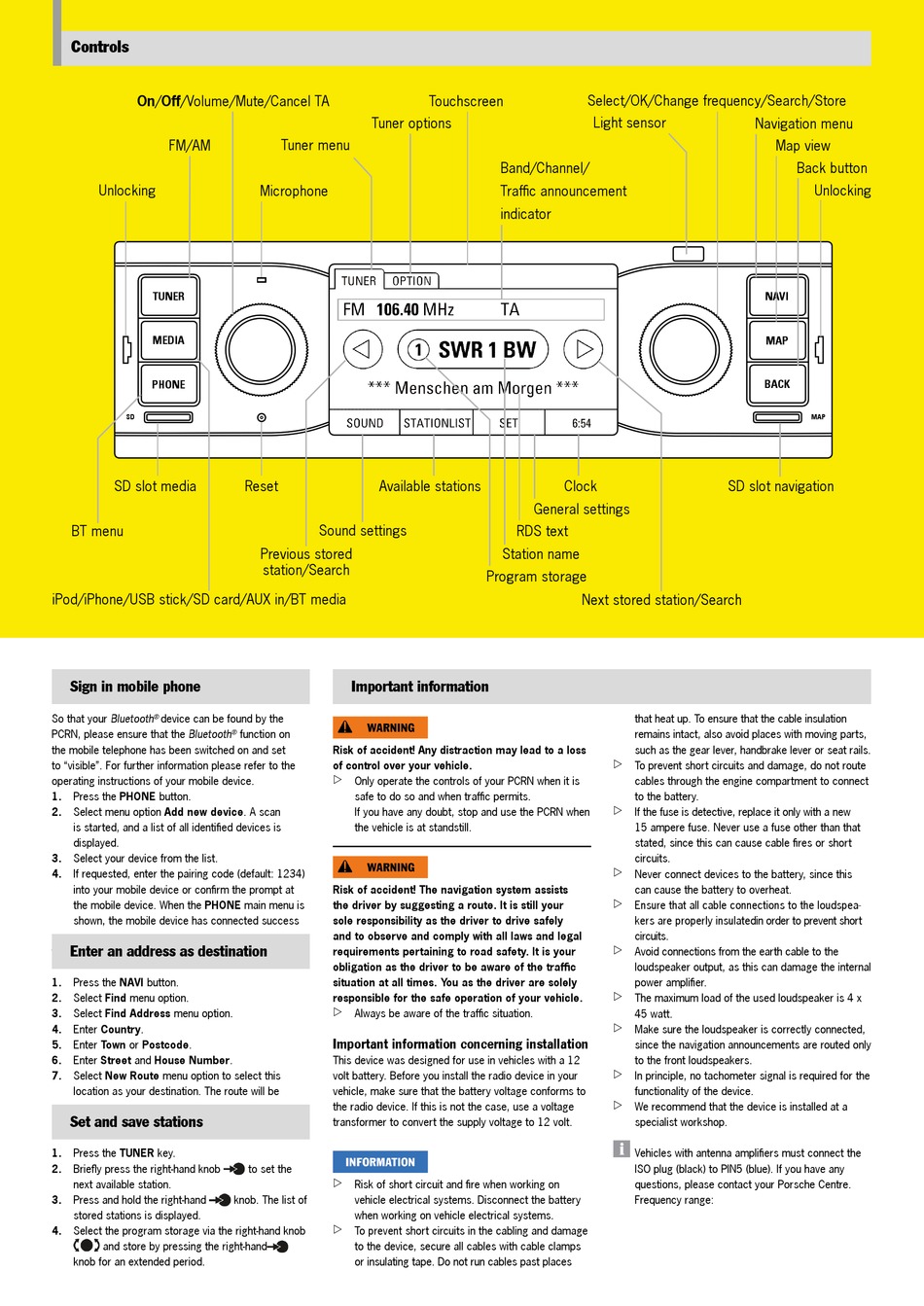

Controls

On/Off/Volume/Mute/Cancel TA
FM/AM
Unlocking
TUNER
MEDIA
PHONE
SD
SD slot media
BT menu
iPod/iPhone/USB stick/SD card/AUX in/BT media

Sign in mobile phone

So that your Bluetooth device can be found by the
®
PCRN, please ensure that the Bluetooth
the mobile telephone has been switched on and set
to "visible". For further information please refer to the
operating instructions of your mobile device.
1. Press the PHONE button.
2. Select menu option Add new device. A scan
is started, and a list of all identified devices is
displayed.
3. Select your device from the list.
4. If requested, enter the pairing code (default: 1234)
into your mobile device or confirm the prompt at
the mobile device. When the PHONE main menu is
shown, the mobile device has connected success

Enter an address as destination

fully.
1. Press the NAVI button.
2. Select Find menu option.
3. Select Find Address menu option.
4. Enter Country.
5. Enter Town or Postcode.
6. Enter Street and House Number.
7. Select New Route menu option to select this
location as your destination. The route will be

Set and save stations

calculated.
1. Press the TUNER key.
2.
Briefly press the right-hand knob
next available station.
3.
Press and hold the right-hand
stored stations is displayed.
4. Select the program storage via the right-hand knob
and store by pressing the right-hand
knob for an extended period.
Tuner options
Tuner menu
Microphone
Reset Available stations
Sound settings
Previous stored
station/Search
Important information
function on
®
Risk of accident! Any distraction may lead to a loss
of control over your vehicle.
  O nly operate the controls of your PCRN when it is
safe to do so and when traffic permits.
If you have any doubt, stop and use the PCRN when
the vehicle is at standstill.
Risk of accident! The navigation system assists
the driver by suggesting a route. It is still your
sole responsibility as the driver to drive safely
and to observe and comply with all laws and legal
requirements pertaining to road safety. It is your
obligation as the driver to be aware of the traffic
situation at all times. You as the driver are solely
responsible for the safe operation of your vehicle.

Always be aware of the traffic situation.

Important information concerning installation

This device was designed for use in vehicles with a 12
volt battery. Before you install the radio device in your
vehicle, make sure that the battery voltage conforms to
the radio device. If this is not the case, use a voltage
transformer to convert the supply voltage to 12 volt.
to set the

Risk of short circuit and fire when working on
knob. The list of vehicle electrical systems. Disconnect the battery
when working on vehicle electrical systems.
 To prevent short circuits in the cabling and damage
to the device, secure all cables with cable clamps
or insulating tape. Do not run cables past places
Touchscreen Select/OK/Change frequency/Search/Store
Light sensor
Band/Channel/
Traffic announcement
indicator
Clock
General settings
RDS text
Station name
Program storage
Next stored station/Search
Navigation menu
Map view
NAVI
MAP
BACK
SD slot navigation
that heat up. To ensure that the cable insulation
remains intact, also avoid places with moving parts,
such as the gear lever, handbrake lever or seat rails.

To prevent short circuits and damage, do not route
cables through the engine compartment to connect
to the battery.

If the fuse is detective, replace it only with a new
15 ampere fuse. Never use a fuse other than that
stated, since this can cause cable fires or short
circuits.
 Never connect devices to the battery, since this
can cause the battery to overheat.
 Ensure that all cable connections to the loudspea-
kers are properly insulatedin order to prevent short
circuits.
 Avoid connections from the earth cable to the
loudspeaker output, as this can damage the internal
power amplifier.
 The maximum load of the used loudspeaker is 4 x
45 watt.
 Make sure the loudspeaker is correctly connected,
since the navigation announcements are routed only
to the front loudspeakers.

In principle, no tachometer signal is required for the
functionality of the device.

We recommend that the device is installed at a
specialist workshop.
Vehicles with antenna amplifiers must connect the
ISO plug (black) to PIN5 (blue). If you have any
questions, please contact your Porsche Centre.
Frequency range:
