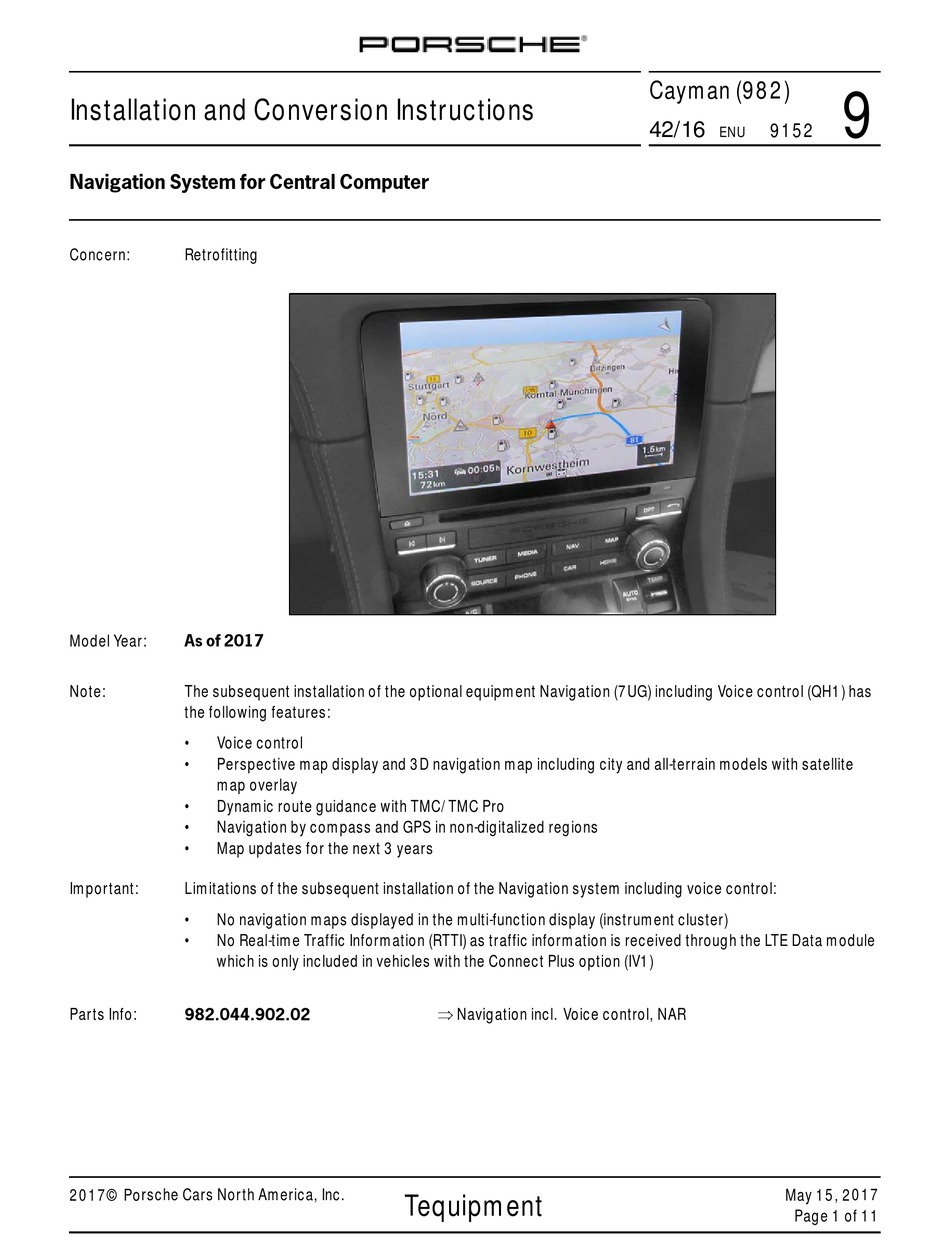

Installation and Conversion Instructions
Navigation System for Central Computer
Concern:
Retrofitting
Model Year:
As of 2017
Note:
The subsequent installation of the optional equipment Navigation (7UG) including Voice control (QH1) has
the following features:
•
Voice control
•
Perspective map display and 3D navigation map including city and all-terrain models with satellite
map overlay
•
Dynamic route guidance with TMC/TMC Pro
•
Navigation by compass and GPS in non-digitalized regions
•
Map updates for the next 3 years
Important:
Limitations of the subsequent installation of the Navigation system including voice control:
•
No navigation maps displayed in the multi-function display (instrument cluster)
•
No Real-time Traffic Information (RTTI) as traffic information is received through the LTE Data module
which is only included in vehicles with the Connect Plus option (IV1)
Parts Info:
982.044.902.02
2017© Porsche Cars North America, Inc.
Navigation incl. Voice control, NAR
Tequipment
Cayman (982)
42/16
9152
ENU
May 15, 2017
Page 1 of 11
