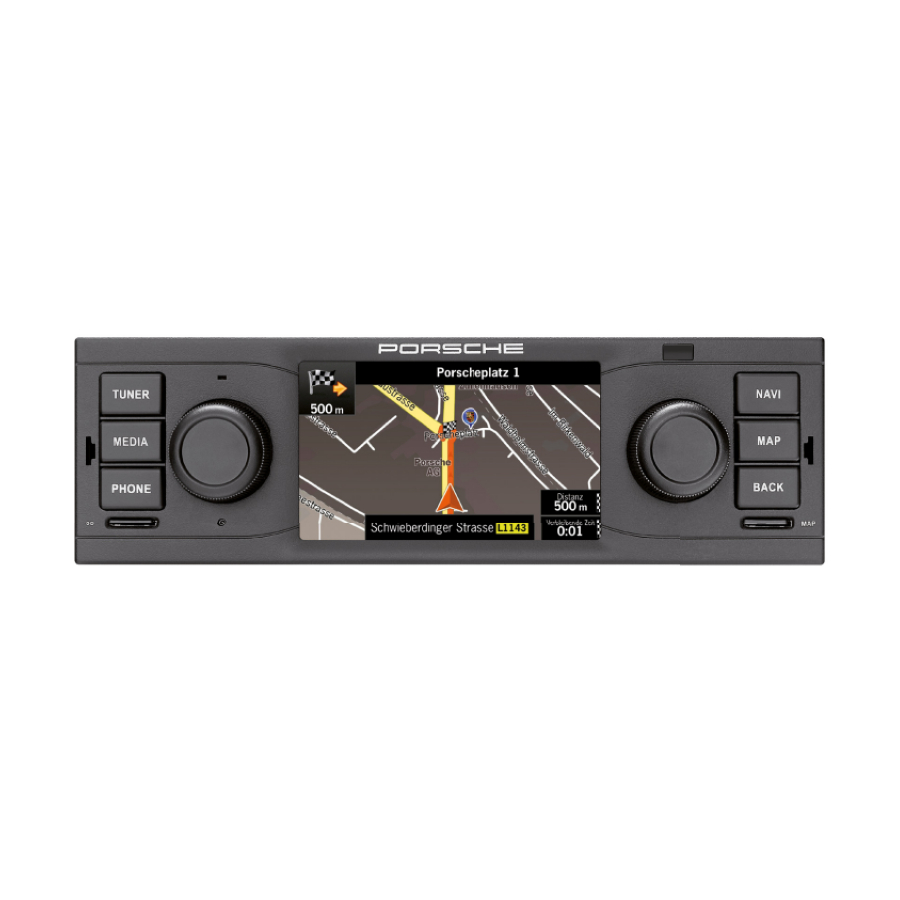

Porsche Classic Radio Navigation System Safety & Operating Instructions

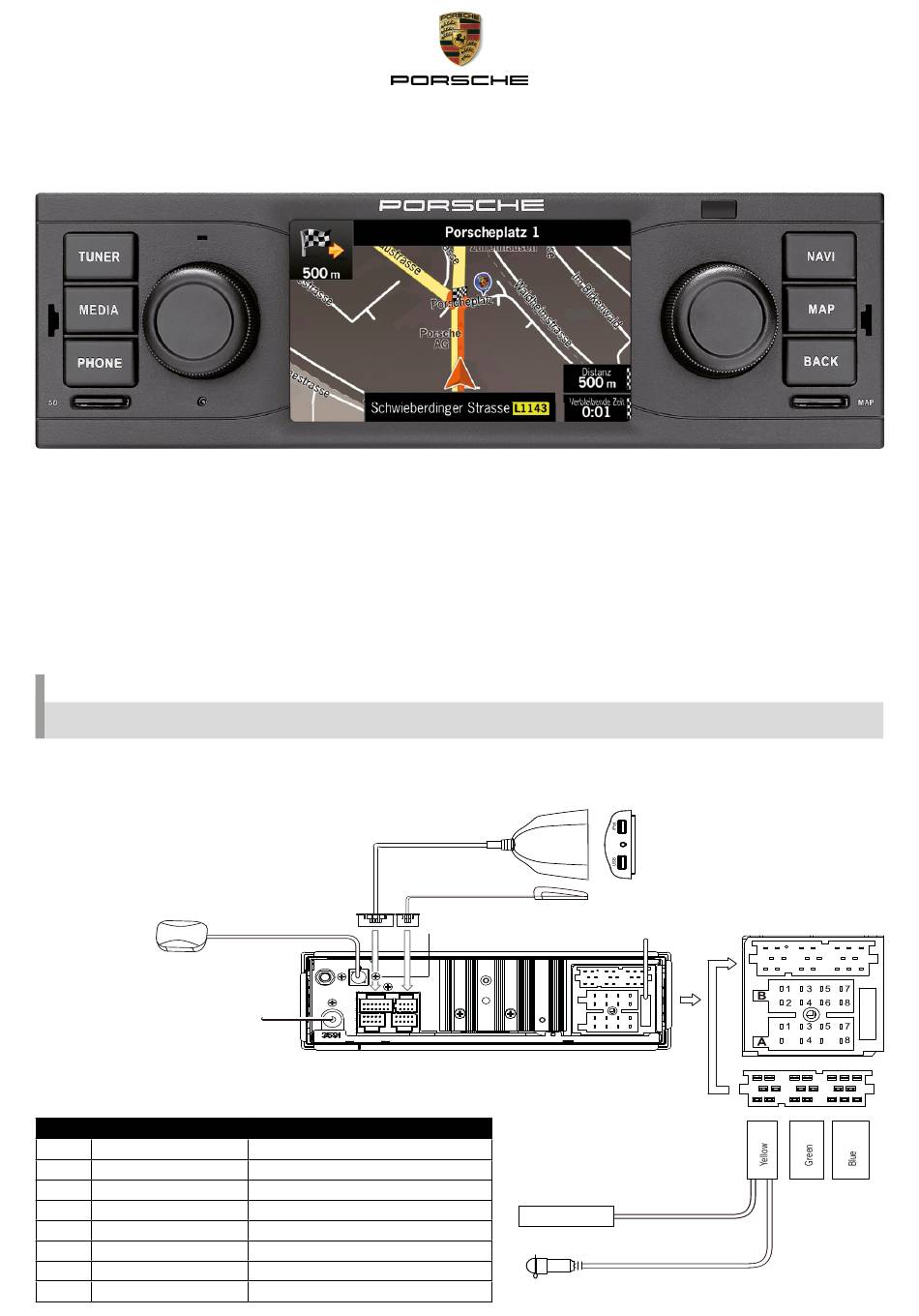

Connection diagram
Frequency range:
AM: 526,5 kHz-1606,5 kHz
FM: 87,5-108 MHz
Bluetooth: 2402-2480 MHz
GPS: 1559-1610 MHz
Max. transmission power:
Bluetooth: 1.75 dBm
Radio antenna
Position Connection A
1 -
2 -
3 -
4 Battery 12v (+)/yellow
5 Amplifi er control/antenna
6 -
7 ACC+/red
8 Earth/black
Safety & operating instructions
GPS antenna
Connection A
Loudspeaker R (rear) (+)/violet
Loudspeaker R (rear) (-)/violet/black striped
Loudspeaker R (front) (+)/grey
Loudspeaker R (front) (-)/grey/black striped
Loudspeaker L (front) (+)/white
Loudspeaker L (front) (-)/white/black striped
Loudspeaker L (rear) (+)/green
Loudspeaker L (rear) (-)/green/black striped
Porsche Classic
Media box
Microphone
Ground (Media box)
NOKIA DSP
Radio Navigation System
iPod/iPhone connection
Aux-In
USB connection
15A fuse
BLAUPUNKT DSP (optional)
