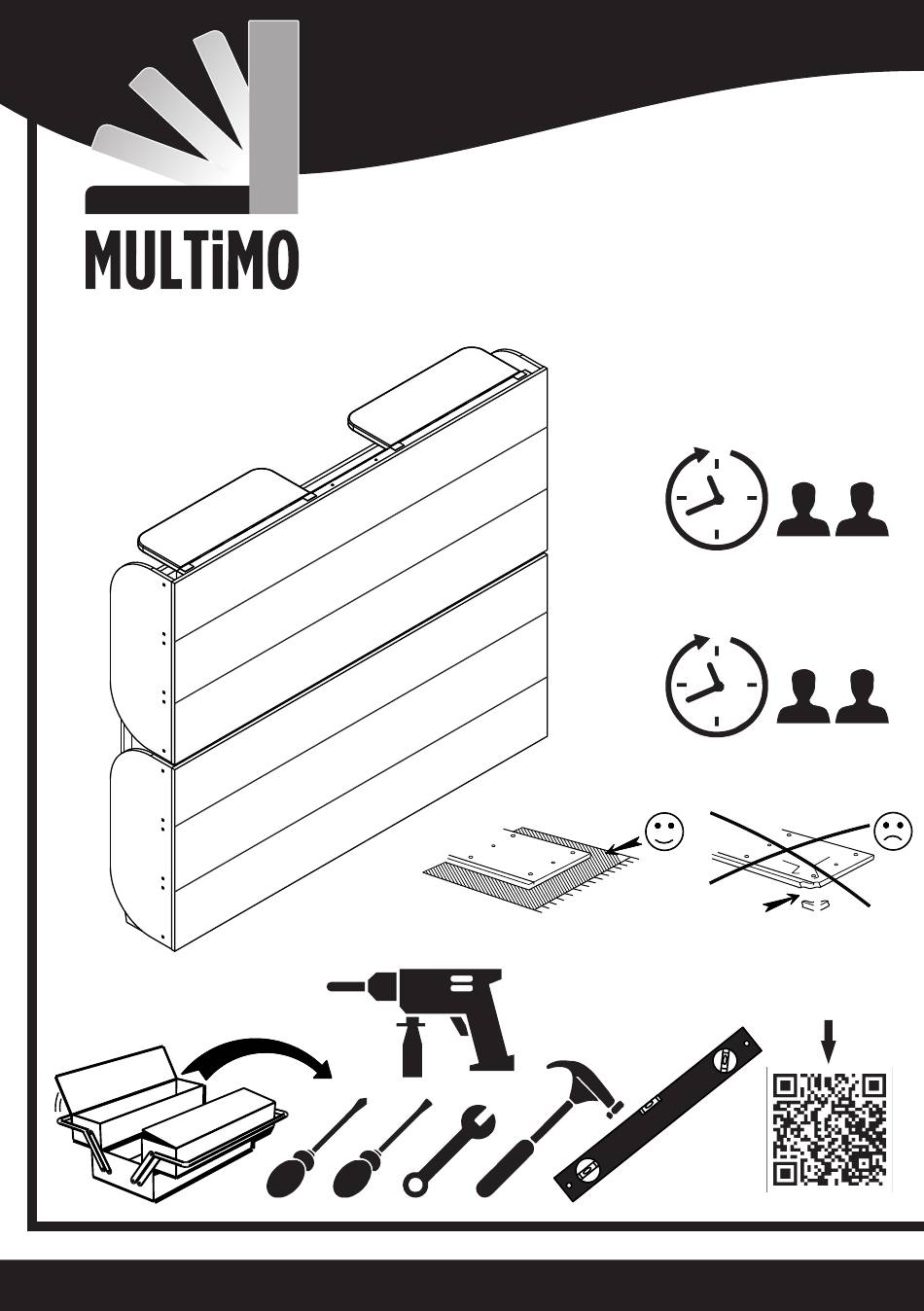

- Page 1 A 750- SIMPLE BUNK min. Technical Service min. End User VIDEO https://www.youtube.com/watch?v=4k2mx1hHEY8 Assembly Instructions...
- Page 2 Track Title (inch) (mm) Piece Piece Thickness Length Width Thick Height Most 0,71 40,08 13,58 1018 0,71 84,02 13,39 2134 0,71 84,02 13,39 2134 0,71 84,02 13,39 2134 Accessories List MNX 02 MNG - 01 KVL 01 TAP - 01 24/ piece 64/ piece 28 / piece...
- Page 3 KCE - 01 AL - 01 (4MM) AL - 02 (5MM) SYS-01 8 / piece 1 / piece 1 / piece 2 / piece Page 2...
- Page 4 STEP 1 CTA - 01 x 2 SYS - 01 VIDEO BKA - 01 https://www.youtube.com/watch?v=HPnIDTUB764 Page 3...
- Page 5 WALLS MADE OF BRICK, CONCRETE OR HARD SURFACE MOUNTING (HARDWARE PROVIDED) STEP 2 First of all should be xed from one point, after that balance should be controlled and connection points should be marked. Ø 10 mm / 0,254 nch DD - 01 TFC - 01 STEP 3...
- Page 6 STEP 4 Ø 10 mm / 0,254 nch STEP 5 DD - 01 x 13 VIDEO https://www.youtube.com/watch?v=ugVwRvjZBNE Page 5...
- Page 7 WALLS MADE OF DRYWALL WITH WOODEN OR METAL STUDS STEP 6 FİRST LOCATE THE STUDS BY USİNG ''STUD FİNDER'' İN THE WALL AND DRİLL İT DD - 01 X 3 ACCORDİNG TO THE HEİGHT MEASURMENTS GİVEN ON THE SİDE. TFC - 01 X 3 UPPER HOLES SHOULD BE DRİLLED FOR ATTACHİNG BED AT NEXT STEP.
- Page 8 STEP 7 KVL 01 MNG - 01 MNX - 03 210° 210° MNG - 01 x 5 MNG - 01 x 10 KVL - 01 x 4 MNX - 03 x 10 210° KVL - 01 x 4 VIDEO MNG - 01 x 5 https://www.youtube.com/watch?v=qRtR0k_9Sow Page 7...
- Page 9 210° STEP 8 STEP 9 210° KVL 01 MNG - 01 MNG - 01 x 6 KVL - 01 x 3 VIDEO https://www.youtube.com/watch?v=fadajrS0upg Page 8...
- Page 10 STEP 10 LTA - 01 x 14 Install plastic corners and metal joints without gaps VIDEO J - K https://www.youtube.com/watch?v=Obkh7nHVP6M Page 9...
- Page 11 STEP 11 67 mm 67 mm J - K VTB - 02 x 56 STEP 12 Unscrew the Screws J - K VIDEO https://www.youtube.com/watch?v=WdVS7zJKnBA Page 10...
- Page 12 STEP 13 LTA - 01 x 14 J - K VIDEO https://www.youtube.com/watch?v=nL1YErHf9pk Page 11...
- Page 13 STEP 14 AMR - 03 SG - 01 AMR - 03 STEP 15 MNX - 02 x 12 MNX - 02 VIDEO https://www.youtube.com/watch?v=QLzGKdq2-zM Page 12...
- Page 14 STEP 16 YSB - 01 PL - 04 SC - 78 STEP 17 AL - 01 SC - 78 SC - 78 VIDEO https://www.youtube.com/watch?v=duhyK8UyrGA Page 13...
- Page 15 STEP 18 AMR - 03 SG - 01 VIDEO AMR - 03 https://www.youtube.com/watch?v=jYc4gryAqq8 Page 14...
- Page 16 STEP 19 MRD - 01 MRD - 01 CAUTION ! Ladder must be attached to the upper bunk while it is in use VIDEO for additional support and safety. https://www.youtube.com/watch?v=1fkriys0NSI Page 15...
- Page 17 STEP 20 MNG - 01 x 12 210° SC - 78 STEP 21 VTD - 01 x 4 VIDEO https://www.youtube.com/watch?v=u1atdXLEeoE Page 16...
- Page 18 KOR - FRONT STEP 22 YSB - 01 PL - 04 KCE - 01 X 4 KLF -FRONT (fabric cover) TAP - 01 VIDEO https://www.youtube.com/watch?v=XNipc2Zxjoc Page 17...
- Page 19 STEP 23 AMR - 03 SG - 01 AMR - 03 STEP 24 MNX - 02 x 12 MNX - 02 VIDEO https://www.youtube.com/watch?v=QLzGKdq2-zM Page 18...
- Page 20 STEP 25 YSB - 01 PL - 04 SC - 78 STEP 26 AL - 01 SC - 78 SC - 78 VIDEO https://www.youtube.com/watch?v=duhyK8UyrGA Page 19...
- Page 21 STEP 27 SC - 79 SC - 79 AL - 01 VIDEO SC - 79 AL - 01 https://www.youtube.com/watch?v=H97ufAXirhs Page 20...
- Page 22 STEP 28 AMR - 03 SG - 01 VIDEO AMR - 03 https://www.youtube.com/watch?v=QIoMROj3XtM Page 21...
- Page 23 STEP 29 MNG - 01 X 12 210° VIDEO https://www.youtube.com/watch?v=tD9u6yg-x94 Page 22...
- Page 24 STEP 30 KCE - 01 X 4 SC - 78 VTD - 01 x 4 VIDEO https://www.youtube.com/watch?v=0twmNJ49Nuc Page 23...
- Page 25 2. BED OPEN 1. BED CLOSED STEP 31 VIDEO https://www.youtube.com/watch?v=H7WV_dDh89k Page 24...
- Page 26 ATTENTION / HOW TO / READ ME / OWNER'S GUIDE 1. Unless an tem s free stand ng, when mount ng on a regular drywall, furn ture must be fastened to wood or metal studs. Sol d walls made of br ck, concrete or s m lar mater als are also acceptable.
- Page 27 10.For Bunk Beds: a.Always use prov ded ladder when access ng top bunk. b.Be slow, careful and aware of surround ngs when open ng top bunk. c.Do not horseplay. Beds are to be slept on only. Page 26...
