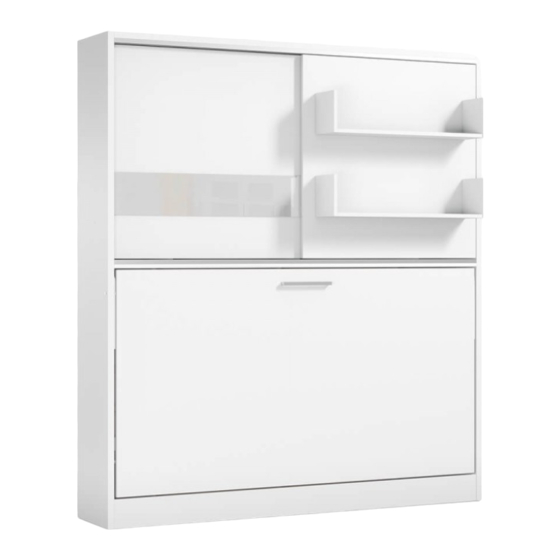

Summary of Contents for Multimo A 214 PARETE LETTO T

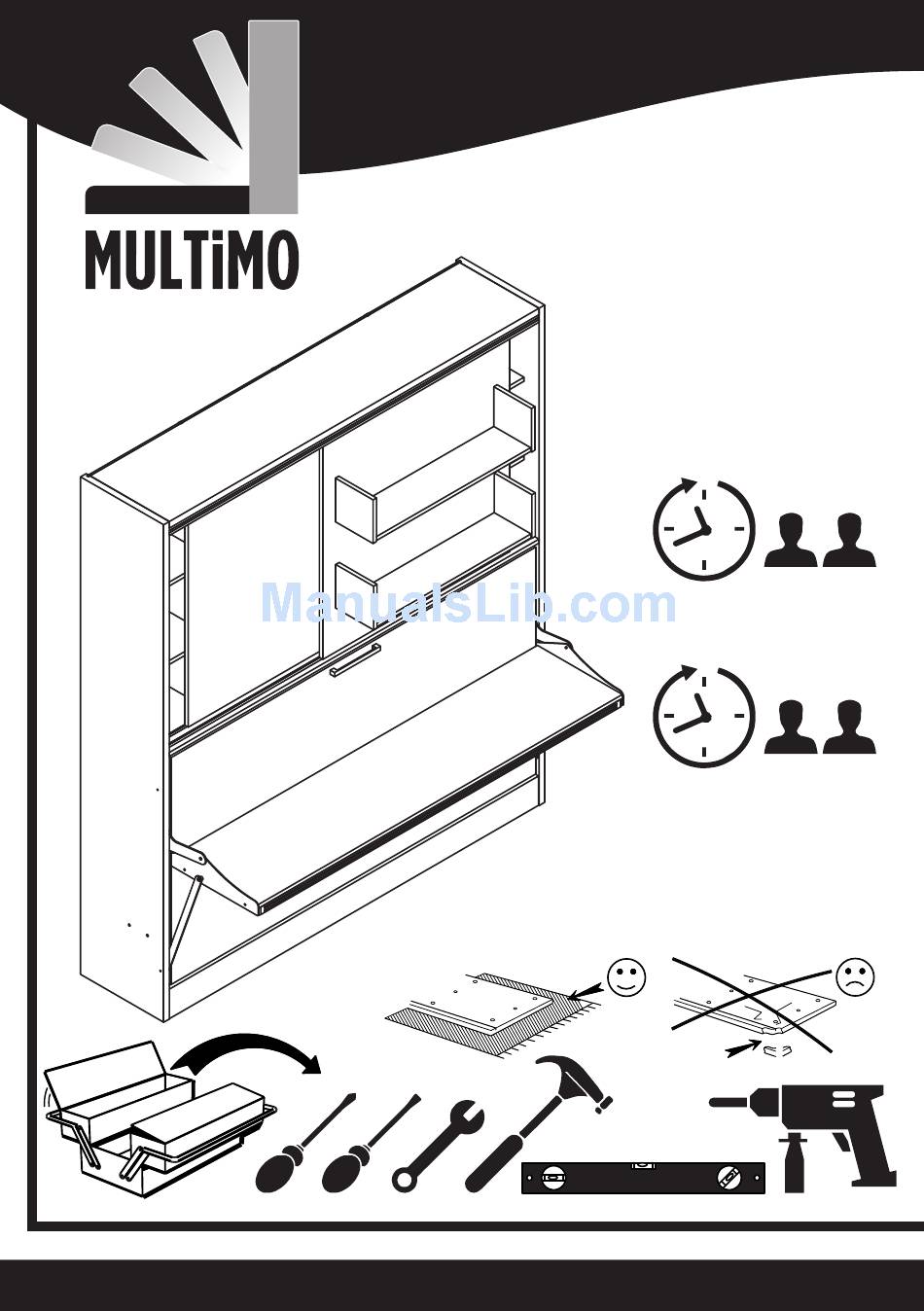

- Page 1 A 214 PARETE LETTO T min. Technical Service min. End User Assembly Instructions...
- Page 2 (inch) (mm) Track Title Piece Piece T hickness Length Width T hick Height Most 2280 1,18 89,76 17,32 1956 1,18 77,01 16,54 1956 0,71 77,01 16,54 1956 0,71 77,01 16,54 1028 0,71 40,47 13,15 1956 0,71 77,01 5,31 1186 0,71 46,69 4,72 0,71...
- Page 3 Accessories List MNX 02 MNG - 01 VTB - 01 (4,8x16) mm VD - 01(6X70) mm 42 / piece 42 / piece 12 / piece 3 / piece VD - 02 (3,5x25) mm CT - 01 ( 6x40 ) mm PL - 02 (8x22x2) mm DSE - 01 (40x90x32) mm 24 / piece...
- Page 4 Page 3...
- Page 5 STEP 1 MNX - 02 KVL 01 A-L/A-R Page 4...
- Page 6 STEP 2 D (FRONT FACE) MNX - 02 KVL 01 D (BACK FACE) STEP 3 210° MNG - 01 Page 5...
- Page 7 STEP 4 MNG - 01 210° STEP 5 210° Page 6...
- Page 8 STEP 6 MNG - 01 210° STEP 7 210° Page 7...
- Page 9 STEP 8 H 01 210° MNG - 01 STEP 9 x 24 VD - 02 Page 8...
- Page 10 STEP 10 VD - 03 BO - 01 AF - 01 OT-054 PM - 01 Page 9...
- Page 11 STEP 11 CAUTION DO NOT UNLOCK BEFORE INSTALL MKZ - 02 (L/R) IM - 01 AL - 02 BU - 01 CT - 02 AL - 01 Page 10...
- Page 12 DD - 01 Ø 10 mm / 0,254 inch STEP 12 PL - 02 VD - 01 VTB - 01 DSE - 01 TAP - 01 Page 11...
- Page 13 STEP 13 45-50 Page 12...
- Page 14 STEP 14 SN - 01 PL - 01 CT - 01 AL - 01 SG - 01 AL - 02 Page 13...
- Page 15 STEP 15 KOR 01 Page 14...
- Page 16 STEP 16 CAUTION ! BE SURE THE HEADBOARD IS IN CLOSED POSITION WHEN BED BOX IS CLOSED KLF 01 (fabric cover) TTC 01 Page 15...
- Page 17 210° STEP 17 MNG - 01 STEP 18 VDA - 01 AL - 02 Page 16...
- Page 18 STEP 19 wheels are fixed on (P1x2/R2x2) Page 15...
- Page 19 7. Single, Twin, Twin XL beds accommodate the weight of one person. Improperly sleeping more than one person risks injury to person and damage to property. 8. Before any un-mounting or disassembly please contact Multimo for technical support and instruction. Failure to properly detach risks injury to person and damage to property.
