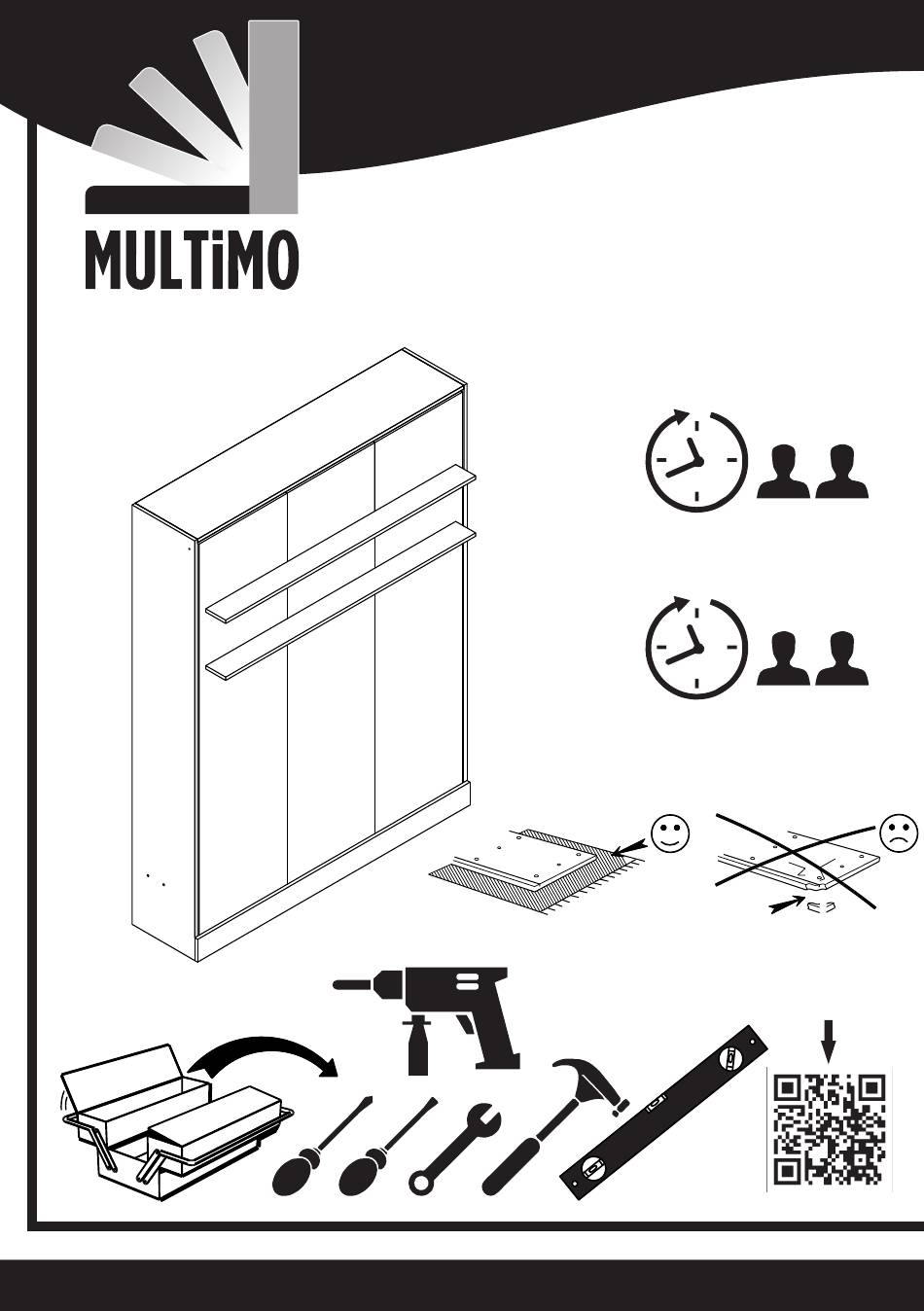

- Page 1 A 700 - PRIMER QUEEN BED min. Technical Service min. End User VIDEO https://youtu.be/bnZgcHi__Z4 Assembly Instructions...
-
Page 2: Accessories List
(inch) (m m ) Track Title Piece T hick ne ss L e ngth Width Pie ce T hick H e ight M o st 2210 0,71 87,01 14,96 1620 0,71 63,78 14,96 1620 0,71 63,78 14,96 1620 0,71 63,78 10,24 1620 0,71... - Page 3 Page 2...
- Page 4 STEP 1 MNX - 02 KVL 01 MNX - 02 x 8 A (R/L) KVL - 01 x 1 B - C KVL - 01 x 4 VIDEO MNX - 02 x 9 https://youtu.be/bopC9HWNQcI Page 3...
- Page 5 STEP 2 KVL 01 KVL - 01 x 8 KVL - 01 x 4 STEP 3 MNG - 01 MNG - 01 x 5 VIDEO 210° https://youtu.be/9UiE6zvdzuY Page 4...
- Page 6 STEP 4 MNG - 01 MNG - 01 x 8 210° VIDEO https://youtu.be/9WIIw28g0mY Page 5...
- Page 7 STEP 5 MNG - 01 MNG - 01 x 8 210° VIDEO https://youtu.be/9WIIw28g0mY Page 6...
- Page 8 STEP 6 CT - 08 OT - 054 MNG - 01 AL - 01 STEP 7 MNG - 01 MNG - 01 x 4 210° VIDEO https://youtu.be/3YzKQ-1HtGU Page 7...
- Page 9 STEP 8 Remove the screw Vidayı çıkarın CAUTION DO NOT UNLOCK BEFORE INSTALL HF - 01 (L/R) IM - 02 AL - 02 VIDEO https://youtu.be/Z1-KXyrAlL4 Page 8...
- Page 10 ATTENTION!!! STEP 9 Must be secured to the wall made of brick, concrete or similarly strong material. Mounting to wooden or metal studs is also acceptable. Do not mount directly to sheetrock or paper-mache type walls not supported by studs. DD - 01 Ø...
- Page 11 WALLS MADE OF DRYWALL WITH WOODEN OR METAL STUDS STEP 9-1 Ø 10 mm / 0,254 inc FİRST LOCATE THE STUDS BY USİNG ''STUD FİNDER'' İN THE WALL AND DRİLL İT ACCORDİNG TO THE HEİGHT MEASURMENTS GİVEN ON THE SİDE. UPPER HOLES SHOULD BE DRİLLED FOR ATTACHİNG BED AT NEXT STEP .
- Page 12 STEP 10 KVL - 01 x 8 MNX - 02 x 6 MNX - 02 KVL 01 MNX - 03 MNX - 03 x 10 MNX - 02 x 11 H - K KVL - 01 x 6 M-(R/L) VIDEO KVL - 01 x 6 https://youtu.be/WczsPh6s0RA Page 11...
- Page 13 STEP 11 210° MNG - 01 MNG - 01 x 20 VIDEO https://youtu.be/4Kqd8Z32wpQ Page 12...
- Page 14 210° STEP 12 MNG - 01 MNG - 01 x 14 210° STEP 13 MNG - 01 x 14 MNG - 01 VIDEO https://youtu.be/-a3M-ikq6iw Page 13...
- Page 15 STEP 14 VDA - 01 X 8 STEP 15 HF - 01 (R/L) Mind the direction! HF-01(R/L) CT - 04 X 4 VIDEO AL - 01 https://youtu.be/ktx0wP65PEE Page 14...
- Page 16 STEP 16 VDA - 01 X 12 VIDEO https://youtu.be/m4-9LJGLonM Page 15...
- Page 17 STEP 17 LET THE STOPPER LOCK MOVE DOWN !!! STEP 18 VIDEO https://youtu.be/1aAWhHcW3iM Page 16...
- Page 18 STEP 19 STEP 20 YKR- 01 PL - 04 X 2 VTB - 01X 2 KKS - 01 X 2 VIDEO PLEASE INSERT THE FIXING SCREW !!! https://youtu.be/MPczvcHLtPw Page 17...
- Page 19 With seasonal humidity change please inspect the interior and exterior of the furniture for deformation and/or discoloration. Before any un-mounting or disassembly please contact Multimo Beds for technical support and instructions. Failure to properly detach may result in personal injury and damage to property.
