Beltronics Express 936 Operating Instructions Manual

Radar/laser/safety detector
Hide thumbs Also See for Express 936:

Advertisement

Quick Links

TM
with 65 Digital Voice Messages and Digital Display
Operating
instructions
for model
E936CS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Express 936 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Beltronics Express 936

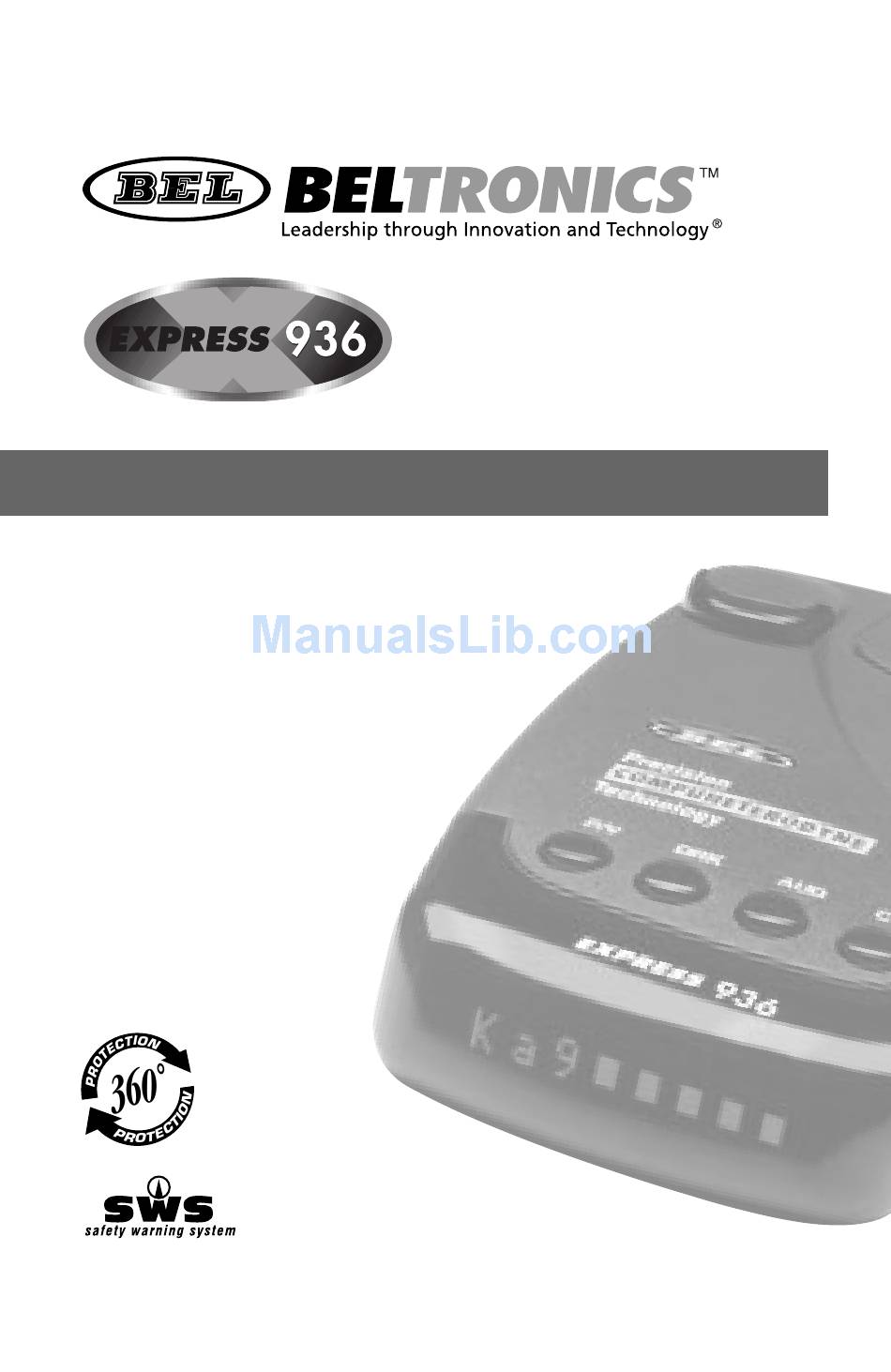

  • Page 1: Operating Instructions

    with 65 Digital Voice Messages and Digital Display Operating instructions for model E936CS...
  • Page 2 Thank you for purchasing an express 936 Radar/Laser/Safety detector. express 936 offers the most advanced technology available for detecting all Radar and Laser speed monitoring devices. In addition, express 936 features Digital Voice, Text Message Display and the Safety Warning System To ensure maximum benefit from your new unit, please read all instructions before operating your unit.
  • Page 3: Table Of Contents

    table of contents Profile of Features l page 4 Description of Features l page 5 Power Up Test Sequence l page 5 Tutorial Mode l page 5 Memory Retention of Feature Selections l page 6 Adjusting the Audio Level l page 6 drk (Dim/Dark) Button l page 6 aud (Audio Mute) Button l page 7 cty (City/Highway) Button l page 8...
  • Page 4: Profile Of Features L

    profile of features p/v (Power/Volume) Button: pressing p/v briefly will turn the unit on. Pressing p/v a second time will bypass the power up test sequence. Pressing p/v and holding will change the audio level. Text Message Display: communicates all mode selections (i.e. DIM, DARK, CITY, HIGHWAY, Radar band and signal strength, presence of Laser and sws messages received.
  • Page 5: Description Of Features L

    Audio Alert Speaker: all audible alerts and Digital Voice Messages are emitted from this location. Power Jack: using the straight or coiled cord, express 936 operates in any vehicle with a 13.8 volt dc negative ground system (10.5 volt to 16 volt range).
  • Page 6: Memory Retention Of Feature Selections L

    Memory Retention of Feature Selections Any time express 936 is turned off or unplugged from the cigarette lighter socket, all feature settings are retained in the unit’s memory. Memory retention eliminates the need to reset your preferred feature settings each time your unit is turned off and then back on.
  • Page 7: Aud (Audio Mute) Button L

    aud (Audio Mute) Button Continuous Audio Alert Pattern Your unit has been preset at the factory to provide an X, K, Ka or Laser audio alert and Digital Voice announcement of the signal detected. Digital Voice prompts are provided once after the initial audio alert.(Note: Digital Voice can be turned off, see page ) This standard setting is often preferred when background noise in a vehicle is loud.
  • Page 8: Cty (City/Highway) Button L

    cty (City X/Highway) Button The cty X mode has been designed to effectively reduce unwanted audio alerts caused by intrusion alarms, door openers, and other devices which share X band with police Radar—without reducing sensitivity. Signals from non-police Radar sources are frequently encountered in urban and sub- urban areas, making use of this mode ideal in these areas.
  • Page 9: Reset To Factory Settings L

    Reset to Factory Settings You can reset your unit to factory settings for volume, drk, aud, cty and Selectable Features.With the unit off, press and hold cty button, then press aud and p/v buttons simultaneously. The display will briefly show “ unit is now reset to its original factory settings and ready for operation.
  • Page 10 display and a short audible “beep” will sound indicating you are now in the Selectable Features Mode. Immediately after the “beep”, the display will show the status of the sws ™ Selectable Feature: “ the aud button to select on or off for this feature. Pressing the cty button moves to the next Selectable Feature: vg-2 Guard ”...
  • Page 11 regardless of which mounting position you choose, follow the basic steps on the following page: Consider occupant safety when selecting a mounting location. Choose a location where the unit will not be hazardous in case of an accident. For optimum detection, position your unit with a clear, unobstructed view of the road from the front and rear.
  • Page 12 Use a screwdriver or a small coin to adjust the angle of the suction-cup mount until the base plate is level. Slide detector onto base plate until it snaps into place. Note—some vehicles have a plastic coating on the inside of the windshield designed to protect occupants in case of an accident.
  • Page 13 Three Radar Frequencies Three microwave frequencies have been allocated by the fcc (Federal Communications Commission) and are used for traffic Radar: X, K and Super Wideband Ka. Your express 936 provides detection to ALL known Radar traffic devices. Total Tracking Laser ™...
  • Page 14 interpretation of alerts Radar Alerts The alerts provided by your unit are affected both by the type of transmission (continuous wave or instant-on), and the position of the Radar source. Generally, when you drive closer to a Radar source, the intensity of the received signal increases, resulting in the increase of the number of bar graph segments and a corresponding increase in the audio alert rate.
  • Page 15 Stationary Radar aimed around a corner Under this circumstance, reaction time is considerably reduced. Since the Radar signals are transmitted across your line of travel, there is generally no signal available to receive until you are relatively close to the source. Once an alert is received, expect the strength of the signal to increase very quickly.
  • Page 16 Moving Radar behind you, traveling in the same direction. Police Radar signals transmitted from behind your vehicle can be received when reflected by objects in front of you such as large signs, bridges and trucks.As you drive, the size and configuration of these objects are constantly changing causing the strength of any reflected Radar signal received to vary.
  • Page 17: Alerts L

    Laser alerts should be taken seriously. Guard ® Alert Whenever your express 936 detects signals from the Interceptor vg-2 (Radar Detector Detector), the vg-2 Guard feature engages. (vg-2 Guard 9 for more information). A distinct, 2-second audio warning coupled with the Digital Voice announcement and Text Message of “vg-2 alert”...
  • Page 18 Message which is repeated twice. After the Digital Voice, the unit will continue to present the message and provide the “clicking” tone for as long as an sws You can replay the last sws the drk button within 30 seconds of receiving an sws Both Digital Voice and Text Message are replayed.
  • Page 19: Conditions That Affect Laser Alerts L

    performance verification Conditions that Affect Radar Alerts If you feel your unit is not alerting properly, keep in mind that there are many conditions that influence the intensity or duration of an alert: The police are using instant-on/pulsed Radar, in which case no signal is transmitted until visual contact has been made with your vehicle.
  • Page 20: Troubleshooting

    troubleshooting Solutions for Common Problems If your unit is not operating properly,please refer to the outline below. Problem Unit not receiving power “Poor detection range” Erratic or frequent alerts Partial or no display If you experience a problem with your unit that is not covered in this outline please call,Monday to Friday,9 am–5 pm est,for assistance: 1-800-341-2288 usa consumer warranty...
  • Page 21: Service L

    manufactures its products using parts and components which are new or equivalent to new in accordance with industry standard practices. The enforceability of this warranty is limited to the original consumer purchaser and is not transferable to, or enforceable by, any subsequent owner. In the event of a defect, malfunction or other failure to conform to this warranty, or replace the unit at no charge.
  • Page 22: Post-Warranty Service L

    the instructions below. To obtain service during the one-year warranty period, please call the appropriate number below to obtain an RA number and shipping instructions. Remember to return your detector postage paid, insured and in suitable packaging. 1-800-341-2288 1-800-268-3994 For your own protection, obtain a proof of delivery receipt. Shipping costs are your responsibility.
  • Page 23: Accessories L

    Transition to Microstrip Mixer Maximum Dimensions: 5.3"(l) x 3.1"(w) x 1.8"(h) Weight: 9.0 ounces BELTRONICS reserves the right to incorporate design improvements which may not be reflected in the specifications listed in this owner’s manual. accessories If you require any additional accessories, replacement...
  • Page 24 Head Office 2422 Dunwin Drive Mississauga, Ontario Canada L5L 1J9 (905) 828-1002 (905) 828-2951 FAX www.beltronics.com This product is subject to one or more of the following patents: Other Patents Pending Safety Warning System l.c.–Patents Pending. , Fundamental Mixer Technology,...
