Summary of Contents for Beltronics E936CS

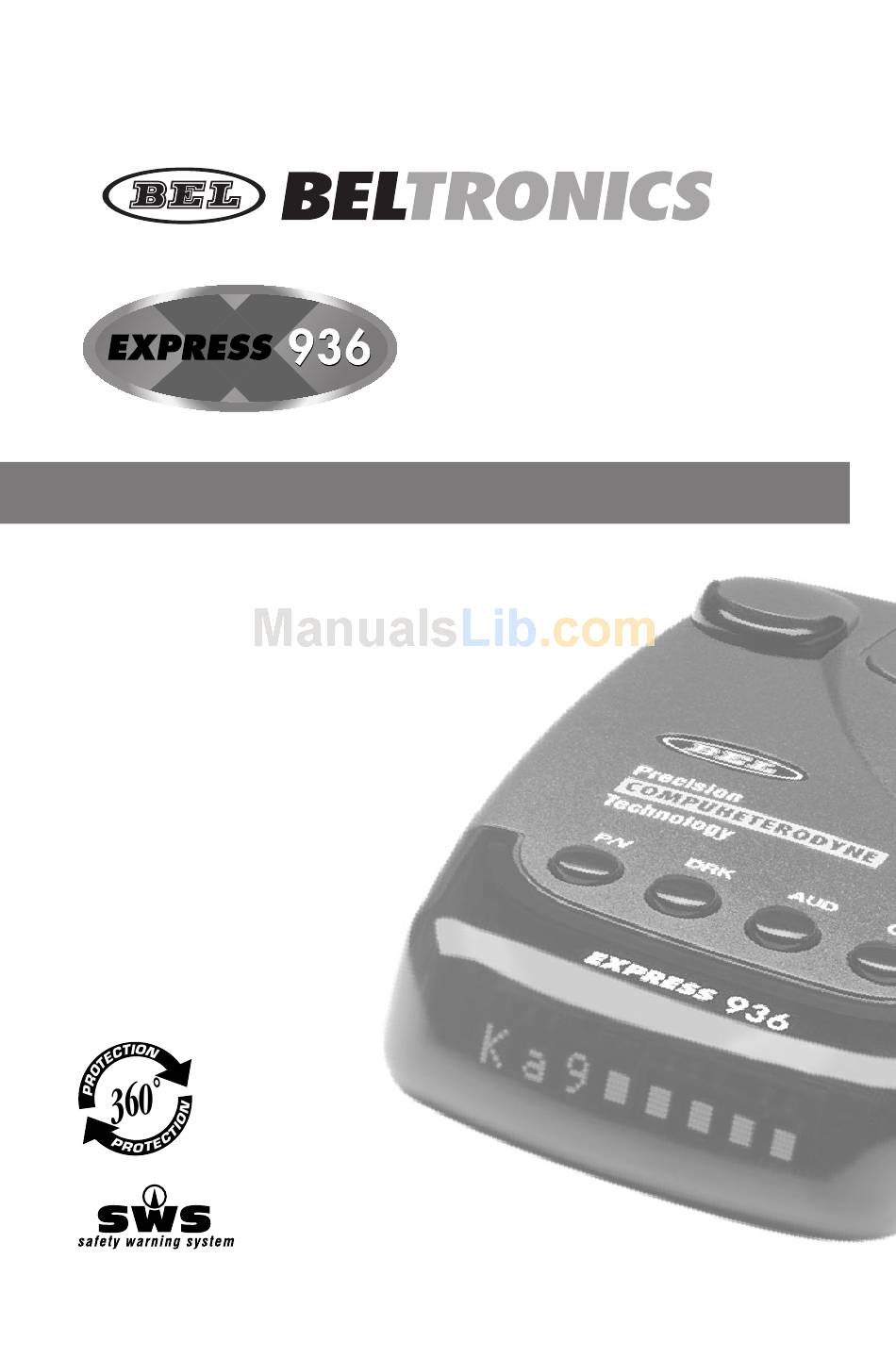

- Page 1 Ultimate Performance. Proven Technology. with 65 Digital Voice Messages and Digital Display Operating instructions for model E936CS...
-
Page 2: Selectable Features
Remember, owning a Radar detector does not give you a license to speed. Alerts from a Radar detector serve as an effective reminder to check your speed. Laws vary throughout North America governing the use of a Radar detector. -
Page 3: Table Of Contents
TABLE OF CONTENTS Profile of Features ➤ page 4 Description of Features ➤ page 5 Power Up Test Sequence ➤ page 5 Tutorial Mode ➤ page 5 Memory Retention of Feature Selections ➤ page 6 Adjusting the Audio Level ➤ page 6 DRK (Dim/Dark) Button ➤... -
Page 4: Profile Of Features
PROFILE OF FEATURES (Power/Volume) Button: pressing the unit . Pressing power up test sequence. Pressing the audio level. Text Message Display: communicates all mode selections (i.e. DIM, DARK, CITY, HIGHWAY, and AUTOMUTE) and confirms Radar band and signal strength, presence of Laser and sws messages received. -
Page 5: Description Of Features
Features is displayed: “SWS on”, “SWS off”, “VG-2 on”, “VG-2 off”, “SWSvoice”, “SWSclick”, ”VOICEon”, “VOICEoff” (see page 9). If your unit displays information other than this standard power-up test sequence, return it to BELTRONICS for servicing. To bypass the power-up test sequence, press the sequence. Tutorial Mode The tutorial mode allows you to become more familiar with all audible and visual alerts. -
Page 6: Memory Retention Of Feature Selections
sample alerts) press through the alerts. During sws move forward in the sws initially in the display confirming your selecion. Pressing the button allows you to listen to the sws viewing it in the display. Press the the next message; press the This allows you to review all 60 messages. -
Page 7: Aud (Audio Mute) Button
AUD (Audio Mute) Button Continuous Audio Alert Pattern Your unit has been preset at the factory to provide an X, K, Ka or Laser audio alert and Digital Voice announcement of the signal detected. Digital Voice prompts are provided once after the initial audio alert. - Page 8 CTY (City X/Highway) Button X mode has been designed to effectively reduce unwanted audio alerts caused by intrusion alarms, door openers, and other devices which share X band with police Radar—without reducing sensitivity. Signals from non-police Radar sources are frequently encountered in urban and sub- urban areas, making use of this mode ideal in these areas.
-
Page 9: Entering Selectable Features Mode
Reset to Factory Settings You can reset your unit to factory settings for volume, and Selectable Features. With the unit button, then press display will briefly show “RESET” and provide two “beeps”. Your unit is now reset to its original factory settings and ready for operation. -
Page 10: General Guidelines
display and a short audible “beep” will sound indicating you are now in the Selectable Features Mode. Immediately after the “beep”, the display will show the status of the sws Selectable Feature: “SWS on” or “SWS off”. Press ™ the AUD button to select Pressing the Feature: -2 Guard... - Page 11 To achieve optimum performance,regardless of which mounting position you choose, follow the basic steps on the following page: Consider occupant safety when selecting a mounting location. Choose a location where the unit will not be hazardous in case of an accident. For optimum detection, position your unit with a clear, unobstructed view of the road from the front and rear.
- Page 12 Slide the detector onto the mounting bracket until it “locks” into place. To adjust the angle of the bracket, squeeze and hold the circular “buttons” on the sides of the bracket; this will allow you to angle the bracket to your windshield.
-
Page 13: Understanding Radar, Laser And Sws
Note—the tip is in two pieces; be careful not to lose either piece or the spring inside the holder. (See diagram on page 13). UNDERSTANDING RADAR, LASER AND SWS Three Radar Frequencies Three microwave frequencies have been allocated by the FCC (Federal Communications Commission) and are used for traffic Radar: X, K and Super Wideband Ka. -
Page 14: Interpretation Of Alerts
INTERPRETATION OF ALER TS Radar Alerts The alerts provided by your unit are affected both by the type of transmission (continuous wave or instant-on), and the position of the Radar source. Generally, when you drive closer to a Radar source, the intensity of the received signal increases, resulting in the increase of the number of bar graph segments and a corresponding increase in the audio alert rate. - Page 15 Stationary Radar aimed around a corner Under this circumstance, reaction time is considerably reduced. Since the Radar signals are transmitted across your line of travel, there is generally no signal available to receive until you are relatively close to the source. Once an alert is received, expect the strength of the signal to increase very quickly.
-
Page 16: Typical False Alert (Radar)
Typical False Alert (Radar) Ideally, a Radar detector should only alert in the presence of police Radar. However, because other devices share X band with police Radar, false alerts sometimes occur. Generally, a false signal produces only a short audio and visual alert. -
Page 17: Laser Alerts
Alert ® Whenever your EXPRESS 936 detects signals from the Interceptor VG -2 (Radar Detector Detector), the VG -2 Guard feature engages. ( VG -2 Guard 9 for more information). A distinct, 2-second audio warning coupled with the Digital Voice announcement and Text Message of “... - Page 18 Message which is repeated twice. After the Digital Voice, the unit will continue to present the message and provide the “clicking” tone for as long as an sws You can replay the last sws button within 30 seconds of receiving an sws Both Digital Voice and Text Message are replayed.
-
Page 19: Conditions That Affect Radar Alerts
PERFORMANCE VERIFICATION Conditions that Affect Radar Alerts If you feel your unit is not alerting properly, keep in mind that there are many conditions that influence the intensity or duration of an alert: The police are using instant-on/pulsed Radar, in which case no signal is transmitted until visual contact has been made with your vehicle. -
Page 20: Consumer Warranty
TROUBLESHOOTING Solutions for Common Problems If your unit is not operating properly, please refer to the outline below. Problem Unit not receiving power “Poor detection range” Erratic or frequent alerts Partial or no display If you experience a problem with your unit that is not covered in this outline please call, Monday to Friday, 9 1-8OO-341-2288 CONSUMER WARRANTY... - Page 21 In the event of a defect, malfunction or other failure to conform to this warranty, BELTRONICS will, at its sole discretion, repair or replace the unit at no charge. You are responsible for all shipping costs in connection with warranty service pursuant to this warranty.
-
Page 22: Service
the instructions below. To obtain service during the one-year warranty period, please call the appropriate number below to obtain an RA number and shipping instructions. Remember to return your detector postage paid, insured and in suitable packaging. 1-8oo-341-2288 USA 1-8oo-268-3994 CAN For your own protection, obtain a proof of delivery receipt. -
Page 23: Accessories
Transition to Microstrip Mixer Maximum Dimensions: 5.3”(L) X 3.1”(w) X 1.8”(H) Weight: 9.0 ounces BELTRONICS reserves the right to incorporate design improvements which may not be reflected in the specifications listed in this owner’s manual ACCESSORIES If you require any additional accessories, replacement... - Page 24 Ultimate Performance. Proven Technology. Head Office 2422 Dunwin Drive Mississauga, Ontario Canada L5L 1J9 (905) 828-1002 (905) 828-2951 FAX www.beltronics.com This product is subject to one or more of the following patents: #4,571,593 #4,630,054 #4,961,074 #4,952,936 #5,402,087 #5,446,923 Other Patents Pending Safety Warning System .-Patents Pending.
