Summary of Contents for Xoro DAB 55

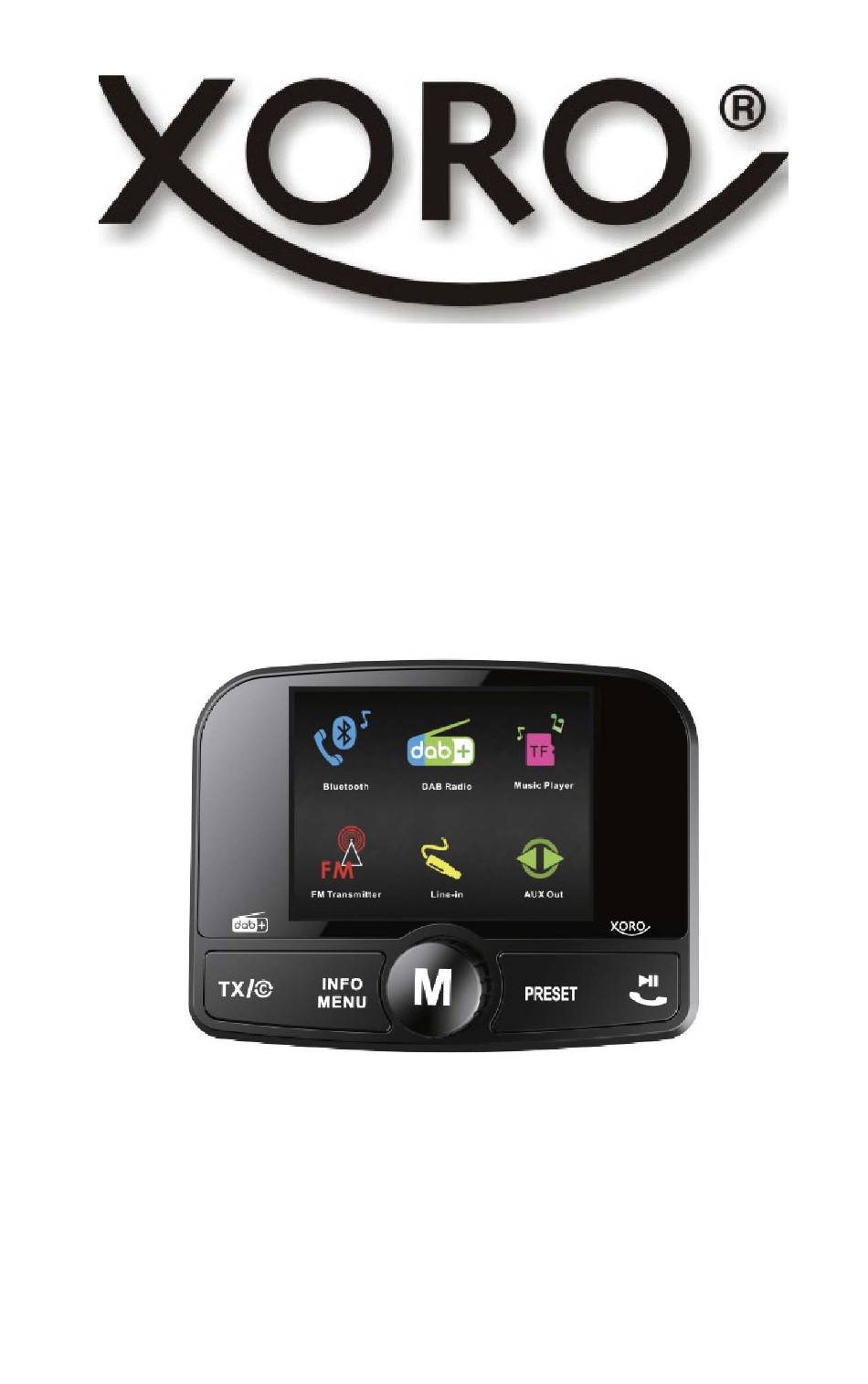

- Page 1 FREE TO CHOOSE INNOVATIONS XORO DAB 55 User Manual...
- Page 3 Service following function. TA function: Traffic announcement function FM transmitter function is combined in this model. Line-out function, to get the best sound quality through the connecting to Car's Aux-in. Draws power from the car's cigarette lighter. User Manual XORO DAB 55...
- Page 4 ≤ 3 nW (-55.2dBm) Max. radiated transmission power Audio Line Out 3.5mm Stereo Jack Dimension 90*66*27mm Net Weight 78g (approx.) Packing accessories: Car DAB+ Radio Adapter Magnet Antenna Giftbox User Manual Suction Holder Audio Cable User Manual XORO DAB 55...
- Page 5 TX/© 5.Play/pauseanswer phone/ 1.FM transmitter/ Adjust LCD brightness full scan 2.Menu 4.Favorite radio/Convert TF play mode 3.Switch mode/multi-function 5V Output .Antenna jack 8.Audio out jack 9 .AUX IN jack mirnu <Bl 10.TF card 11 .ON/OFF User Manual XORO DAB 55...
- Page 6 Antenna jack Audio out jack AUX in jack TF card Power ON/OFF Suction holder installation method: The DA B 55 has a metallic back side and will be placed on the magnetic part of the holder. User Manual XORO DAB 55...
- Page 7 Surface, the suction holder will not adhere perfectly. Better put it on the windshield. DAB/DAB+ Antenna type: We have made the antenna based with COAXIAL POWER SUPPLY for our own designed antenna. lf you use other brand antenna, it may damage the unit. User Manual XORO DAB 55...
- Page 8 3.5mm audio jack: Connect the AUX cable (included) from the out jack of the DAB 55 with the AUX input jack of your car or car radio. For a better Sound quality, if your car has an AUX input, we always recommend you to use the AUX cable.
- Page 9 5. Short press turn on, Short press turn off. PRESET mode: Short press PRESET , and then rotate the M button to listen the favorite station which you saved. Turn on your in-car audio system. User Manual XORO DAB 55...
- Page 10 Smartphone. BT music playing Once paired with phone Bluetooth,the unit will play music automatically, if not, p ress '- button to start playing or pausing. Enter the menu setting to switch on/off the Bluetooth. User Manual XORO DAB 55...
- Page 11 M button, then press M button again. Menu setting: Long press "MENU" button for 3 seconds to enter menu setting Rotate M button to choose setting option Short press the M button to confirm the selected option User Manual XORO DAB 55...
- Page 12 You can select your own language DELETE ALL PRESETS: You can delete your selected presets SERVICE FOLLOWING: By selecting this Service DAB 55 will automatically change the frequency when you are driving to other city, so can always provide your selected radio station. TAMSG: TA is traffic announcement message Service.
-
Page 13: Factory Reset
FACTORY RESET: Your DAB 55 will be returned to the Factory adjustments. SOFTWARE VERSION: You can see the software version of your DAB 55 CAUTIONS: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE ANY COVER. NO USER-SERVICEABLE PARTS INSIDE, REFER ANY SERVICING TO QUALIFIED SERVICE PERSONNEL. -
Page 14: Recycling Information
Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the the EU Declaration of Conformity is available at the following internet address: www.xoro.de/downloads/ following internet address: www.xoro.de/downloads/ User Manual XORO DAB 55... - Page 16 FREE TO CHOOSE INNOVATIONS XORO b y MAS Elektronik AG Weide g rund 3 21614 Buxtehude Germany Tel: +49(0)4161 800 24 24 www.xoro.de...
