- Page 1 ® Instruction Manual Please Read Fully Before Installation www.XPOLE.com Copyright© Vertical Leisure Ltd. 2018 Version 1.0 All rights reserved.
- Page 2 We have spent countless hours researching, designing and creating it. Acting as a bridge between the world of pole and aerial, the X-FLY allows you to experience pole in a whole new dimension. The X-FLY can be used with the X-POLE ®...

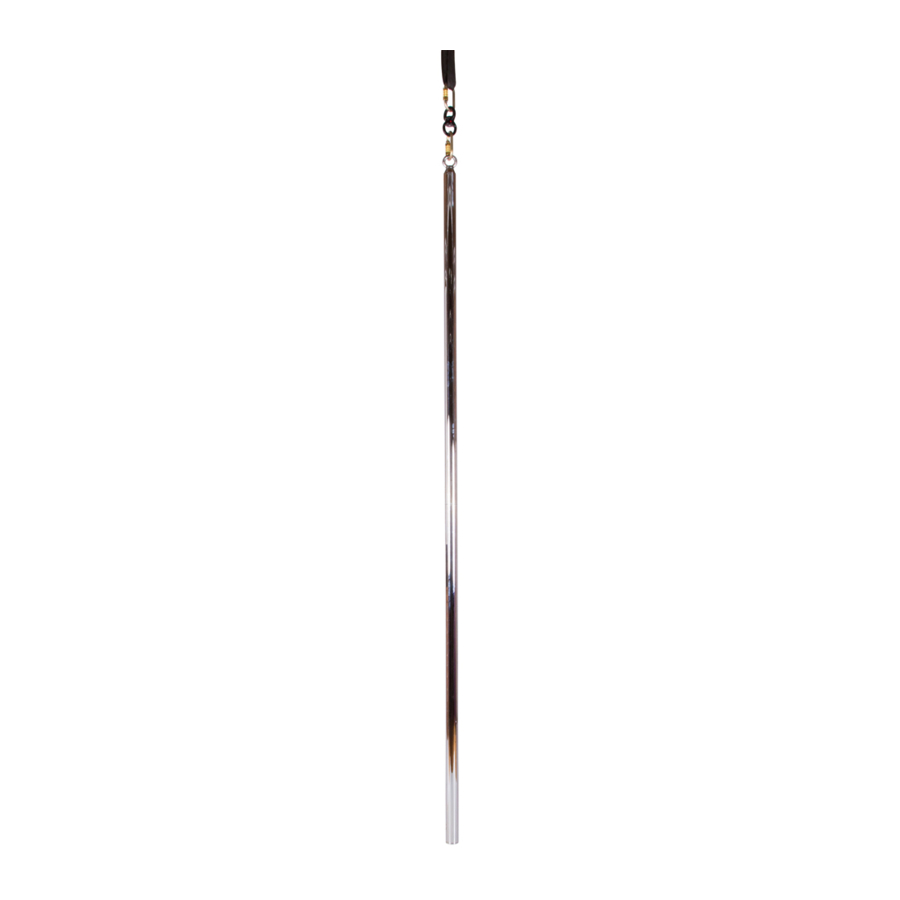

- Page 3 LEADERS IN POLE & AERIAL FITNESS Product Basic 2x Piece assembled X-Fly Rigging Eye Rigging Eye Insert A-pole Aerial X-joint Safety Locking Screw X-Joint Tightening screw X-Joint Tightening screw B-pole 2410mm (7’ 10”) Safety Locking Screw (2 x 1180mm tubes)
- Page 4 How does the Aerial X-Joint work? The X-FLY uses a revolutionary new joint called the ‘Aerial X-Joint’ that expands inside the pole tubes and has 2x additional locking screws to lock them together and stop them from coming apart/separating. To optimise the Aerial X-Joint’s key features and ensure correct operation, it is important that you carefully follow these instructions.
- Page 5 CAUTION: X-FLY should only be used with the appropriate 400mm extension and Aerial X-JOINT. If you would like a longer X-FLY, please contact your local X-POLE office, which you can find at www.xpole.com Copyright© Vertical Leisure Ltd. 2018 Version 1.0...
- Page 6 X-POLE A-FRAME at the maximum height (3.48m), which requires a floor space of 8.9sqm. Alternatively, the X-FLY can be hung from a suitable aerial rigging point. The height needed will depend on the connection method used. hold the pole at a 45˚angle walk 360˚in a circular...
- Page 7 You will need a carabiner, a swivel and an additional carabiner to then connect to the eye bolt of the X-FLY. The longer the strop/spanset, the lower your X-FLY will hang and the more movement you will have. Always aim for 300mm-500mm clearance from the floor to the bottom of the X-FLY.
- Page 8 Auto Lock Delta Oval CONTRACT CONTRACT Required to use the additional X-FLY extension Used to securely rig X-FLY from a suitable aerial rigging point. Used to enable smooth spinning/rotation on an X-FLY. (included in pro set). X-Fly Extensions Safety Mat Strops/Spansets 400mm extensions in Chrome, Stainless Steel and Strops/Spanset used to rig aerial equipment.
- Page 9 The A-FRAME is designed to be a portable aerial rig for Hammocks, Silks, Hoops and the Available in 2 tube diameters SPORT (34mm/1.33in) and PRO (24mm/0.94in) X-FLY Flying Pole (Adjustable height from 2.45m to 3.48m). and 800mm, 850mm, 900mm, 950mm, 1000mm and 1050mm hoop diameters.
-
Page 10: Warranty
X-POLE warrants this product against defects in material or workmanship as follows: X-POLE, at its own discretion, will replace at no charge for parts only or, at its option, replace any product or part of the product that proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance.
