NOVUS Air – IEEE 802.15.4 module
INSTRUCTIONS MANUAL V0.2
Hardware Version: V4A
Firmware Version: 0.4.106
1.
INTRODUCTION
NOVUS Air IEEE 802.15.4 module is a low energy microcontrolled RF transceiver solution for 2.4 GHz IEEE
802.15.4 protocol. The device was developed to complement Novus Automation Inc. solutions, providing a
modular wireless communication interface to its products. Anny application protocol based on the IEEE 802.15.4
standard may be implemented. The module is intended to operate integrated in industrial automation solutions
provided by Novus Automation Inc. and its partners and is not intended to be sold separately.
The physical interface is implemented through the transceiver Atmel AT86RF233, controlled by the ATSML21
chip, a 32-bit Arm Cortex-M0 microcontroller which implements the MAC layer of IEEE 802.15.4 stack and the AT
commands to be used in the application firmware. NOVUS Air can be controlled and configured by sending AT
commands from a host microcontroller through UART interface.
2.
BLOCK DIAGRAM
3.
SPECIFICATIONS
Table 1: Specifications
Model
Power
Communication
Communication Frequency

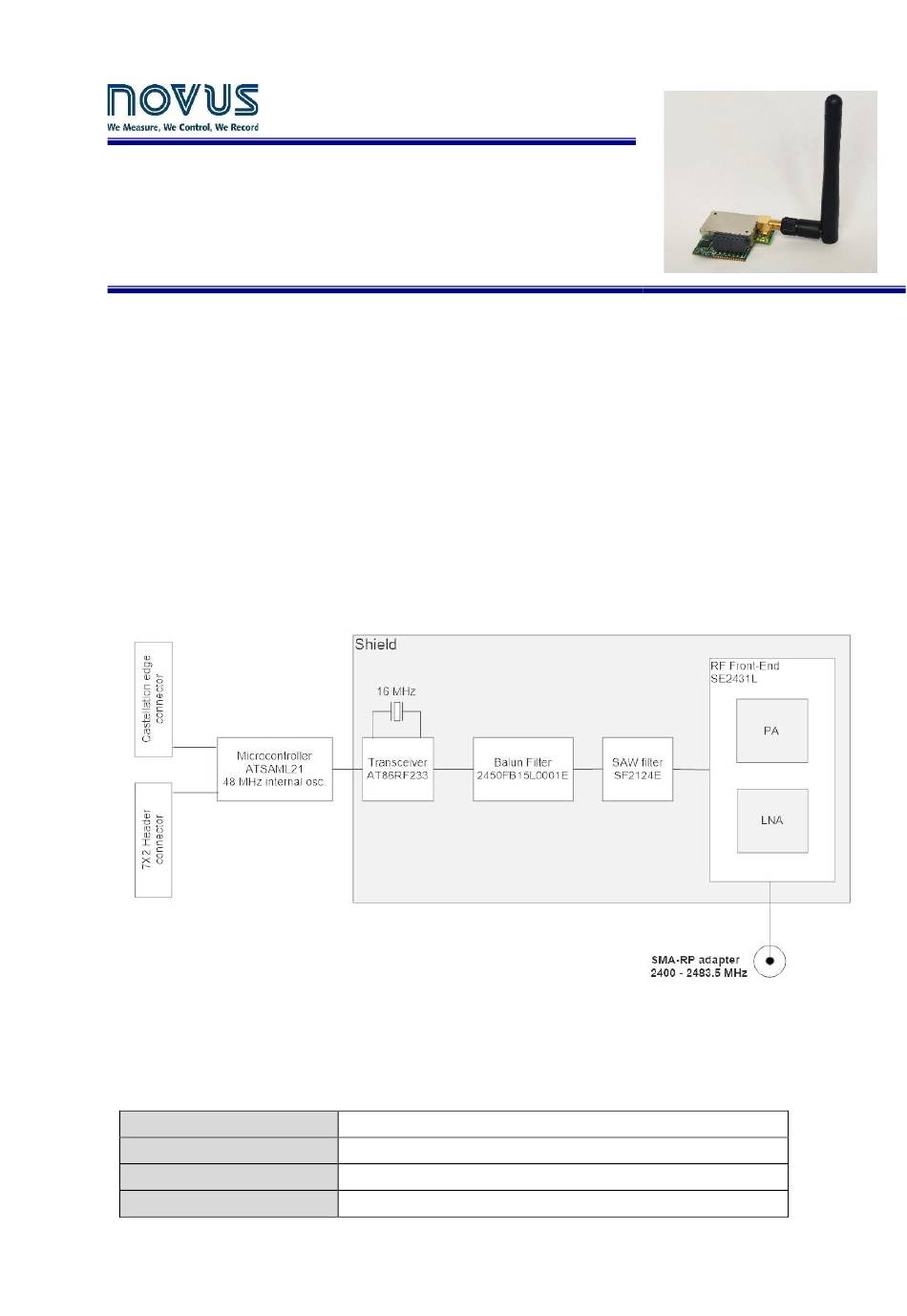

Figure 1: NOVUS Air Block diagram
NOVUS Air IEEE 802.15.4 Module
3.3V
IEEE 802.15.4
2400.0 to 2483.5 MHz
Advertisement
Table of Contents
Related Manuals for Novus Air IEEE 802.15.4
Summary of Contents for Novus Air IEEE 802.15.4
- Page 1 Firmware Version: 0.4.106 INTRODUCTION NOVUS Air IEEE 802.15.4 module is a low energy microcontrolled RF transceiver solution for 2.4 GHz IEEE 802.15.4 protocol. The device was developed to complement Novus Automation Inc. solutions, providing a modular wireless communication interface to its products. Anny application protocol based on the IEEE 802.15.4 standard may be implemented.
- Page 2 20.10 dBm Dimensions 49 x 32.5 x 13 mm + Antenna 105 mm. Operating Temperature -10 to 70ºC Firmware Version 0.4.106 Figure 2 NOVUS Air external construction PIN DESCRIPTION Table 2: Pin description Name Description 3.3V GPIO_1 General Purpose Input/Output...
- Page 3 RST_IEEE_802_15_4 Reset IEEE 802.15.4 Module GPIO_ 4 General Purpose Input/Output WAKE_IEEE_802_15_4 Reset IEEE 802.15.4 Module GPIO_5 General Purpose Input/Output USART_STM32L4_TX External microcontroller UART TX USART_STM32L4_RX External microcontroller UART RX Ground Figure 3: Conector schematics ANTENNA CHARACTERISTICS Table 3: Antenna characteristics Model AR0035EW0119N Antenna Type...
- Page 4 Transmission Power of the module is 20 dBm, what implies that when PA is enabled the transceiver power level is limited to a maximum of 0 dBm by the firmware. Note on RF Output Power Setting: In order to comply with FCC requirements, the NOVUS AIr module has the following power shaping requirements implemented: •...
- Page 5 LABELING INSTRUCTIONS NOVUS Air has been labeled with its own FCC ID number and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the finished product into which the module is installed must display a label referring to the enclosed module.
- Page 6 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 10.2 ANATEL This device does not provide protection against harmful interference and may not cause interference in a properly authorized system.
