Page 1

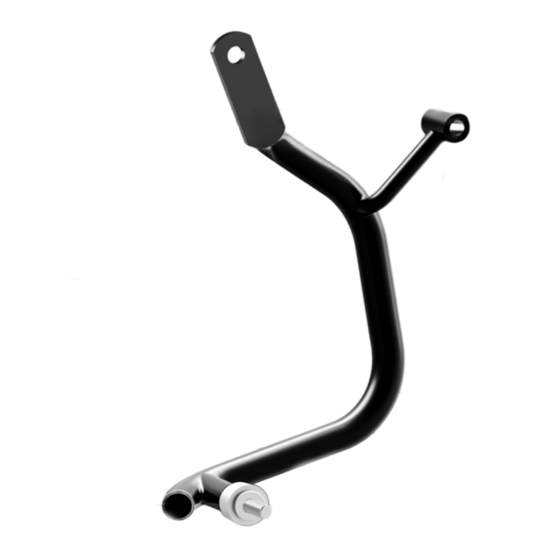

Motorschutzbügel Engine crash bar | Estribo de protección | Barre di protezione motore | Pare-cylindre 35835-002 Artikel.-Nr: Die Nr. 1 weltweit für hochwertiges BMW Motorradzubehör.
Page 2
Legende / file Légende Schraube Anbau Tipp Screw Fitting tip Astuce de montage Schraubensicherung Achtung Thread locking fluid Attention Freinfilets Attention Drehmoment Vergrößerung Torque Magnification Grossissement Torque Montagepaste Fitting lubricant Lubrifiant de montage Bezeichnung / Menge Die Farben der Abbildungen dienen nur der Veranschaulichung. description The colors are for illustrating purposes only.
Page 3
links left/gauche Markierte Schrauben herausdrehen und das schraffierte Kabel (Schaltassistent) aus der Kabelführung ziehen. Release the two screws marked in red , are reused and pull the hatched cable (shift assistant) out of the cable guide. Dévissez les vis marquées, réutilisez et tirez le câble (assistant de commutation) hachuré hors du guide-câble. M10x30 38Nm Jetzt ziehen Sie die Seitenverkleidung, wie auf dem Bild gezeigt,...
Page 4
links left/gauche M10x30 orig. 56Nm 2,5 Nm M10x40 56Nm Führen Sie den Bügel mit der oberen Lasche von unten hinter die Seitenverkleidung und montieren diese lose. Drücken Sie das untere Rohrende in die vorher montierte Hülse. Shift the crash bar with the upper flap from behind the side panel and assemble them loosely.
Page 5
rechts right/droite M10x30 38Nm M10x30 orig. 56Nm M10x40 2,5 Nm 56Nm Die Montage der rechten Seite ist identisch. Einzigst die Seitenverkleidung ist nur mit einer Schraube befestigt. The assembly of the right side is identical. Only the side panel is only fastened with a screw. L‘assemblage du côté...
