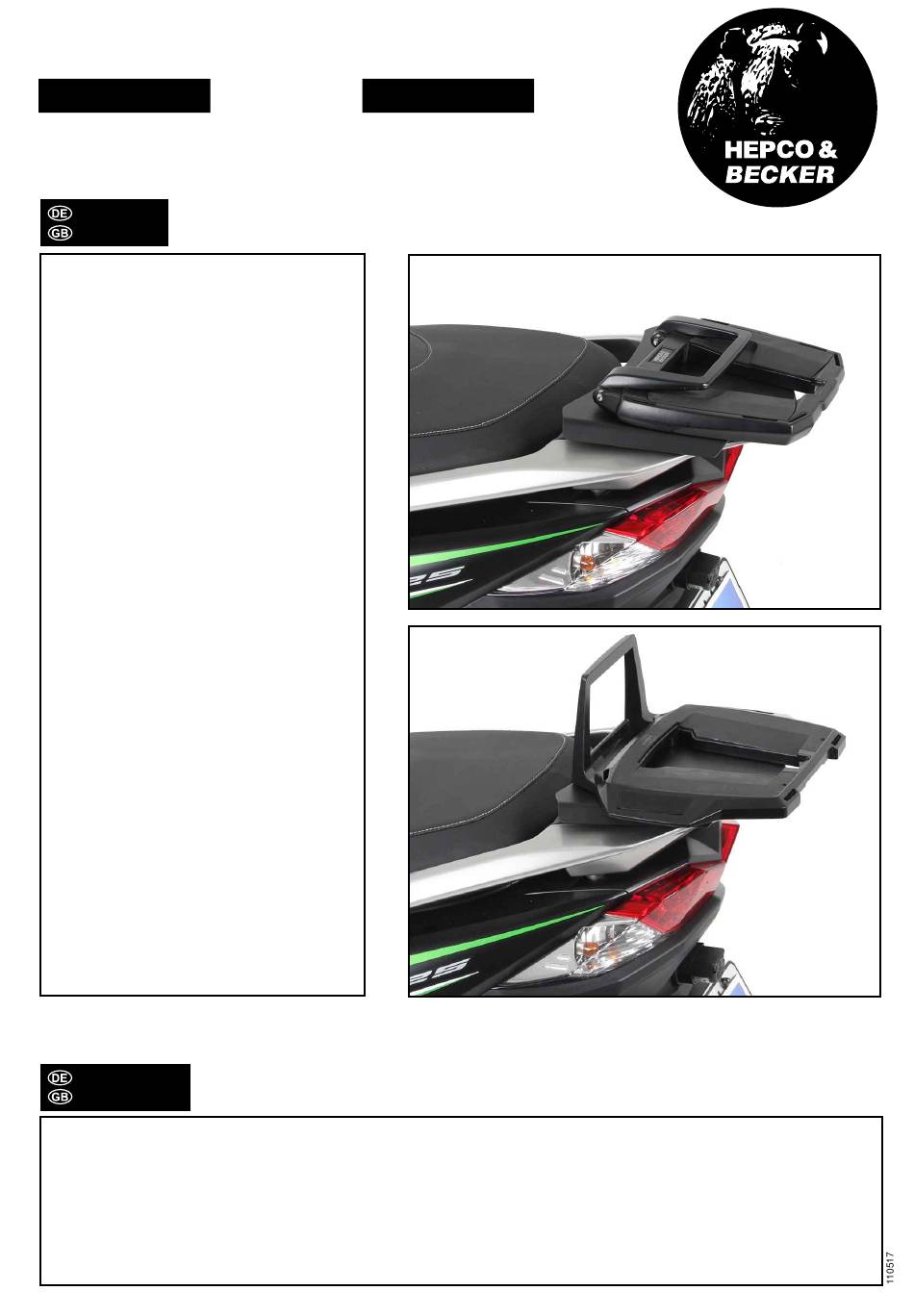

hepco & becker Easyrack 6622520 01 01 Mounting Instructions

For kawasaki j125 and j300

Advertisement

Quick Links

Easyrack
Artikel Nr.: / Item-no.:
2520
662
01 01
KAWASAKI J125 / J300
ab Baujahr 2014 / from date of manufacture 2014
INHALT
CONTENTS
1x
700009688 Gepäckplatte
Bei Bestellung eines Aluracks zusätzlich:
1
799.901HB Alu-Rack
1
799.902HB TC-Bügel für Alu-Rack
1
799.903HB Abdeckplatte für Rack
Bei Bestellung eines Easyracks zusätzlich:
1
700008650 Easyrack
1
700008647 Abdeckblende links
1
700008648 Abdeckblende rechts
1x
700009689 Schraubensatz:
2x
Senkschraube M6x35
2x
Senkschraube M6x30
4x
Zylinderschraube Innensechskant M6x16
4x
Zylinderschraube Innensechskant M6x12
2x
Viereck-Scheibe 20x20x ø6,4
2x
U- Scheibe Ø6,4
2x
Aludistanz Ø20xØ11x20mm
2x
Aludistanz Ø20xØ11x15mm
1x
700009688 Rack adapter
When ordering a Alurack:
1
799.901HB alu-rack
1
799.902HB bow for Alu-rack
1
799.903HB plastic cover for rack
When ordering a Easyrack:
1
700008650 Easyrack
1
700008647 plastic cover left
1
700008648 plastic cover right
1x
700009689 Schraubensatz:
2x
countersunk screw M6x35
2x
countersunk screw M6x30
4x
allen screw M6x16
4x
allen screw M6x12
2x
special washer 20x20x ø6,4
2x
washer Ø6,4
2x
alu spacer Ø20xØ11x20mm
2x
alu spacer Ø20xØ11x15mm
WICHTIG
IMPORTANT
Die Voraussetzung für die Montage ist natürlich eine gewisse technische Erfahrung. Wenn Sie sich nicht sicher sind,
wie man eine bestimmte Arbeit ausführt, sollten Sie diese Ihrer Fachwerkstatt überlassen. Ziehen sie alle zugänglichen
Schrauben zuerst nur locker an. Nachdem alles montiert ist, werden die Schrauben dann auf das entsprechende
Anzugsmoment festgezogen. Dadurch wird sichergestellt, dass das Produkt spannungsfrei angebaut ist. Anzugsmomente
beachten! Nach der Montage alle Verschraubungen auf festen Sitz kontrollieren!
Of course, the assembly requires a certain technical experience. If you are not sure how to execute a determined action,
you should ask your local distributor to do it. First, tighten all screws only loosely. After mounting all parts, the screws
should be tightened to the torque specified. This guarantees, that the product is mounted without tension. Observe
the tightening torques of the manufacturer! Control all screw connections after the assembling for tightness!
Alurack
Artikel Nr.: / Item-no.:
655
schwarz/black
2520
01 01
schwarz/black
Easyrack
Alurack
1
