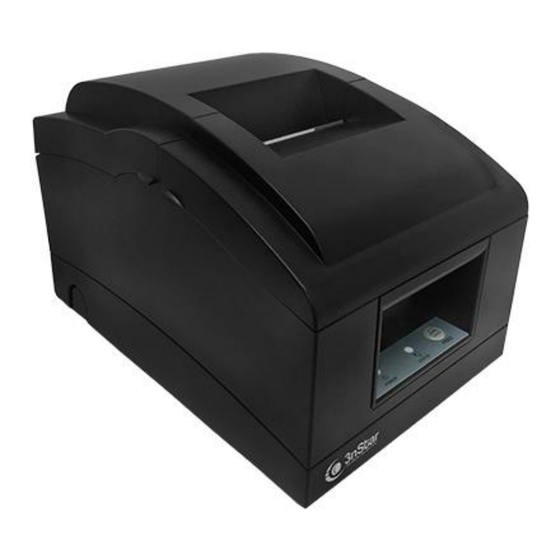

- Page 1 76mm Impact Receipt Printer USER MANUAL RPI007...
-
Page 2: Table Of Contents
RPI007 User Manual Contents Security Notes ............................3 Packing (Printer & Accessories) ........................3 Features ............................... 4 Specifications .............................. 5 Connection ..............................6 Paper roll & ribbon loading ........................6 Setting printing Mode (DIP Switches) ....................7 DIP switch functions ............................7 Light Indicators:............................ -
Page 3: Security Notes
RPI007 User Manual Security Notes • Place the printer on a flat surface. Choose firm, level surface, avoid vibration. • Don’t use and store the printer in high temperature, high humid or polluted place. • Connect power adapter properly to grounded receptacle. Avoid using the same socket with large power consumption devices that can lead to the power fluctuation. -
Page 4: Features
RPI007 User Manual Features • High quality printing • Low- noise and high-speed printing • Includes cash drawer driver • Support black mark orientation • USB, LAN interface optional • Built-in data buffer (Able to receive new data while printing) •... -
Page 5: Specifications
RPI007 User Manual Specifications Physical Color Black Printer Dimension 230mm (L) × 150mm (W) × 138mm (H) Net Weight 1.46Kg Printing Printing Method 9 Pins Impact Dot Matrix Printing Speed 4.5 Lines per Second Resolution 84 dpi Max Printing Width 63.5mm... -
Page 6: Connection
RPI007 User Manual Connection A. Connect AC power cord to power, DC power cord to printer. B. Connect printer and computer/ tablet. C. Connect cash drawer. Paper roll & ribbon loading A. Turn on printer, open top cover. B. Load the paper roll as shown in the image. -
Page 7: Setting Printing Mode (Dip Switches)
RPI007 User Manual Setting printing Mode (DIP Switches) DIP switches can be changed settings, such as: mark sensor, cutter, languages, beeper, print density baud rate etc. DIP switch functions P a g e... -
Page 8: Light Indicators
RPI007 User Manual Light Indicators: Printer has two light indicators, [POWER] blue light and [STATUS] red light. [Status] indicator light: 1. Red light for a long time: printer is ready. 2. Red light flashes rapidly and audible alarm sounds: printer out of paper. -
Page 9: Driver Installation
RPI007 User Manual Driver installation Two methods: 1. Install driver directly. 2. Printing via port directly. METHOD 1: Installing WINDOWS drivers: 1. Double click driver 2. Select: I accept the License Agreement P a g e... - Page 10 RPI007 User Manual 3. Select Default Installation Folder 4. Create a shortcut on the desktop 5. Install following instructions below 10 | P a g e...
- Page 11 RPI007 User Manual 6. Finish 7. Select the port as shown below: 8. Select the series as shown below: 11 | P a g e...
- Page 12 RPI007 User Manual 9. Click “OK” to configure the port 10. Select the detected USB001, click apply as shown below: 12 | P a g e...
-
Page 13: Method 2: Printing To Port Directly
RPI007 User Manual 11. Select general and print test page METHOD 2: Printing to port directly a. There is no need to install the printer drivers. Select the printer port (i.e., USB, LAN) in the application. b. Printing via port needs commands to control the printer, ESC/ POS commands are integrated directly itself. -
Page 14: Troubleshooting
RPI007 User Manual Troubleshooting If the printer has a problem, refer to this chapter to find a solution. In case the problem can’t be solved, please contact your dealer or our technical support: 1. The indicator light of control panel does not work Please make sure the power cord is well connected.
