- Page 1 Novesiastr. 31 41564 Kaarst Germany Operation Manual For Models TC50K TC60K TC100K TC150K TC200K TC300K TC60KA TC75KA TC100KA TC150KA TC300KA To guarantee the best performance of the device, please read this operation manual carefully before use. P a g e...
-
Page 2: Table Of Contents
G&G GmbH Content 1. Overview 2. Specification and technical data 3. Operation method 4. Attachment: Configuration and description of function Change 5. Data transmission 6. Structure 7. Caution for Operation 8. Trouble shooting 9. Packing list 10. Disposal 11. Warranty 12. -
Page 3: Overview

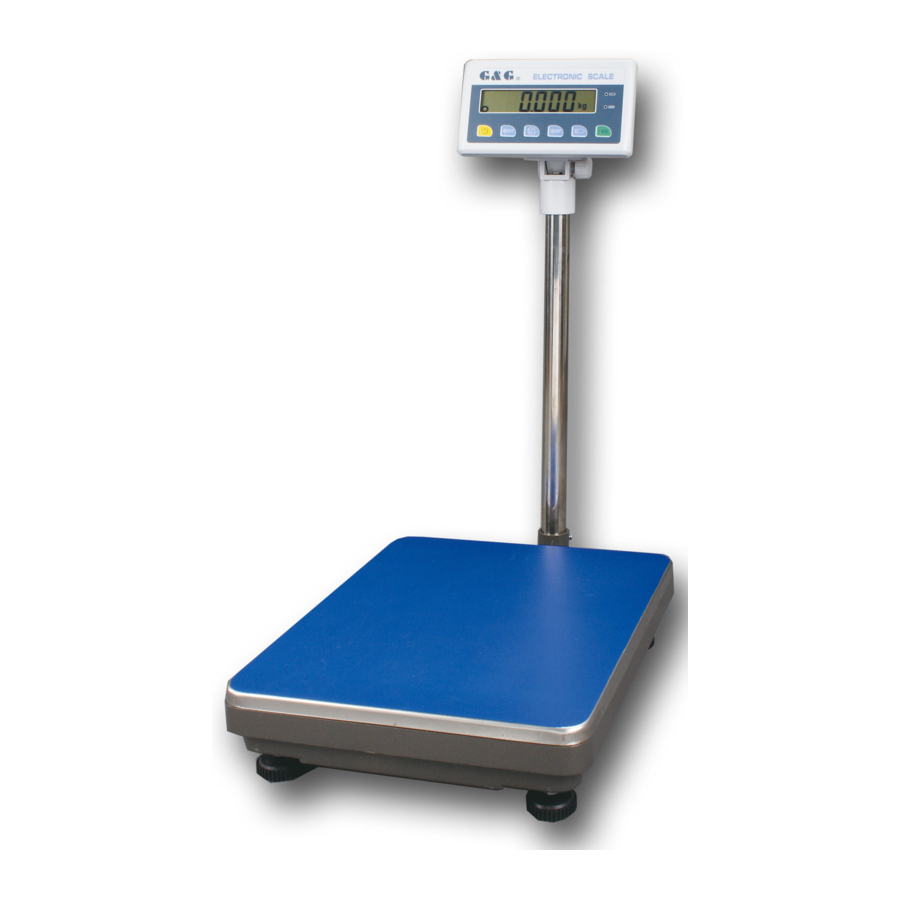

Operating Manual for TC Series of Electronic High Precision Balances ( for following models: TC50K, TC60K, TC100K, TC150K, TC200K, TC300K, TC60KA, TC75KA, TC100KA, TC150KA, TC300KA) 1. Overview Manufactured and well-designed by G&G Measurement Plant, adopting industrial-class high precision sensors, measurement circuit, a “G&G” dedicated single-chip computer system, and controlling system, JJ-A series electronic balances are high-quality electronic weighing machines. - Page 4 Specifications and Performance indexes Depending on the difference of range and resolution, G&G Brand JJ-A series electronic scales are classified to 10 types as shown Model TC50K TC60K TC100K TC150K TC200K TC300K Capacity 50 kg 60 kg 100 kg 150 kg...
-
Page 5: Operation Method
P.S. Only use the provided adapter or the same specifications of the adapter, otherwise there will be dangerous. 3. Operational Method 3.1 Turn on the power. Open the switch by pressing . The displaying windows displays from “F----0”to “F----9” and after a certain time for stabilizing, 0·0 “... -
Page 6: Data Transmission
3.7. Count function 3.7.1 Choose samples. To precisely count the articles, firstly the quantity of samples for counting should be chosen in according with the weights of the articles. The quantity of samples can be chosen from “1-10-20-50-100”. For a small number of articles, the larger quantity of samples, the more precise. - Page 7 3.8.1 Transmission format: serial asynchronous 3.8.2 Serial communication protocol: Baud rat: 600, data: 8 units, starting: 1 unit, ending: 1unit 3.8.3 Data format: Starting spaces data symbol ending enter 2unit 7units 3unit 1 unit 1 unit 3.8.4 Check bits: no check bits 3.8.5 Output pins content (9-core socket): 2 pins: RXD 3 pins: TXD 5pins: GND...
-
Page 8: Structure
6. Structure 1. TARE key 2. Background light key 3. COUNT key 4. Kg/lb key for unit change 5. PRINT key 6. ON/OFF key 7. Special signal interface 8. RS 232 interface 9. Power supply P a g e... -
Page 9: Caution For Operation
7. Cautions for operation 7.1 For best performance, the balance should be put on an stable desk, where there is no vibration. 7.2 Using environment: indoor, max. Altitude: 2000m, temperature: 0-40℃, humidity ≤80%, Power fluctuations less than ±10% 7.3 The electronic scale is a precision instrument which needs to be gently handled during the weighing of articles. -
Page 10: Trouble Shooting
8. Trouble Shooting Problems Possible causes Measures to take Display shows nothing 1. The ON/OFF switch is 1.the ON/OFF switch must defect be changed 2.Internal Circuit is defect please contact service department The message „F—2“ 1.A/D-switch problem please contact our service 2.Sensor is defect department The message „F—3“... -
Page 11: Packing List
9. Packing List Article Description Quantity Remarks Operation manual Scale pan Power cable 10. Disposal Meaning of crossed –out wheeled dustbin: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact you local government for information regarding the collection systems available.
