Syntron Material Handling PowerPulse 7200-006-A Installation Operation & Maintenance

(115v) ac control

Syntron® PowerPulse

■■■■■■■■■■■■■■■■■■■■■ INSTALLATION ■ OPERATION ■ MAINTENANCE

Thank you for buying your equipment from SYNTRON. This manual will help you to understand

how your equipment operates and what is required to maintain peak performance. Please read

it thoroughly and keep it on file for reference.

Your satisfaction is important to us, so please direct any comments to our Marketing

Communications department.

Date Purchased: ______________________

Part No.: _____________________________

Serial No.: ____________________________

Factory Order No.: _____________________

INTRODUCTION

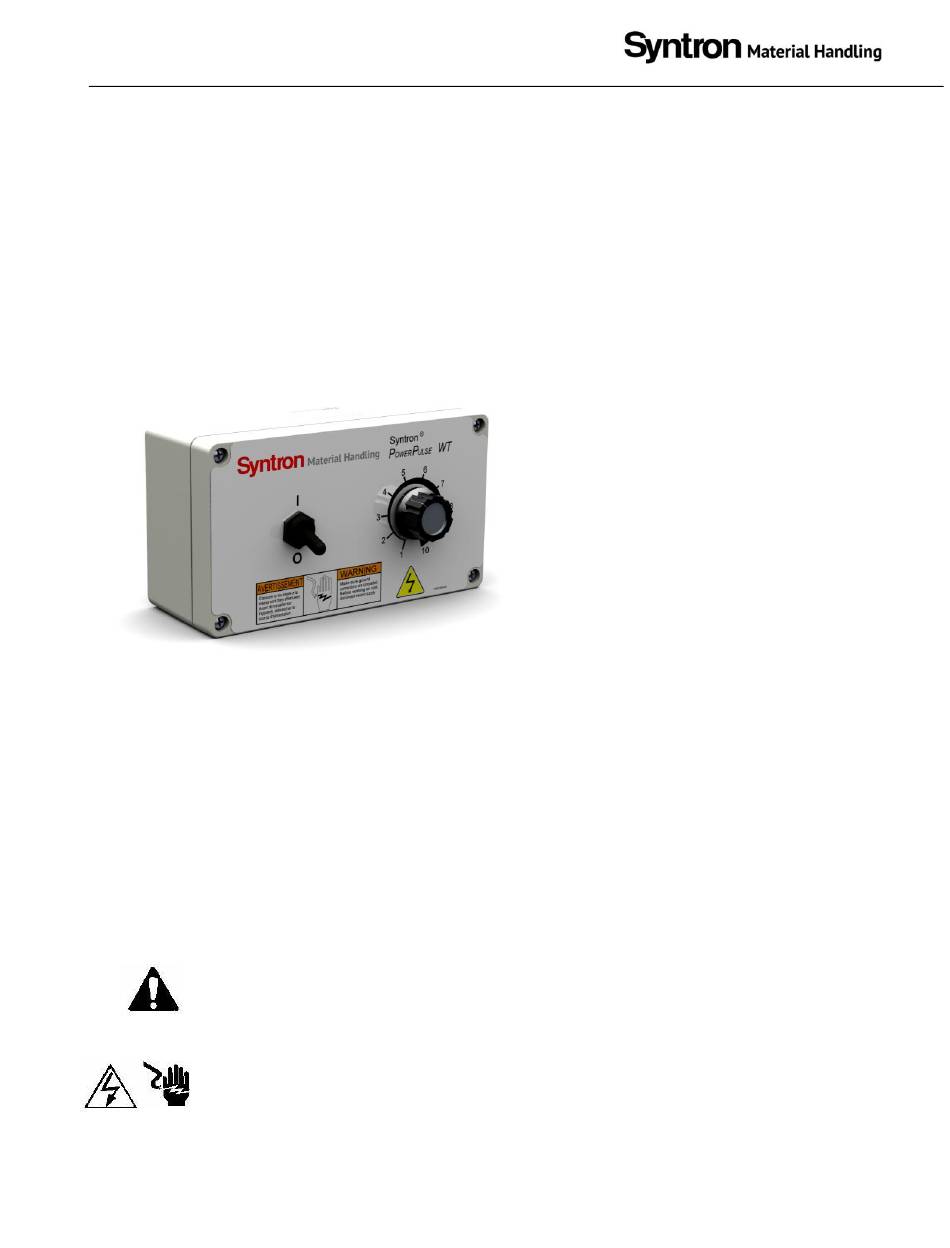

The PowerPulse WT 115V AC control regulates the vibration amplitude of feeders and vibrators through phase

control provided by a triac (TRC). The printed circuit board (PCB) includes an OFF-ON line switch, a terminal

block, and a triac for full-wave AC phase control. It also includes a potentiometer for controlling the voltage to

the equipment. An intermittent switch provides the OFF/ON switching capability typically required when the

PowerPulse control is used with a flow switch or a parts detector.

Product safety labels must remain highly visible on the equipment. Establish a

regular schedule to check visibility. If safety labels should require replacement,

contact SYNTRON Material Handling, for an additional supply free of charge.

WARNING: These instructions and safety precautions must be followed. There is

a hazard of electrical shock to the operator. NOTE: Local safety codes and

regulations must be considered when installing and/or operating this control.

(115V) AC Control

SM0091 082214

Table of Contents

Do you have a question about the PowerPulse 7200-006-A and is the answer not in the manual?

Page 1 Product safety labels must remain highly visible on the equipment. Establish a regular schedule to check visibility. If safety labels should require replacement, contact SYNTRON Material Handling, for an additional supply free of charge. WARNING: These instructions and safety precautions must be followed. There is a hazard of electrical shock to the operator.
Page 2 INSTALLATION The voltage and frequency of the power supply must match the designation on the control nameplate. The control assembly should be installed close to the equipment, where it is easily seen by and accessible to the operator. Installation on a wall in a clean, dry, vibration-free location is recommended. Ambient temperature should not exceed 100ºF (40ºC).
Page 3 TROUBLESHOOTING PROBLEM CAUSE CORRECTION Open fuse *Replace fuse No power from the control Loose Repair connection Defective *Replace PCB Defective *Replace PCB No control of power from the control. Equipment runs at full capacity or with a weak hum. There is no definite stroke. *Replace only with parts recommended or supplied by SYNTRON.
Page 4 Syntron Material Handling, LLC obligations on its part, materials, equipment specifications and models. Syntron Material Handling, LLC also reserves the right to discontinue the manufacture of models, parts, and components thereof.
