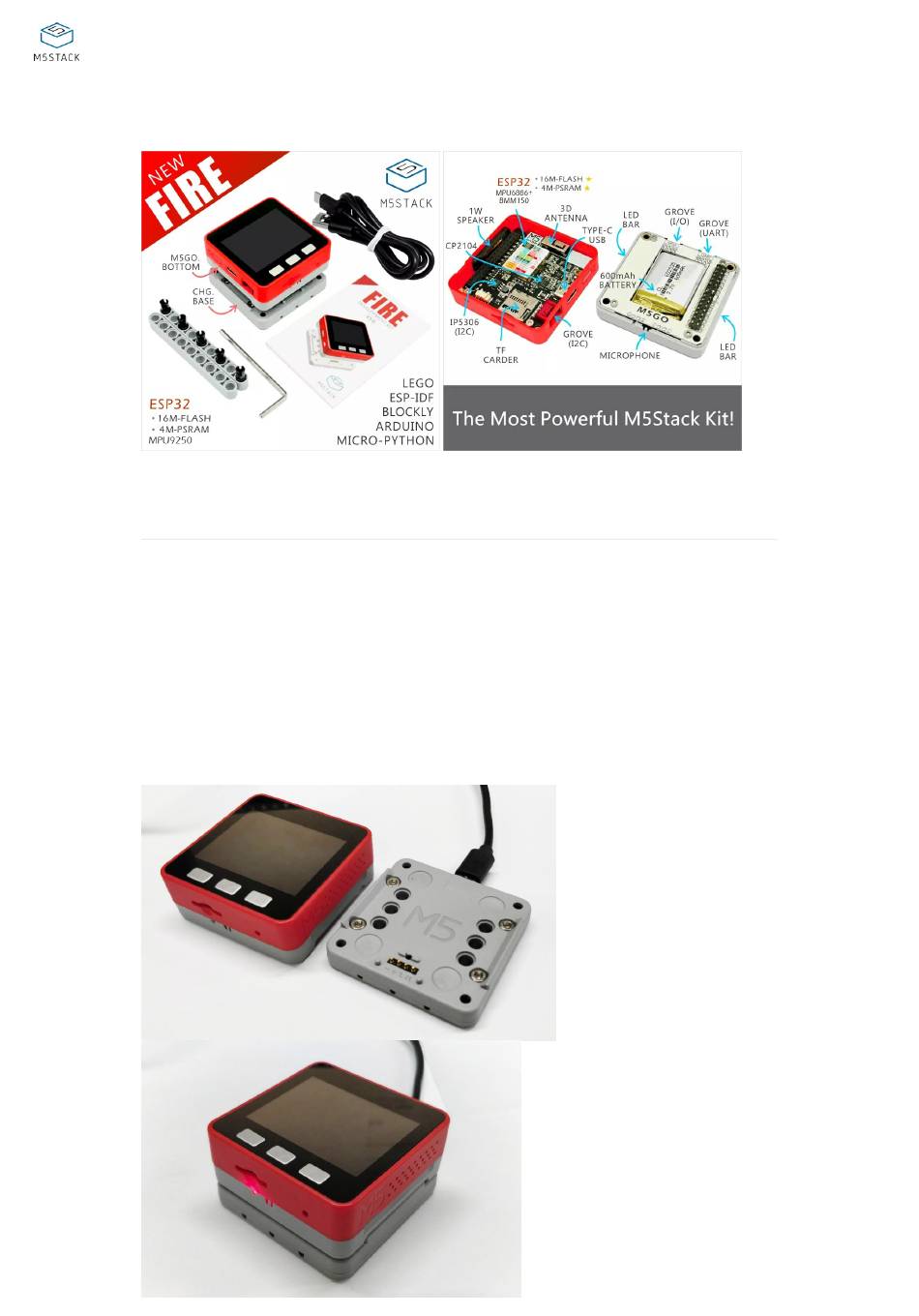

M5Stack Docs
FIRE
Description
M5Stack FIRE Kit
is a upgrade from the Gray kits,except the 9-Axis IMU sensor. It provides more
hardware resources : 16M Flash + 4M PSRAM , enhanced Base (M5GO Base and M5GO CHG Base), larger
battery, etc.
With a IMU posture sensor, you can include posture detection in your work : accelerated speed,
angulation, and trajectory deection. You can make relative products like sports data collector, 3D remote
gesture controller and more.
FIRE
is M5 Core device. Its modular, stackable, scalable, and portable device is powered with an ESP-32
core, which makes it open source, low cost, full-function, and easy for developers to handle new product
development on all stages include circuit design, PCB design, software, mold design and production.
1/7
Advertisement
Table of Contents
Related Manuals for M5Stack FIRE
Summary of Contents for M5Stack FIRE
- Page 1 M5Stack Docs FIRE Description M5Stack FIRE Kit is a upgrade from the Gray kits,except the 9-Axis IMU sensor. It provides more hardware resources : 16M Flash + 4M PSRAM , enhanced Base (M5GO Base and M5GO CHG Base), larger battery, etc.
- Page 2 M5Stack library to the latest version (after 0.2.8) to solve this problem. Notice2: The GPIO 16 / 17 in Fire is connected to the PSRAM by default, so when you connect or stack other function modules, you need to avoid conflicts with these two pins to prevent the device from working...
- Page 3 M5Stack Docs 5V DC power supply USB Type-C ESP32-based Case Material: PC + ABS 16 MB Flash 4 MB PSRAM BMM150 + MPU6886 Speaker, 3 Buttons, LCD(320*240), 1 Reset 2.4G Antenna: Proant 440 TF card slot (16G Maximum size) Battery Socket & 500 mAh Lipo Battery Extendable Pins &...
- Page 4 Speaker M5Stack Docs GROVE Port A & IP5306 We've use the customized I2C version of IP5306, on power management. Its I2C address is 0x75. ESP32 Chip GPIO22 GPIO21 5V GND GROVE A 5V GND IP5306 5V GND IP5306 charging/discharging Voltage parameter...
- Page 5 2, Get a M5GO bottom, which comes with a PortB. 3, Get a PbHUB and connect it with PortA, then you can have 6 PortBs. For more information about Pin assignment and Pin Remapping, Please refer to EPS32 Datasheet Include 1x FIRE 1x M5GO CHG Base 2x LEGO block 5x LEGO connector...
- Page 6 M5Stack Docs Schematic BASIC Related Link Datasheet ESP32 MPU6886 BMM150 SH200Q Register Manual IP5306 Version Change Release Date Product Change 2018.6 Initial public release 2019.7 MPU9250 changed to SH200Q+BMM150, TN screen changed to IPS screen 2019.8 SH200Q changed to MPU6886 2019.11...
