M5Stack Docs

M5StickC

Description

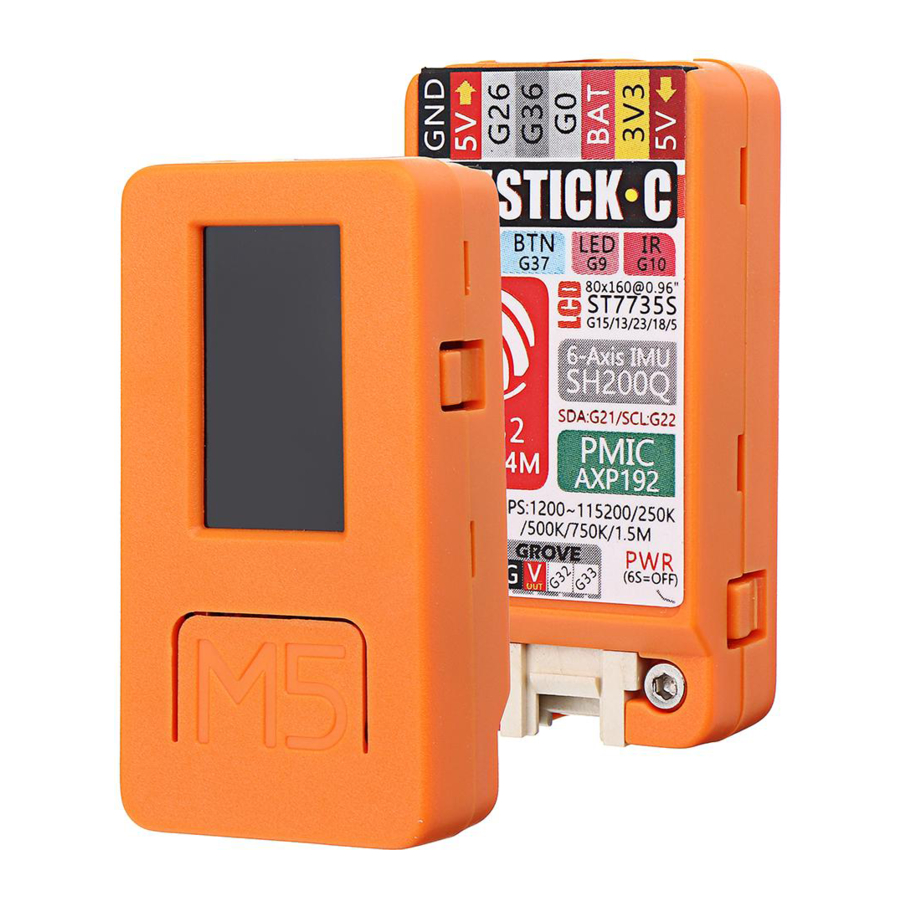

M5StickC

is a mini M5Stack, powered by ESP32. It is a portable, easy-to-use, open source, IoT

development board.

What it can do? This tiny block is able to realize your idea, enlighten your creativity, and help with your

IoT prototying in a very short time. It will takes away a lot of the pains form the development process.

M5stickC is one of the core devices in M5Stack product series which is built in a continues growing

hardware & software ecosystem. It has a lot of compatible modules & units, as well as the open source

code & engineering community that will help you maximum your benefit in every step of the developing

Power on ：Long press power button for 2 seconds

Power off ：Short press power button for 6 seconds

Notice:

Baudrate supported by M5StickC: 1200 ~115200, 250K, 500K, 750K, 1500K

Only Orange type is available for now

Notice:

M5StickC only supports WIN10 & Linux & MAC free drive, the rest of the operating system requires users

to install the driver.

Installation steps: 1. Click the link below to download the driver installation package. 2. Connect the

device and open the Computer Device Manager port option. 3. Right click on the unrecognized device

and perform a manual update.

Table of Contents

Do you have a question about the M5StickC and is the answer not in the manual?

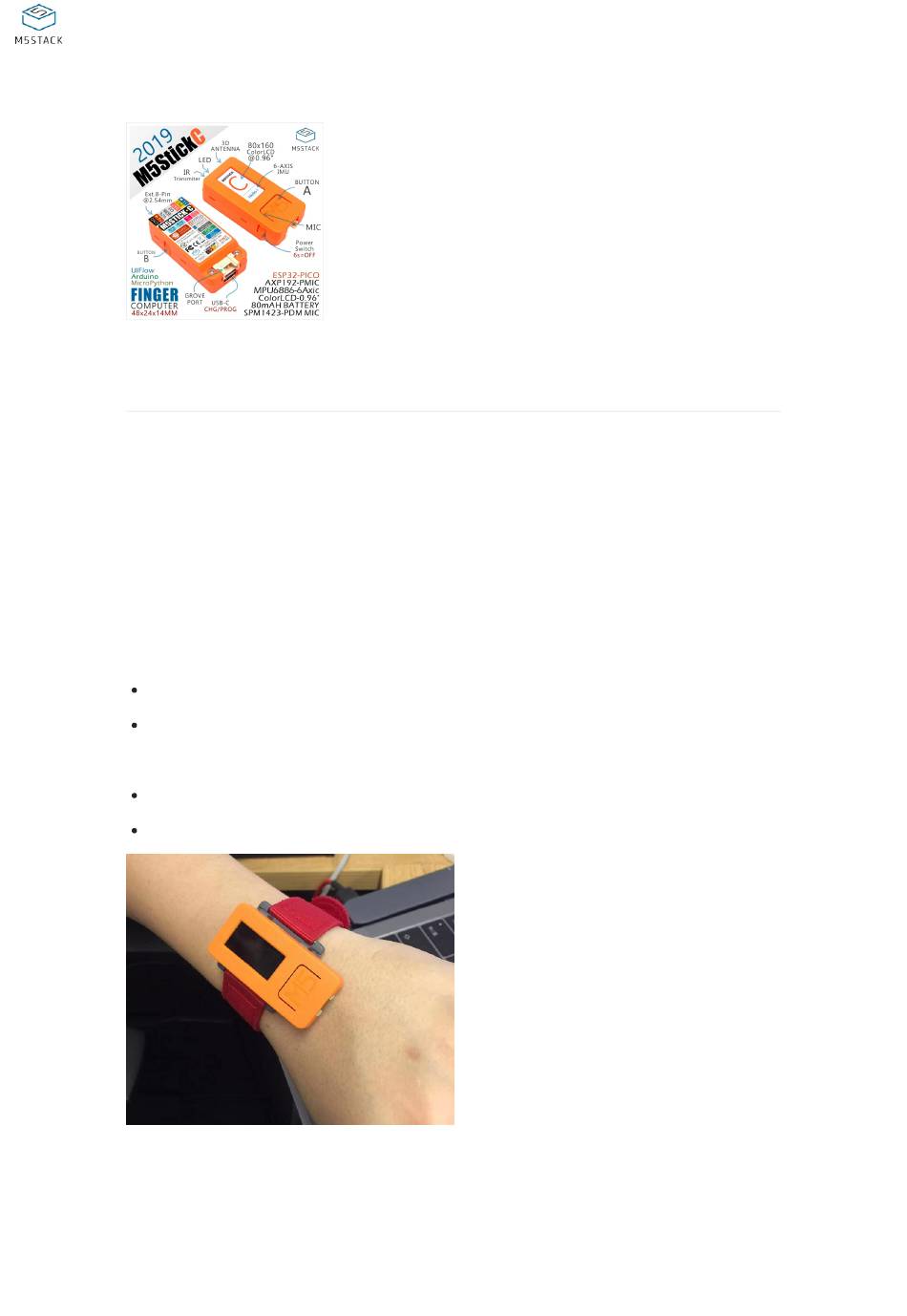

Page 1 IoT prototying in a very short time. It will takes away a lot of the pains form the development process. M5stickC is one of the core devices in M5Stack product series which is built in a continues growing hardware & software ecosystem. It has a lot of compatible modules & units, as well as the open source code &...
Page 2 Driver download Link M5Stack Docs Product Features 5V DC power supply USB Type-C ESP32-based Case Material: PC + ABS 4 MByte Flash 6-Axis IMU: MPU6886 Red LED IR transmitter Microphone 2 Buttons, LCD(0.96 inch), 1 Reset 2.4G Antenna: Proant 440...
Page 3 2. After downloading the software, double-click to run the application, connect the M5 device to the computer through the data cable, select the port parameters, click "Burn" to start burning. (For M5StickC burning, please Set the baud rate to 750000 or 115200) Schematic PinMap...
Page 4 M5Stack Docs RED LED & IR Transmitter & BUTTON A & BUTTON B ESP32 GPIO10 GPIO9 GPIO37 GPIO39 RED LED LED Pin IR Transmitter Transmitter Pin BUTTON A Button Pin BUTTON B Button Pin TFT LCD Driver IC ST7735S Resolution 80 * 160...
Page 5 Package weight:33g Related Link datasheet ESP32-PICO ST7735S BM8563 MPU6886 SH200Q AXP192 SPM1423 Version Change Release Date Product Change 2019.3 Initial public release 2019.8 SH200Q changed to MPU6886 2019.10 Upgrade the bottom and add copper nuts Example Arduino M5StickC facory test code...
