  • Page 1 Installation instruction GXP P.INS.GXP.01.NL Let’s Gear Up! VERSIE 1 – 2020 / 03 / 01...
  • Page 2: Declaration Or Incorporation

    Machine Directive. Authorised compiler of the technical documents: Rob Sandberg General Manager De Gier B.V. Wateringen, 01-09-2020 De Gier B.V., Westlandseweg 9, 2291 PG WATERINGEN, THE NETHERLANDS, +31 (0)174 292089, sales@degierdrivesystems.com, www.degierdrivesystems.com Versie 1 – 2020 / 03 / 01...
  • Page 3: Table Of Contents

    11. Disposal....................................22 12. Warranty...................................22 Glossary....................................23 13. Wiring diagram 400V 1~............................25 14. Wiring diagram 230V 1~............................26 De Gier B.V., Westlandseweg 9, 2291 PG WATERINGEN, THE NETHERLANDS, Tel. +31 (0)174 292089, Email: sales@degierdrivesystems.com, www.degierdrivesystems.com Versie 1 – 2020 / 03 / 01...
  • Page 4: Dimensions

    Dimensions De Gier B.V., Westlandseweg 9, 2291 PG WATERINGEN, THE NETHERLANDS, +31 (0)174 292089, sales@degierdrivesystems.com, www.degierdrivesystems.com Versie 1 – 2020 / 03 / 01...
  • Page 5: Technical Specifications

    277/480 (3~) 1,2/0,7 *1) Ask for the extensive possibilities of 60 Hz motors and Dual Voltage motors De Gier B.V., Westlandseweg 9, 2291 PG WATERINGEN, THE NETHERLANDS, +31 (0)174 292089, sales@degierdrivesystems.com, www.degierdrivesystems.com Versie 1 – 2020 / 03 / 01...
  • Page 6: Explanation Of Symbols And Safety Instructions

    Do not hose down Remove the red venting screw Live parts PE connection point (earthing) Read the documentation De Gier B.V., Westlandseweg 9, 2291 PG WATERINGEN, THE NETHERLANDS, +31 (0)174 292089, sales@degierdrivesystems.com, www.degierdrivesystems.com Versie 1 – 2020 / 03 / 01...
  • Page 7 • De Gier supplies motor gearboxes that are self-locking. Under certain circumstances the self-locking may not work. Therefore, in case of lifting applications, we strongly recommend the use of a motor gearbox equipped with an electric motor that is fitted with a mechanical brake and to apply a fall-stop protection to the driven shaft;...
  • Page 8: Productname And User Instructions

    2. Product name and user instructions 2.1 Manufacturer Please find the address details of De Gier B.V. underneath; De Gier B.V. www.degierdrivesystems.com Westlandseweg 9 sales@degierdrivesystems.com NL-2291 PG Wateringen +31 174 292 089 The Netherlands 2.2 Identification sticker 1. Article number 2.
  • Page 9: Instructions For Use

    If you wish to store the motor gearboxes for a longer period of time, you can make use of protective agents to pro- tect unvarnished surfaces, such as threaded holes and the assembly surfaces for coupling sleeves, against corrosion. De Gier B.V., Westlandseweg 9, 2291 PG WATERINGEN, THE NETHERLANDS, +31 (0)174 292089, sales@degierdrivesystems.com, www.degierdrivesystems.com...
  • Page 10: Mounting Instructions

    ● Use a cherry picker, or hoist the motor gearbox upwards by use of a hoisting device and suitable straps which should be placed around the outgoing shafts. De Gier B.V., Westlandseweg 9, 2291 PG WATERINGEN, THE NETHERLANDS, +31 (0)174 292089, sales@degierdrivesystems.com, www.degierdrivesystems.com...

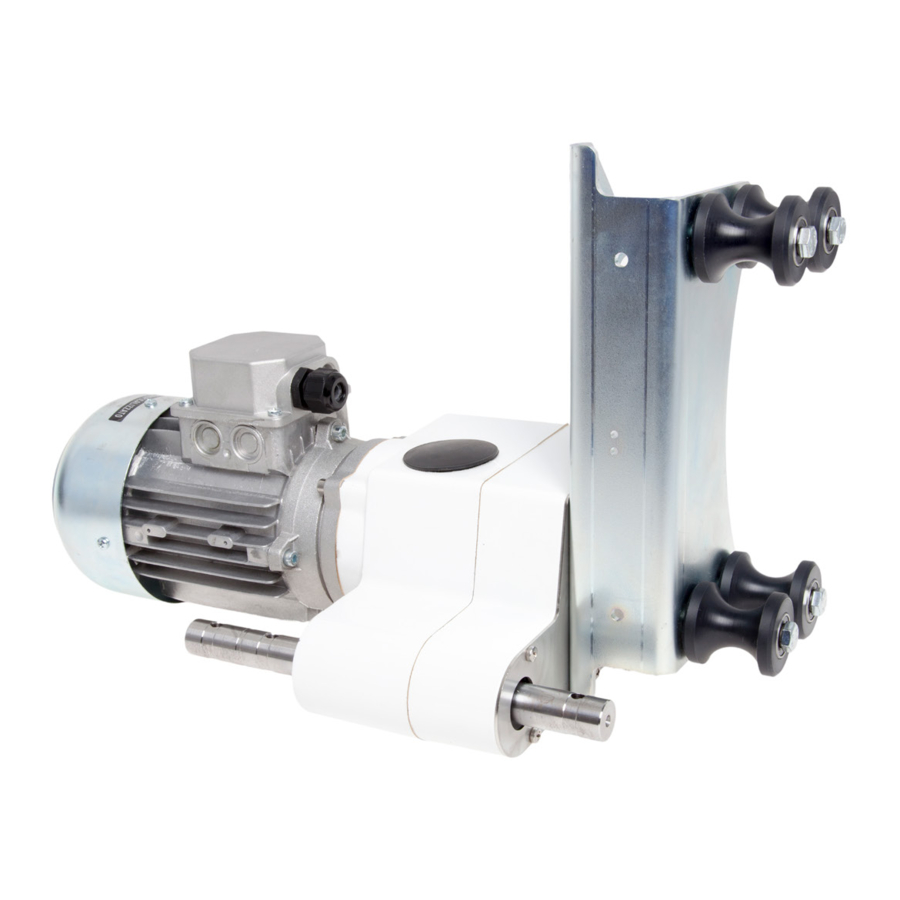

  • Page 11 4.2.2 Installation sequence For easy installation, 4 main steps should be followed, as shown below; Connect the coupling sleeves to the roll-up tubes. Slide the outgoing shaft of the GXP10 into the right-hand coupling sleeve. Position the GXP10 in line with the left-hand coupling sleeve.
  • Page 12 4. Mounting configurations 4.2.3 Mounting configurations The GXP10 motor gearbox can be mounted to the guidance tube in three different ways as shown in the Illustration below. GXP to the right, bracket up GXP to the right, bracket down GXP to the left, bracket down ...
  • Page 13 (see detail X). These configurations are therefor only permitted when the screens are controlled simultaneously.          De Gier B.V., Westlandseweg 9, 2291 PG WATERINGEN, THE NETHERLANDS, +31 (0)174 292089, sales@degierdrivesystems.com, www.degierdrivesystems.com Versie 1 – 2020 / 03 / 01...
  • Page 14 Secure the limit switch unit above the switch axle (A) by screwing both Phillips head screws hand-tight. De Gier B.V., Westlandseweg 9, 2291 PG WATERINGEN, THE NETHERLANDS, +31 (0)174 292089, sales@degierdrivesystems.com, www.degierdrivesystems.com...
  • Page 15 Do not keep loose parts or documents underneath the stainless-steel protective plate. This could impede the functioning of the limit switch system! De Gier B.V., Westlandseweg 9, 2291 PG WATERINGEN, THE NETHERLANDS, +31 (0)174 292089, sales@degierdrivesystems.com, www.degierdrivesystems.com Versie 1 – 2020 / 03 / 01...
  • Page 16 Hexagonal wrench and spare set screws Driving motor gearbox using hexagonal tool Adjustment of the limit switch De Gier B.V., Westlandseweg 9, 2291 PG WATERINGEN, THE NETHERLANDS, +31 (0)174 292089, sales@degierdrivesystems.com, www.degierdrivesystems.com Versie 1 – 2020 / 03 / 01...
  • Page 17: Electrical Connection And Commissioning

    Ensure that the cables are clear of any moving parts. (PE/GND) Aansluitklemmen elektromotor (3 fase) De Gier B.V., Westlandseweg 9, 2291 PG WATERINGEN, THE NETHERLANDS, +31 (0)174 292089, sales@degierdrivesystems.com, www.degierdrivesystems.com Versie 1 – 2020 / 03 / 01...
  • Page 18 Ensure that the cables are free and tighten the cable glands. Fit the stainless-steel protective plate back onto the motor gearbox. Wiring diagram work- and emergency switches De Gier B.V., Westlandseweg 9, 2291 PG WATERINGEN, THE NETHERLANDS, +31 (0)174 292089, sales@degierdrivesystems.com, www.degierdrivesystems.com Versie 1 – 2020 / 03 / 01...
  • Page 19: Use

    Check the electrical connection of the electric motor and the limit switch system • Check the play on the output shaft De Gier B.V., Westlandseweg 9, 2291 PG WATERINGEN, THE NETHERLANDS, +31 (0)174 292089, sales@degierdrivesystems.com, www.degierdrivesystems.com Versie 1 – 2020 / 03 / 01...
  • Page 20: Maintenance And Disassembly

    Please note! Gear parts may only be replaced or repaired by an authorised service of De Gier B.V. 8.1 Dismounting the motor gearbox from the roll-up tube Put the motor gearbox in an unloaded position, for instance with the roll-up tube resting entirely on the greenhouse floor.
  • Page 21: Troubleshooting

    If the screen cloth (or foil) does not roll up evenly, it is possible that the weight of the motor gearbox causes the cloth to sag. This can be resolved by applying a counter-weight or mounting a strip of Dacron tape right next to the GXP10. This non-stretching tape will then carry the weight of the motor gearbox and is rolled up simultaneously with the screen cloth.
  • Page 22: Replacing And Removing Parts

    Parts may only be replaced by qualified staff. Only use original spare parts and original lubricants. For product safety reasons, De Gier B.V. will supply only complete motor gearboxes, limit switches and potentiometers as replacement parts. Gear unit parts may only be replaced or repaired by an authorised service provider of De Gier B.V. 11. Disposal Caution! Improper disposal of waste oil is a hazard to the health and the environment.
  • Page 23: Glossary

    An (electric)motor with gear unit to reduce the shaft speed. Radiaal A force perpendicular to the shaft. Relais A switch operated by an electro-magnet. De Gier B.V., Westlandseweg 9, 2291 PG WATERINGEN, THE NETHERLANDS, +31 (0)174 292089, sales@degierdrivesystems.com, www.degierdrivesystems.com Versie 1 – 2020 / 03 / 01...
  • Page 24 The gear unit can only be driven by the electric motor, the output shaft cannot be moved (by the load). De Gier B.V., Westlandseweg 9, 2291 PG WATERINGEN, THE NETHERLANDS, +31 (0)174 292089, sales@degierdrivesystems.com, www.degierdrivesystems.com Versie 1 – 2020 / 03 / 01...
  • Page 25: Wiring Diagram 400V 1

    K41: Emergency stop relay Fixed connection plate Voltage on limitswitch [V] Minimum current [mA] Maximum current [A] De Gier B.V., Westlandseweg 9, 2291 PG WATERINGEN, THE NETHERLANDS, +31 (0)174 292089, sales@degierdrivesystems.com, www.degierdrivesystems.com Versie 1 – 2020 / 03 / 01...
  • Page 26: Wiring Diagram 230V 1

    14. Wiring diagram 230V 1~ Q1/1 De Gier B.V., Westlandseweg 9, 2291 PG WATERINGEN, THE NETHERLANDS, +31 (0)174 292089, sales@degierdrivesystems.com, www.degierdrivesystems.com Versie 1 – 2020 / 03 / 01...
