The OZONE XLM Series Front Panel

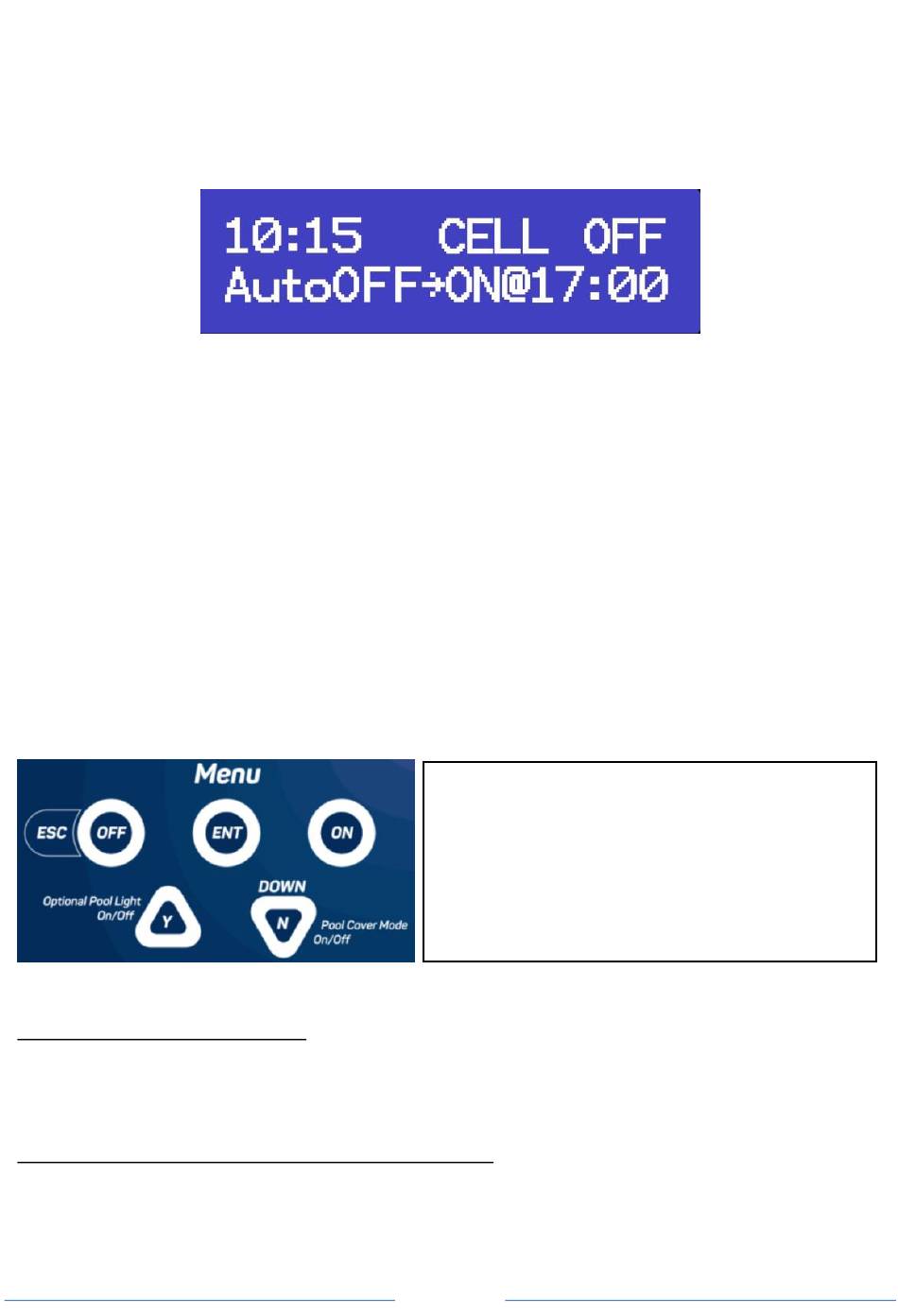

Ozone XLM Series Display
The Ozone XLM Series uses a two line LCD display to provide the user with information.
The first line of the display shows the current time and the cell status and output.
In the example above the time is 10.15am and the Cell is "OFF". If the Cell is on, the
output of the Cell will be displayed. If the output of the Cell has been set at lower than
100%, "CELL OFF" will be displayed intermittently even while the unit is running as the Cell
regulates output. (See Chlorine Output Menu on page 16 for more details)
The second line of the display shows the automatic timer status.
In the example above, the automatic timer status is "OFF" and the display is telling you that
the Ozone XLM Series will turn on again at 17:00 or 5pm.
Note that the Ozone XLM Series displays the time using a 24 hour clock.
OZONE XLM Series Operational Buttons
Your Ozone XLM Series has 5 buttons that allow you to control the various functions
available via the Ozone XLM Series Menu system.
ON Button
Turn the System On Manually: Press ON once to switch the Ozone XLM Series and pool
pump on manually. The Ozone XLM Series will default back to AUTO and turn itself off
automatically at the end of the next programmed FILTER CYCLE (the time will be
displayed on the LCD).
Increasing Manual Run-time in Hourly Increments: Press ON repeatedly (or hold the
button down) to increase the manual run time in hourly increments. The run time is
displayed on the LCD. When the desired run time has been reached, press ENT to
confirm your selection and the system will commence operation.
Each button is labelled with its primary function
either on the button itself, or adjacent to it.
Secondary functions are labelled within a curved
white outline next to the relevant button. The
buttons are backlit to show which are active at
any given time, although the ESC/OFF button is
always available to take you back to the home
screen.
