Delta 900 Quick Start Manual

Delta 900 Quick Start Manual

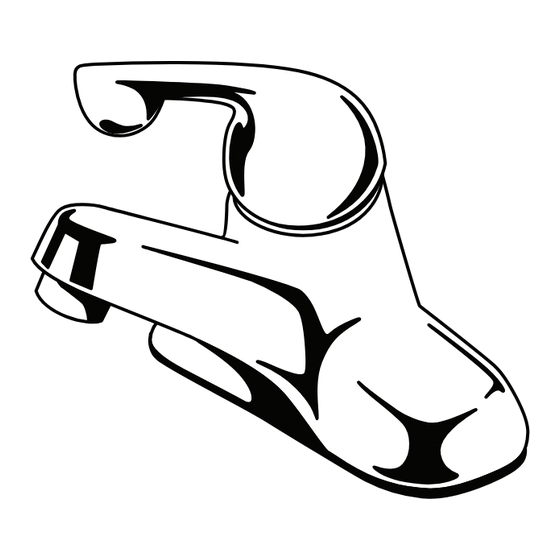

Single handle lavatory faucets

Advertisement

Quick Links

ASME A112.18.1 / CSA B125.1
Models/Modelos/Modèles
900, 920
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
You may need/Usted puede necesitar/Articles dont vous pouvez avoir besoin:
For easy installation of your Delta
faucet, you will need:
• To READ ALL the instructions completely before
beginning.
• To READ ALL warnings, care and maintenance
information.
• To purchase the correct water supply hook-up.
Para instalación fácil de su llave Delta
usted necesitará:
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet Delta
facilement, vous devez :
• LIRE TOUTES les instructions avant de
débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Acheter le bon nécessaire de raccordement.

SINGLE HANDLE LAVATORY FAUCETS

LLAVES MONOCONTROL DE MONTURA
MONTURA PARA LAVAMANOS
ROBINETS DE LAVABO À UNE MANETTE
3.18 mm (1/8")
3.18 mm (1/8 po)
1
204753 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 900 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Delta 900

  • Page 1 • To READ ALL warnings, care and maintenance information. • To purchase the correct water supply hook-up. Para instalación fácil de su llave Delta usted necesitará: • LEER TODAS las instrucciones completamente antes de empezar. • LEER TODOS los avisos, cuidados, e información de mantenimiento.
  • Page 2 1/2" (12.70mm) IPS 1/2 po (12.70mm) IPS Remove aerator (1) and turn faucet handle (2) all the SHUT OFF WATER SUPPLIES way on. Turn on hot and cold water supplies (3) and Remove old faucet. Position faucet (1) on sink. flush water lines for one minute.
  • Page 3 Removable Non-removable Desmontable Fijo Amovible Non-amovible Remove stopper (1), black gasket (2) and nut (3) before Install pivot rod and stopper (7) as removable or installing pop-up. non-removable. Be sure O-ring is in the pivot opening (8). Important: Snap both sides of clamp (9) firmly into Install body (4) with white foam gasket under flange (5).
  • Page 4 RP21874 Handle with Set Screw Manija con Tornillo de Ajuste RP28906 Manette avec Vis de Button Calage Botón Bouton RP152 Set Screw Tornillo de Ajuste Vis de Calage RP1050 Tapón Embase RP61 Cam w/Packing Leva con Empaque Came et Garniture RP70 Ball Assembly Ensamble de la Bola...
  • Page 5 Any damage to this faucet Delta Faucet Company Delta Faucet Canada (a division of Masco Canada Limited) as a result of misuse, abuse or neglect, or any use of other than genuine Delta® replacement Product Service Technical Service Centre parts WILL VOID THE WARRANTY.

This manual is also suitable for:

920
