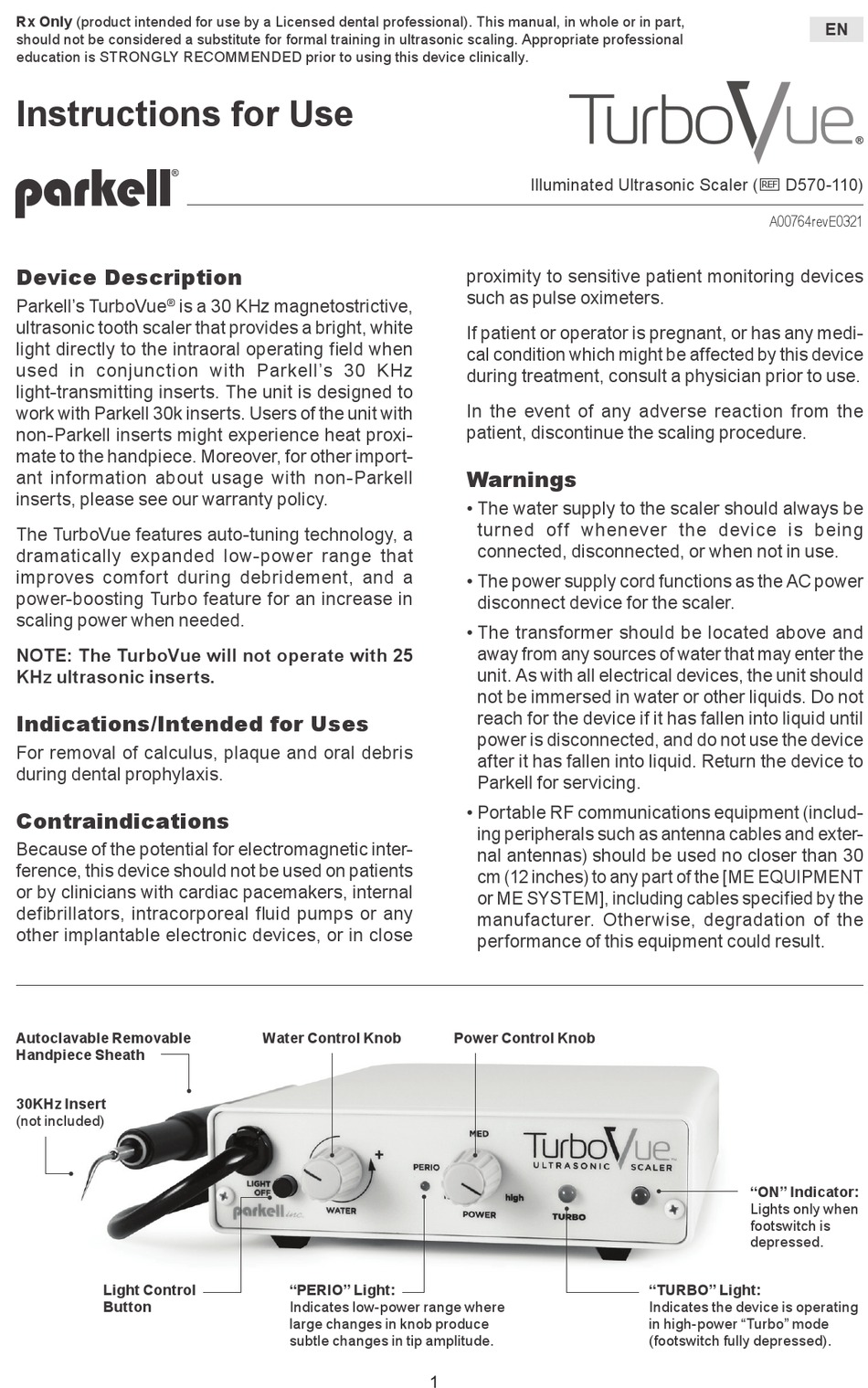

parkell Turbovue Instructions For Use Manual

Rx Only (product intended for use by a Licensed dental professional). This manual, in whole or in part,
should not be considered a substitute for formal training in ultrasonic scaling. Appropriate professional
education is STRONGLY RECOMMENDED prior to using this device clinically.
Instructions for Use
Device Description
Parkell's TurboVue is a 30 KHz magnetostrictive,
®
ultrasonic tooth scaler that provides a bright, white
light directly to the intraoral operating fi eld when
used in conjunction with Parkell's 30 KHz
light-transmitting inserts. The unit is designed to
work with Parkell 30k inserts. Users of the unit with
non-Parkell inserts might experience heat proxi-
mate to the handpiece. Moreover, for other import-
ant information about usage with non-Parkell
inserts, please see our warranty policy.
The TurboVue features auto-tuning technology, a
dramatically expanded low-power range that
improves comfort during debridement, and a
power-boosting Turbo feature for an increase in
scaling power when needed.
NOTE: The TurboVue will not operate with 25
KHz ultrasonic inserts.
Indications/Intended for Uses
For removal of calculus, plaque and oral debris
during dental prophylaxis.
Contraindications
Because of the potential for electromagnetic inter-
ference, this device should not be used on patients
or by clinicians with cardiac pacemakers, internal
defi brillators, intracorporeal fl uid pumps or any
other implantable electronic devices, or in close

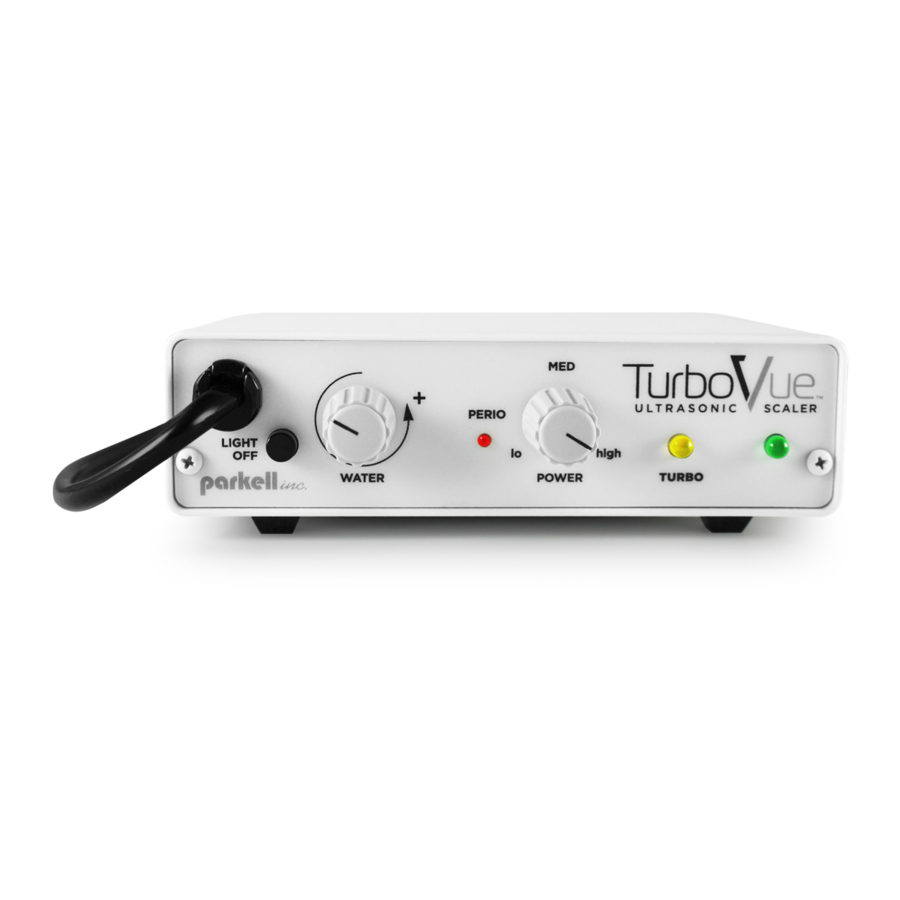

Autoclavable Removable
Handpiece Sheath
30KHz Insert
(not included)
Light Control
Button
Water Control Knob
"PERIO" Light:
Indicates low-power range where
large changes in knob produce
subtle changes in tip amplitude.
Illuminated Ultrasonic Scaler ( hD570-110)
proximity to sensitive patient monitoring devices
such as pulse oximeters.
If patient or operator is pregnant, or has any medi-
cal condition which might be affected by this device
during treatment, consult a physician prior to use.
In the event of any adverse reaction from the
patient, discontinue the scaling procedure.
Warnings
• The water supply to the scaler should always be
turned off whenever the device is being
connected, disconnected, or when not in use.
• The power supply cord functions as the AC power
disconnect device for the scaler.
• The transformer should be located above and
away from any sources of water that may enter the
unit. As with all electrical devices, the unit should
not be immersed in water or other liquids. Do not
reach for the device if it has fallen into liquid until
power is disconnected, and do not use the device
after it has fallen into liquid. Return the device to
Parkell for servicing.
• Portable RF communications equipment (includ-
ing peripherals such as antenna cables and exter-
nal antennas) should be used no closer than 30
cm (12 inches) to any part of the [ME EQUIPMENT
or ME SYSTEM], including cables specifi ed by the
manufacturer. Otherwise, degradation of the
performance of this equipment could result.
Power Control Knob
1
A00764revE0321
"ON" Indicator:
Lights only when
footswitch is
depressed.
"TURBO" Light:
Indicates the device is operating
in high-power "Turbo" mode
(footswitch fully depressed).
EN
