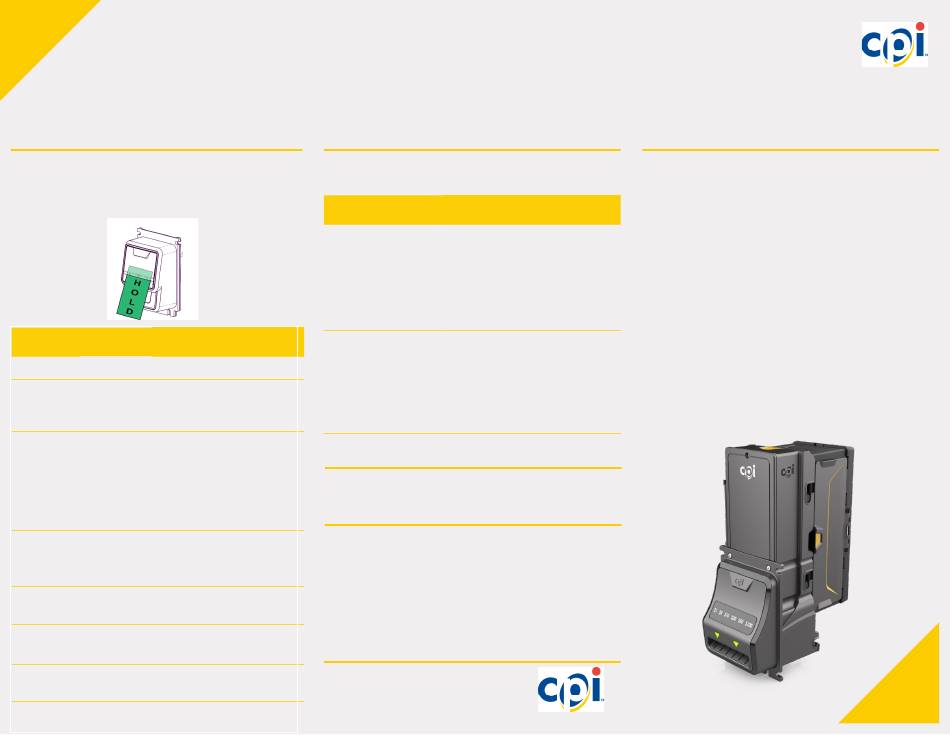

CPI TALOS T700 Install Manual

bezel led error flash codes
When the unit is ready and enabled, the bezel LEDs will flash continu-
ously. If the bezel LEDs are off, the unit has an error. To determine the
error, partially insert and hold a bill in the bill path until the bezel lights
flash. Count the flashes and refer to the chart below.
Flashes Problem Solution
None No power Restore power to validator or machine
1 or 4 Bill path
Check for jams. Remove bill
blocked magazine and lower housing
assembly and inspect
2 Another
Ensure the unit has been enabled,
vending then check:
component • Vending Machine Controller
• Coin manager and coin levels
• Inventory levels
• The door is locked properly
3 Lower
Check that the lower housing
housing assembly is seated. Ensure bill path
assembly is clean; see Cleaning section
5 Bill magazine Reattach bill magazine
removed
Continuous Stacker full Empty the bill magazine
fast
Continuous Unit is
Replace the unit
slow defective
Talos_Install_Guide_5.24.19.indd 1

Troubleshooting

These are some common, easy-to-solve issues that may pop up during
Installation:
If this happens Try
Check Harnesses: Cables may be
loose, not properly connected or pins
may be bent
The unit will not power
up
Check Source Voltage: Ensure that
power is being supplied to the bill
validator.
Ensure the unit has been enabled, then
check:
The unit has power, but
• Vending Machine Controller
will not accept a bill
• Coin manager and coin levels
• Inventory levels
• The door is locked properly

cleaning

The Talos bill validator will not need to be cleaned as often as magnetic
sensing bill acceptors. If cleaning is required, use a soft cloth moistened
with a mild, non-abrasive detergent.
Compliance
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (a)
This device may not cause harmful interference, and (b) this device must accept any interference received,
including interference that may cause undesired operation.
Except as permitted under the relevant local legislation, no part of this publication may be copied, trans-
mitted, transcribed, or distributed in any form or by any means, or stored in a database or retrieval system,
or translated in any language (natural or computer), without the prior written permission of CPI. MEI UK
International, MEI Cashflow® and the MEI device are registered trademarks.
CPI reserves the right to change the product or the product specifications at any time. While every effort
has been made to ensure that the information in this publication is accurate, CPI disclaims any liability for
any direct or indirect losses (howsoever caused) arising out of use or reliance on this information. This
document does not necessarily imply product availability. Note: Your product may differ slightly from some
of the illustrations in this document.
CPI Corporate Headquarters
3222 Phoenixville Pike
Suite 200
Malvern, PA 19355
CranePI.com

talos t700 install guide

The Talos bill validator is designed to fit into the standard bill acceptor
opening in most vending machines and can be mounted on existing
studs or a mounting bracket.

Features

– Four way bill acceptance
– Coupon and bill configuration
– Supports High Visibility and Credit Card Reader Bezels
Interface
The Talos bill validator operates via MDB interface. The 24VDC MDB
harness is included.
Operating Voltage
See the label on the side of the device.
