Teeter FreeStep Repacking Manual

Repacking Guide

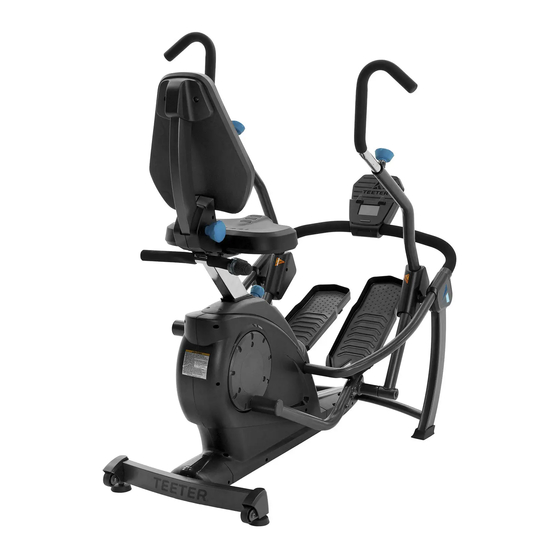

For the FreeStep
Please be sure to include all components of the FreeStep
Begin by using the repackaging boxes provided by Teeter. If you do not have the repackaging boxes, contact Teeter Customer Service
at 800-847-0143. Product returned in an unauthorized packing container may not be eligible for a complete refund.
DO NOT disassemble the product into more components than
the parts listed below (Figure A) .
1
Base
2
Rear Stabilizer
3
Rear Stabilizer Cover Set
4
Pedals
5
Seat Assembly
Removing the Handle Support Tubes
1
Start by removing the Pedal Arm Joint Cover Sets by
unscrewing the 2 × Phillips Head Screws on each set with
the screwdriver (Figure B).
2
Remove the Upper Front Leg Cover Sets by unscrewing the
3 × Phillips Head Screws on each set with the screwdriver
(Figure C).
3
Adjust the Handles so they are in the lowest position, and lock
them into place with the Handle Adjustment Knob (Figure D).
4
Remove the Handle Support Tubes by unscrewing the
4 × Bolts with the Allen Wrench and removing the
4 × Curved Washers on each Support Tube (Figure E).
5
Pull the Handle Support Tubes away from the Base,
(Figure F) and leave the Handles in the lowest position
inside the Handle Support Tubes.
Removing the Console Front Support Bar
6 Unplug the Speed Sensor Wire by carefully pushing in the
locking tab on the terminal and pulling the terminal ends
away from each other (Figure G).
7 Remove the Console Support Bar by unscrewing the
4 × Bolts with the Allen Wrench and removing the 4 ×
Curved Washers (Figure H).
8
Pull the Console Support Bar away from the Base (Figure I).
Specifications subject to change without notice.
EN
© COPYRIGHT 2020 Teeter; International law prohibits any copying. SE1060 0920-2
Elliptical Recumbent Cross Trainer
™
™
6
Console Front Support Bar
7
Handle Support Tubes with Handles
8
Pedal Arm Joint Cover Sets
9
Upper Front Leg Cover Sets
10
Tools Provided
in your returned order, otherwise you may not be eligible for a complete refund.

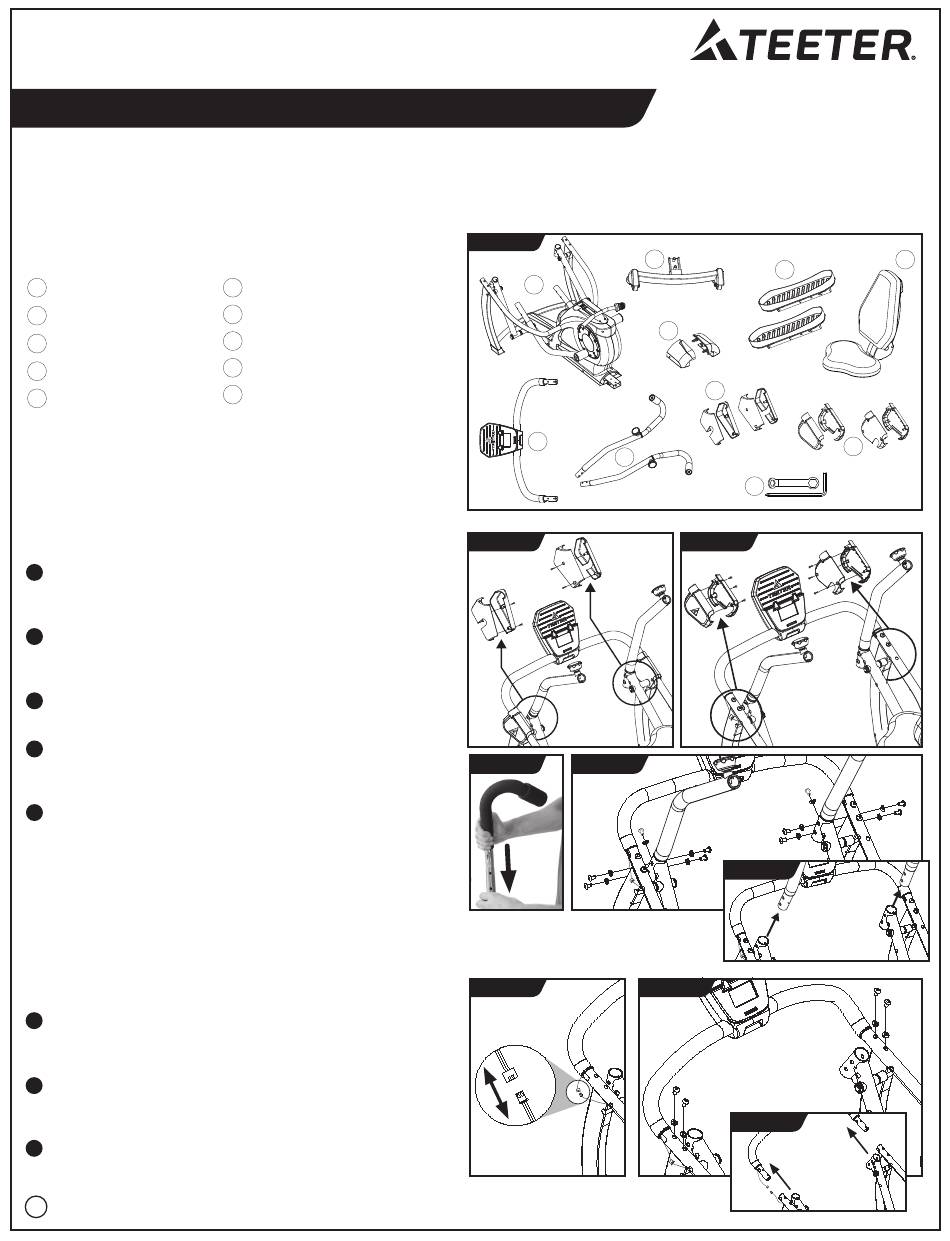

FIGURE A
